Toyota Dyna/toyoace BU61 REAR AXLE SHAFT & HUB

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU61-MDDJ (1988)
4102 - REAR AXLE SHAFT & HUB

BU61-MDDJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995

Engine 11B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

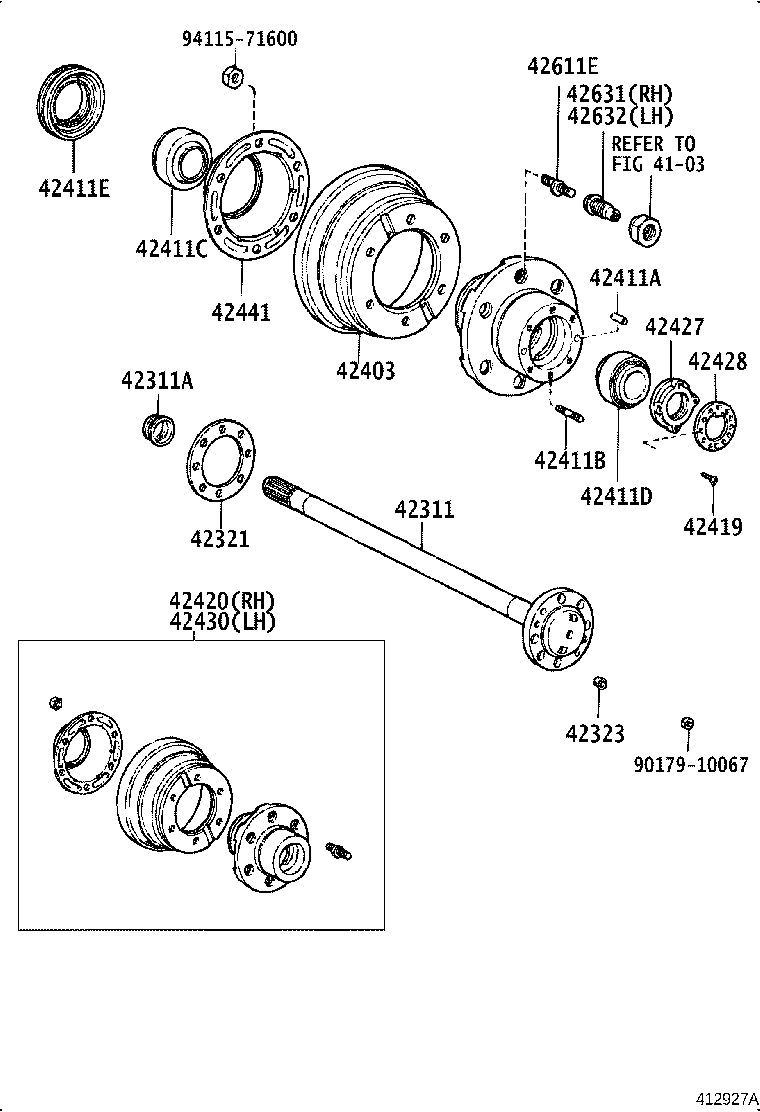

(8808- )BU60,61,66,70

Click highlighted areas on diagram

Part #	Description	Period	Qty
42311 - SHAFT, REAR AXLE
42311-36051	BU87..V;BU60,61,66,70..ST;BU87,88..(T3,TW1)..20T..DSL	08/1988 - 05/1995	2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-38033	BU60,61,70,83,84	03/1991 - 05/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-99065	BU60,61,66,70..ST	08/1988 - 05/1995	1
42321 - GASKET, REAR AXLE SHAFT
42321-36040	BU6#,7#,8#,94	08/1988 - 10/1990	2
42321-36050	BU6#,7#,8#,94	10/1990 - 03/1991	2
42321-36050	BU6#,7#,8#,94	05/1991 - 05/1995	2
42321-36050	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	12
42323-36010	BU60,61,70,83,84	03/1991 - 05/1991	12
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	12
42403 - DRUM SUB-ASSY, REAR BRAKE
43512-36020	BU60,61,66,70..ST	08/1988 - 05/1995	2
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10035	BU60,61,66,70..ST	08/1988 - 05/1995	2
42411A - PIN, STRAIGHT (FOR REAR AXLE HUB)
90250-10055	BU6#,7#,8#,94	08/1988 - 08/1990	4
90250-10055	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	4
90250-10055	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	4
90250-10055	BU6#,7#,83,84,87	05/1991 - 05/1995	4
90250-10055	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	4
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-10191	BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V	08/1988 - 08/1990	12
90116-10191	BU60,61,70,83,84	08/1990 - 05/1995	12
42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
90368-57010	BU6#,7#,8#,94	08/1988 - 08/1990	2
90368-57010	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90368-57010	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
90368-57010	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90368-57010	BU6#,7#,83,84,87	05/1991 - 05/1995	2
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-52043	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
90368-52043	BU6#,7#,8#,94	08/1988 - 03/1991	2
90368-52043	BU6#,7#,8#,94	05/1991 - 05/1995	2
42411E - SEAL, OIL (FOR REAR AXLE HUB)
90311-75003	BU6#,7#,8#,94	08/1988 - 08/1990	2
90311-75003	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90311-75003	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90311-75003	BU6#,7#,83,84,87	05/1991 - 05/1995	2
90311-75003	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
93311-16012	BU6#,7#,8#,94	08/1988 - 03/1991	4
93311-16012	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	4
93311-16012	BU6#,7#,8#,94	05/1991 - 05/1995	4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42427 - NUT, REAR AXLE BEARING LOCK
42427-36030	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42427-36030	BU6#,7#,8#,94	05/1991 - 05/1995	2
42427-36030	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428 - PLATE, REAR AXLE LOCK NUT
42428-36020	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428-36020	BU6#,7#,8#,94	05/1991 - 05/1995	2
42428-36020	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42430-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02024	BU60,61,66,70..ST 右側	08/1988 - 05/1995	1
90942-02025	BU60,61,66,70..ST 左側	08/1988 - 05/1995	1
Common parts
90179-10067
Linked diagrams
4103

(8808- )BU60,61,66,70

Click highlighted areas on diagram

Part #	Description	Period	Qty
42311 - SHAFT, REAR AXLE
42311-36051	BU87..V;BU60,61,66,70..ST;BU87,88..(T3,TW1)..20T..DSL	08/1988 - 05/1995	2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-38033	BU60,61,70,83,84	03/1991 - 05/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-99065	BU60,61,66,70..ST	08/1988 - 05/1995	1
42321 - GASKET, REAR AXLE SHAFT
42321-36040	BU6#,7#,8#,94	08/1988 - 10/1990	2
42321-36050	BU6#,7#,8#,94	10/1990 - 03/1991	2
42321-36050	BU6#,7#,8#,94	05/1991 - 05/1995	2
42321-36050	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	12
42323-36010	BU60,61,70,83,84	03/1991 - 05/1991	12
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	12
42403 - DRUM SUB-ASSY, REAR BRAKE
43512-36020	BU60,61,66,70..ST	08/1988 - 05/1995	2
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10035	BU60,61,66,70..ST	08/1988 - 05/1995	2
42411A - PIN, STRAIGHT (FOR REAR AXLE HUB)
90250-10055	BU6#,7#,8#,94	08/1988 - 08/1990	4
90250-10055	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	4
90250-10055	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	4
90250-10055	BU6#,7#,83,84,87	05/1991 - 05/1995	4
90250-10055	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	4
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-10191	BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V	08/1988 - 08/1990	12
90116-10191	BU60,61,70,83,84	08/1990 - 05/1995	12
42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
90368-57010	BU6#,7#,8#,94	08/1988 - 08/1990	2
90368-57010	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90368-57010	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
90368-57010	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90368-57010	BU6#,7#,83,84,87	05/1991 - 05/1995	2
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-52043	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
90368-52043	BU6#,7#,8#,94	08/1988 - 03/1991	2
90368-52043	BU6#,7#,8#,94	05/1991 - 05/1995	2
42411E - SEAL, OIL (FOR REAR AXLE HUB)
90311-75003	BU6#,7#,8#,94	08/1988 - 08/1990	2
90311-75003	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90311-75003	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90311-75003	BU6#,7#,83,84,87	05/1991 - 05/1995	2
90311-75003	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
93311-16012	BU6#,7#,8#,94	08/1988 - 03/1991	4
93311-16012	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	4
93311-16012	BU6#,7#,8#,94	05/1991 - 05/1995	4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42427 - NUT, REAR AXLE BEARING LOCK
42427-36030	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42427-36030	BU6#,7#,8#,94	05/1991 - 05/1995	2
42427-36030	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428 - PLATE, REAR AXLE LOCK NUT
42428-36020	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428-36020	BU6#,7#,8#,94	05/1991 - 05/1995	2
42428-36020	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42430-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02024	BU60,61,66,70..ST 右側	08/1988 - 05/1995	1
90942-02025	BU60,61,66,70..ST 左側	08/1988 - 05/1995	1
Common parts
90179-10067
Linked diagrams
4103

(8808- )BU61,66,83,84,87,88

Click highlighted areas on diagram

Part #	Description	Period	Qty
42311 - SHAFT, REAR AXLE
42311-36051	BU87..V;BU60,61,66,70..ST;BU87,88..(T3,TW1)..20T..DSL	08/1988 - 05/1995	2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-38033	BU60,61,70,83,84	03/1991 - 05/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	2
42321 - GASKET, REAR AXLE SHAFT
42321-36040	BU6#,7#,8#,94	08/1988 - 10/1990	2
42321-36050	BU6#,7#,8#,94	10/1990 - 03/1991	2
42321-36050	BU6#,7#,8#,94	05/1991 - 05/1995	2
42321-36050	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	12
42323-36010	BU60,61,70,83,84	03/1991 - 05/1991	12
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	12
42403 - DRUM SUB-ASSY, REAR BRAKE
43512-36020	BU60,61,66,70..ST	08/1988 - 05/1995	2
42411A - PIN, STRAIGHT (FOR REAR AXLE HUB)
90250-10055	BU6#,7#,8#,94	08/1988 - 08/1990	4
90250-10055	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	4
90250-10055	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	4
90250-10055	BU6#,7#,83,84,87	05/1991 - 05/1995	4
90250-10055	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	4
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-10191	BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V	08/1988 - 08/1990	12
90116-10191	BU60,61,70,83,84	08/1990 - 05/1995	12
42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
90368-57010	BU6#,7#,8#,94	08/1988 - 08/1990	2
90368-57010	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90368-57010	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
90368-57010	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90368-57010	BU6#,7#,83,84,87	05/1991 - 05/1995	2
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-52043	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
90368-52043	BU6#,7#,8#,94	08/1988 - 03/1991	2
90368-52043	BU6#,7#,8#,94	05/1991 - 05/1995	2
42411E - SEAL, OIL (FOR REAR AXLE HUB)
90311-75003	BU6#,7#,8#,94	08/1988 - 08/1990	2
90311-75003	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90311-75003	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90311-75003	BU6#,7#,83,84,87	05/1991 - 05/1995	2
90311-75003	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
93311-16012	BU6#,7#,8#,94	08/1988 - 03/1991	4
93311-16012	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	4
93311-16012	BU6#,7#,8#,94	05/1991 - 05/1995	4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42427 - NUT, REAR AXLE BEARING LOCK
42427-36030	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42427-36030	BU6#,7#,8#,94	05/1991 - 05/1995	2
42427-36030	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428 - PLATE, REAR AXLE LOCK NUT
42428-36020	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428-36020	BU6#,7#,8#,94	05/1991 - 05/1995	2
42428-36020	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42430-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02024	BU60,61,66,70..ST 右側	08/1988 - 05/1995	1
90942-02025	BU60,61,66,70..ST 左側	08/1988 - 05/1995	1
Common parts
90179-10067
94115-71600
Linked diagrams
4103

(8808- )BU67,68,73,74,85,94 ; (8808- )BU60,66,72,87..DM1,DM3,DM4,T1,T3,TW1 ;

Click highlighted areas on diagram

Part #	Description	Period	Qty
42311 - SHAFT, REAR AXLE
42311-36051	BU87..V;BU60,61,66,70..ST;BU87,88..(T3,TW1)..20T..DSL	08/1988 - 05/1995	2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-38033	BU60,61,70,83,84	03/1991 - 05/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	2
90310-38033	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	2
42321 - GASKET, REAR AXLE SHAFT
42321-36040	BU6#,7#,8#,94	08/1988 - 10/1990	2
42321-36050	BU6#,7#,8#,94	10/1990 - 03/1991	2
42321-36050	BU6#,7#,8#,94	05/1991 - 05/1995	2
42321-36050	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	08/1988 - 03/1991	12
42323-36010	BU60,61,70,83,84	03/1991 - 05/1991	12
42323-36010	BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T)	05/1991 - 05/1995	12
42403 - DRUM SUB-ASSY, REAR BRAKE
43512-36020	BU60,61,66,70..ST	08/1988 - 05/1995	2
42411A - PIN, STRAIGHT (FOR REAR AXLE HUB)
90250-10055	BU6#,7#,8#,94	08/1988 - 08/1990	4
90250-10055	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	4
90250-10055	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	4
90250-10055	BU6#,7#,83,84,87	05/1991 - 05/1995	4
90250-10055	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	4
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-10191	BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V	08/1988 - 08/1990	12
90116-10191	BU60,61,70,83,84	08/1990 - 05/1995	12
42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
90368-57010	BU6#,7#,8#,94	08/1988 - 08/1990	2
90368-57010	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90368-57010	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
90368-57010	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90368-57010	BU6#,7#,83,84,87	05/1991 - 05/1995	2
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-52043	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
90368-52043	BU6#,7#,8#,94	08/1988 - 03/1991	2
90368-52043	BU6#,7#,8#,94	05/1991 - 05/1995	2
42411E - SEAL, OIL (FOR REAR AXLE HUB)
90311-75003	BU6#,7#,8#,94	08/1988 - 08/1990	2
90311-75003	BU61,67,68,70,72,74,78,8#,94	08/1990 - 09/1990	2
90311-75003	BU61,67,68,70,72,74,78,83,84,87	09/1990 - 03/1991	2
90311-75003	BU6#,7#,83,84,87	05/1991 - 05/1995	2
90311-75003	BU60,61,67,68,7#,83,84,87	03/1991 - 05/1991	2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
93311-16012	BU6#,7#,8#,94	08/1988 - 03/1991	4
93311-16012	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	4
93311-16012	BU6#,7#,8#,94	05/1991 - 05/1995	4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42427 - NUT, REAR AXLE BEARING LOCK
42427-36030	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42427-36030	BU6#,7#,8#,94	05/1991 - 05/1995	2
42427-36030	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428 - PLATE, REAR AXLE LOCK NUT
42428-36020	BU6#,7#,8#,94	08/1988 - 03/1991	2
42428-36020	BU6#,7#,8#,94	05/1991 - 05/1995	2
42428-36020	BU60,61,67,68,7#,8#,94	03/1991 - 05/1991	2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42430-36050	BU60,61,66,70..ST	08/1988 - 05/1995	1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02024	BU60,61,66,70..ST 右側	08/1988 - 05/1995	1
90942-02025	BU60,61,66,70..ST 左側	08/1988 - 05/1995	1
Common parts
90170-20005
90179-10067
Linked diagrams
4103

BU61-MDDJ (1988)

(8808- )BU60,61,66,70

(8808- )BU60,61,66,70

(8808- )BU61,66,83,84,87,88

(8808- )BU67,68,73,74,85,94 ; (8808- )BU60,66,72,87..DM1,DM3,DM4,T1,T3,TW1 ;

Part Price Details
