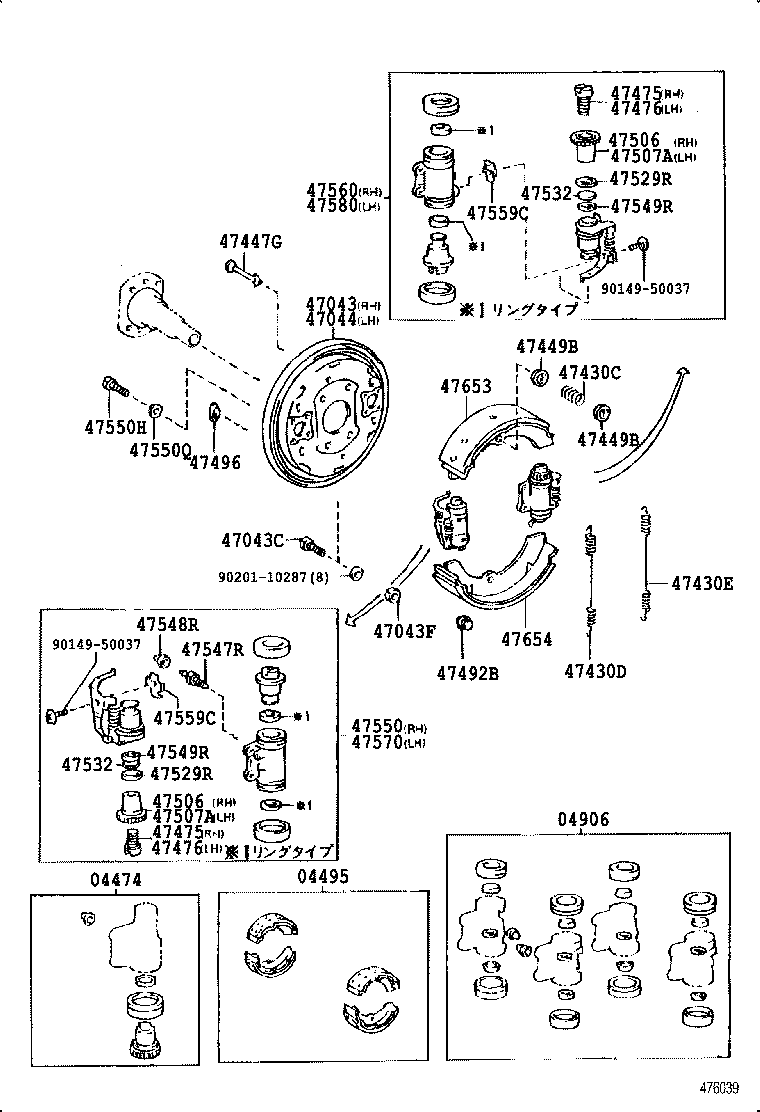

BU60-MDPJ3 (1988)
Toyota Dyna/Toyoace
(8808-9303)BU6#,72,74,78,8#,94 ; (9303- )BU60,61,66,67,73,78,8#
ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36080 |
BU60,61,66,70..ST |
1 | ||
| 04496-36080 |
BU60,61,66,70..ST REBUILT |
1 | ||
| 04494-36160 |
BU60,61,66,70..ST ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 04906-36080 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36090 |
BU60,61,66,70..ST |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
BU87..V;BU78,88,94..T3,T4,TW1;BU6#,70,72,73,74,85,87..DM1,DM3,DM4,HRF,SRF,T1,T3,TW1 *10−1.25PX31−21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BU87..V;BU78,88,94..T3,T4,TW1;BU6#,70,72,73,74,85,87..DM1,DM3,DM4,HRF,SRF,T1,T3,TW1 |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36090 |
BU60,61,66,70..ST |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
4 | ||
| 90501-20012 |
BU6#,7#,8#,9# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU60,61,66,70..ST |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU60,61,66,70..ST |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-36020 |
BU60,61,66,70..ST |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8#,9# |
8 | ||
| 47449-30020 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8#,9# |
8 | ||
| 47449-30020 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47553-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47553-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47554-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47554-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU96;BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,90,91,94,95..5F |
4 | ||
| 47491-36010 |
BU96;BU6#,7#,8#,91,94..5F..(DSL,TD) |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47536-36020 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47536-36020 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU6#,7#,8#,9# |
2 | ||
| 47547-12010 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU6#,7#,8#,9# |
2 | ||
| 31478-30010 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47550-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
4 | ||
| 90501-09735 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
4 | ||
| 90501-09735 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 90101-08081 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 90201-08002 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47560-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47570-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47580-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(8808-9303)BU6#,7#,8#,94 ; (9303- )BU60,61,66,67,70,72,73,78,84,87,88
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36080 |
BU60,61,66,70..ST |
1 | ||
| 04496-36080 |
BU60,61,66,70..ST REBUILT |
1 | ||
| 04494-36160 |
BU60,61,66,70..ST ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 04906-36080 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36090 |
BU60,61,66,70..ST |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
BU87..V;BU78,88,94..T3,T4,TW1;BU6#,70,72,73,74,85,87..DM1,DM3,DM4,HRF,SRF,T1,T3,TW1 *10−1.25PX31−21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BU87..V;BU78,88,94..T3,T4,TW1;BU6#,70,72,73,74,85,87..DM1,DM3,DM4,HRF,SRF,T1,T3,TW1 |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36090 |
BU60,61,66,70..ST |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BU6#,7#,8#,94..5F..(DSL,TD) |
4 | ||
| 47419-35011 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,94..5F |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
4 | ||
| 90501-20012 |
BU6#,7#,8#,9# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU60,61,66,70..ST |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU60,61,66,70..ST |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-36020 |
BU60,61,66,70..ST |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8#,9# |
8 | ||
| 47449-30020 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8#,9# |
8 | ||
| 47449-30020 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36150 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47551-36150 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36150 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47551-36150 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36150 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47552-36150 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36150 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47552-36150 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47553-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47553-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47554-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47554-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU96;BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,90,91,94,95..5F |
4 | ||
| 47491-36010 |
BU96;BU6#,7#,8#,91,94..5F..(DSL,TD) |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
8 | ||
| 47533-40013 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47536-36020 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47536-36020 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU6#,7#,8#,9# |
2 | ||
| 47547-12010 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU6#,7#,8#,9# |
2 | ||
| 31478-30010 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47550-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
4 | ||
| 90501-09735 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
BU83..CBU;BU72..DM4,T3;BU83..DYN..IV3;BU87,88..(T2,T4)..20T;BU60,61,66,67,70,78,84 |
4 | ||
| 90501-09735 |
BU88..T2;BU87..T2,T4;BU72..DM3,DM4,T3;BU60,61,67,70,73,78,83,84;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 90101-08081 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 90201-08002 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,94..5F |
4 | ||
| 47555-36051 |
BU6#,7#,8#,94..5F..(DSL,TD) |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,94..5F |
4 | ||
| 47555-36051 |
BU6#,7#,8#,94..5F..(DSL,TD) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47560-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47570-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47580-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(9303- )BU60,61,66,68,72,74,78,8#,94
ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36080 |
BU60,61,66,70..ST |
1 | ||
| 04496-36080 |
BU60,61,66,70..ST REBUILT |
1 | ||
| 04494-36160 |
BU60,61,66,70..ST ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 04906-36080 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36090 |
BU60,61,66,70..ST |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
BU87..V;BU78,88,94..T3,T4,TW1;BU6#,70,72,73,74,85,87..DM1,DM3,DM4,HRF,SRF,T1,T3,TW1 *10−1.25PX31−21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BU87..V;BU78,88,94..T3,T4,TW1;BU6#,70,72,73,74,85,87..DM1,DM3,DM4,HRF,SRF,T1,T3,TW1 |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36090 |
BU60,61,66,70..ST |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
4 | ||
| 90501-20012 |
BU6#,7#,8#,9# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU60,61,66,70..ST |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU60,61,66,70..ST |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-36020 |
BU60,61,66,70..ST |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8#,9# |
8 | ||
| 47449-30020 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU6#,7#,8#,9# |
8 | ||
| 47449-30020 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47553-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47553-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47554-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47554-36050 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU96;BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,90,91,94,95..5F |
4 | ||
| 47491-36010 |
BU96;BU6#,7#,8#,91,94..5F..(DSL,TD) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU6#,7#,8#,9# |
2 | ||
| 47547-12010 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU6#,7#,8#,9# |
2 | ||
| 31478-30010 |
BU83..CBU;BU83..DYN..IV3;BU6#,7#,84,85,87,88,9# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47550-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 90101-08081 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU88..T2;BU87..T2,T4;BU61,70,83,84;BU60,66..T3..ST;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 90201-08002 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..ST;BU87,88..(T2,T4)..20T;BU60,66,72..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) |
16 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47560-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47570-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
BU83..CBU;BU61,70,84;BU83..DYN..IV3;BU60,66..T3..5F..ST;BU87,88..(T2,T4)..5F..20T;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 47580-36100 |
BU88..T2..5F;BU61,70,83,84;BU87..(T2,T4)..5F;BU60,66..T3..5F..ST;BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) ｱﾘ(FR ﾄﾞﾗﾑ ﾌﾞﾚ-ｷ,RR ﾏﾆﾕｱﾙ ｱｼﾞﾔｽﾀ) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
