BU60-MDPFTJ3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU85..V ; (8708- )HRF,SRF,TW1,TW2,TW4

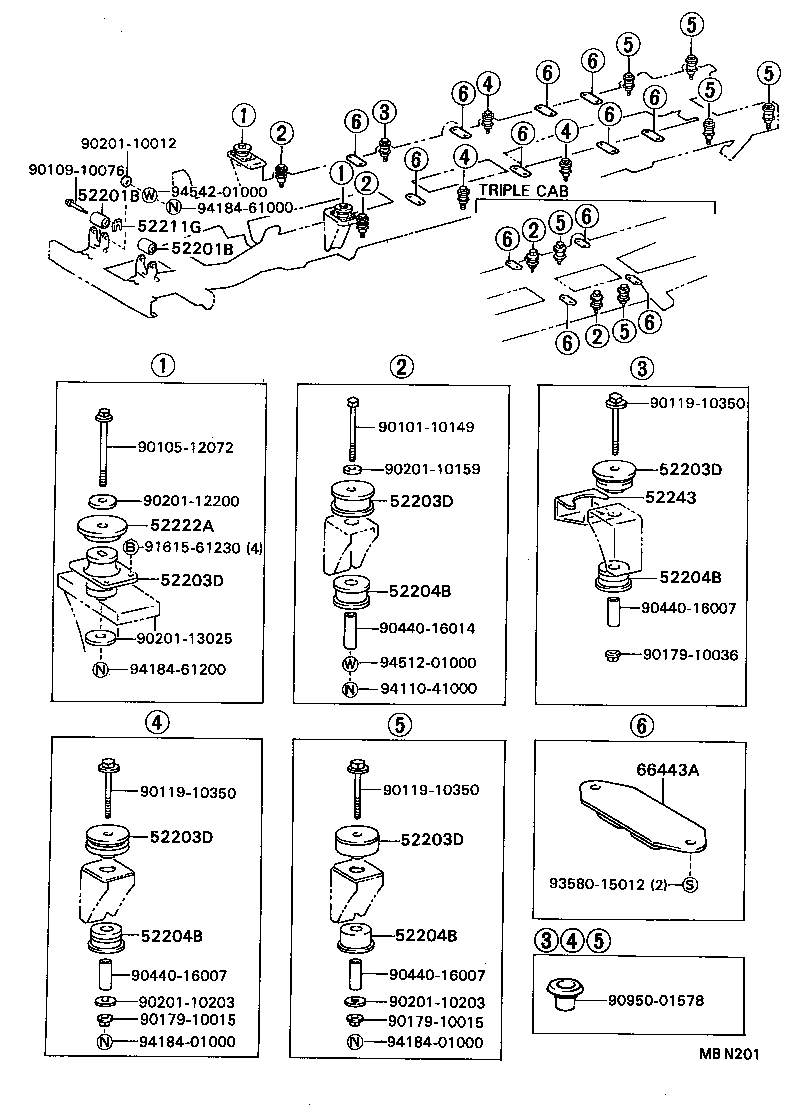

Click highlighted areas on diagram

diagram 52201B 52201B 52203D 52203D 52203D 52203D 52203D 52204B 52204B 52204B 52204B 52211G 52222A 52243 66443A 9010110149 9010512072 9010910076 9011910350 9011910350 9011910350 9017910015 9017910015 9017910036 9020110012 9020110159 9020110203 9020110203 9020112200 9020113025 9044016007 9044016007 9044016007 9044016014 9095001578 9161561230 9358015012 9411041000 9418401000 9418401000 9418461000 9418461200 9451201000 9454201000
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-36040

BU6#,70,80,81,82

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-36040

BU6#,70,80,81,82

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36040

BU60,62,82,85..06S

NO. 2

 2
52203-36050

BU6#,70,8#,93,98..DSL

NO. 1

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36040

BU60,62,82,85..06S

NO. 2

 2
52203-36050

BU6#,70,8#,93,98..DSL

NO. 1

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36040

BU60,62,82,85..06S

NO. 2

 2
52203-36050

BU6#,70,8#,93,98..DSL

NO. 1

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36040

BU60,62,82,85..06S

NO. 2

 2
52203-36050

BU6#,70,8#,93,98..DSL

NO. 1

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-36040

BU60,62,82,85..06S

NO. 2

 2
52203-36050

BU6#,70,8#,93,98..DSL

NO. 1

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36010

BU60,62,82,85..06S

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36010

BU60,62,82,85..06S

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36010

BU60,62,82,85..06S

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36010

BU60,62,82,85..06S

 2
52211G - SPACER, CAB FRONT MOUNTING
52211-36020

BU6#,70,8#,9#

 1
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-36030

BU60,62,70,82,85..HRF,SRF,TW1,TW2,TW4

 2
Common parts
90101-10149
90105-12072
90109-10076
90119-10350
90179-10015
90179-10036
90201-10012
90201-10159
90201-10203
90201-12200
90201-13025
90440-16007
90440-16014
90950-01578
91615-61230
93580-15012
94110-41000
94184-01000
94184-61000
94184-61200
94512-01000
94542-01000
