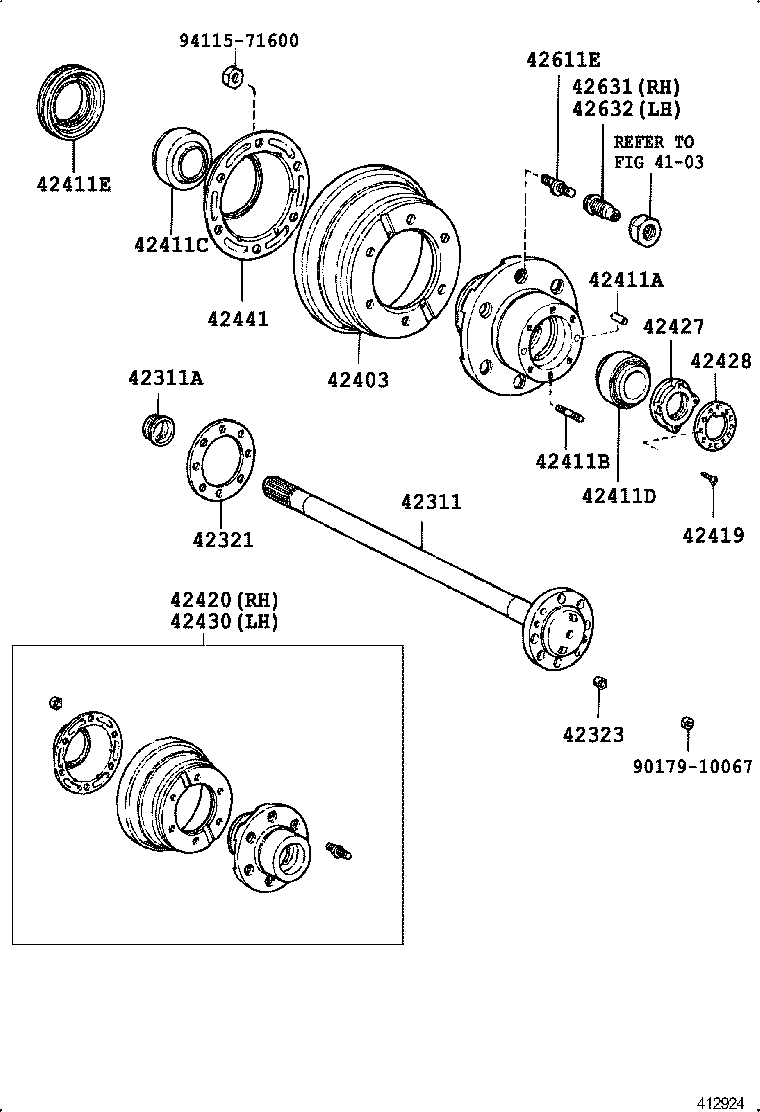

BU60-MDPFTJ (1988)
Toyota Dyna/Toyoace
(8808- )BU88..T3,T4,TW1 ; (8808- )BU66,67,68,73,74,78,85,94 ; (8808- )BU60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36151 |
BU60,61,66,72..DM5,T4,TW4 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU60,61,70,83,84 |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42323-36010 |
BU60,61,70,83,84 |
12 | ||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36100 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,8#,94 |
4 | ||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,83,84,87 |
4 | ||
| 90250-10055 |
BU60,61,67,68,7#,83,84,87 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V |
12 | ||
| 90116-10191 |
BU60,61,70,83,84 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BU6#,7#,8#,94 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU6#,7#,83,84,87 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
BU6#,7#,8#,94 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU6#,7#,83,84,87 |
2 | ||
| 90311-75003 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 93311-16012 |
BU60,61,67,68,7#,8#,94 |
4 | ||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02051 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 左側 |
1 | ||
| 90942-02050 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
6 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )BU60,61,66,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36151 |
BU60,61,66,72..DM5,T4,TW4 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU60,61,70,83,84 |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42323-36010 |
BU60,61,70,83,84 |
12 | ||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36100 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,8#,94 |
4 | ||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,83,84,87 |
4 | ||
| 90250-10055 |
BU60,61,67,68,7#,83,84,87 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V |
12 | ||
| 90116-10191 |
BU60,61,70,83,84 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BU6#,7#,8#,94 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU6#,7#,83,84,87 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
BU6#,7#,8#,94 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU6#,7#,83,84,87 |
2 | ||
| 90311-75003 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 93311-16012 |
BU60,61,67,68,7#,8#,94 |
4 | ||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02051 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 左側 |
1 | ||
| 90942-02050 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 右側 |
1 | ||
| Common parts | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )BU88..T2 ; (8808- )BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36151 |
BU60,61,66,72..DM5,T4,TW4 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU60,61,70,83,84 |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42323-36010 |
BU60,61,70,83,84 |
12 | ||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36100 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,8#,94 |
4 | ||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,83,84,87 |
4 | ||
| 90250-10055 |
BU60,61,67,68,7#,83,84,87 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V |
12 | ||
| 90116-10191 |
BU60,61,70,83,84 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BU6#,7#,8#,94 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU6#,7#,83,84,87 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
BU6#,7#,8#,94 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU6#,7#,83,84,87 |
2 | ||
| 90311-75003 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 93311-16012 |
BU60,61,67,68,7#,8#,94 |
4 | ||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-36050 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02051 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 左側 |
1 | ||
| 90942-02050 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
6 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94115-71600 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )BU60,61,66,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36151 |
BU60,61,66,72..DM5,T4,TW4 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU60,61,70,83,84 |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42323-36010 |
BU60,61,70,83,84 |
12 | ||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36100 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,8#,94 |
4 | ||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,83,84,87 |
4 | ||
| 90250-10055 |
BU60,61,67,68,7#,83,84,87 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V |
12 | ||
| 90116-10191 |
BU60,61,70,83,84 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BU6#,7#,8#,94 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU6#,7#,83,84,87 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
BU6#,7#,8#,94 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU6#,7#,83,84,87 |
2 | ||
| 90311-75003 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 93311-16012 |
BU60,61,67,68,7#,8#,94 |
4 | ||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02051 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 左側 |
1 | ||
| 90942-02050 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 右側 |
1 | ||
| Common parts | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )BU67,68,73,74,85,94 ; (8808- )BU60,66,72,87..DM1,DM3,DM4,T1,T3,TW1 ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36151 |
BU60,61,66,72..DM5,T4,TW4 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU60,61,70,83,84 |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 90310-38033 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU6#,7#,8#,94 |
2 | ||
| 42321-36050 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42323-36010 |
BU60,61,70,83,84 |
12 | ||
| 42323-36010 |
BU87..V;BU72..DM5,T4;BU60,61,67,70,83,84..TR,V;BU88..(T2,T3,TW1)..20T..DSL;BU66,87..(DM2,DM3,DM5,T2,T3,T4,TW1,TW4)..(175,20T) |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36100 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,8#,94 |
4 | ||
| 90250-10055 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
4 | ||
| 90250-10055 |
BU6#,7#,83,84,87 |
4 | ||
| 90250-10055 |
BU60,61,67,68,7#,83,84,87 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BU87..V;BU72..DM5,T4;BU66,87,88..20T..DSL;BU60,61,67,70,83,84..TR,V |
12 | ||
| 90116-10191 |
BU60,61,70,83,84 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BU6#,7#,8#,94 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 90368-57010 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90368-57010 |
BU6#,7#,83,84,87 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 90368-52043 |
BU6#,7#,8#,94 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
BU6#,7#,8#,94 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU60..T1,T2,T4,TW1,TW2,TW4 |
2 | ||
| 90311-75003 |
BU6#,7#,83,84,87 |
2 | ||
| 90311-75003 |
BU60,61,67,68,7#,83,84,87 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 93311-16012 |
BU60,61,67,68,7#,8#,94 |
4 | ||
| 93311-16012 |
BU6#,7#,8#,94 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42427-36030 |
BU6#,7#,8#,94 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU6#,7#,8#,94 |
2 | ||
| 42428-36020 |
BU60,61,67,68,7#,8#,94 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36110 |
BU60,61,66,72,83,84,87..DM5,T4,TW4 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02051 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 左側 |
1 | ||
| 90942-02050 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
6 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
