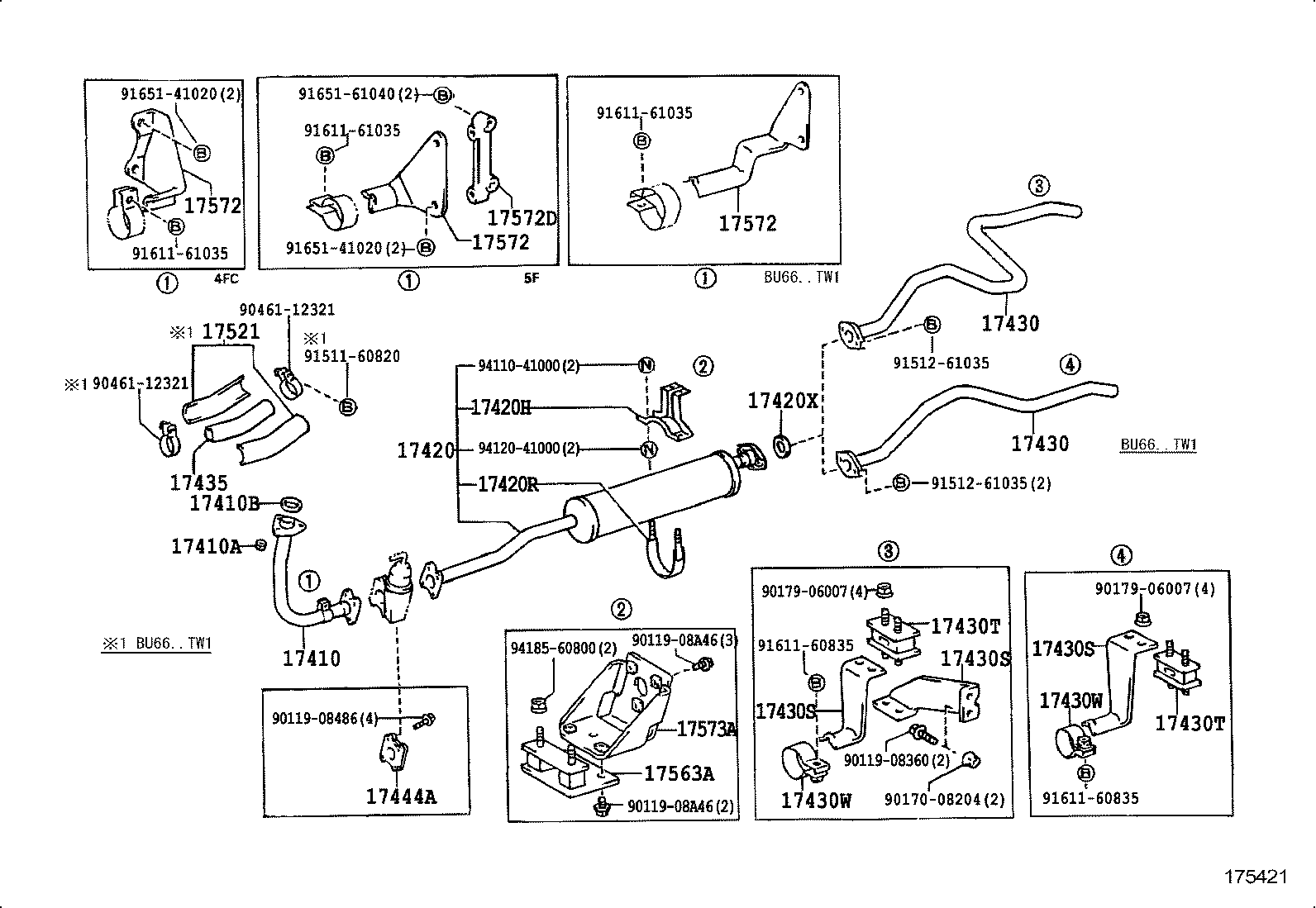

BU60-MDPFT3 (1988)
Toyota Dyna/Toyoace
(8808- )B,11B,14B..BU60,61,66..DM1,DM2,DM5,T2,T4,TW1,TW2,TW4..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58160 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 17401-58171 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06059 |
B,11B,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 90917-06034 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58340 |
B,11B,14B,3B..BU60,61,66,68..(DM1,DM2,DM3,T2,T3,TW1,TW2)..WT |
1 | ||
| 17420-58410 |
B,11B,14B..BU60,61,66..DM5,T4,TW4 |
1 | ||
| 17420-58411 |
B,11B,14B..BU60,61,66..DM5,T4,TW4 |
1 | ||
| 17420-58341 |
B,11B,14B,3B..BU60,61,66,68..(DM1,DM2,DM3,T2,T3,TW1,TW2)..WT |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58020 |
B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-58010 |
B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
B,11B,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 90917-06005 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-58320 |
B,11B,14B..BU60,61,66..T2,T4,TW2,TW4 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-58320 |
B,11B,14B..BU60,61,66..T2,T4,TW2,TW4 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9# |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32007 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32007 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17404-58030 |
B,11B..BU60,61,70,83,84 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17563-58010 |
B,11B,14B,27LPG,3B..BU60,61,66,68,70,72,73,83,84,87 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-58040 |
14B..BU66..(DM1,DM3,T2,T3,T4,TW1,TW4)..WT;B,11B,14B,27LPG,3B..BU60,61,68,74,83,84,87..WT |
1 | ||
| Common parts | ||||
| 90119-08360 | ||||
| 90119-08486 | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90179-06007 | ||||
| 90461-12321 | ||||
| 91511-60820 | ||||
| 91512-61035 | ||||
| 91611-60835 | ||||
| 91611-61035 | ||||
| 91651-41020 | ||||
| 91651-61040 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94185-60800 | ||||

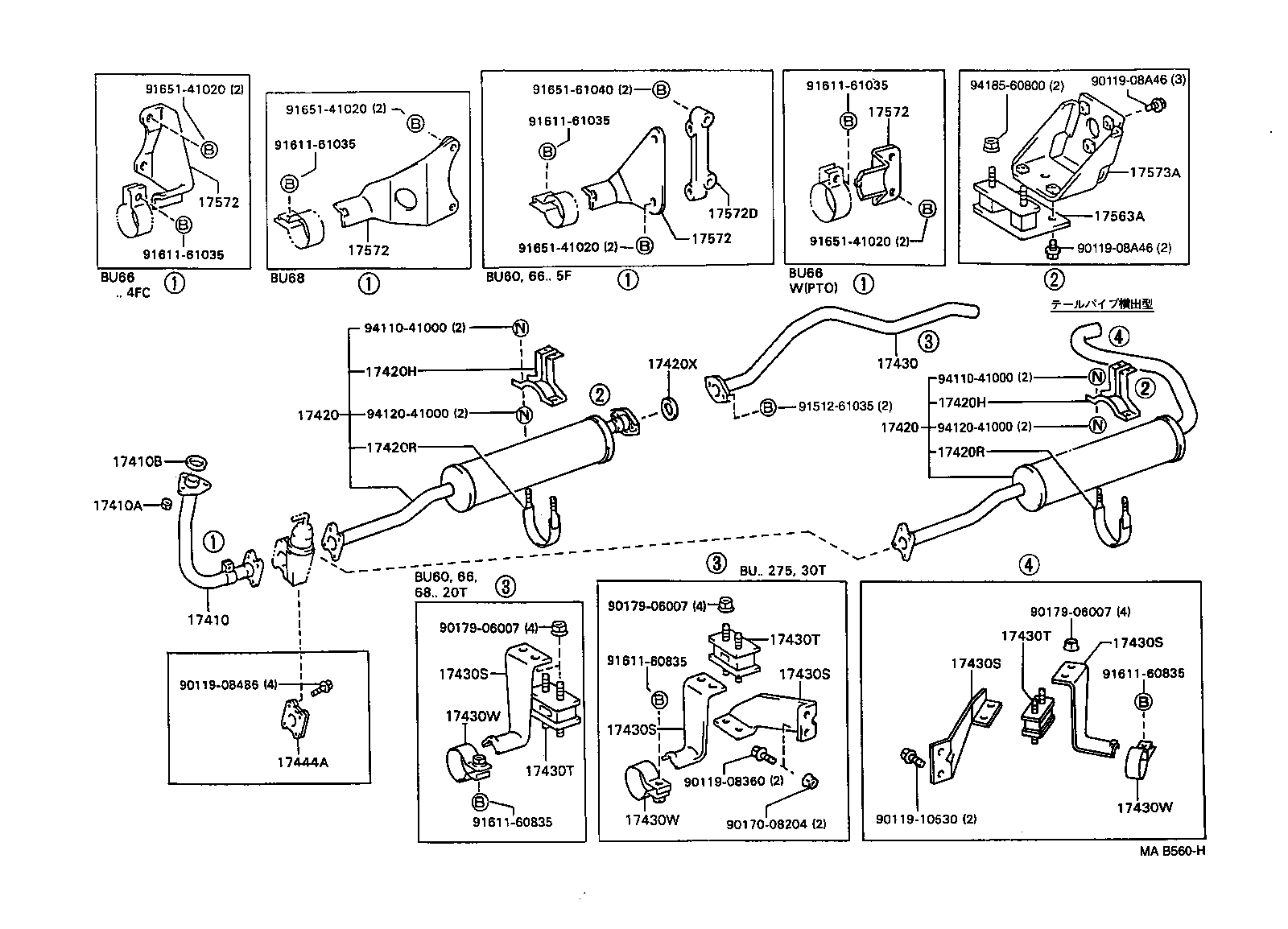

(8808- )B,14B,3B..BU60,66,68..DM1,DM3,T3..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58160 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 17401-58171 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06059 |
B,11B,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 90917-06034 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58340 |
B,11B,14B,3B..BU60,61,66,68..(DM1,DM2,DM3,T2,T3,TW1,TW2)..WT |
1 | ||
| 17420-58410 |
B,11B,14B..BU60,61,66..DM5,T4,TW4 |
1 | ||
| 17420-58411 |
B,11B,14B..BU60,61,66..DM5,T4,TW4 |
1 | ||
| 17420-58341 |
B,11B,14B,3B..BU60,61,66,68..(DM1,DM2,DM3,T2,T3,TW1,TW2)..WT |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58340 |
B,11B,14B,3B..BU60,61,66,68..(DM1,DM2,DM3,T2,T3,TW1,TW2)..WT |
1 | ||
| 17420-58410 |
B,11B,14B..BU60,61,66..DM5,T4,TW4 |
1 | ||
| 17420-58411 |
B,11B,14B..BU60,61,66..DM5,T4,TW4 |
1 | ||
| 17420-58341 |
B,11B,14B,3B..BU60,61,66,68..(DM1,DM2,DM3,T2,T3,TW1,TW2)..WT |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58020 |
B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87 |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58020 |
B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-58010 |
B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-58010 |
B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
B,11B,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 90917-06005 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-58320 |
B,11B,14B..BU60,61,66..T2,T4,TW2,TW4 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58040 |
14B..BU87..V;14B..BU66..275,30T;14B..BU87..T3,T4,TW1;11B,14B#..BU84,88..T3,T4,TW1;B,14B..BU60,66..DM2,T2,T4,TW2,TW4;B,11B,13BT,14B#..BU61,74,78,83,85,9#..WT BODY SIDE |
1 | ||
| 17561-47010 |
14B..BU66..275,30T;B,14B..BU60,66..T3..ST;14B..BU72..DM3,DM4,DM5,T4;B,11B,13BT,14B#,27LPG..BU61,68,70,73,74,78,8#,9#;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3) PIPE SIDE |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9# |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9# |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32007 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32007 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32007 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17404-58030 |
B,11B..BU60,61,70,83,84 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17563-58010 |
B,11B,14B,27LPG,3B..BU60,61,66,68,70,72,73,83,84,87 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58270 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
B,11B..BU61,70;14B..BU66..275,30T;B,14B..BU60,66..T3..5F..ST;B,14B..BU60,66..(DM2,DM5,T1,T2,T4,TW1,TW2,TW4)..5F..(CBU,IV3) |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-58040 |
14B..BU66..(DM1,DM3,T2,T3,T4,TW1,TW4)..WT;B,11B,14B,27LPG,3B..BU60,61,68,74,83,84,87..WT |
1 | ||
| Common parts | ||||
| 90119-08360 | ||||
| 90119-08486 | ||||
| 90119-08A46 | ||||
| 90119-10530 | ||||
| 90170-08204 | ||||
| 90179-06007 | ||||
| 91512-61035 | ||||
| 91611-60835 | ||||
| 91611-61035 | ||||
| 91651-41020 | ||||
| 91651-61040 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94185-60800 | ||||
