BU60-MDP3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8409- )BU85..T3 ; (8409- )BTP,DTP,ETP ; (8409- )BU60,62,64,77,82,9#..DM1,

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77100 77100A 77100B 77121 77197 77206 77275 77606 77611 77611A 77612 77651 9046713007 9161141045 9161160820 9161160820 9161561030 9165140616 9331914010 9411040800 9411040800 9411041000 9613230600
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36061

BU60,70..HRF,SRF,TW1,TW2,TW4

*TCA=60L

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

*H,L=340

 1
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

*H,L=340

 1
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

*H,L=340

 1
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=170,内径=7.6

 2
77100 - TANK ASSY, FUEL
77001-36680

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*TCA=60L

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BU6#,7#,8#,90,93,95..CBU,IV3

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,7#,8#,90,93,95..CBU,IV3

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BU6#,7#,8#,9#

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-36130

BU60,70..HRF,SRF,TW1,TW2,TW4

*TCA=60L

 1
77611 - BAND, FUEL TANK
77601-25090

BU60,62,70..HRF,SRF,TW1,TW2,TW4

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

BU60,62,70..HRF,SRF,TW1,TW2,TW4

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-28011

BU60,70..HRF,SRF,TW1,TW2,TW4

 2
77651 - PACKING, FUEL TANK BRACKET
77651-26040

BU60,62,70..HRF,SRF,TW1,TW2,TW4

 2
Common parts
90467-13007
91611-41045
91611-60820
91615-61030
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

ILLUST NO. 1 OF 2(8409- )BTP,CTP ; (8409- )BU60,62,70..HRF,SRF,TW1,TW2,TW4

Click highlighted areas on diagram

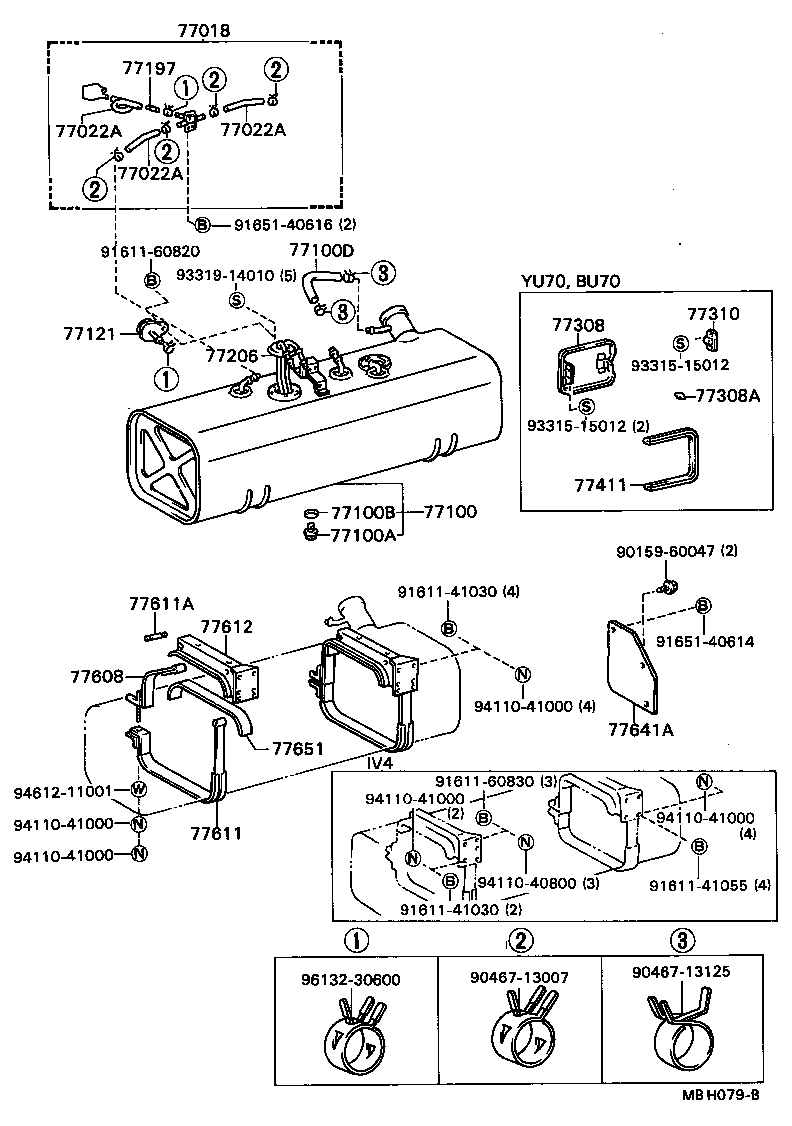

diagram 77018 77022A 77022A 77022A 77100 77100A 77100B 77100D 77121 77197 77206 77308 77308A 77310 77411 77608 77611 77611A 77612 77641A 77651 9015960047 9046713007 9046713125 9161141030 9161141030 9161141055 9161160820 9161160830 9165140614 9165140616 9331515012 9331515012 9331914010 9411040800 9411041000 9411041000 9411041000 9411041000 9411041000 9461211001 9613230600
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36061

BU60,70..HRF,SRF,TW1,TW2,TW4

*TCA=60L

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

*H,L=340

 1
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

*H,L=340

 1
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=170,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

*H,L=340

 1
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=170,内径=7.6

 2
77100 - TANK ASSY, FUEL
77001-36680

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*TCA=60L

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BU6#,7#,8#,90,93,95..CBU,IV3

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,7#,8#,90,93,95..CBU,IV3

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95332-08040

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=320,内径=7.6

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BU6#,7#,8#,9#

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

BU85..T2;BU62..BTP,CTP;BU60,61,62,70,80,81..(DM2,HRF,SRF,T1,T2,T4,TW1,TW2,TW4)..(CBU,IV3)

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-36130

BU60,70..HRF,SRF,TW1,TW2,TW4

*TCA=60L

 1
77608 - BAND SUB-ASSY, FUEL TANK, NO.2
77603-25010

BU60,62,70..HRF,SRF,TW1,TW2,TW4

 2
77611 - BAND, FUEL TANK
77601-25090

BU60,62,70..HRF,SRF,TW1,TW2,TW4

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

BU60,62,70..HRF,SRF,TW1,TW2,TW4

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-28011

BU60,70..HRF,SRF,TW1,TW2,TW4

 2
77651 - PACKING, FUEL TANK BRACKET
77651-26040

BU60,62,70..HRF,SRF,TW1,TW2,TW4

 2
Common parts
90159-60047
90467-13007
90467-13125
91611-41030
91611-41055
91611-60820
91611-60830
91651-40614
91651-40616
93315-15012
93319-14010
94110-40800
94110-41000
94612-11001
96132-30600

ILLUST NO. 2 OF 2(8409- )BU60,61,62,70,80,81,82

Click highlighted areas on diagram

diagram 77205 77205 77205 77206C 77206C 77206C 77241A 77241A 77241A 77241B 77241B 77241B 77241C 77241C 77241C 77241D 77241E 77277A 77277A 77277A 77277B 77277B 77277B 77277C 77277C 77277C 77283 77283 77283 77283 77283 77283 9017908001 9017908001 9017908146 9017908146 9017908146 9046108614 9046713007 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161160820 9161160820 9161160820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36210

BU60,70,80

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36210

BU60,70,80

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36210

BU60,70,80

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-36240

BU82..03S;BU60,61,70,80,81

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-36240

BU82..03S;BU60,61,70,80,81

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-36240

BU82..03S;BU60,61,70,80,81

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BU6#,70,8#,9#

*H,L=180,内径=7.6

 1
23271-56050

BU6#,7#,8#,9#

*H,L=180,W/PROTECTOR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BU6#,70,8#,9#

*H,L=180,内径=7.6

 1
23271-56050

BU6#,7#,8#,9#

*H,L=180,W/PROTECTOR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

BU6#,70,8#,9#

*H,L=180,内径=7.6

 1
23271-56050

BU6#,7#,8#,9#

*H,L=180,W/PROTECTOR

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,内径=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,70,80

*H,L=140,内径=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,70,80

*H,L=140,内径=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,70,80

*H,L=140,内径=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,70,80

*H,L=140,内径=7.6

 1
77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)
95332-08020

BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=180,内径=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08020

BU6#,7#,8#,9#

*H,L=180,内径=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08020

BU6#,7#,8#,9#

*H,L=180,内径=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08020

BU6#,7#,8#,9#

*H,L=180,内径=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,内径=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,内径=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

BU60,61,62,70,80,81,82

*H,L=140,内径=7.6

 1
77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=180,内径=7.6

 1
77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=180,内径=7.6

 1
77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)
95332-08020

BU62..BTP,CTP;BU60,70..HRF,SRF,TW1,TW2,TW4

*H,L=180,内径=7.6

 1
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,70,80,81,82

 2
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,70,80,81,82

 2
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,70,80,81,82

 2
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,70,80,81,82

 2
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,70,80,81,82

 2
77283 - BRACKET, FUEL TUBE
58266-36200

BU60,61,62,70,80,81,82

 2
Common parts
90179-08001
90179-08146
90461-08614
90467-13007
91611-40820
91611-60820
94110-40800
