BU60-MDP3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

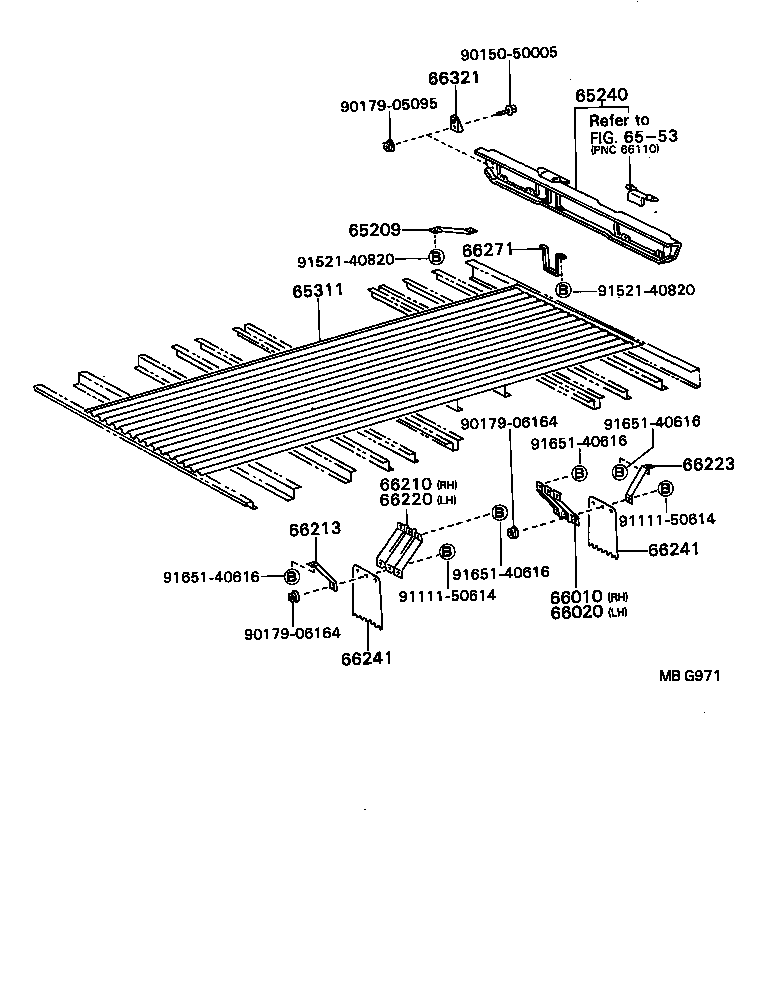

ILLUST NO. 1 OF 2(8409- )BU60..T1,TW1

Click highlighted areas on diagram

diagram 65209 65240 65311 6553 66010 66020 66210 66213 66220 66223 66241 66241 66271 66321 9015050005 9017905095 9017906164 9017906164 9111150614 9111150614 9152140820 9152140820 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
65209 - STAY SUB-ASSY, REAR BODY STEP
66272-95401

BU60..T1,TW1

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95418

BU60..T1,TW1

 1
65311 - PANEL, FLOOR, CENTER
65311-95408

BU60..ST..175

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66225-95012

BU60..T1,TW1

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66225-95012

BU60..T1,TW1

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66225-95012

BU60..T1,TW1

 1
66213 - STAY, REAR FENDER FRONT PLATE
66223-95408

BU60..T1,TW1

 2
66220 - FENDER ASSY, REAR BODY, FRONT LH
66225-95012

BU60..T1,TW1

 1
66223 - STAY, REAR FENDER REAR PLATE
66235-95401

BU60..T1,TW1

 2
66241 - MUDGUARD, REAR
66241-95404

BU60..T1,TW1

FR

 2
66241-95406

BU60..DYN..(T1,TW1)

RR RH

 1
66241-95407

BU60..DYN..(T1,TW1)

RR LH

 1
66241 - MUDGUARD, REAR
66241-95404

BU60..T1,TW1

FR

 2
66241-95406

BU60..DYN..(T1,TW1)

RR RH

 1
66241-95407

BU60..DYN..(T1,TW1)

RR LH

 1
66271 - STEP, REAR BODY
66271-95014

BU60..T1,TW1

 1
66321 - BUMPER, GATE RUBBER
66321-95406

BU60..T1,TW1

 2
Common parts
90150-50005
90179-05095
90179-06164
91111-50614
91521-40820
91651-40616
Linked diagrams
6553

ILLUST NO. 2 OF 2(8409- )

Click highlighted areas on diagram

diagram 66311A
Part # Description Qty Price
66311A - HOOK, ROPE, NO.1
66312-92702

BU6#..(T2,T3,T4,TW1,TW2,TW4)..(175,20T)

TYPE E

 1
66313-92701

BU6#..(T2,T3,T4,TW1,TW2,TW4)..(175,20T)

TYPE F

 1
