Toyota Dyna/toyoace BU60 FRONT FLOOR PANEL & FRONT FLOOR MEMBER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU60-MDP3 (1984)
5851 - FRONT FLOOR PANEL & FRONT FLOOR MEMBER

BU60-MDP3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8409- )DMP,TR,V

Click highlighted areas on diagram

Part #	Description	Period	Qty
51772 - PLATE, STEP
51771-95406	BU6#,7#,8#,9# RH	09/1984 - 08/1987	1
51772-95406	BU6#,7#,8#,9# LH	09/1984 - 08/1987	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53711-95410	BU6#,70,80,81,82	09/1984 - 08/1987	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53712-95414	BU6#,70,80,81,82	09/1984 - 08/1987	1
53713 - APRON, FENDER SIDE, RH
53715-92600	BU60,62,82..06S	08/1986 - 08/1987	1
53707-92601	BU60,62,82..06S	09/1984 - 08/1986	1
53714 - APRON, FENDER SIDE, LH
53708-92601	BU60,62,82..06S	09/1984 - 08/1986	1
53716-92600	BU60,62,82..06S	08/1986 - 08/1987	1
53719A - BRACE, FENDER APRON
53719-92600	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	2
53721A - APRON, FRONT FENDER, NO.2 RH
53721-95402	BU6#,70,80,81,82	09/1984 - 08/1987	1
53722A - APRON, FRONT FENDER, NO.2 LH
53722-95403	BU6#,70,80,81,82	09/1984 - 08/1987	1
53885 - MUDGUARD, FRONT RH
53881-92604	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	1
53886 - MUDGUARD, FRONT LH
53881-92604	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57011-95400	BU6#,70,80,81,82	09/1984 - 08/1987	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57012-92602	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95400	BU6#,7#,8#,9#..5F	09/1984 - 08/1987	1
57451 - MEMBER, FRONT FLOOR CROSS
57408-95405	BU6#,70,80,81,82	09/1984 - 03/1986	1
57408-95413	BU6#,70,80,81,82	03/1986 - 08/1987	1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95434	BU6#,70,80,81,82..5F	09/1984 - 08/1987	1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400	BU6#,7#,8#,9#	09/1984 - 08/1987	2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95401	BU6#,7#,8#,9#	09/1984 - 08/1987	1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95401	BU6#,7#,8#,9#	09/1984 - 08/1987	1
Common parts
90105-08094
90109-08122
90119-08164
90159-60168
90159-60231
90179-08143
90333-25001
90333-35002
90467-05014
90950-01011
90950-01095
90950-01454
91655-40825
91656-40616

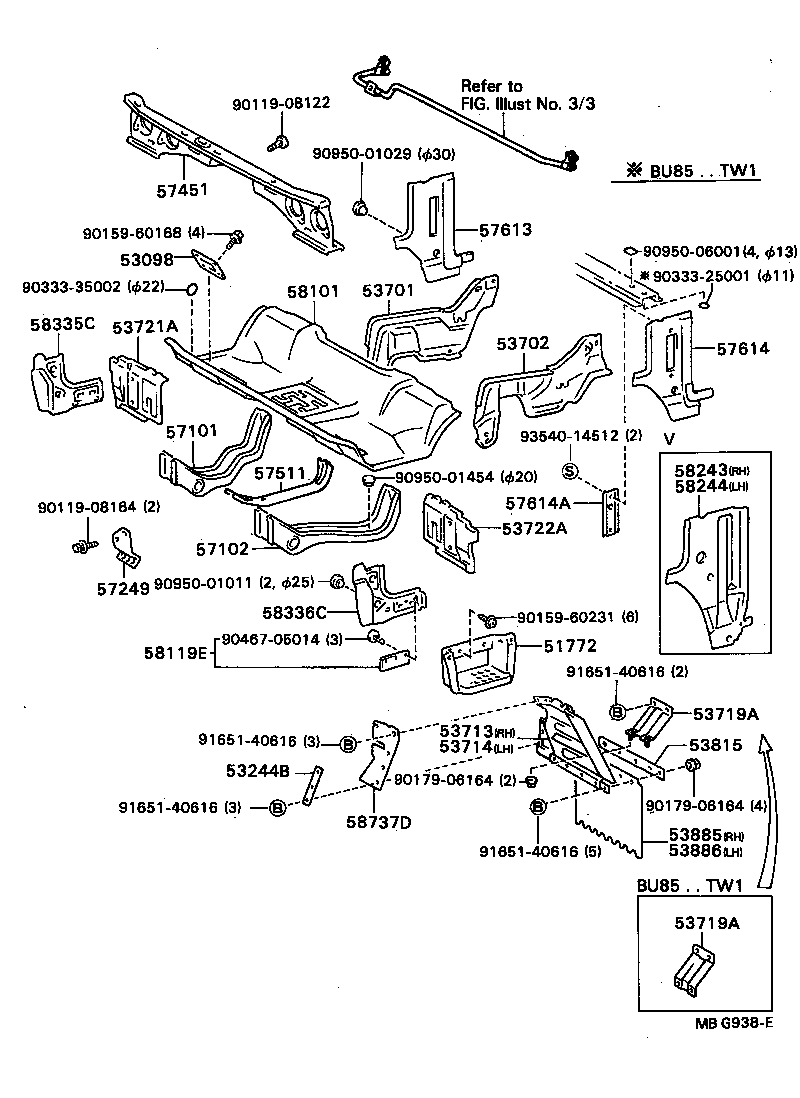

ILLUST NO. 1 OF 3(8409- )HRF,SRF,TW1,TW2,TW4

Click highlighted areas on diagram

Part #	Description	Period	Qty
51772 - PLATE, STEP
51771-95406	BU6#,7#,8#,9# RH	09/1984 - 08/1987	1
51772-95406	BU6#,7#,8#,9# LH	09/1984 - 08/1987	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53711-95410	BU6#,70,80,81,82	09/1984 - 08/1987	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53712-95414	BU6#,70,80,81,82	09/1984 - 08/1987	1
53713 - APRON, FENDER SIDE, RH
53715-92600	BU60,62,82..06S	08/1986 - 08/1987	1
53707-92601	BU60,62,82..06S	09/1984 - 08/1986	1
53714 - APRON, FENDER SIDE, LH
53708-92601	BU60,62,82..06S	09/1984 - 08/1986	1
53716-92600	BU60,62,82..06S	08/1986 - 08/1987	1
53719A - BRACE, FENDER APRON
53719-92600	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	2
53719A - BRACE, FENDER APRON
53719-92600	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	2
53721A - APRON, FRONT FENDER, NO.2 RH
53721-95402	BU6#,70,80,81,82	09/1984 - 08/1987	1
53722A - APRON, FRONT FENDER, NO.2 LH
53722-95403	BU6#,70,80,81,82	09/1984 - 08/1987	1
53815 - PLATE, MUDGUARD RUBBER SET, FRONT
53887-92603	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	2
53885 - MUDGUARD, FRONT RH
53881-92604	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	1
53886 - MUDGUARD, FRONT LH
53881-92604	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57011-95400	BU6#,70,80,81,82	09/1984 - 08/1987	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57012-92602	BU60,62,70,82..HRF,SRF,TW1,TW2,TW4	09/1984 - 08/1987	1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95400	BU6#,7#,8#,9#..5F	09/1984 - 08/1987	1
57451 - MEMBER, FRONT FLOOR CROSS
57408-95405	BU6#,70,80,81,82	09/1984 - 03/1986	1
57408-95413	BU6#,70,80,81,82	03/1986 - 08/1987	1
57613 - PLATE, FLOOR SIDE RAIL, FRONT RH
58025-92601	BU60,62,82,85..06S	09/1984 - 08/1987	1
57614 - PLATE, FLOOR SIDE RAIL FRONT, LH
58026-92601	BU60,62,82,85..06S	09/1984 - 08/1987	1
57614A - COVER, FLOOR SIDE RAIL
57441-92601	BU60,82,85..06S LH,W/RR HEATER	09/1984 - 06/1985	1
57614-95400	BU60,62,82,85..06S	09/1984 - 06/1985	2
57614-95400	BU60,82,85..06S RH,W/RR HEATER	09/1984 - 06/1985	1
57441-92600	BU60,62,82,85..06S	06/1985 - 08/1987	2
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95434	BU6#,70,80,81,82..5F	09/1984 - 08/1987	1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400	BU6#,7#,8#,9#	09/1984 - 08/1987	2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95401	BU6#,7#,8#,9#	09/1984 - 08/1987	1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95401	BU6#,7#,8#,9#	09/1984 - 08/1987	1
Common parts
90119-08122
90119-08164
90159-60168
90159-60231
90179-06164
90333-25001
90333-35002
90467-05014
90950-01011
90950-01029
90950-01454
90950-06001
91651-40616
93540-14512

ILLUST NO. 2 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
58410 - COVER, ENGINE SERVICE HOLE
59208-9540303	BU6#,70,80,81,82 GRAY,GRAY	09/1984 - 08/1987	1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58424-95405	BU6#,7#,8#,9#	09/1984 - 08/1987	1
58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1
58444-95402	BU6#,7#,8#,9#	09/1984 - 08/1987	1
58426A - PROTECTOR, ENGINE SERVICE HOLE
58426-95405	BU6#,7#,8#,9#	09/1984 - 08/1987	1
58430 - COVER ASSY, SUB-FLOOR SERVICE HOLE
58407-95409	BU6#,70,80,81,82..5F	09/1984 - 08/1985	1
58407-95415	BU6#,70,80,81,82..5F	08/1985 - 08/1987	1
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400	BU85..ETP;BU85..20T,30T;BU6#,70,80,81,82,90,95	09/1984 - 09/1985	1
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-95401	BU6#,7#,8#,9#	09/1984 - 08/1987	1
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71901-9570403	BU6#,7#,8#,9# SHADOW GRAY,SHADOW GRAY	09/1984 - 08/1987	2
Common parts
90119-08483
90333-35002
90540-06004
90541-09126
91656-40616
91656-40816
93240-16016

ILLUST NO. 3 OF 3(8409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
64018 - BAR SUB-ASSY, BODY
64018-95403	BU6#,70,80,81,82	11/1986 - 08/1987	1
64018 - BAR SUB-ASSY, BODY
64018-95403	BU6#,70,80,81,82	11/1986 - 08/1987	1
64018 - BAR SUB-ASSY, BODY
64018-95403	BU6#,70,80,81,82	11/1986 - 08/1987	1
Common parts
90105-08094
90105-10086
90179-08056
94180-41000

ILLUST NO. 1 OF 3(8808-9505)V ; (8808- )BU60,66,70,87,88..06S

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06424
90119-08122
90119-08164
90159-60168
90159-60366
90179-06162
90179-06164
90333-20001
90333-35002
90467-05014
90950-01011
90950-01641
90950-01832
90950-06001
91621-40818
93540-14512
