BU60-MDP3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 31126 31210 31231 31231A 31232 31232 31232 31236 31240 31250 33311W 9011908134
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

BU6#,7#,8#,9#..5F..(CBU,IV3)

 1
31126-20050

BU6#,70,8#,9#..5F

 1
31210 - COVER ASSY, CLUTCH
31210-36100

BU6#,7#,8#,93,98..5F..DSL

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-36062

BU6#,70,8#..5F..DSL

 1
31231-36090

BU6#,7#,8#,93,98..5F..DSL..(CBU,IV3)

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-45002

BU6#,7#,8#,93,98..5F..DSL

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

BU6#,70,8#,9#..5F

 2
31232-35010

BU6#,7#,8#,9#..5F..(CBU,IV3)

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

BU6#,70,8#,9#..5F

 2
31232-35010

BU6#,7#,8#,9#..5F..(CBU,IV3)

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

BU6#,70,8#,9#..5F

 2
31232-35010

BU6#,7#,8#,9#..5F..(CBU,IV3)

 1
31236 - BALL, RELEASE FORK
31236-35030

BU6#,7#,8#,9#..5F..(CBU,IV3)

 1
31236-30040

BU6#,70,8#,9#..5F

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-35030

BU6#,7#,8#,9#..5F..(CBU,IV3)

 1
31204-25010

BU6#,70,8#,9#..5F

 1
31250 - DISC ASSY, CLUTCH
31250-36301

BU6#,7#,8#,93,98..5F..DSL

 1
31250-36230

BU6#,7#,8#,98..5F..DSL

TYPE A:ｲﾗｽﾄ参照

 1
31250-36280

BU6#,7#,8#,93,98..5F..DSL

TYPE B:ｲﾗｽﾄ参照

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

BU6#,7#,8#,9#..5F

 1
Common parts
90119-08134

(8808-8910)BU67,87,88,96 ; (8808-8910)BU60,61,66,70,83,84,85,90,91,94,95..5F

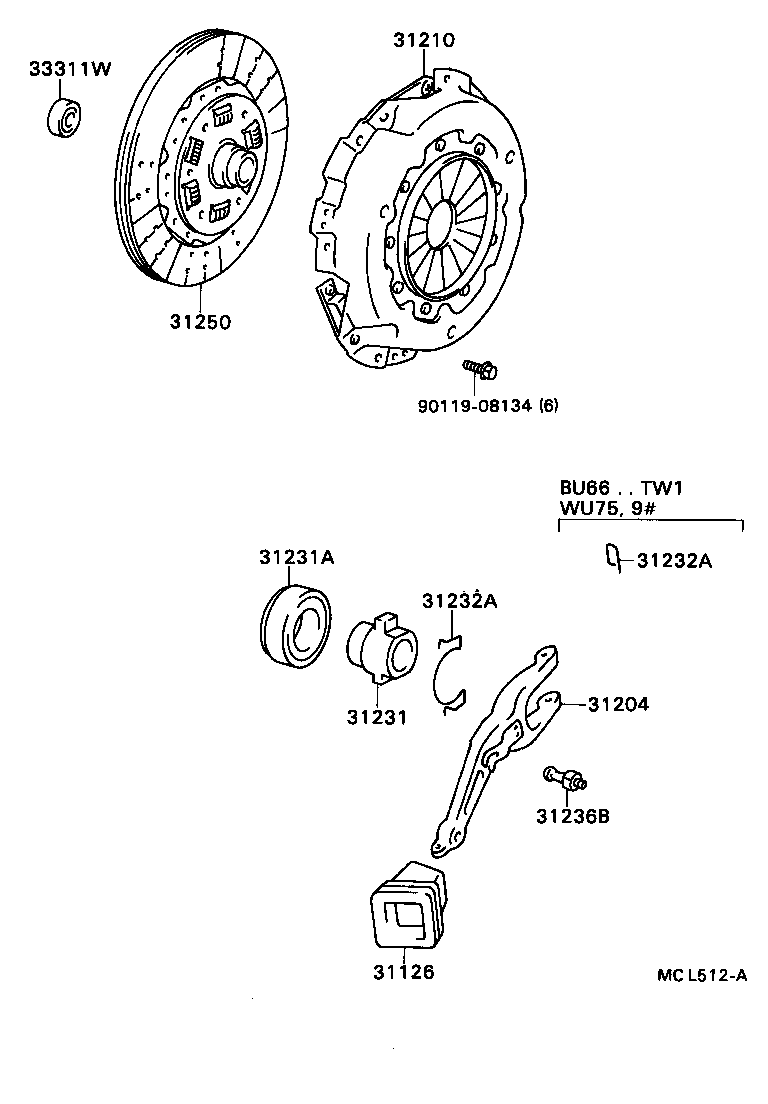

Click highlighted areas on diagram

diagram 31126 31204 31210 31231 31231A 31232A 31232A 31236B 31250 33311W 9011908134
Part # Description Qty Price
Common parts
90119-08134
