BU60-MD3 (1988)
Toyota Dyna/Toyoace

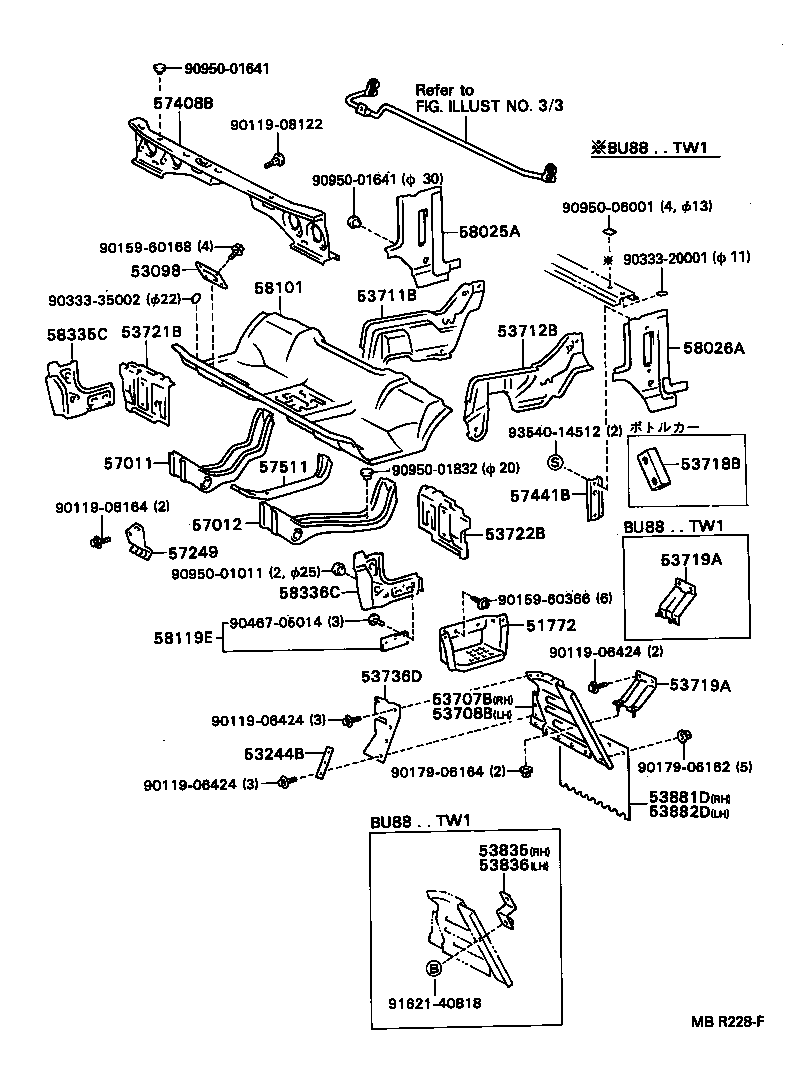

ILLUST NO. 1 OF 3(8808- )BU6#,72,73,74,78,8#,9#..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51772-95406 |
BU6#,70,8#,9# 左側 |
1 | ||
| 51772-95406 |
BU88..06S;BU72..DM5,T4;BU6#,70,83,84,87 左側 |
1 | ||
| 51771-95406 |
BU88..06S;BU72..DM5,T4;BU6#,70,83,84,87 右側 |
1 | ||
| 51771-95406 |
BU6#,70,8#,9# 右側 |
1 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-95400 |
BU73,96..DSL;BU96..5F..TD;BU6#,72,74,78,8#,90,91,94,95..03S |
2 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
BU96..DSL;BU96..5F..TD;BU6#,72,73,74,78,8#,90,91,94,95..03S |
12 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-95402 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-95402 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-95410 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-95414 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-95406 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-95406 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-95402 |
BU6#,70,83,84,87 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-95403 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95400 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95400 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-95400 |
BU73..03S;BU6#,70,72,74,78,8#,9# |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-95400 |
BU6#,83,84,87..03S |
1 | ||
| 57012-95403 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-95400 |
BU6#,7#,8#,9#..5F |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-95427 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 57408-37020 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58271-37010 |
BU6#,72,73,74,78,8#,9#..03S |
1 | ||
| 58271-95401 |
BU87..V;BU87..275,30T;BU87..T4..4FC..IV3;BU87..5F..03S..20T;BU60,61,66,67,84..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ) |
1 | ||
| 58271-95401 |
BU6#,72,73,74,78,8#,9#..03S |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58272-95403 |
BU88,91,94,96..TD;BU6#,72,73,74,83,84,85,87,90,95..03S |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95448 |
BU6#,70,83,84,87 |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
BU6#,7#,8#,9# |
2 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-95402 |
BU6#,7#,8#,9# |
1 | ||
| 58335-95402 |
BU88..03S;BU6#,7#,83,84,87,9# |
1 | ||
| 58335-95401 |
BU88..06S;BU6#,83,84,87..03S |
1 | ||
| 58335-95401 |
BU88..06S;BU6#,72,74,83,84,87..03S |
1 | ||
| 58335-95401 |
BU6#,70,72,73,78,8#,9# |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-95402 |
BU88..03S;BU6#,7#,83,84,87,9# |
1 | ||
| 58336-95401 |
BU88..06S;BU6#,83,84,87..03S |
1 | ||
| 58336-95401 |
BU88..06S;BU6#,72,74,83,84,87..03S |
1 | ||
| 58336-95402 |
BU6#,7#,8#,9# |
1 | ||
| 58336-95401 |
BU6#,70,72,73,78,8#,9# |
1 | ||
| Common parts | ||||
| 90109-08122 | ||||
| 90119-06473 | ||||
| 90119-08164 | ||||
| 90119-08368 | ||||
| 90159-60168 | ||||
| 90159-60366 | ||||
| 90179-08143 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90467-05014 | ||||
| 90950-01011 | ||||
| 90950-01095 | ||||
| 90950-01454 | ||||
| 90950-01641 | ||||
| 90950-01832 | ||||
| 91621-40612 | ||||
| 91651-60860 | ||||
| 91655-60825 | ||||

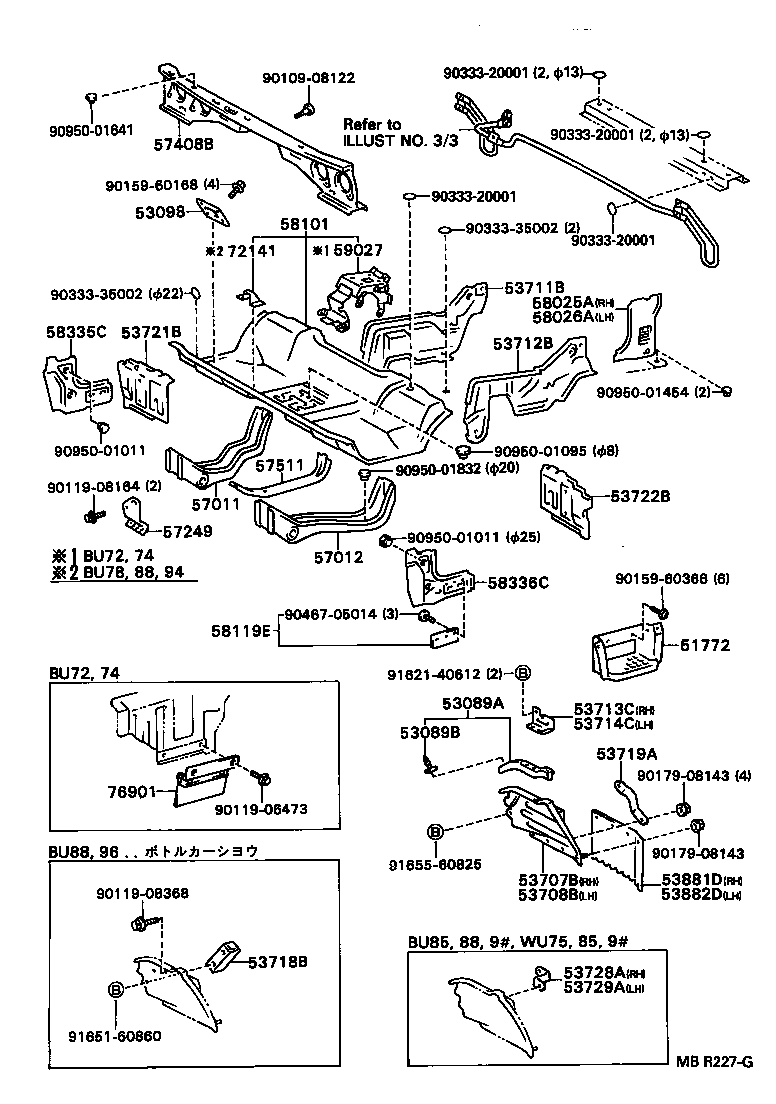

ILLUST NO. 1 OF 3(8808-9505)V ; (8808- )BU60,66,70,87,88..06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51772-95406 |
BU6#,70,8#,9# 左側 |
1 | ||
| 51772-95406 |
BU88..06S;BU72..DM5,T4;BU6#,70,83,84,87 左側 |
1 | ||
| 51771-95406 |
BU88..06S;BU72..DM5,T4;BU6#,70,83,84,87 右側 |
1 | ||
| 51771-95406 |
BU6#,70,8#,9# 右側 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-95402 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-95402 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-95410 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-95414 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-95402 |
BU6#,70,83,84,87 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-95403 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95400 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95400 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-95400 |
BU73..03S;BU6#,70,72,74,78,8#,9# |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-95400 |
BU6#,83,84,87..03S |
1 | ||
| 57012-95403 |
BU6#,72,73,74,83,84,87..03S |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-95400 |
BU6#,7#,8#,9#..5F |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-95427 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 57408-37020 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58271-37010 |
BU6#,72,73,74,78,8#,9#..03S |
1 | ||
| 58271-95401 |
BU87..V;BU87..275,30T;BU87..T4..4FC..IV3;BU87..5F..03S..20T;BU60,61,66,67,84..TR..03S ｱﾘ(ﾌﾛﾝﾄ ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ) |
1 | ||
| 58271-95401 |
BU6#,72,73,74,78,8#,9#..03S |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58272-95403 |
BU88,91,94,96..TD;BU6#,72,73,74,83,84,85,87,90,95..03S |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95448 |
BU6#,70,83,84,87 |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
BU6#,7#,8#,9# |
2 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-95402 |
BU6#,7#,8#,9# |
1 | ||
| 58335-95402 |
BU88..03S;BU6#,7#,83,84,87,9# |
1 | ||
| 58335-95401 |
BU88..06S;BU6#,83,84,87..03S |
1 | ||
| 58335-95401 |
BU88..06S;BU6#,72,74,83,84,87..03S |
1 | ||
| 58335-95401 |
BU6#,70,72,73,78,8#,9# |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-95402 |
BU88..03S;BU6#,7#,83,84,87,9# |
1 | ||
| 58336-95401 |
BU88..06S;BU6#,83,84,87..03S |
1 | ||
| 58336-95401 |
BU88..06S;BU6#,72,74,83,84,87..03S |
1 | ||
| 58336-95402 |
BU6#,7#,8#,9# |
1 | ||
| 58336-95401 |
BU6#,70,72,73,78,8#,9# |
1 | ||
| Common parts | ||||
| 90119-06424 | ||||
| 90119-08122 | ||||
| 90119-08164 | ||||
| 90159-60168 | ||||
| 90159-60366 | ||||
| 90179-06162 | ||||
| 90179-06164 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90467-05014 | ||||
| 90950-01011 | ||||
| 90950-01641 | ||||
| 90950-01832 | ||||
| 90950-06001 | ||||
| 91621-40818 | ||||
| 93540-14512 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-95400 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-95400 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58213-95418 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58214-95415 |
BU6#,70,83,84,87 |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-95400 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-95423 |
BU6#,70,83,84,87 |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95413 |
BU6#,70,83,84,87 |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
BU6#,70,78,8#,9# |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
BU6#,7#,8#,9# |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-95402 |
BU6#,70,78,8#,9# |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
BU6#,70,78,8#,9# |
1 | ||
| 58795D - PLATE, JACK CLAMP | ||||
| 58795-95500 |
BU60,61,68,72,84..DSL |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71901-9570403 |
BU6#,70,83,84,87..DYN SHADOW GRAY,TRIM4# |
2 | ||
| 71901-9570401 |
BU6#,70,83,84,87..DYN BLACK,TRIM4# |
2 | ||
| 71901-9570401 |
BU6#,70,83,84,87 BLACK,TRIM1# |
2 | ||
| 72127C - RETAINER, SEAT TRACK, REAR RH | ||||
| 72127-95400 |
BU6#,7#,8#,9# |
2 | ||
| 72127C - RETAINER, SEAT TRACK, REAR RH | ||||
| 72127-95400 |
BU6#,7#,8#,9# |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90333-35002 | ||||
| 90540-06004 | ||||
| 90541-09126 | ||||
| 91651-40820 | ||||
| 91655-40616 | ||||
| 93240-16016 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET | ||||
| 64017-95403 |
BU6#,78,8#,9#..03S |
1 | ||
| 64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET | ||||
| 64017-95403 |
BU6#,78,8#,9#..03S |
1 | ||
| 64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET | ||||
| 64017-95403 |
BU6#,78,8#,9#..03S |
1 | ||
| 64017 - REINFORCE SUB-ASSY, REAR MOUNTING BRACKET | ||||
| 64017-95403 |
BU6#,78,8#,9#..03S |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95413 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4)..5F |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95413 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4)..5F |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95413 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4)..5F |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95413 |
BU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2,TW4)..5F |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-95402 |
BU6#,83,84,87..03S |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-95402 |
BU6#,83,84,87..03S |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-95404 |
BU6#,83,84,87..03S |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-95404 |
BU6#,83,84,87..03S |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90179-08056 | ||||
| 94180-41000 | ||||
