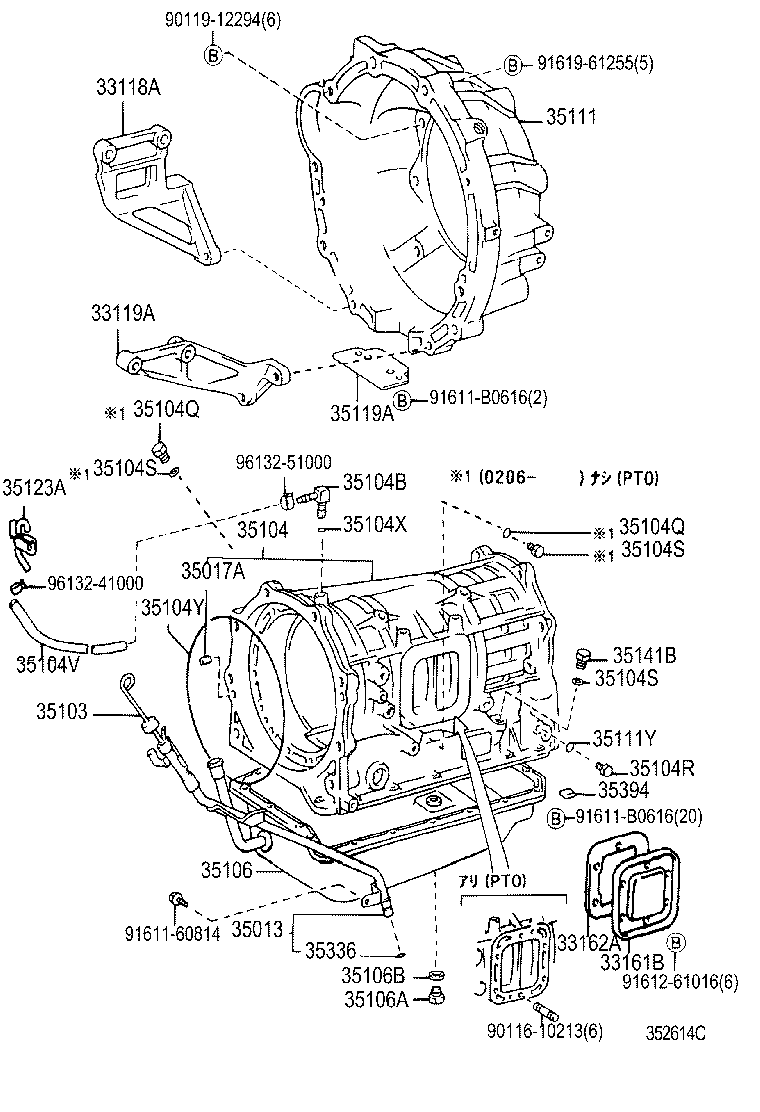

Toyota Dyna/toyoace BU430 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
33118A - PLATE, STIFFENER, RH(ATM)
33118-36021	BU410,420,430..4FC	05/2000 - 06/2004	1
33119A - PLATE, STIFFENER, LH(ATM)
33119-36042	BU410,420,430..4FC	05/2000 - 06/2004	1
33161B - COVER, TRANSMISSION POWER TAKE-OFF
33161-37030	BU410,420,430..4FC	05/2000 - 06/2004	1
33162A - GASKET, TRANSMISSION POWER TAKE-OFF
33162-37040	BU410,420,430..4FC	05/2000 - 06/2004	1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-37060	BU410,420,430..4FC	05/2000 - 06/2004	1
35017A - PIN, STRAIGHT(FOR TRANSMISSION HOUSING ADAPTER, FRONT)
90250-12146	BU410,420,430..4FC	05/2000 - 06/2004	4
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-37060	BU410,420,430..4FC	05/2000 - 06/2004	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-37020	BU410,420,430..4FC	05/2000 - 06/2004	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03094	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-13001	BU410,420,430..4FC	05/2000 - 06/2004	2
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-13001	BU410,420,430..4FC	05/2000 - 06/2004	2
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-08001	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	5
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-10189	BU410,420,430..4FC ﾅｼ(PTO)	05/2000 - 06/2004	3
90301-10189	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-10189	BU410,420,430..4FC ﾅｼ(PTO)	05/2000 - 06/2004	3
90301-10189	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-10189	BU410,420,430..4FC ﾅｼ(PTO)	05/2000 - 06/2004	3
90301-10189	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35104V - HOSE (FOR BREATHER PLUG)
90445-11133	BU410,420,430..4FC	05/2000 - 06/2004	1
35104X - RING, O (FOR BREATHER PLUG)
90301-06005	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-99067	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-37020	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18057	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-65010	BU410,420,430..4FC	05/2000 - 06/2004	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	5
35119A - COVER, TRANSMISSION HOUSING
35119-36010	BU410,420,430..4FC	05/2000 - 06/2004	1
35123A - SKIRT, TRANSMISSION BREATHER
35123-37010	BU410,420,430..4FC	05/2000 - 06/2004	1
35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE)
90341-13001	BU410,420,430..4FC	05/2000 - 06/2004	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09011	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	BU410,420,430,XZU401,402,410,411,412,42#..4FC	05/1999 - 06/2004	4
Common parts
90116-10213
90119-12294
91611-60814
91611-B0616
91612-61016
91619-61255
96132-41000
96132-51000

BU430-TQPRW3 (2000)

(0005-0406)BU410,420,430..4FC
