Toyota Dyna/toyoace BU420 REAR BODY GUARD FRAME & TAIL GATE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU420-TQPMW (2000)
6553 - REAR BODY GUARD FRAME & TAIL GATE

BU420-TQPMW (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004

Engine 15BFTE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)BU400,410,BZU410,XZU382,40#,410,411,412..20T,295T,30T,35T..CBU,IV5 ; (02

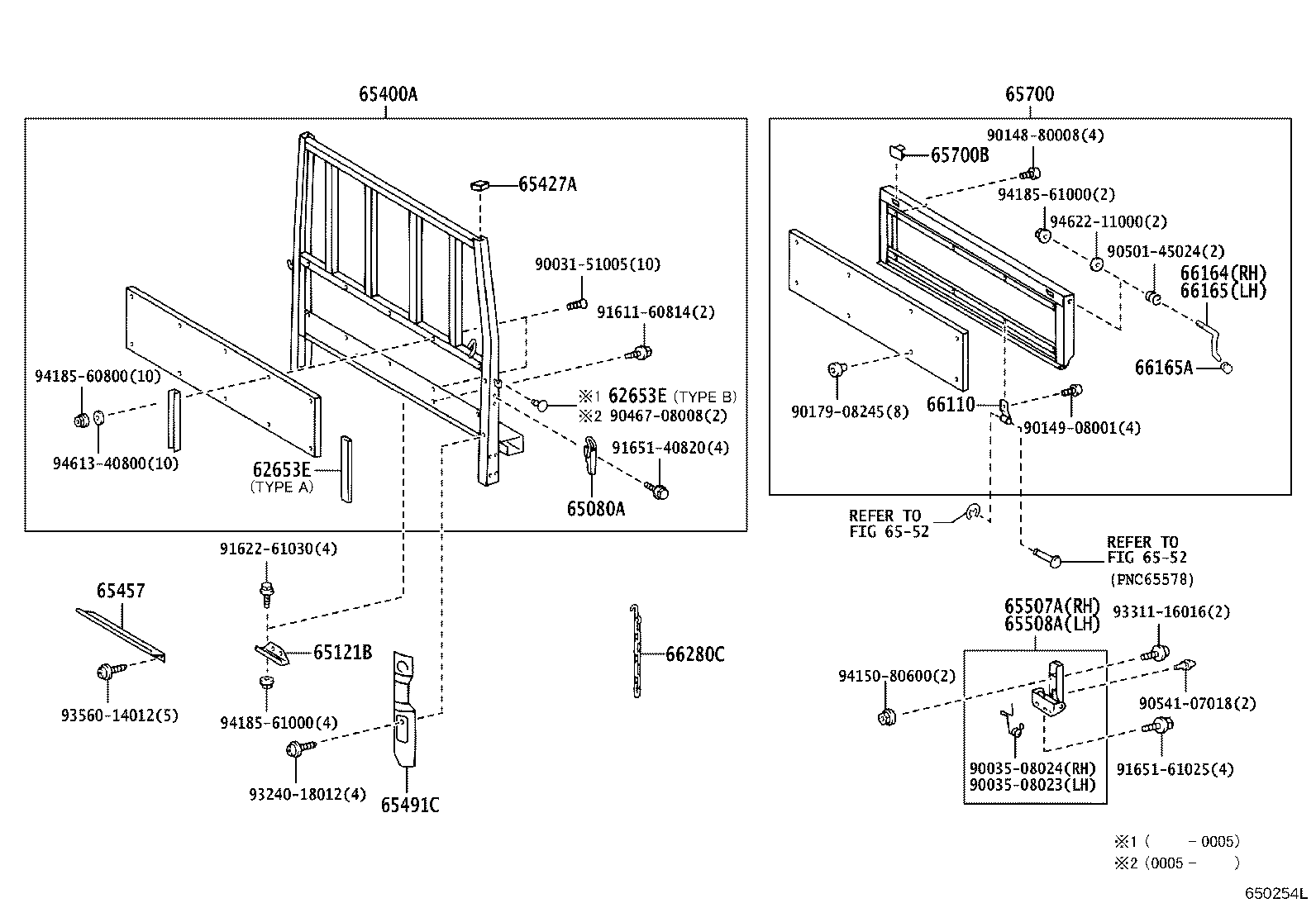

Click highlighted areas on diagram

Part #	Description	Period	Qty
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	2
65400A - GUARD ASSY, REAR BODY
65400-3V260	BU420..T4..20T..CBU;XZU421..T4..(4FC,5F)..20T..CBU	05/1999 - 06/2004	1
65400-3V270	BU420..4FC..20T..CBU ﾜｲﾄﾞﾎﾞﾃﾞ-	12/2000 - 06/2004	1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-37270	XZU410..40T..CBU;BU420,430,XZU42#,430..CBU	05/1999 - 12/2001	1
65043-37010	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	12/2001 - 06/2004	1
65491C - PROTECTOR, GUARD FLAME, LOWER
65481-37010	BU420..4FC..20T..CBU 右側	12/2000 - 06/2004	1
65482-37010	BU420..4FC..20T..CBU 左側	12/2000 - 06/2004	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37030	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37030	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37120	BU420..4FC..20T..CBU ｱﾘ(ﾘﾔﾃﾞﾂｷﾊﾊﾞ=2085 MM)	12/2000 - 06/2004	1
65700-37130	BU420..20T..CBU;XZU421..T5..5F..CBU;XZU421..T4..(4FC,5F)..20T..CBU ｱﾘ(ﾘﾔﾃﾞﾂｷﾊﾊﾞ=1915 MM)	05/1999 - 06/2004	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	2
66110 - HINGE ASSY, TAIL GATE
65535-37080	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	4
66165A - CAP, GATE LATCH HANDLE
66165-92701	XZU421..5F..CBU;BZU410..30T..CNG;XZU420..40TOV..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,420,430,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5)	05/1999 - 06/2004	2
66280C - CHAIN ASSY, TAIL GATE
66280-37020	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	2
Common parts
90105-10155
90148-80008
90179-08024
90179-08245
90201-10159
90501-07041
90501-45024
90541-06028
90541-07018
91511-B0814
91642-81025
93240-18012
93560-14008
93560-14014
94184-01001
94185-61000
94612-11001
94613-10800
96160-00600

(9905-0406)XZU410..40T..CBU ; (9905-0406)BU420,430,XZU42#,430..CBU

Click highlighted areas on diagram

Part #	Description	Period	Qty
62653E - PACKING
62653-37070	XZU410..40T..CBU;BU420,430,XZU42#,430..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 05/2000	2
62653-37060	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	2
62653E - PACKING
62653-37070	XZU410..40T..CBU;BU420,430,XZU42#,430..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 05/2000	2
62653-37060	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1999 - 06/2004	2
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	2
65121B - BRACKET, MAIN SILL MOUNTING, NO.1
65121-37080	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	11/2001 - 06/2004	2
65400A - GUARD ASSY, REAR BODY
65400-3V260	BU420..T4..20T..CBU;XZU421..T4..(4FC,5F)..20T..CBU	05/1999 - 06/2004	1
65400-3V270	BU420..4FC..20T..CBU ﾜｲﾄﾞﾎﾞﾃﾞ-	12/2000 - 06/2004	1
65427A - PLATE, REAR BODY GUARD, LH
65427-92800	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	2
65457 - PLATE, BAFFLE DUST REAR BODY
65457-37270	XZU410..40T..CBU;BU420,430,XZU42#,430..CBU	05/1999 - 12/2001	1
65043-37010	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	12/2001 - 06/2004	1
65491C - PROTECTOR, GUARD FLAME, LOWER
65481-37010	BU420..4FC..20T..CBU 右側	12/2000 - 06/2004	1
65482-37010	BU420..4FC..20T..CBU 左側	12/2000 - 06/2004	1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37030	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37030	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
65700 - GATE ASSY, REAR BODY TAIL
65700-37120	BU420..4FC..20T..CBU ｱﾘ(ﾘﾔﾃﾞﾂｷﾊﾊﾞ=2085 MM)	12/2000 - 06/2004	1
65700-37130	BU420..20T..CBU;XZU421..T5..5F..CBU;XZU421..T4..(4FC,5F)..20T..CBU ｱﾘ(ﾘﾔﾃﾞﾂｷﾊﾊﾞ=1915 MM)	05/1999 - 06/2004	1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	2
66110 - HINGE ASSY, TAIL GATE
65535-37080	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	4
66164 - HANDLE, TAIL GATE LATCH, RH
66264-37010	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-37010	XZU410..40T..CBU;BU430,XZU420..CBU;XZU421..T5..5F..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU421,430..6F..(30T,35T,40T)..CBU	05/1999 - 06/2004	1
66165A - CAP, GATE LATCH HANDLE
66165-92701	XZU421..5F..CBU;BZU410..30T..CNG;XZU420..40TOV..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,420,430,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5)	05/1999 - 06/2004	2
66280C - CHAIN ASSY, TAIL GATE
66280-37020	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	2
Common parts
90031-51005
90035-08023
90035-08024
90148-80008
90149-08001
90179-08245
90467-08008
90501-45024
90541-07018
91611-60814
91622-61030
91651-40820
91651-61025
93240-18012
93311-16016
93560-14012
94150-80600
94185-60800
94185-61000
94613-40800
94622-11000
Linked diagrams
6552

BU420-TQPMW (2000)

(9905-0406)BU400,410,BZU410,XZU382,40#,410,411,412..20T,295T,30T,35T..CBU,IV5 ; (02

(9905-0406)XZU410..40T..CBU ; (9905-0406)BU420,430,XZU42#,430..CBU
