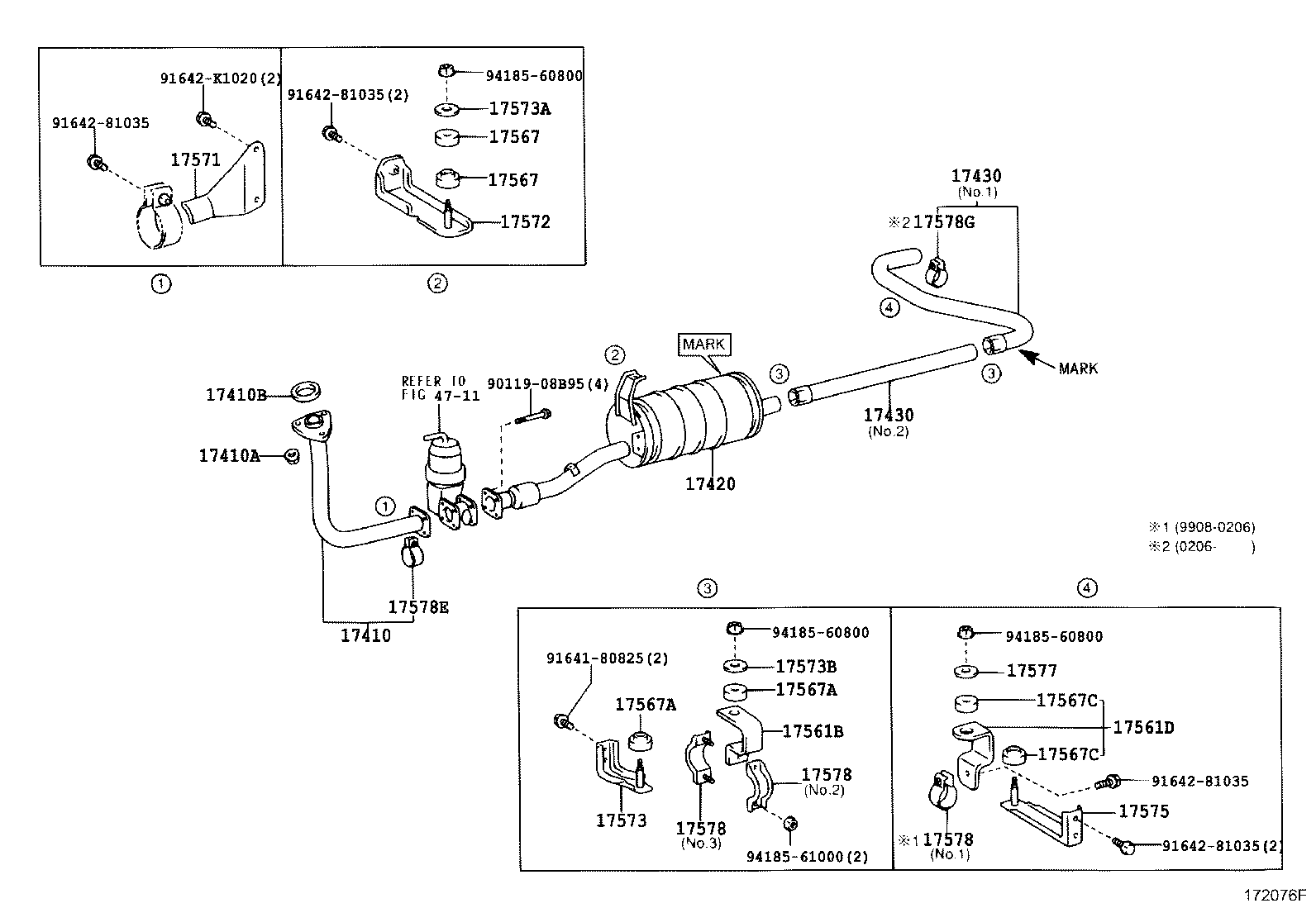

BU420-TQFMW3 (1999)
Toyota Dyna/Toyoace
(9908- )15BFTE..BU420
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58320 |
15BFTE..BU410,420,430..20T,30T,35T |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
J05C,S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 |
3 | ||
| 90179-10070 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,15BCNG,15BLPG..XZU400,410,412,420;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06067 |
15BFTE,1BZ#..BU410,420,430,BZU410..20T,30T,35T |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-58511 |
15BFTE..BU400,410,420,430 MARK CC |
1 | ||
| 17403-58510 |
15BFTE..BU400,410,420,430 |
1 | ||
| 17403-58540 |
15BFTE..BU410,420,430 ﾏｰｸ DJ |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78240 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;15BFTE..BU420..20T,35T;S05D..XZU421..T4..(4FC,5F) NO.2 |
1 | ||
| 17405-78200 |
S05D,15BFTE..BU420,XZU421..20T ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),NO.1ﾏｰｸ TZ |
1 | ||
| 17405-78670 |
S05D..XZU421..T3..CBU;S05D,15BFTE..BU420,XZU421..20T NO.1,ﾏｰｸ WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78240 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;15BFTE..BU420..20T,35T;S05D..XZU421..T4..(4FC,5F) NO.2 |
1 | ||
| 17405-78200 |
S05D,15BFTE..BU420,XZU421..20T ｱﾘ(ﾘﾔ ﾃﾞﾂｷ ﾊﾊﾞ=1915 MM),NO.1ﾏｰｸ TZ |
1 | ||
| 17405-78670 |
S05D..XZU421..T3..CBU;S05D,15BFTE..BU420,XZU421..20T NO.1,ﾏｰｸ WT |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) |
2 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78080 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,15BCNG,15BLPG..XZU400,410,412,420;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 17561-78080 |
J05C,S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) |
4 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) |
4 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
J05C,S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 |
2 | ||
| 17567-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,15BCNG,15BLPG..XZU400,410,412,420;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
J05C,S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 |
2 | ||
| 17567-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,15BCNG,15BLPG..XZU400,410,412,420;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-58390 |
15B#..BU400,410,420,430,XZU412..MTM |
1 | ||
| 17571-58391 |
15BFTE,1BZ#..BU410,420,430,BZU410..MTM |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78070 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU40#,41#,42#,430..DSL,TDEFI |
1 | ||
| 17572-78071 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 17572-78071 |
J05C,S05#,15B#..BU400,410,420,430,XZU40#,41#,42#,430..CNG,DSL,TDEFI |
1 | ||
| 17572-78072 |
J05C,S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78081 |
J05C,S05D,15BFTE..BU420,430,XZU42#,430 |
2 | ||
| 17573-78080 |
J05C,S05D,15BFTE..BU420,430,XZU42#,430 |
2 | ||
| 17573-78082 |
J05C,S05D,15BFTE..BU420,430,XZU42#,430 |
2 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,15BCNG,15BLPG..XZU400,410,412,420;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 16721-78010 |
J05C,S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) |
2 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78070 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 17575-78071 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 NO.1 |
1 | ||
| 17578-78040 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) NO.3 |
2 | ||
| 17578-78030 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) NO.2 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 NO.1 |
1 | ||
| 17578-78040 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) NO.3 |
2 | ||
| 17578-78030 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) NO.2 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 NO.1 |
1 | ||
| 17578-78040 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) NO.3 |
2 | ||
| 17578-78030 |
J05C..XZU420;S05D..XZU421..T5..5F;S05D..XZU421..T4..(4FC,5F);15BFTE..BU420,430..20T,35T;J05C,S05D..XZU421,430..6F..(30T,35T,40T) NO.2 |
2 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 17578-78010 |
J05C,S05#,15BFTE,1BZ#..BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 |
1 | ||
| 17578-78010 |
J05C,S05#,15B#..BU410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 17578-78010 |
J05C,S05#,15B#..BU410,420,430,XZU382,40#,41#,42#,430..CNG,DSL,LPG,TDEFI |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-78020 |
J05C,S05#,15BFTE..BU410,420,430,XZU382,40#,410,411,412,42#,430 |
1 | ||
| 17578-78020 |
J05C,S05#,15BFTE..BU410,420,430,XZU382,40#,41#,42#,430..DSL,TDEFI |
1 | ||
| Common parts | ||||
| 90119-08B95 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 91642-K1020 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
