BU420-TPFMW3 (1999)
Toyota Dyna/Toyoace

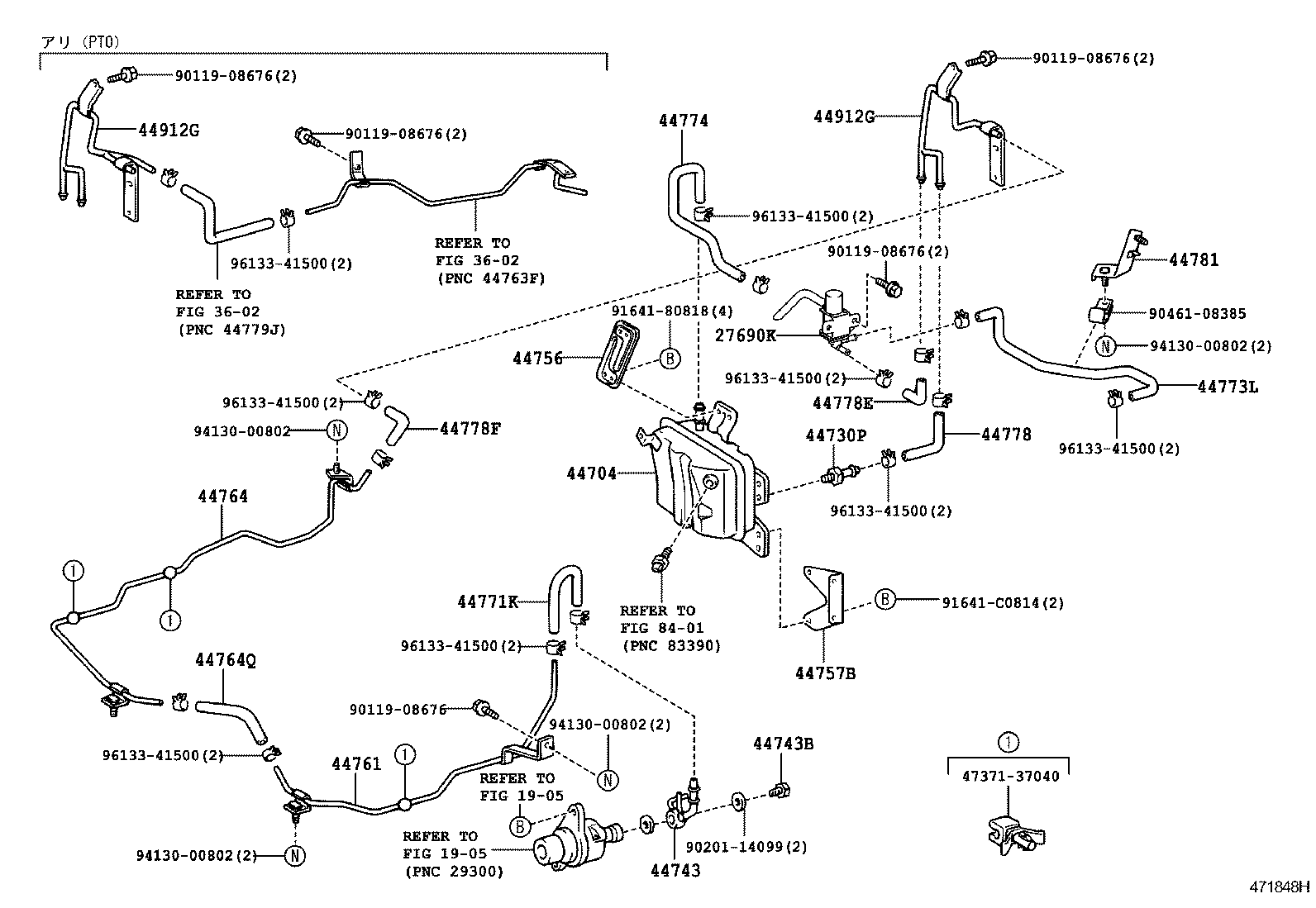

ILLUST NO. 2 OF 2(9908- )BU400,410,420,430 ; (0011- )CNG,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 27690-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB..(CBU,IV3,IV5) |
1 | ||
| 27690-78023 |
J05C,S05#,15BFTE..BU410,420,430,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 27690-78021 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 27690-78022 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..SCB..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37070 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09188 |
BU410,420,430..20T,30T,35T |
1 | ||
| 44743B - BOLT, UNION(FOR VACUUM PUMP UNION) | ||||
| 90401-09001 |
BU410,420,430,BZU410..20T,30T,35T |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37090 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44757-37091 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37171 |
BU410,420,430..20T,30T,35T |
1 | ||
| 44761-37170 |
BU400,410,420,430 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37250 |
BU410,420,430,XZU412..(20T,30T,35T)..(CNG,LPG,TDEFI) |
1 | ||
| 44764-37250 |
BU410,420,430,BZU410 |
1 | ||
| 44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) | ||||
| 95446-09160 |
BU410,420,430,BZU410..20T,30T,35T |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09300 |
XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44771-37200 |
BU410,420,430..20T,30T,35T |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37120 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44778-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44778F - HOSE, VACUUM TUBE TO 3 WAY | ||||
| 44778-37060 |
BU410,420,430,XZU412..(20T,30T,35T)..(CNG,LPG,TDEFI) |
1 | ||
| 44778-37060 |
BU410,420,430,BZU410 |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37080 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44781-37081 |
BU410,420,430,XZU40#,410,411,412,42#,430..SCB |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37430 |
BU420..6F..(20T,35T);XZU411,412,421..SCB..5F..DSL;BU410,430,XZU40#,410,420..MTM..(CBU,IV3);XZU411,412,421,430..6F..(295T,30T,35T,40T) ｱﾘ(PTO) |
1 | ||
| 44912-37470 |
XZU410,420;XZU421..T5..5F;XZU421..6F..30T;XZU400..IV3,IV6;XZU400..35T..CBU;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) ﾅｼ(PTO) |
1 | ||
| 44912-37431 |
BU410,420,430,XZU40#,410,411,412,42#,430..SCB..MTM..(DSL,DSLL,TDEFI)..(CBU,IV3) ｱﾘ(PTO) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37430 |
BU420..6F..(20T,35T);XZU411,412,421..SCB..5F..DSL;BU410,430,XZU40#,410,420..MTM..(CBU,IV3);XZU411,412,421,430..6F..(295T,30T,35T,40T) ｱﾘ(PTO) |
1 | ||
| 44912-37470 |
XZU410,420;XZU421..T5..5F;XZU421..6F..30T;XZU400..IV3,IV6;XZU400..35T..CBU;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) ﾅｼ(PTO) |
1 | ||
| 44912-37431 |
BU410,420,430,XZU40#,410,411,412,42#,430..SCB..MTM..(DSL,DSLL,TDEFI)..(CBU,IV3) ｱﾘ(PTO) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90201-14099 | ||||
| 90461-08385 | ||||
| 91641-80818 | ||||
| 91641-C0814 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 3602 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0206- )BU410,420,430,BZU410,XZU382,400,402,410,412,420,430
BOTTOLE CAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 27690-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 27690-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB..(CBU,IV3,IV5) |
1 | ||
| 27690-78020 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB..(CBU,IV3,IV5) |
1 | ||
| 27690-78023 |
J05C,S05#,15BFTE..BU410,420,430,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 27690-78023 |
J05C,S05#,15BFTE..BU410,420,430,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 27690-78021 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 27690-78021 |
J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 27690-78022 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..SCB..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 27690-78022 |
J05C..XZU400,410,420;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);S05#..XZU411,412..SCB..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T;S05#,15BFTE..BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37070 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44704-37070 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44730-60050 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44756-37100 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37090 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44757-37090 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44757-37091 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 44757-37091 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 95446-09300 |
XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 95446-09300 |
XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44771-37200 |
BU410,420,430..20T,30T,35T |
1 | ||
| 44771-37200 |
BU410,420,430..20T,30T,35T |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37120 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 44773-37120 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44774-37110 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44778-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44778-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44778-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37430 |
BU420..6F..(20T,35T);XZU411,412,421..SCB..5F..DSL;BU410,430,XZU40#,410,420..MTM..(CBU,IV3);XZU411,412,421,430..6F..(295T,30T,35T,40T) ｱﾘ(PTO) |
1 | ||
| 44912-37430 |
BU420..6F..(20T,35T);XZU411,412,421..SCB..5F..DSL;BU410,430,XZU40#,410,420..MTM..(CBU,IV3);XZU411,412,421,430..6F..(295T,30T,35T,40T) ｱﾘ(PTO) |
1 | ||
| 44912-37470 |
XZU410,420;XZU421..T5..5F;XZU421..6F..30T;XZU400..IV3,IV6;XZU400..35T..CBU;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) ﾅｼ(PTO) |
1 | ||
| 44912-37470 |
XZU410,420;XZU421..T5..5F;XZU421..6F..30T;XZU400..IV3,IV6;XZU400..35T..CBU;XZU421..T4..(4FC,5F);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) ﾅｼ(PTO) |
1 | ||
| 44912-37431 |
BU410,420,430,XZU40#,410,411,412,42#,430..SCB..MTM..(DSL,DSLL,TDEFI)..(CBU,IV3) ｱﾘ(PTO) |
1 | ||
| 44912-37431 |
BU410,420,430,XZU40#,410,411,412,42#,430..SCB..MTM..(DSL,DSLL,TDEFI)..(CBU,IV3) ｱﾘ(PTO) |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 91641-C0814 | ||||
| 95446-09400 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
