BU420-TPFMW (1999)

Toyota Dyna/Toyoace

Production Aug 1999 - Jun 2004
Engine 15BFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0406)BU400,410,420,430

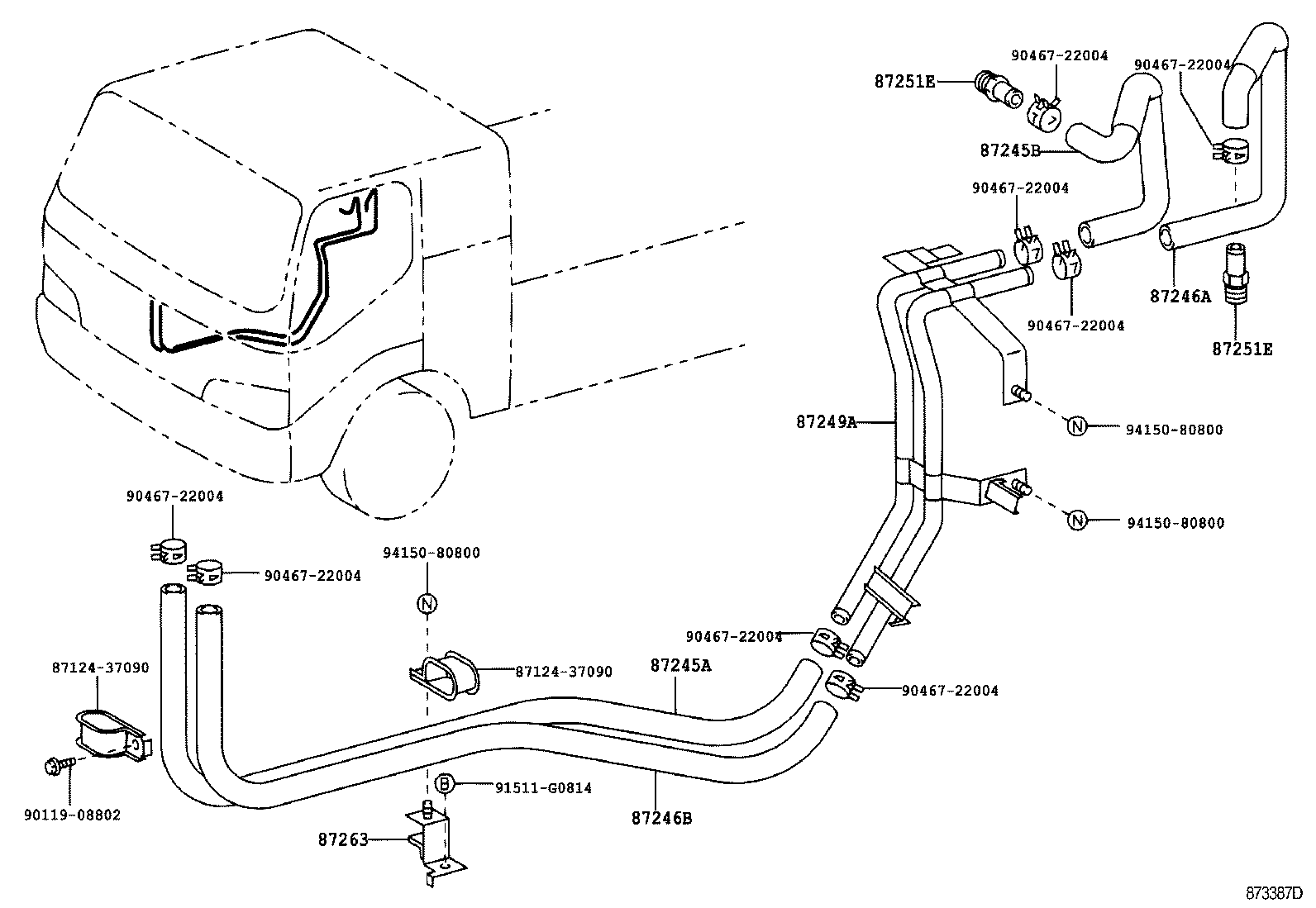

Click highlighted areas on diagram

diagram 8712437090 8712437090 87245A 87245B 87246A 87246B 87249A 87251E 87251E 87263 9011908802 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 91511G0814 9415080800 9415080800 9415080800
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-3V200

BU410,420,430..20T,30T,35T

 1
87245-37750

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-3V180

BU410,420,430..20T,30T,35T

 1
87245-3V150

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V190

BU410,420,430..20T,30T,35T

 1
87245-3V150

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37030

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
87245-3V200

BU410,420,430..20T,30T,35T

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37320

BU410,420,430..20T,30T,35T

 1
87248-37310

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
87251E - JOINT, WATER, NO.2
87251-30200

BU410,420,430..20T,30T,35T

 2
87251E - JOINT, WATER, NO.2
87251-30200

BU410,420,430..20T,30T,35T

 2
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-37020

BU410,420,430,BZU410,XZU40#,410,411,412,42#,430

 1
87263-37020

XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T

 1
87263-37020

BU420..6F..(20T,35T);XZU402,41#,42#..(20T,295T,30T,35T,40T)..DSL;BU400,410,430,XZU400,401,430..MTM..(20T,30T,35T,40T)

 1
Common parts
87124-37090
90119-08802
90467-22004
91511-G0814
94150-80800
