Toyota Dyna/toyoace BU410 OIL COOLER & TUBE (ATM)

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU410-TQPMW3 (2000)
3514 - OIL COOLER & TUBE (ATM)

BU410-TQPMW3 (2000)

Toyota Dyna/Toyoace

Production May 2000 - Jun 2004

Engine 15BFTE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

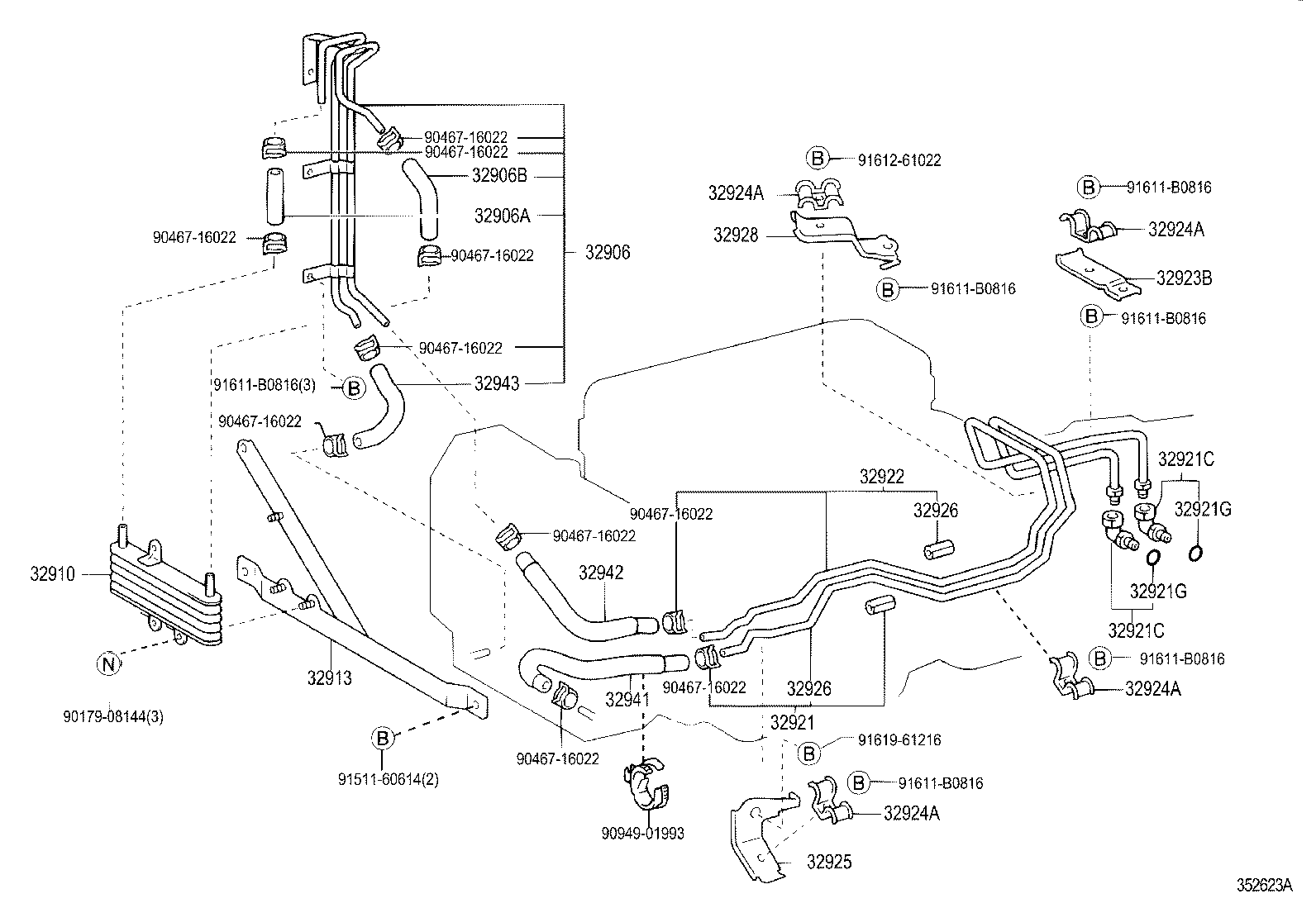

(0005-0406)BU410,420,430..4FC

Click highlighted areas on diagram

A443E

Part #	Description	Period	Qty
32906 - TUBE SUB-ASSY, OIL COOLER
32906-37060	BU410,420,430..4FC	05/2000 - 06/2004	1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
32943-60090	BU410,420,430..4FC	05/2000 - 06/2004	1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-17130	BU410,420,430..4FC	05/2000 - 06/2004	1
32910 - COOLER ASSY, OIL
32910-37040	BU410,420,430..4FC	05/2000 - 06/2004	1
32913 - BRACKET, OIL COOLER
32913-37050	BU410,420,430..4FC	05/2000 - 06/2004	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-37090	BU410,420,430..4FC	05/2000 - 06/2004	1
32921-37060	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC ｱｳﾄﾚｯﾄ	05/1999 - 06/2004	1
90407-20006	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC ｲﾝﾚｯﾄ	05/1999 - 06/2004	1
90407-20007	BU410,420,430..4FC ｲﾝﾚｯﾄ	05/2000 - 06/2004	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC ｱｳﾄﾚｯﾄ	05/1999 - 06/2004	1
90407-20006	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC ｲﾝﾚｯﾄ	05/1999 - 06/2004	1
90407-20007	BU410,420,430..4FC ｲﾝﾚｯﾄ	05/2000 - 06/2004	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-37090	BU410,420,430..4FC	05/2000 - 06/2004	1
32922-37060	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-25010	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37020	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32925-37070	BU410,420,430..4FC	05/2000 - 06/2004	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC 長さ=45,内径=12	05/1999 - 06/2004	10
32926-60010	BU410,420,430..4FC 長さ=45,内径=12	05/2000 - 06/2004	8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC 長さ=45,内径=12	05/1999 - 06/2004	10
32926-60010	BU410,420,430..4FC 長さ=45,内径=12	05/2000 - 06/2004	8
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-37020	BU410,420,430..4FC	05/2000 - 06/2004	1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37080	BU410,420,430..4FC	05/2000 - 06/2004	1
32941-37040	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37020	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
32943-37100	BU410,420,430..4FC	05/2000 - 06/2004	1
Common parts
90179-08144
90467-16022
90949-01993
91511-60614
91611-B0816
91612-61022
91619-61216

(9905-0406)XZU401,402,410,411,412,42#..4FC

Click highlighted areas on diagram

A443E

Part #	Description	Period	Qty
32921 - TUBE, OIL COOLER INLET, NO.1
32921-37090	BU410,420,430..4FC	05/2000 - 06/2004	1
32921-37060	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC ｱｳﾄﾚｯﾄ	05/1999 - 06/2004	1
90407-20006	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC ｲﾝﾚｯﾄ	05/1999 - 06/2004	1
90407-20007	BU410,420,430..4FC ｲﾝﾚｯﾄ	05/2000 - 06/2004	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-20008	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC ｱｳﾄﾚｯﾄ	05/1999 - 06/2004	1
90407-20006	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC ｲﾝﾚｯﾄ	05/1999 - 06/2004	1
90407-20007	BU410,420,430..4FC ｲﾝﾚｯﾄ	05/2000 - 06/2004	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-37090	BU410,420,430..4FC	05/2000 - 06/2004	1
32922-37060	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32927-37010	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-25010	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-37010	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12076	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	4
32925 - CLAMP, OIL COOLER TUBE, NO.3
32925-37020	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32925-37070	BU410,420,430..4FC	05/2000 - 06/2004	1
32925A - CLAMP, FLEXIBLE HOSE, NO.2
32929-25020	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC 長さ=45,内径=12	05/1999 - 06/2004	10
32926-60010	BU410,420,430..4FC 長さ=45,内径=12	05/2000 - 06/2004	8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC 長さ=45,内径=12	05/1999 - 06/2004	10
32926-60010	BU410,420,430..4FC 長さ=45,内径=12	05/2000 - 06/2004	8
32941 - HOSE, OIL COOLER INLET, NO.1
32941-37080	BU410,420,430..4FC	05/2000 - 06/2004	1
32941-37040	XZU421..T4..4FC;XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-37020	XZU421..T4..4FC;BU410,420,430,XZU401,402,410,411,412,420..4FC	05/1999 - 06/2004	1
Common parts
90467-16022
90949-01993
91611-B0616
91611-B0816

BU410-TQPMW3 (2000)

(0005-0406)BU410,420,430..4FC

(9905-0406)XZU401,402,410,411,412,42#..4FC
