BU410-TQFQW3 (1999)
Toyota Dyna/Toyoace
Production
Aug 1999
-
Jun 2004
Engine
15BFTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

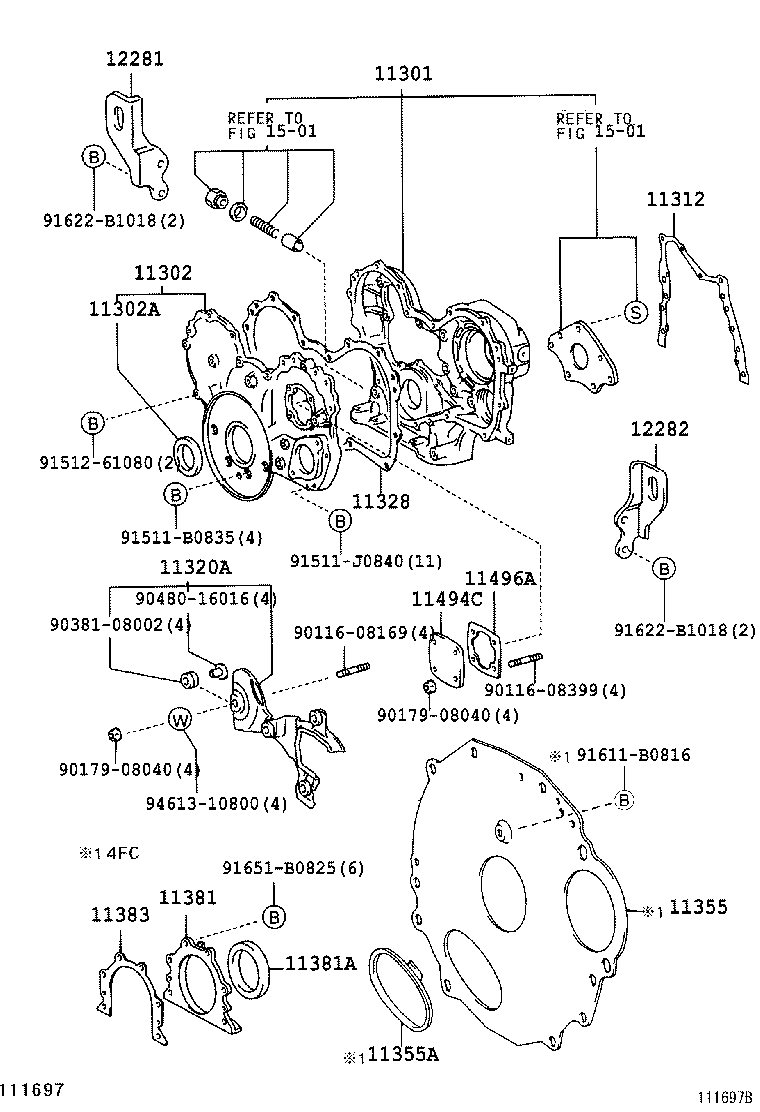

ILLUST NO. 1 OF 2(9908-0406)15BFTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-58040 |
15BFTE..BU400,410,420,430 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-58060 |
15BFTE..BU400,410,420,430 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-50013 |
15BFTE,1BZ#..BU400,410,420,430,BZU410 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-58010 |
15BFTE..BU400,410,420,430 |
1 | ||
| 11320A - COVER ASSY, TIMING GEAR, NO.2 | ||||
| 11320-58030 |
15BFTE..BU400,410,420,430 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-58020 |
15BFTE..BU400,410,420,430 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-58011 |
15BFTE,1BZ#..BU400,410,420,430,BZU410 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95011 |
15BFTE,1BZ#..BU400,410,420,430,BZU410 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-56040 |
15BFTE,1BZ#..BU400,410,420,430,BZU410 |
1 | ||
| 11494C - PLATE, OIL HOLE COVER | ||||
| 11494-58010 |
15BFTE..BU400,410,420,430 |
1 | ||
| 11496A - GASKET, OIL HOLE COVER | ||||
| 11496-58010 |
15BFTE..BU400,410,420,430 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-58010 |
15BFTE..BU400,410,420,430 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-58030 |
15BFTE..BU400,410,420,430 |
1 | ||
| Common parts | ||||
| 90116-08169 | ||||
| 90116-08399 | ||||
| 90179-08040 | ||||
| 90381-08002 | ||||
| 90480-16016 | ||||
| 91511-B0835 | ||||
| 91511-J0840 | ||||
| 91512-61080 | ||||
| 91611-B0816 | ||||
| 91622-B1018 | ||||
| 91651-B0825 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1501 | ||||

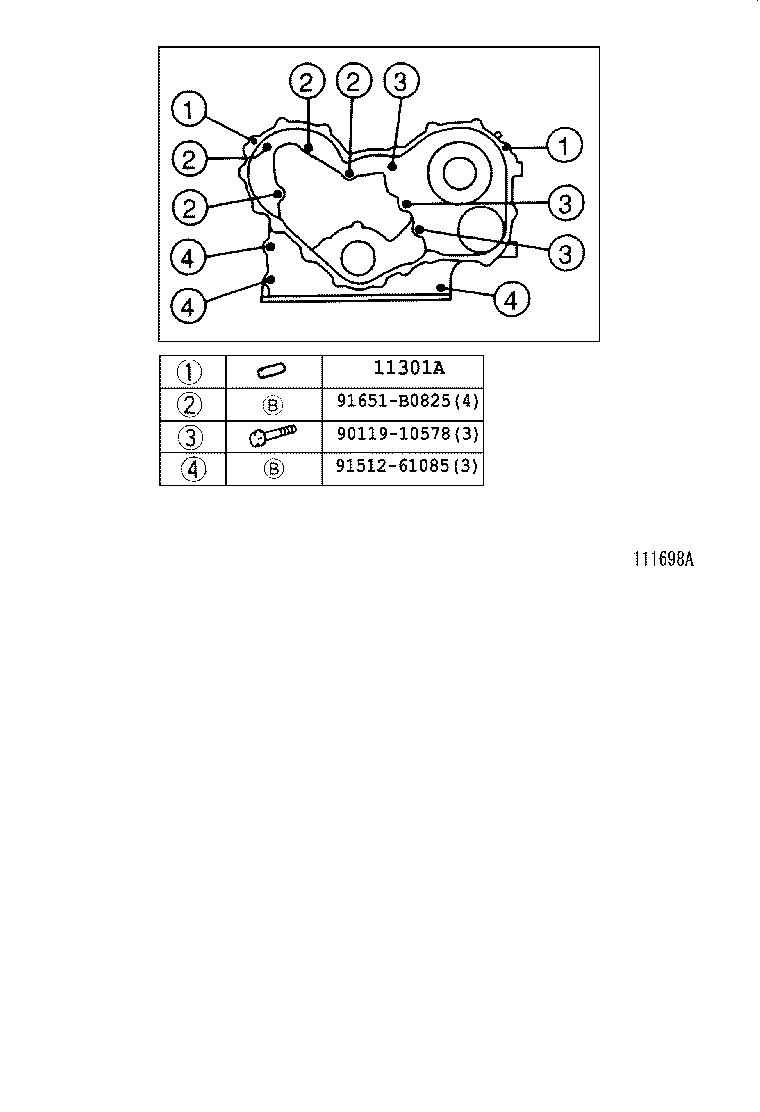

ILLUST NO. 2 OF 2(9908-0406)15BFTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
15BFTE,1BZ#..BU400,410,420,430,BZU410 長さ=18,外径=8 |
2 | ||
| Common parts | ||||
| 90119-10578 | ||||
| 91512-61085 | ||||
| 91651-B0825 | ||||
