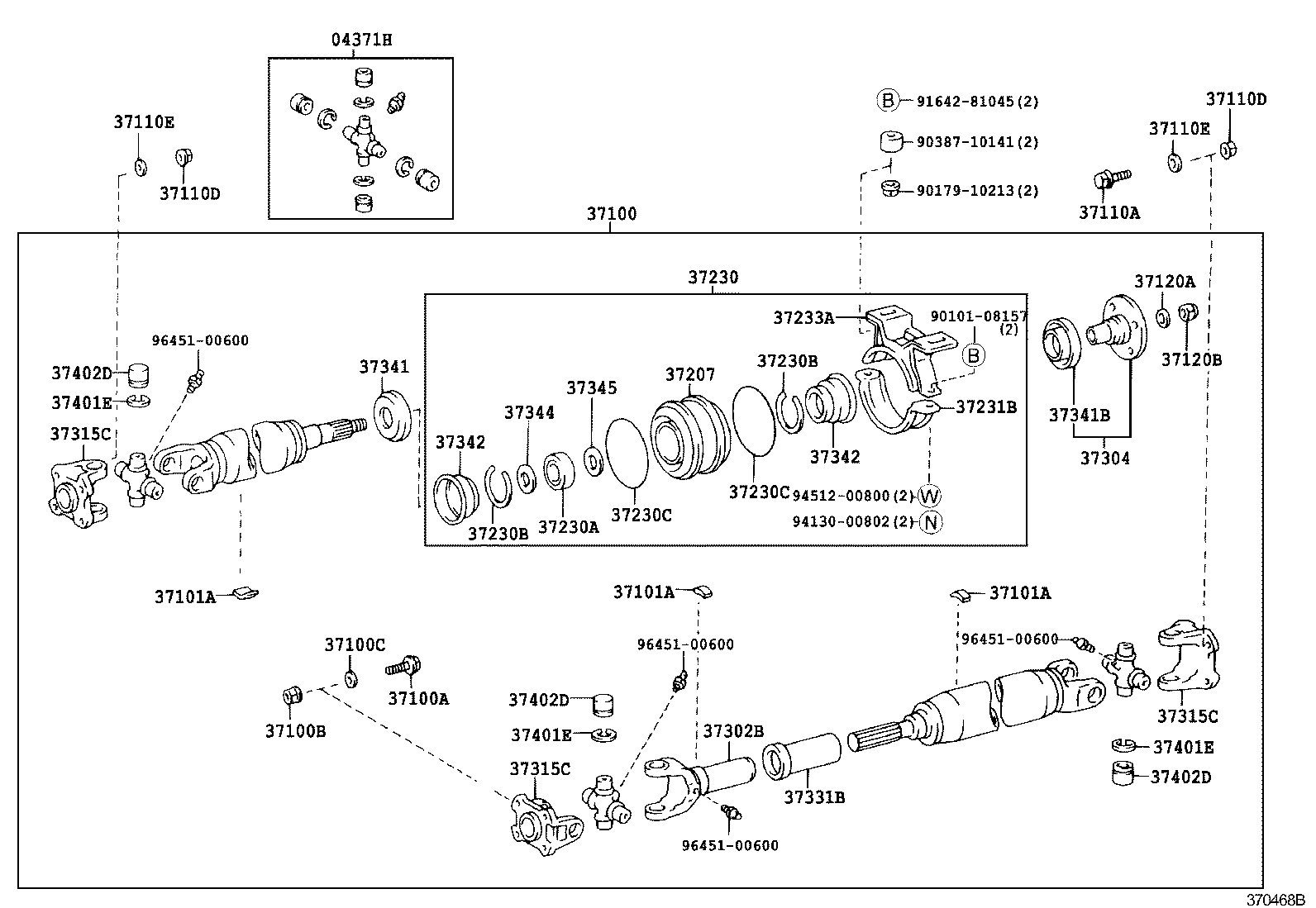

BU346-TQMMS (1999)
Toyota Dyna/Toyoace
(9905- )XZU322..T5..4FC ; (9905- )XZU302..T4,T5..20T..DSL ; (9905- )BU30#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60030 |
XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,371,382 |
2 | ||
| 04371-37011 |
XZU302..DM3,T3;XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU301,312..DCB..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3)..(20T,295T);XZU301..(DM6,T4)..5F..(CNG,DSLL);XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,312..5F..(295T,30T)..DSL..4NO;XZU302,311..(DM5,T4,T5)..(295T,30T)..4NO;XZU301,302..SCB..(DM6,T3,T5)..4FC..WT..DSL;XZU340,341,342,346,347,351..SCB..(DSL,DSLL);BZU300,340,XZU300,306,330,331,352,372..(DM2,DM5,DM6,T3,T4)..(20T,30T)..(CNG,DSL,LPG) |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 6G,長さ=12.4 |
1 | ||
| 90937-01140 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 10G,長さ=20.7 |
1 | ||
| 90937-01192 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,厚さ=4.5 |
1 | ||
| 90937-01191 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,厚さ=1.6 |
1 | ||
| 90937-01156 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,長さ=49.7 |
1 | ||
| 90937-01157 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 26G,長さ=53.9 |
1 | ||
| 90937-01155 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 22G,長さ=45.6 |
1 | ||
| 90937-01193 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,厚さ=4.5 |
1 | ||
| 90937-01154 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 18G,長さ=37.3 |
1 | ||
| 90937-01198 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01184 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=1.6 |
1 | ||
| 90937-01194 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,厚さ=4.5 |
1 | ||
| 90937-01158 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,長さ=58.1 |
1 | ||
| 90937-01200 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01153 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,長さ=33.2 |
1 | ||
| 90937-01199 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01269 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 40G,長さ=25.6 |
1 | ||
| 90937-01268 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01150 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,長さ=16.6 |
1 | ||
| 90937-01270 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 44G,長さ=22.6 |
1 | ||
| 90937-01271 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 48G,長さ=24.6 |
1 | ||
| 90937-01272 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 52G,長さ=26.7 |
1 | ||
| 90937-01274 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 60G,長さ=28.7 |
1 | ||
| 90937-01273 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 56G,長さ=28.7 |
1 | ||
| 90039-13005 |
XZU340,341,342,346,347 75G |
1 | ||
| 90039-13001 |
XZU340,341,342,346,347 6G |
1 | ||
| 90039-13003 |
XZU340,341,342,346,347 25G |
1 | ||
| 90039-13002 |
XZU340,341,342,346,347 12G |
1 | ||
| 90039-13004 |
XZU340,341,342,346,347 50G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 6G,長さ=12.4 |
1 | ||
| 90937-01140 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 10G,長さ=20.7 |
1 | ||
| 90937-01192 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,厚さ=4.5 |
1 | ||
| 90937-01191 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,厚さ=1.6 |
1 | ||
| 90937-01156 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,長さ=49.7 |
1 | ||
| 90937-01157 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 26G,長さ=53.9 |
1 | ||
| 90937-01155 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 22G,長さ=45.6 |
1 | ||
| 90937-01193 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,厚さ=4.5 |
1 | ||
| 90937-01154 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 18G,長さ=37.3 |
1 | ||
| 90937-01198 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01184 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=1.6 |
1 | ||
| 90937-01194 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,厚さ=4.5 |
1 | ||
| 90937-01158 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,長さ=58.1 |
1 | ||
| 90937-01200 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01153 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,長さ=33.2 |
1 | ||
| 90937-01199 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01269 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 40G,長さ=25.6 |
1 | ||
| 90937-01268 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01150 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,長さ=16.6 |
1 | ||
| 90937-01270 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 44G,長さ=22.6 |
1 | ||
| 90937-01271 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 48G,長さ=24.6 |
1 | ||
| 90937-01272 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 52G,長さ=26.7 |
1 | ||
| 90937-01274 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 60G,長さ=28.7 |
1 | ||
| 90937-01273 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 56G,長さ=28.7 |
1 | ||
| 90039-13005 |
XZU340,341,342,346,347 75G |
1 | ||
| 90039-13001 |
XZU340,341,342,346,347 6G |
1 | ||
| 90039-13003 |
XZU340,341,342,346,347 25G |
1 | ||
| 90039-13002 |
XZU340,341,342,346,347 12G |
1 | ||
| 90039-13004 |
XZU340,341,342,346,347 50G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37170 |
BZU340,XZU340,341,342,346,347 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 *11−1.00PX28−16 |
4 | ||
| 90031-01165 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,340,XZU300,301,306,31#,320,321,330,331,340,341,342,346,347,35#,362,37#,382 *12−1.25PX35−17 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90179-11005 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 90170-12005 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90179-11005 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 90170-12005 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90201-11013 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 94512-01200 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90201-11013 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 94512-01200 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-36020 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU346,RZU340 |
3 | ||
| 37315-37021 |
BZU340,XZU340,341,342,346,347 |
3 | ||
| 37315-36020 |
BU30#,346,RZU30#,340..5F;XZU302,307,337..(03S,T2,T4,T5)..20T |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU346,RZU340 |
3 | ||
| 37315-37021 |
BZU340,XZU340,341,342,346,347 |
3 | ||
| 37315-36020 |
BU30#,346,RZU30#,340..5F;XZU302,307,337..(03S,T2,T4,T5)..20T |
1 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-36050 |
XZU302..(T4,T5)..20T;RZU300,XZU307,337..T2,T4,T5;BU30#,346,RZU301,340..(DCB,SCB)..5F |
1 | ||
| 37305-36050 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;RZU300,XZU307,337..T2,T4,T5;BU30#,346,RZU301,340..(DCB,SCB)..5F |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
4 | ||
| 90035-21024 |
XZU340,341,342,346,347 厚さ=1.60 |
8 | ||
| 90035-21022 |
XZU340,341,342,346,347 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU340,341,342,346,347 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU340,341,342,346,347 厚さ=1.70 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
4 | ||
| 90035-21025 |
XZU340,341,342,346,347 厚さ=1.65 |
8 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
4 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
4 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
4 | ||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
4 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
4 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
4 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
4 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
4 | ||
| 90035-21024 |
XZU340,341,342,346,347 厚さ=1.60 |
8 | ||
| 90035-21022 |
XZU340,341,342,346,347 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU340,341,342,346,347 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU340,341,342,346,347 厚さ=1.70 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
4 | ||
| 90035-21025 |
XZU340,341,342,346,347 厚さ=1.65 |
8 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
4 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
4 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
4 | ||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
4 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
4 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
4 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
4 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
4 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU340,341,342,346,347 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
20 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU340,341,342,346,347 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
20 | ||
| Common parts | ||||
| 96451-00600 | ||||
(9905-0406)BU346,RZU340 ; (0406- )RZU340,XZU348
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60030 |
XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,371,382 |
2 | ||
| 04371-37011 |
XZU302..DM3,T3;XZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU301,312..DCB..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;XZU301..(DM3,T3)..(20T,295T);XZU301..(DM6,T4)..5F..(CNG,DSLL);XZU301,321,322..(DM7,T4)..4FC..4NO;XZU301,312..5F..(295T,30T)..DSL..4NO;XZU302,311..(DM5,T4,T5)..(295T,30T)..4NO;XZU301,302..SCB..(DM6,T3,T5)..4FC..WT..DSL;XZU340,341,342,346,347,351..SCB..(DSL,DSLL);BZU300,340,XZU300,306,330,331,352,372..(DM2,DM5,DM6,T3,T4)..(20T,30T)..(CNG,DSL,LPG) |
2 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-37130 |
BU346,RZU340 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-11013 |
BU346,RZU340 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-11005 |
BU346,RZU340 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
BU346,RZU340 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 6G,長さ=12.4 |
1 | ||
| 90937-01140 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 10G,長さ=20.7 |
1 | ||
| 90937-01192 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,厚さ=4.5 |
1 | ||
| 90937-01191 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,厚さ=1.6 |
1 | ||
| 90937-01156 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,長さ=49.7 |
1 | ||
| 90937-01157 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 26G,長さ=53.9 |
1 | ||
| 90937-01155 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 22G,長さ=45.6 |
1 | ||
| 90937-01193 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,厚さ=4.5 |
1 | ||
| 90937-01154 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 18G,長さ=37.3 |
1 | ||
| 90937-01198 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01184 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=1.6 |
1 | ||
| 90937-01194 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,厚さ=4.5 |
1 | ||
| 90937-01158 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,長さ=58.1 |
1 | ||
| 90937-01200 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01153 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,長さ=33.2 |
1 | ||
| 90937-01199 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01269 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 40G,長さ=25.6 |
1 | ||
| 90937-01268 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01150 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,長さ=16.6 |
1 | ||
| 90937-01270 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 44G,長さ=22.6 |
1 | ||
| 90937-01271 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 48G,長さ=24.6 |
1 | ||
| 90937-01272 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 52G,長さ=26.7 |
1 | ||
| 90937-01274 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 60G,長さ=28.7 |
1 | ||
| 90937-01273 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 56G,長さ=28.7 |
1 | ||
| 90039-13005 |
XZU340,341,342,346,347 75G |
1 | ||
| 90039-13001 |
XZU340,341,342,346,347 6G |
1 | ||
| 90039-13003 |
XZU340,341,342,346,347 25G |
1 | ||
| 90039-13002 |
XZU340,341,342,346,347 12G |
1 | ||
| 90039-13004 |
XZU340,341,342,346,347 50G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 6G,長さ=12.4 |
1 | ||
| 90937-01140 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 10G,長さ=20.7 |
1 | ||
| 90937-01192 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,厚さ=4.5 |
1 | ||
| 90937-01191 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,厚さ=1.6 |
1 | ||
| 90937-01156 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,長さ=49.7 |
1 | ||
| 90937-01157 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 26G,長さ=53.9 |
1 | ||
| 90937-01155 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 22G,長さ=45.6 |
1 | ||
| 90937-01193 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,厚さ=4.5 |
1 | ||
| 90937-01154 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 18G,長さ=37.3 |
1 | ||
| 90937-01198 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01184 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=1.6 |
1 | ||
| 90937-01194 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,厚さ=4.5 |
1 | ||
| 90937-01158 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,長さ=58.1 |
1 | ||
| 90937-01200 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01153 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,長さ=33.2 |
1 | ||
| 90937-01199 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01269 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 40G,長さ=25.6 |
1 | ||
| 90937-01268 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01150 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,長さ=16.6 |
1 | ||
| 90937-01270 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 44G,長さ=22.6 |
1 | ||
| 90937-01271 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 48G,長さ=24.6 |
1 | ||
| 90937-01272 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 52G,長さ=26.7 |
1 | ||
| 90937-01274 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 60G,長さ=28.7 |
1 | ||
| 90937-01273 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 56G,長さ=28.7 |
1 | ||
| 90039-13005 |
XZU340,341,342,346,347 75G |
1 | ||
| 90039-13001 |
XZU340,341,342,346,347 6G |
1 | ||
| 90039-13003 |
XZU340,341,342,346,347 25G |
1 | ||
| 90039-13002 |
XZU340,341,342,346,347 12G |
1 | ||
| 90039-13004 |
XZU340,341,342,346,347 50G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01151 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,長さ=24.9 |
1 | ||
| 90937-01149 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 6G,長さ=12.4 |
1 | ||
| 90937-01140 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 30G,長さ=62.2 |
1 | ||
| 90937-01148 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=2.0 |
1 | ||
| 90937-01152 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 2G,厚さ=2.0 |
1 | ||
| 90937-01136 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 10G,長さ=20.7 |
1 | ||
| 90937-01192 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 12G,厚さ=4.5 |
1 | ||
| 90937-01191 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,厚さ=1.6 |
1 | ||
| 90937-01156 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,長さ=49.7 |
1 | ||
| 90937-01157 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 26G,長さ=53.9 |
1 | ||
| 90937-01155 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 22G,長さ=45.6 |
1 | ||
| 90937-01193 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,厚さ=4.5 |
1 | ||
| 90937-01154 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 18G,長さ=37.3 |
1 | ||
| 90937-01198 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01184 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 4G,厚さ=1.6 |
1 | ||
| 90937-01194 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 20G,厚さ=4.5 |
1 | ||
| 90937-01158 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,長さ=58.1 |
1 | ||
| 90937-01200 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01153 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 16G,長さ=33.2 |
1 | ||
| 90937-01199 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01269 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 40G,長さ=25.6 |
1 | ||
| 90937-01268 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01150 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 8G,長さ=16.6 |
1 | ||
| 90937-01270 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 44G,長さ=22.6 |
1 | ||
| 90937-01271 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 48G,長さ=24.6 |
1 | ||
| 90937-01272 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 52G,長さ=26.7 |
1 | ||
| 90937-01274 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 60G,長さ=28.7 |
1 | ||
| 90937-01273 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337,362,37#,382 56G,長さ=28.7 |
1 | ||
| 90039-13005 |
XZU340,341,342,346,347 75G |
1 | ||
| 90039-13001 |
XZU340,341,342,346,347 6G |
1 | ||
| 90039-13003 |
XZU340,341,342,346,347 25G |
1 | ||
| 90039-13002 |
XZU340,341,342,346,347 12G |
1 | ||
| 90039-13004 |
XZU340,341,342,346,347 50G |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 *11−1.00PX28−16 |
4 | ||
| 90031-01165 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;BZU300,340,XZU300,301,306,31#,320,321,330,331,340,341,342,346,347,35#,362,37#,382 *12−1.25PX35−17 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90179-11005 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 90170-12005 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12018 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90179-11005 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 90170-12005 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90201-11013 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 94512-01200 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90032-04005 |
XZU322..T5..5F;XZU302..CNG,LPG;XZU302..(T4,T5)..(295T,30T);XZU302,322..DM3,DM6,DM7,DM8,T3;XZU300,301,306,31#,320,321,330,331,34#,35#,362,37#,382 |
8 | ||
| 90201-11013 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
8 | ||
| 94512-01200 |
XZU302..CNG,LPG;XZU302..DM3,DM6,T3;XZU302..(T4,T5)..(295T,30T);BZU300,340,XZU300,301,306,31#,32#,330,331,340,341,342,346,347,35#,362,37#,382 |
8 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-20005 |
BU346,RZU340 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-20006 |
BU346,RZU340 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37020 |
BZU340,XZU340,341,342,346,347 |
1 | ||
| 37207-35011 |
BU346,RZU340 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-36063 |
BU346,RZU340 |
1 | ||
| 37201-37010 |
BZU340,XZU340,341,342,346,347 |
1 | ||
| 37230-36062 |
BU346,RZU340 |
1 | ||
| 37230A - BEARING, NO.1 (FOR CENTER SUPPORT) | ||||
| 90363-30029 |
BU346,RZU340 |
1 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BU346,RZU340 |
2 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BU346,RZU340 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BU346,RZU340 |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97001 |
BU346,RZU340 |
2 | ||
| 37231B - HOUSING, CENTER SUPPORT BEARING, NO.1 | ||||
| 37231-36020 |
BU346,RZU340 |
1 | ||
| 37231-36021 |
BU346,RZU340 |
1 | ||
| 37233A - HOUSING, CENTER SUPPORT BEARING, NO.2 | ||||
| 37233-36050 |
BU346,RZU340 |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-36020 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;BU30#,346,RZU30#,340,XZU307,337 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37020 |
BZU340,XZU340,341,342,346,347 |
1 | ||
| 37304-36030 |
BU346,RZU340 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU346,RZU340 |
3 | ||
| 37315-37021 |
BZU340,XZU340,341,342,346,347 |
3 | ||
| 37315-36020 |
BU30#,346,RZU30#,340..5F;XZU302,307,337..(03S,T2,T4,T5)..20T |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU346,RZU340 |
3 | ||
| 37315-37021 |
BZU340,XZU340,341,342,346,347 |
3 | ||
| 37315-36020 |
BU30#,346,RZU30#,340..5F;XZU302,307,337..(03S,T2,T4,T5)..20T |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU346,RZU340 |
3 | ||
| 37315-37021 |
BZU340,XZU340,341,342,346,347 |
3 | ||
| 37315-36020 |
BU30#,346,RZU30#,340..5F;XZU302,307,337..(03S,T2,T4,T5)..20T |
1 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-36050 |
XZU302..(T4,T5)..20T;RZU300,XZU307,337..T2,T4,T5;BU30#,346,RZU301,340..(DCB,SCB)..5F |
1 | ||
| 37305-36050 |
XZU322..T5..4FC;XZU302..(T4,T5)..20T..DSL;RZU300,XZU307,337..T2,T4,T5;BU30#,346,RZU301,340..(DCB,SCB)..5F |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BU346,RZU340 |
1 | ||
| 37341-37020 |
XZU347..DCB..5F;XZU341,342..DSL,DSLL;XZU347..DCB..T4..4FC;BZU340,XZU340,346,347..SCB |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-36010 |
BU346,RZU340 |
1 | ||
| 37341-37020 |
XZU340,341,342,346,347 |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BU346,RZU340 |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BU346,RZU340 |
2 | ||
| 37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3 | ||||
| 37344-36010 |
BU346,RZU340 |
1 | ||
| 37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4 | ||||
| 37345-36010 |
BU346,RZU340 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
4 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 90035-21024 |
XZU340,341,342,346,347 厚さ=1.60 |
8 | ||
| 90035-21022 |
XZU340,341,342,346,347 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU340,341,342,346,347 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU340,341,342,346,347 厚さ=1.70 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
4 | ||
| 90035-21025 |
XZU340,341,342,346,347 厚さ=1.65 |
8 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
4 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
4 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
4 | ||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
4 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
4 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
4 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
4 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
4 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 90035-21024 |
XZU340,341,342,346,347 厚さ=1.60 |
8 | ||
| 90035-21022 |
XZU340,341,342,346,347 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU340,341,342,346,347 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU340,341,342,346,347 厚さ=1.70 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
4 | ||
| 90035-21025 |
XZU340,341,342,346,347 厚さ=1.65 |
8 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
4 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
4 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
4 | ||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
4 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
4 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
4 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
4 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
8 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
8 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
8 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
8 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
8 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
8 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
8 | ||
| 90520-29042 |
BU346,RZU340 厚さ=2.05,ﾏｰｸ 4 |
4 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
8 | ||
| 90035-21024 |
XZU340,341,342,346,347 厚さ=1.60 |
8 | ||
| 90035-21022 |
XZU340,341,342,346,347 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU340,341,342,346,347 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU340,341,342,346,347 厚さ=1.70 |
8 | ||
| 90520-29040 |
BU346,RZU340 厚さ=2.01,ﾏｰｸ 2 |
4 | ||
| 90035-21025 |
XZU340,341,342,346,347 厚さ=1.65 |
8 | ||
| 90520-29047 |
BU346,RZU340 厚さ=2.15,ﾏｰｸ 9 |
4 | ||
| 90520-29044 |
BU346,RZU340 厚さ=2.09,ﾏｰｸ 6 |
4 | ||
| 90520-29041 |
BU346,RZU340 厚さ=2.03,ﾏｰｸ 3 |
4 | ||
| 90520-29039 |
BU346,RZU340 厚さ=1.99,ﾏｰｸ 1 |
4 | ||
| 90520-29043 |
BU346,RZU340 厚さ=2.07,ﾏｰｸ 5 |
4 | ||
| 90520-29046 |
BU346,RZU340 厚さ=2.13,ﾏｰｸ 8 |
4 | ||
| 90520-29045 |
BU346,RZU340 厚さ=2.11,ﾏｰｸ 7 |
4 | ||
| 90520-29048 |
BU346,RZU340 厚さ=2.17,ﾏｰｸ 10 |
4 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU340,341,342,346,347 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
20 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU340,341,342,346,347 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
20 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU340,341,342,346,347 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
12 | ||
| 37402-60060 |
BU346,RZU340 |
20 | ||
| Common parts | ||||
| 90101-08157 | ||||
| 90179-10213 | ||||
| 90387-10141 | ||||
| 91642-81045 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 96451-00600 | ||||
(9905-0406)DCB..T5 ; (9905-0406)XZU412..T2,T3,T4; (9905-0406)BU410,BZU410,XZU410,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01164 | ||||
| 90031-01165 | ||||
| 90031-01177 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90032-01069 | ||||
| 90032-04005 | ||||
| 90032-04031 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-10028 | ||||
| 90170-12005 | ||||
| 90170-12018 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
