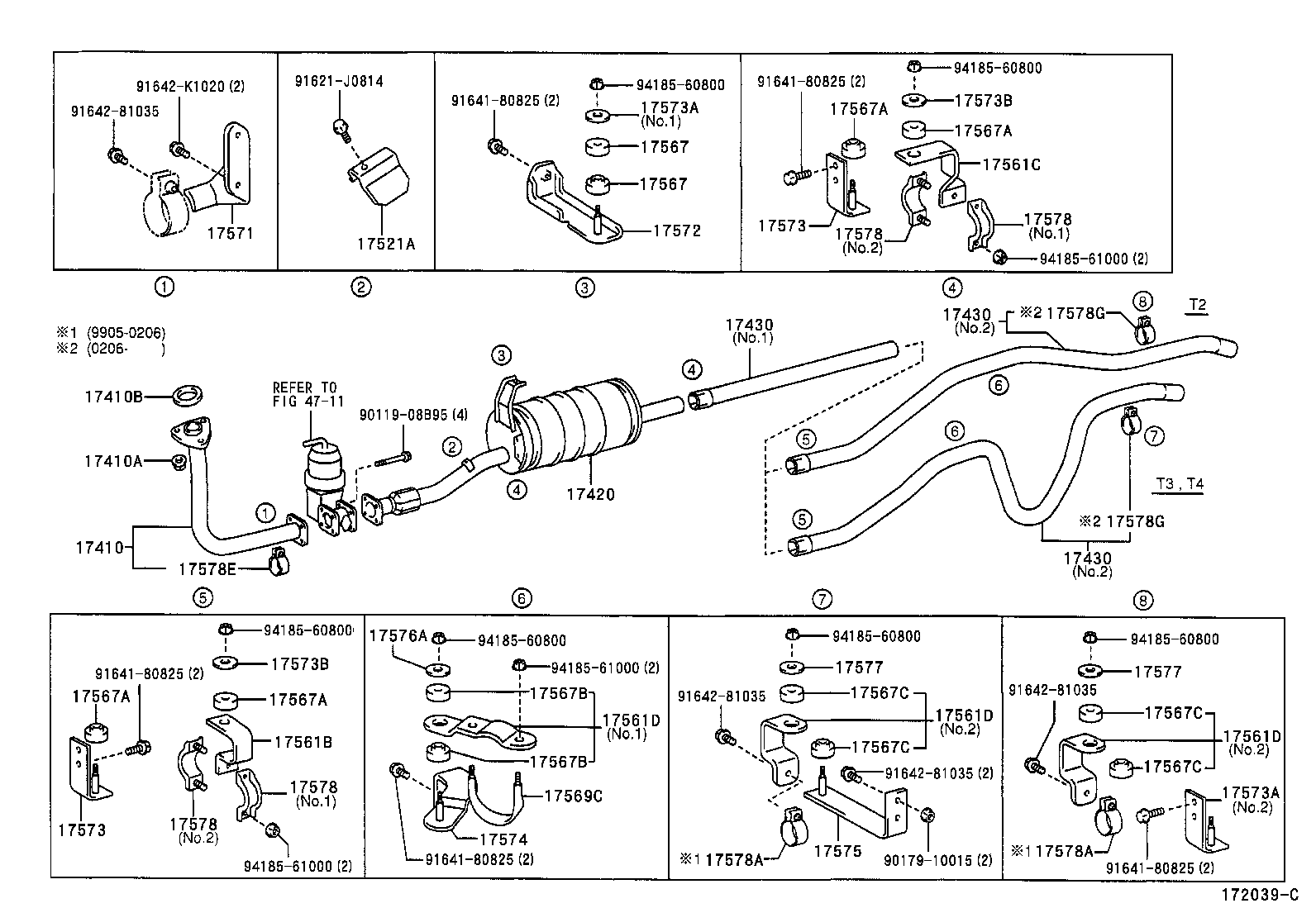

BU346-TQMMS (1999)
Toyota Dyna/Toyoace
(9905-0406)4B..BU346
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58320 |
4B..BU30#,346 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06067 |
15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78141 |
4B..BU30#,346 無し(PNC 17521A) |
1 | ||
| 17403-78250 |
4B..BU30#,346 有り(PNC 17521A) |
1 | ||
| 17403-78140 |
S05C..XZU302..5F..ST;S05C,4B..BU30#,346,XZU307,337..5F |
1 | ||
| 17403-58530 |
4B..BU30#,346 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-78010 |
S05D..XZU301,331..DSL..IV4;S05C..XZU302..(T4,T5)..5F..20T;S05C,4B..BU30#,346,XZU307,337..5F |
1 | ||
| 17521-78010 |
4B..BU30#,346;S05D..XZU301,331..DSL..IV4 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561-78010 |
S05D..XZU331..DSL;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351;J05C,S05#,15B#,3RZ#..RZU30#,340,XZU300,301,302,306,307,312,322,330,337,340,341,342,347,350,352,382..CNG,DSL,EFI,LPG |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78020 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D,4B..BU30#,XZU321,341,346,371;S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,4B,3RZFE,3RZFPE..BU346,RZU300,340,XZU300,301,302,307,320,322,330,337,340,341,342,347,350,362,372,382 |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D,4B..BU30#,XZU321,341,346,371;S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,4B,3RZFE,3RZFPE..BU346,RZU300,340,XZU300,301,302,307,320,322,330,337,340,341,342,347,350,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17569C - BOLT, EXHAUST PIPE SUPPORT | ||||
| 17569-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05#,4B..BU30#,346,XZU300,302,307,32#,330,337,340,341,342,346,347,350,382 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-58380 |
4B..BU30#,346 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,350..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78021 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05D,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU331,341,346..CBU,IV3;J05C,S05#,15B#..XZU300,301,302,306,307,330,337,340,341,342,347,350..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78260 |
4B..BU30#,346;J05C,S05#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..CBU,IV3,IV6,IV7 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78050 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78050 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05D..XZU301..T4..4NO;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..5F..20T..DSLL;S05D..XZU301..(DM6,T4)..(IV6,IV7);J05C,S05C..XZU300,302..(295T,30T)..IV3;S05C..XZU302..T4..(295T,30T)..CBU..4NO;S05D..XZU301..SCB..(DM3,T3,T5)..(295T,30T);J05C,S05C..XZU300,302..(DM3,T3,T5)..30T..CBU;S05#,4B..BU346,XZU301,302,347..(DM6,T3,T4,T5)..20T..DSL..(CBU,IV3);J05C,S05#,4B..BU30#,XZU306,307,33#,340,341,342,346,350..CBU,IV3,IV6 NO.1 |
1 | ||
| 16721-78010 |
S05C..XZU307..T2..5F;S05D..XZU341..6F..295T;S05C..XZU307..T2..4FC..IV3;S05D..XZU301..T4..DSL..(CBU,IV3);S05D..XZU301..SCB..(DM3,DM6,T3,T5)..DSL;S05#..XZU307,341..(03S,T3,T4,T5)..(20T,30T)..DSL;J05C,S05#,4B..BU30#,346,XZU300,302,306,33#,340,342,346,347,350..DSL..(CBU,IV3,IV6) |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05D..XZU301..T4..4NO;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..5F..20T..DSLL;S05D..XZU301..(DM6,T4)..(IV6,IV7);J05C,S05C..XZU300,302..(295T,30T)..IV3;S05C..XZU302..T4..(295T,30T)..CBU..4NO;S05D..XZU301..SCB..(DM3,T3,T5)..(295T,30T);J05C,S05C..XZU300,302..(DM3,T3,T5)..30T..CBU;S05#,4B..BU346,XZU301,302,347..(DM6,T3,T4,T5)..20T..DSL..(CBU,IV3);J05C,S05#,4B..BU30#,XZU306,307,33#,340,341,342,346,350..CBU,IV3,IV6 NO.1 |
1 | ||
| 16721-78010 |
S05C..XZU307..T2..5F;S05D..XZU341..6F..295T;S05C..XZU307..T2..4FC..IV3;S05D..XZU301..T4..DSL..(CBU,IV3);S05D..XZU301..SCB..(DM3,DM6,T3,T5)..DSL;S05#..XZU307,341..(03S,T3,T4,T5)..(20T,30T)..DSL;J05C,S05#,4B..BU30#,346,XZU300,302,306,33#,340,342,346,347,350..DSL..(CBU,IV3,IV6) |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78010 |
S05D..XZU341,346,371;S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,307,330,337,340,341,342,347,350,372,382 |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78020 |
S05D..XZU306..DSLL..CBU;S05D..XZU301..T3..4FC..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU306,307,331,337..DSL;S05D..XZU301..T3..5F..DSL..IV3;S05D..XZU301..T3..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05C,15BLPG,1BZFPE,3RZFE..BZU300,RZU300,XZU300,301,302..T3;J05C,S05#,15BLPG,1BZFPE,4B,3RZFE..BU346,BZU340,RZU340,XZU330,340,341,342,347,37#,382..T3,T4;S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,340,RZU30#,XZU301,302,342,346..(03S,06S,T1,T2,T3,T4,T5)..(175T,20T) |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D,4B..BU30#,346,XZU321,341,346,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,307,320,322,330,337,340,341,342,347,350,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90119-08B95 | ||||
| 90179-10015 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 91642-K1020 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(0003-0406)S05D..XZU351..DM5..DSL ; (0003-0406)S05D..XZU351..DM2..CBU ; (0003-0406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58320 |
4B..BU30#,346 |
1 | ||
| 17401-58320 |
4B..BU30#,346 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 90179-10070 |
S05D..XZU301..20T..DSLL;S05D..XZU301..DM3,T3,T4,T5;S05D..XZU301..20T..(IV6,IV7);S05D..XZU301..5F..20T..DSL..IV3..1NO;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU306,311,321,331,341,346,351,371;J05C,S05C,15B#,3RZFPE..RZU301,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06067 |
15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342 |
1 | ||
| 90917-06067 |
15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78141 |
4B..BU30#,346 無し(PNC 17521A) |
1 | ||
| 17403-78141 |
4B..BU30#,346 無し(PNC 17521A) |
1 | ||
| 17403-78250 |
4B..BU30#,346 有り(PNC 17521A) |
1 | ||
| 17403-78250 |
4B..BU30#,346 有り(PNC 17521A) |
1 | ||
| 17403-78140 |
S05C..XZU302..5F..ST;S05C,4B..BU30#,346,XZU307,337..5F |
1 | ||
| 17403-78140 |
S05C..XZU302..5F..ST;S05C,4B..BU30#,346,XZU307,337..5F |
1 | ||
| 17403-58530 |
4B..BU30#,346 |
1 | ||
| 17403-58530 |
4B..BU30#,346 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78070 |
J05C,S05#,4B..BU346,XZU34#..T3,T4 NO.2 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78150 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17405-78540 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347..T3,T4 NO.2 |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-78010 |
S05D..XZU301,331..DSL..IV4;S05C..XZU302..(T4,T5)..5F..20T;S05C,4B..BU30#,346,XZU307,337..5F |
1 | ||
| 17521-78010 |
S05D..XZU301,331..DSL..IV4;S05C..XZU302..(T4,T5)..5F..20T;S05C,4B..BU30#,346,XZU307,337..5F |
1 | ||
| 17521-78010 |
4B..BU30#,346;S05D..XZU301,331..DSL..IV4 |
1 | ||
| 17521-78010 |
4B..BU30#,346;S05D..XZU301,331..DSL..IV4 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561-78010 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,382 |
1 | ||
| 17561-78010 |
S05D..XZU331..DSL;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351;J05C,S05#,15B#,3RZ#..RZU30#,340,XZU300,301,302,306,307,312,322,330,337,340,341,342,347,350,352,382..CNG,DSL,EFI,LPG |
1 | ||
| 17561-78010 |
S05D..XZU331..DSL;S05D..XZU301..DSLL..4NO;S05D..XZU306..4FC..DSLL;S05D..XZU306..5F..DSLL..CBU;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351;J05C,S05#,15B#,3RZ#..RZU30#,340,XZU300,301,302,306,307,312,322,330,337,340,341,342,347,350,352,382..CNG,DSL,EFI,LPG |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561D - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78030 |
S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,330,337,340,341,342,346,347,350,382..DCB,SCB NO.1 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17561-78080 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,XZU311,321,341,346,351,371;J05C,S05C,15B#,1BZ#,3RZ#..BZU340,RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,372,382 NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567-78010 |
4B..BU30#,346;J05C,S05#,15B#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,37#,382 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
4 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17567-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-58380 |
4B..BU30#,346 |
1 | ||
| 17571-58380 |
4B..BU30#,346 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,350..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,33#,34#,350..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78021 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05D,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU331,341,346..CBU,IV3;J05C,S05#,15B#..XZU300,301,302,306,307,330,337,340,341,342,347,350..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78021 |
S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU306..4FC..DSLL..IV3;S05D,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU331,341,346..CBU,IV3;J05C,S05#,15B#..XZU300,301,302,306,307,330,337,340,341,342,347,350..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17572-78260 |
4B..BU30#,346;J05C,S05#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..CBU,IV3,IV6,IV7 |
1 | ||
| 17572-78260 |
4B..BU30#,346;J05C,S05#,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350..CBU,IV3,IV6,IV7 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78050 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 17573-78050 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05D..XZU301..T4..4NO;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..5F..20T..DSLL;S05D..XZU301..(DM6,T4)..(IV6,IV7);J05C,S05C..XZU300,302..(295T,30T)..IV3;S05C..XZU302..T4..(295T,30T)..CBU..4NO;S05D..XZU301..SCB..(DM3,T3,T5)..(295T,30T);J05C,S05C..XZU300,302..(DM3,T3,T5)..30T..CBU;S05#,4B..BU346,XZU301,302,347..(DM6,T3,T4,T5)..20T..DSL..(CBU,IV3);J05C,S05#,4B..BU30#,XZU306,307,33#,340,341,342,346,350..CBU,IV3,IV6 NO.1 |
1 | ||
| 16721-78010 |
S05D..XZU301..T4..4NO;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..5F..20T..DSLL;S05D..XZU301..(DM6,T4)..(IV6,IV7);J05C,S05C..XZU300,302..(295T,30T)..IV3;S05C..XZU302..T4..(295T,30T)..CBU..4NO;S05D..XZU301..SCB..(DM3,T3,T5)..(295T,30T);J05C,S05C..XZU300,302..(DM3,T3,T5)..30T..CBU;S05#,4B..BU346,XZU301,302,347..(DM6,T3,T4,T5)..20T..DSL..(CBU,IV3);J05C,S05#,4B..BU30#,XZU306,307,33#,340,341,342,346,350..CBU,IV3,IV6 NO.1 |
1 | ||
| 16721-78010 |
S05C..XZU307..T2..5F;S05D..XZU341..6F..295T;S05C..XZU307..T2..4FC..IV3;S05D..XZU301..T4..DSL..(CBU,IV3);S05D..XZU301..SCB..(DM3,DM6,T3,T5)..DSL;S05#..XZU307,341..(03S,T3,T4,T5)..(20T,30T)..DSL;J05C,S05#,4B..BU30#,346,XZU300,302,306,33#,340,342,346,347,350..DSL..(CBU,IV3,IV6) |
1 | ||
| 16721-78010 |
S05C..XZU307..T2..5F;S05D..XZU341..6F..295T;S05C..XZU307..T2..4FC..IV3;S05D..XZU301..T4..DSL..(CBU,IV3);S05D..XZU301..SCB..(DM3,DM6,T3,T5)..DSL;S05#..XZU307,341..(03S,T3,T4,T5)..(20T,30T)..DSL;J05C,S05#,4B..BU30#,346,XZU300,302,306,33#,340,342,346,347,350..DSL..(CBU,IV3,IV6) |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05D..XZU301..T4..4NO;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..5F..20T..DSLL;S05D..XZU301..(DM6,T4)..(IV6,IV7);J05C,S05C..XZU300,302..(295T,30T)..IV3;S05C..XZU302..T4..(295T,30T)..CBU..4NO;S05D..XZU301..SCB..(DM3,T3,T5)..(295T,30T);J05C,S05C..XZU300,302..(DM3,T3,T5)..30T..CBU;S05#,4B..BU346,XZU301,302,347..(DM6,T3,T4,T5)..20T..DSL..(CBU,IV3);J05C,S05#,4B..BU30#,XZU306,307,33#,340,341,342,346,350..CBU,IV3,IV6 NO.1 |
1 | ||
| 16721-78010 |
S05D..XZU301..T4..4NO;S05D..XZU301,331..4FC..DSLL;S05D..XZU301..5F..20T..DSLL;S05D..XZU301..(DM6,T4)..(IV6,IV7);J05C,S05C..XZU300,302..(295T,30T)..IV3;S05C..XZU302..T4..(295T,30T)..CBU..4NO;S05D..XZU301..SCB..(DM3,T3,T5)..(295T,30T);J05C,S05C..XZU300,302..(DM3,T3,T5)..30T..CBU;S05#,4B..BU346,XZU301,302,347..(DM6,T3,T4,T5)..20T..DSL..(CBU,IV3);J05C,S05#,4B..BU30#,XZU306,307,33#,340,341,342,346,350..CBU,IV3,IV6 NO.1 |
1 | ||
| 16721-78010 |
S05C..XZU307..T2..5F;S05D..XZU341..6F..295T;S05C..XZU307..T2..4FC..IV3;S05D..XZU301..T4..DSL..(CBU,IV3);S05D..XZU301..SCB..(DM3,DM6,T3,T5)..DSL;S05#..XZU307,341..(03S,T3,T4,T5)..(20T,30T)..DSL;J05C,S05#,4B..BU30#,346,XZU300,302,306,33#,340,342,346,347,350..DSL..(CBU,IV3,IV6) |
1 | ||
| 16721-78010 |
S05C..XZU307..T2..5F;S05D..XZU341..6F..295T;S05C..XZU307..T2..4FC..IV3;S05D..XZU301..T4..DSL..(CBU,IV3);S05D..XZU301..SCB..(DM3,DM6,T3,T5)..DSL;S05#..XZU307,341..(03S,T3,T4,T5)..(20T,30T)..DSL;J05C,S05#,4B..BU30#,346,XZU300,302,306,33#,340,342,346,347,350..DSL..(CBU,IV3,IV6) |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 16721-78010 |
J05C,S05#,15B#,1BZ#,4B,3RZFE..BU346,BZU340,RZU340,XZU340,341,342,346,347 |
2 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78010 |
S05D..XZU341,346,371;S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,307,330,337,340,341,342,347,350,372,382 |
1 | ||
| 17574-78010 |
S05D..XZU341,346,371;S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,307,330,337,340,341,342,347,350,372,382 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78010 |
S05D..XZU341,346,371;S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,307,330,337,340,341,342,347,350,372,382 |
1 | ||
| 17574-78010 |
S05D..XZU341,346,371;S05D..XZU306,331..DSL;S05D..XZU301..20T..IV7;S05D..XZU301..DSL..IV3;S05D..XZU306..T5..DSLL;S05D..XZU306..4FC..DSLL;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU301..5F..(CBU,IV4,IV6);S05D..XZU306,331..5F..DSLL..(CBU,IV4);S05D..XZU301..4FC..DSL..(CBU,IV4,IV6);J05C,S05C,15B#,1BZ#,4B,3RZ#..BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,307,330,337,340,341,342,347,350,372,382 |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78020 |
S05D..XZU306..DSLL..CBU;S05D..XZU301..T3..4FC..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU306,307,331,337..DSL;S05D..XZU301..T3..5F..DSL..IV3;S05D..XZU301..T3..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05C,15BLPG,1BZFPE,3RZFE..BZU300,RZU300,XZU300,301,302..T3;J05C,S05#,15BLPG,1BZFPE,4B,3RZFE..BU346,BZU340,RZU340,XZU330,340,341,342,347,37#,382..T3,T4;S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,340,RZU30#,XZU301,302,342,346..(03S,06S,T1,T2,T3,T4,T5)..(175T,20T) |
1 | ||
| 17575-78020 |
S05D..XZU306..DSLL..CBU;S05D..XZU301..T3..4FC..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU306,307,331,337..DSL;S05D..XZU301..T3..5F..DSL..IV3;S05D..XZU301..T3..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05C,15BLPG,1BZFPE,3RZFE..BZU300,RZU300,XZU300,301,302..T3;J05C,S05#,15BLPG,1BZFPE,4B,3RZFE..BU346,BZU340,RZU340,XZU330,340,341,342,347,37#,382..T3,T4;S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,340,RZU30#,XZU301,302,342,346..(03S,06S,T1,T2,T3,T4,T5)..(175T,20T) |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78020 |
S05D..XZU306..DSLL..CBU;S05D..XZU301..T3..4FC..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU306,307,331,337..DSL;S05D..XZU301..T3..5F..DSL..IV3;S05D..XZU301..T3..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05C,15BLPG,1BZFPE,3RZFE..BZU300,RZU300,XZU300,301,302..T3;J05C,S05#,15BLPG,1BZFPE,4B,3RZFE..BU346,BZU340,RZU340,XZU330,340,341,342,347,37#,382..T3,T4;S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,340,RZU30#,XZU301,302,342,346..(03S,06S,T1,T2,T3,T4,T5)..(175T,20T) |
1 | ||
| 17575-78020 |
S05D..XZU306..DSLL..CBU;S05D..XZU301..T3..4FC..DSL;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU306,307,331,337..DSL;S05D..XZU301..T3..5F..DSL..IV3;S05D..XZU301..T3..5F..(CBU,IV4,IV6);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05C,15BLPG,1BZFPE,3RZFE..BZU300,RZU300,XZU300,301,302..T3;J05C,S05#,15BLPG,1BZFPE,4B,3RZFE..BU346,BZU340,RZU340,XZU330,340,341,342,347,37#,382..T3,T4;S05#,15B#,1BZ#,4B,3RZ#..BU30#,BZU300,340,RZU30#,XZU301,302,342,346..(03S,06S,T1,T2,T3,T4,T5)..(175T,20T) |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 16721-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D,1BZ#,4B..BU30#,346,BZU300,340,XZU311,321,341,346,351,371;J05C,S05C,15B#,3RZ#..RZU30#,340,XZU300,301,302,307,312,320,322,330,337,340,341,342,347,350,352,362,372,382 |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78040 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.2 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578-78030 |
J05C,S05#,4B..BU346,XZU340,341,342,346,347 NO.1 |
2 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 17578-78010 |
S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU311,321,341,346,351,371;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;S05C,15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,307,312,322,337,341,342,347,352,362,372,382 |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| 17578G - CLAMP, PIPE(FOR TAIL PIPE) | ||||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,37#,382..(03S,06S,DM3,DM5,DM6,DM7,DM8,T1,T2,T3,T4,T5)..DSL |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| 17578-78020 |
4B..BU30#;S05D..XZU301..295T;S05D..XZU301..IV4,IV7;S05D..XZU331..5F..IV4;S05D..XZU301..IV6..4NO;S05D..XZU301..DM3..IV3;S05D..XZU321,341..4FC,6F;S05D..XZU306,331..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05#,4B..BU346,XZU300,302,307,312,322,330,337,340,342,347,350,352,37#,382..03S,DM3,DM5,DM6,DM7,DM8,T2,T3,T4,T5 |
1 | ||
| Common parts | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 90179-06007 | ||||
| 90179-08233 | ||||
| 91621-J0814 | ||||
| 91641-80825 | ||||
| 91641-H0820 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
(9905- )J05C,S05C..XZU410,412 ; (9905- )S05D..XZU411..4FC,6F..DSL ; (9905-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
