Toyota Dyna/toyoace BU301 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU301-PSMJS3 (1999)
8401 - SWITCH & RELAY & COMPUTER

BU301-PSMJS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine 4B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

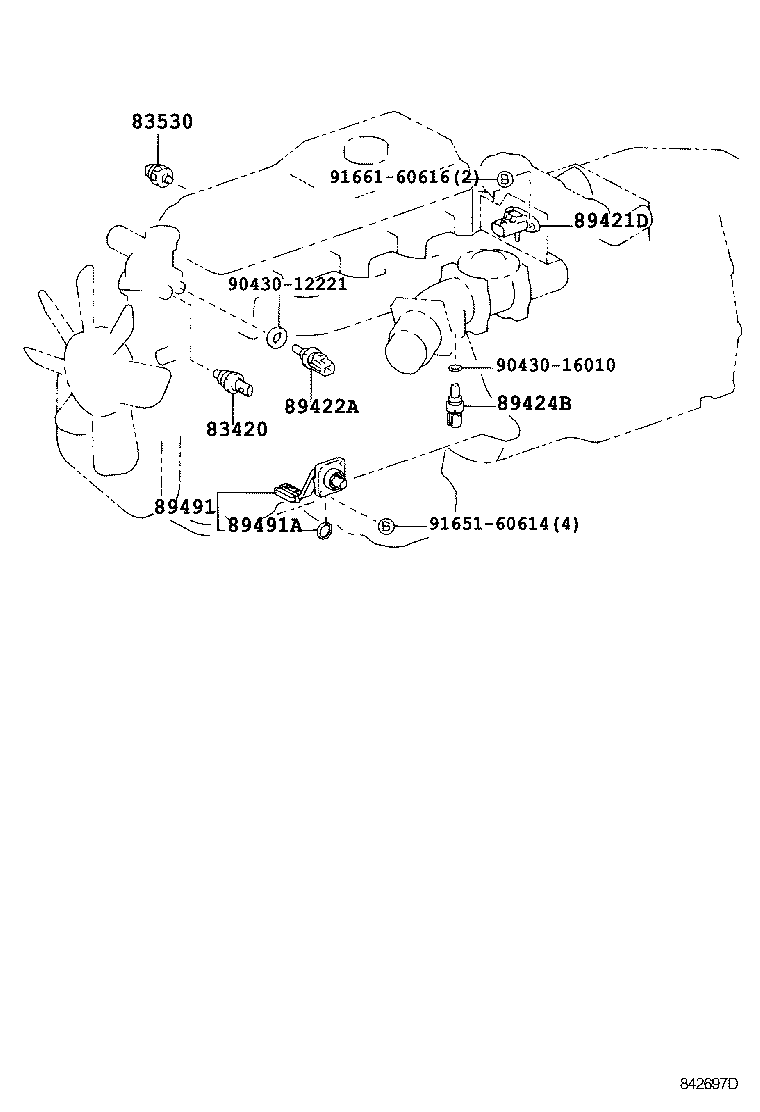

ILLUST NO. 1 OF10(9905-0406)BU30#,346

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60010	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG YAZAKI	05/1999 - 06/2004	1
83530-28010	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG DENSO	05/1999 - 06/2004	1
89421D - SENSOR, TURBO PRESSURE
89421-21010	BU30#,346..03S,06S,T1,T2,T3,T4,T5	05/1999 - 06/2004	1
89422A - SENSOR, WATER TEMPERATURE
89422-35010	BU30#,346	05/1999 - 06/2004	1
89424B - SWITCH, INLET AIR TEMPERATURE
89424-60010	BU30#,346	05/1999 - 06/2004	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-37030	BU30#,346	05/1999 - 06/2004	1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
90430-27001	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
Common parts
90430-12221
90430-16010
91651-60614
91661-60616

ILLUST NO. 1 OF10(9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60010	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG YAZAKI	05/1999 - 06/2004	1
83530-28010	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG DENSO	05/1999 - 06/2004	1
89424B - SWITCH, INLET AIR TEMPERATURE
89424-60010	BU30#,346	05/1999 - 06/2004	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-37030	BU30#,346	05/1999 - 06/2004	1
Common parts
90031-05001
90031-19110
90034-01011
90034-30041
90202-10012
90404-10024

ILLUST NO. 2 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ﾄﾗﾝｽﾐﾂｼﾖﾝ & ﾄﾗﾝｽﾌｱ

Part #	Description	Period	Qty
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84210-12040	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T) T/Mﾀｲﾌﾟ=H260,H35#	05/1999 - 06/2004	1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1
84540-37020	XZU301..CNG,LPG;XZU301..5F..IV4;XZU321..5F..1NO;XZU306..T5..DSLL;XZU306..5F..DSLL..CBU;XZU302..(DM3,T3,T4,T5)..5F;XZU301..(DM3,T3)..5F..(20T,295T);XZU301..(DM3,T4,T5)..5F..(295T,30T)..(DSL,DSLL);BU301,XZU306,321,340..(DM6,DM8,T1,T3,T4,T5)..MTM..DSL;BU306,346,BZU300,340,RZU30#,340,XZU300,307,31#,320,33#,341,342,346,347,351,352,362,37#,382..MTM..(20T,295T,30T)	05/1999 - 06/2004	1

ILLUST NO. 4 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-58040	4B..BU30#,346	05/1999 - 06/2004	1
28300 - RELAY ASSY, STARTER
28300-58040	4B..BU30#,346	05/1999 - 06/2004	1
28371 - RELAY, IGNITION, NO.1
90987-02018	S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58230	S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05D..XZU301,306,331..DSL;S05D..XZU306..4FC..DSLL..IV3;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 10A,ﾐﾆﾋｭｰｽﾞ,赤	05/1999 - 06/2002	1
90982-09011	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 20A,ﾐﾆﾋｭｰｽﾞ,黄	05/1999 - 06/2002	1
90982-09010	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 15A,ﾐﾆﾋｭｰｽﾞ,青	05/1999 - 06/2002	1
90982-09008	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	05/1999 - 06/2002	1
90982-09008	BU30#,XZU307,312,347..DCB..5F 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2002 - 06/2004	1
90982-09010	BU30#..DCB;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,372,382..SCB..DSL;XZU302,307,31#,32#,331,337,341,342,346,347,351,352,362..(DCB,SCB)..(DSL,DSLL)..(CBU,IV3) 15A,ﾐﾆﾋｭｰｽﾞ,青	06/2002 - 06/2004	1
90982-09011	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342,372,382..SCB..(DSL,DSLL);BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,33#,340,346,347,35#,362..(DCB,SCB)..(CBU,IV3,IV6) 20A,ﾐﾆﾋｭｰｽﾞ,黄	06/2002 - 06/2004	1
90982-09009	BU30#,XZU307,312,347..DCB 10A,ﾐﾆﾋｭｰｽﾞ,赤	06/2002 - 06/2004	1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-37060	BU30#,346,BZU300,340,RZU301	05/1999 - 06/2004	1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-37060	BU30#,346,BZU300,340,RZU301	05/1999 - 06/2004	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82660D - BLOCK ASSY, RELAY
82660-37070	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82661 - COVER, RELAY BLOCK, NO.1
82661-37020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU302,341,342..DSL,DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	05/1999 - 06/2004	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37060	BU30#,346	05/1999 - 05/2000	1
82662-37150	BU30#,346	05/2000 - 05/2004	1
82662-37151	BU30#,346	05/2004 - 06/2004	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37060	BU30#,346	05/1999 - 05/2000	1
82662-37150	BU30#,346	05/2000 - 05/2004	1
82662-37151	BU30#,346	05/2004 - 06/2004	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37060	BU30#,346	05/1999 - 05/2000	1
82662-37150	BU30#,346	05/2000 - 05/2004	1
82662-37151	BU30#,346	05/2004 - 06/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37050	XZU322..T5..5F;XZU347..DCB..5F;XZU321..DM7..4NO;XZU347..DCB..T4..4FC;BU30#,XZU301,307,331,371..DCB..DSL;XZU322,362,372,382..DM5,DM7,DM8,T3,T4	05/1999 - 06/2003	1
82663-37080	BU30#,RZU300,XZU307,347..DCB	06/2003 - 06/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37050	XZU322..T5..5F;XZU347..DCB..5F;XZU321..DM7..4NO;XZU347..DCB..T4..4FC;BU30#,XZU301,307,331,371..DCB..DSL;XZU322,362,372,382..DM5,DM7,DM8,T3,T4	05/1999 - 06/2003	1
82663-37080	BU30#,RZU300,XZU307,347..DCB	06/2003 - 06/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37050	XZU322..T5..5F;XZU347..DCB..5F;XZU321..DM7..4NO;XZU347..DCB..T4..4FC;BU30#,XZU301,307,331,371..DCB..DSL;XZU322,362,372,382..DM5,DM7,DM8,T3,T4	05/1999 - 06/2003	1
82663-37080	BU30#,RZU300,XZU307,347..DCB	06/2003 - 06/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37050	XZU322..T5..5F;XZU347..DCB..5F;XZU321..DM7..4NO;XZU347..DCB..T4..4FC;BU30#,XZU301,307,331,371..DCB..DSL;XZU322,362,372,382..DM5,DM7,DM8,T3,T4	05/1999 - 06/2003	1
82663-37080	BU30#,RZU300,XZU307,347..DCB	06/2003 - 06/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37050	XZU322..T5..5F;XZU347..DCB..5F;XZU321..DM7..4NO;XZU347..DCB..T4..4FC;BU30#,XZU301,307,331,371..DCB..DSL;XZU322,362,372,382..DM5,DM7,DM8,T3,T4	05/1999 - 06/2003	1
82663-37080	BU30#,RZU300,XZU307,347..DCB	06/2003 - 06/2004	1
82663 - COVER, RELAY BLOCK, LOWER
82663-37050	XZU322..T5..5F;XZU347..DCB..5F;XZU321..DM7..4NO;XZU347..DCB..T4..4FC;BU30#,XZU301,307,331,371..DCB..DSL;XZU322,362,372,382..DM5,DM7,DM8,T3,T4	05/1999 - 06/2003	1
82663-37080	BU30#,RZU300,XZU307,347..DCB	06/2003 - 06/2004	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	XZU341..DSL,DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,302,306,331,342..DSL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	06/2002 - 06/2004	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	XZU341..DSL,DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,302,306,331,342..DSL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	06/2002 - 06/2004	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-37011	XZU341..DSL,DSLL;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,302,306,331,342..DSL;BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,330,337,340,346,347,35#,362,37#,382	06/2002 - 06/2004	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37020	BU30#,XZU307,347..DCB	05/1999 - 05/2000	1
82760-37021	BU30#,XZU307,347..DCB	05/2000 - 06/2004	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37020	BU30#,XZU307,347..DCB	05/1999 - 05/2000	1
82760-37021	BU30#,XZU307,347..DCB	05/2000 - 06/2004	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37020	BU30#,XZU307,347..DCB	05/1999 - 05/2000	1
82760-37021	BU30#,XZU307,347..DCB	05/2000 - 06/2004	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37020	BU30#,XZU307,347..DCB	05/1999 - 05/2000	1
82760-37021	BU30#,XZU307,347..DCB	05/2000 - 06/2004	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37020	BU30#,XZU307,347..DCB	05/1999 - 05/2000	1
82760-37021	BU30#,XZU307,347..DCB	05/2000 - 06/2004	1
82760 - BRACKET ASSY, RELAY BLOCK
82760-37020	BU30#,XZU307,347..DCB	05/1999 - 05/2000	1
82760-37021	BU30#,XZU307,347..DCB	05/2000 - 06/2004	1
85931B - RELAY, FUEL HEATER
90987-02017	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
Common parts
82715-26520
82717-37010
82729-37160
90179-06158
90179-06171
90179-08233
90179-10015
91512-81016
91651-60816
91651-B0820
91651-B0825
94130-00802
Linked diagrams
8202
8405
8414

ILLUST NO. 5 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ

Part #	Description	Period	Qty
28371C - RELAY, IGNITION, NO.2
90987-02019	S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
28371D - RELAY, IGNITION, NO.3
90987-02018	S05D..XZU306,331..DSL;S05D..XZU301..4FC..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..5F..(CBU,IV4,IV6,IV7);S05D..XZU306,331..(T3,T5)..5F..DSLL;J05C,S05#,4B..BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
28371F - RELAY, IGNITION, NO.5
90987-02019	S05D..XZU306..DSL;S05D..XZU301..DSLL..4NO;S05D..XZU306..DSLL..CBU;S05C..XZU302..5F..20T..1NO;S05D..XZU301..SCB..4FC..30T;S05D..XZU306..4FC..DSLL..IV3;S05#..XZU301,372,382..SCB..5F..DSL;S05#,4B..BU30#,346,XZU31#,32#,342,346,351,352,362..5F;S05#..XZU302,307,331,337,341,347..(DM3,T2,T3,T4,T5)..(CBU,IV3)	06/2002 - 06/2004	1
28490A - RELAY ASSY, EXHAUST RETARDER
28490-78010	J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2002	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37140	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..(175T,20T,295T,30T)..(DSL,DSLL)	06/2002 - 06/2004	1
81980-37090	XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU306,322..DM7,DM8,T4;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;XZU302,347..SCB..20T..DSL;XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,XZU321..(DM7,T1,T4,T5)..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,XZU300,307,33#,340,341,342,346,351,352,362,37#,382..(20T,295T,30T)..DSL	05/1999 - 06/2002	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 10A,ﾐﾆﾋｭｰｽﾞ,赤	05/1999 - 06/2002	1
90982-09011	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 20A,ﾐﾆﾋｭｰｽﾞ,黄	05/1999 - 06/2002	1
90982-09010	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 15A,ﾐﾆﾋｭｰｽﾞ,青	05/1999 - 06/2002	1
90982-09008	XZU322..DM7,DM8;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU301..5F..DSLL..IV3;XZU301,331..4FC..DSLL;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,35#,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	05/1999 - 06/2002	1
90982-09008	BU30#,XZU307,312,347..DCB..5F 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2002 - 06/2004	1
90982-09010	BU30#..DCB;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,372,382..SCB..DSL;XZU302,307,31#,32#,331,337,341,342,346,347,351,352,362..(DCB,SCB)..(DSL,DSLL)..(CBU,IV3) 15A,ﾐﾆﾋｭｰｽﾞ,青	06/2002 - 06/2004	1
90982-09011	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;XZU302,341,342,372,382..SCB..(DSL,DSLL);BU30#,346,BZU300,340,RZU301,XZU300,307,31#,32#,33#,340,346,347,35#,362..(DCB,SCB)..(CBU,IV3,IV6) 20A,ﾐﾆﾋｭｰｽﾞ,黄	06/2002 - 06/2004	1
90982-09009	BU30#,XZU307,312,347..DCB 10A,ﾐﾆﾋｭｰｽﾞ,赤	06/2002 - 06/2004	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37170	XZU372,382..SCB;BU30#,346,XZU30#,31#,32#,33#,34#,35#,362..(DCB,SCB)..(DSL,DSLL)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2002	1
82683-37260	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6)	06/2002 - 06/2004	1
82660A - BLOCK ASSY, RELAY, COWL SIDE
82660-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
82660C - BLOCK ASSY, RELAY
82660-26150	XZU322..DM7,DM8;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;XZU306,321..(DM7,T4)..DSL..4NO;XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,XZU312,347,371..(DCB,VAN)..5F;XZU302,311..(DM5,T4)..(295T,30T)..4NO;XZU300,307,33#,340,341,342,346,35#,362,372,382..DSL ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	05/1999 - 06/2002	1
82660-26150	XZU341..6F..295T;BU30#,XZU371..DCB;XZU341..(20T,30T)..DSL;XZU301..T4..DSL..(CBU,IV3);XZU301,351,352..(DM2,DM3,DM6,T3,T5)..DSL;XZU300,302,306,307,31#,32#,33#,340,342,346,347,350,362,372,382..(DCB,SCB)..DSL	06/2002 - 06/2004	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-37030	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DCB,SCB	05/1999 - 06/2004	1
83650 - FUSEE
90986-01005	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	XZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU306..5F..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU301..5F..(CBU,IV4,IV6,IV7);BZU300,340,RZU301..T4..5F..20T..IV3;BU30#,346,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04007	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85916D - RELAY, FOG LAMP
90987-02018	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85916N - RELAY, TAIL LAMP
90987-02018	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85916P - RELAY, HEADLAMP
90987-02019	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85927 - RELAY, COOLING FAN
90987-02017	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85930G - RELAY, ACC
90987-02018	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85934 - RELAY, MAGNET-CLUTCH
90987-02017	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85939 - RELAY, POWER WINDOW
90987-02018	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85985 - RELAY, KEY REMINDER
80590-37030	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2002	1
80590-37090	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	06/2002 - 06/2004	1
86530 - RELAY ASSY, HORN
90987-02017	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37060	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
89280 - SENSOR ASSY, CLUTCH PEDAL STROKE
89280-37010	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
89380A - COMPUTER ASSY, ES START
89380-37011	XZU306..5F..DSL;XZU306..T5..DSLL;XZU301..5F..DSL..IV3;XZU306..5F..DSLL..CBU;XZU301..5F..(CBU,IV4,IV6,IV7);XZU301..(DM6,T4)..5F..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)	05/1999 - 06/2004	1
89551 - COMPUTER, EMISSION CONTROL
89551-37050	BU30#,346	05/1999 - 06/2004	1
89551 - COMPUTER, EMISSION CONTROL
89551-37050	BU30#,346	05/1999 - 06/2004	1
89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-37010	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
89668B - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-37010	BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG	05/1999 - 06/2004	1
Common parts
91611-B0816
91621-J0814
91651-B0820
93319-15010
93568-55016
94120-41000
Linked diagrams
3102
8202

ILLUST NO. 7 OF10(9905- )

Click highlighted areas on diagram

ｲｸﾞﾆﾂｼﾖﾝｽｲﾂﾁ & ｺﾝﾋﾞﾈ-ｼﾖﾝｽｲﾂﾁ

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80221	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84112-80222	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)	05/1999 - 06/2004	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-37050	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-37190	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)	05/1999 - 02/2004	1
84310-37160	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ)	05/1999 - 02/2004	1
84310-37180	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) & ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)	05/1999 - 02/2004	1
84310-37170	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	05/1999 - 02/2004	1
84310-37161	BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ & ﾌｵｸﾞﾗﾝﾌﾟ)	02/2004 - 06/2004	1
84310-37171	BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	02/2004 - 06/2004	1
84310-37181	BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ) & ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)	02/2004 - 06/2004	1
84310-37191	BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ)	02/2004 - 06/2004	1
84312 - PLATE, HORN CONTACT
84312-20011	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84329 - SWITCH, TURN SIGNAL
84329-37060	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	05/1999 - 06/2004	1
84329-37070	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-37160	XZU306..T5..DSLL;XZU301,306..5F..(CNG,DSL,LPG);XZU301..(DM6,T4)..5F..DSLL..IV3;XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-37010	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL ﾅｼ(ﾘﾔﾜｲﾊﾟ)	05/1999 - 02/2004	1
84652-37011	BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 ﾅｼ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	02/2004 - 06/2004	1
Common parts
82711-16830
82716-37240
90080-46104
90168-40129
90464-00551
91611-G0612
93319-15012
Linked diagrams
4501

ILLUST NO. 8 OF10(9905- )DCB,SCB

Click highlighted areas on diagram

ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ

Part #	Description	Period	Qty
83390 - SWITCH ASSY, VACUUM WARNING
83390-37050	BU30#,RZU300,XZU307,347..DCB	05/1999 - 06/2004	1
83390 - SWITCH ASSY, VACUUM WARNING
83390-37050	BU30#,RZU300,XZU307,347..DCB	05/1999 - 06/2004	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	03/2000 - 06/2004	2
84231-46020	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	03/2000 - 06/2004	2
84231-46020	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	2
84550 - SWITCH ASSY, PARKING BRAKE
84550-37020	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 10/1999	1
84550-37021	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	10/1999 - 06/2004	1
84656A - BEZEL, SWITCH
84656-37010B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,37#,382..DCB MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
84731R - KNOB, REAR HEATER BLOWER SWITCH
84731-37020B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,37#,382..DCB MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
84732A - SWITCH, REAR HEATER BLOWER
84732-37040	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,37#,382..DCB	05/1999 - 06/2004	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-37050	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-37060B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,312,372,382..DCB MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-37060B0	XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,RZU300,XZU307,312,372,382..DCB MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-37030	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 03/2001	1
84820-37032	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	09/2001 - 06/2004	1
84820-37031	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	03/2001 - 09/2001	1
88610N - SWITCH ASSY, COOLER CONTROL
88610-37050	XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC	05/1999 - 06/2004	1
Common parts
82711-37240
90109-06296
90164-30009
90168-40061
90179-05011
90468-04147
91511-G0814
91651-40612
94150-80800

ILLUST NO. 9 OF10(9905- )BU346,BZU300,340,RZU30#,340,XZU300,301,302,304,305,307,308,32#,33#,34#,3

Click highlighted areas on diagram

ﾁﾙﾄｽｲﾂﾁ

Part #	Description	Period	Qty	Price
Common parts
82711-1E340
90159-40215
90178-06002
91611-G0820
91651-60616
Linked diagrams
5251

ILLUST NO.10 OF10(9905- )DCB,SCB

Click highlighted areas on diagram

ﾘﾔﾎﾞﾃﾞ-

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80376	BU30#,XZU307,31#..DCB,VAN MARK 83320-37060	05/1999 - 11/2000	1
83320-80393	BU30#,XZU307,31#..DCB,VAN	11/2000 - 06/2004	1
83320 - GAGE ASSY, FUEL SENDER
83320-80376	BU30#,XZU307,31#..DCB,VAN MARK 83320-37060	05/1999 - 11/2000	1
83320-80393	BU30#,XZU307,31#..DCB,VAN	11/2000 - 06/2004	1
83320 - GAGE ASSY, FUEL SENDER
83320-80376	BU30#,XZU307,31#..DCB,VAN MARK 83320-37060	05/1999 - 11/2000	1
83320-80393	BU30#,XZU307,31#..DCB,VAN	11/2000 - 06/2004	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	BU30#,XZU307,312..DCB,VAN	05/1999 - 07/2003	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	BU30#,XZU307,312..DCB,VAN	05/1999 - 07/2003	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	BU30#,XZU307,312..DCB,VAN	05/1999 - 07/2003	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
Common parts
77395-33010
83161-20200
91611-B0816
91611-B0825
93313-A3020
93319-A4010
94130-00802

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｽｲﾂﾁ 1/2

Part #	Description	Period	Qty
84270C - SWITCH ASSY, ES START MAIN
84270-37050	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 06/2003	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-37070	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2002	1
84332-37090	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	06/2002 - 06/2004	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10570	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 28V 0.67W	05/1999 - 06/2004	1
84660C - SWITCH, COOLER
84660-37010	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
84660D - BULB(FOR COOLER SWITCH)
88607-37010	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 28V 0.87W	05/1999 - 06/2004	1
84810G - SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2
84810-37080	BU30#,RZU300,XZU307,31#,347,372,382..DCB ﾗｲﾄ	05/1999 - 06/2004	1
84810-37070	BU30#,RZU300,XZU307,31#,347,372,382..DCB ﾚﾌﾄ	05/1999 - 06/2004	1
84810G - SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2
84810-37080	BU30#,RZU300,XZU307,31#,347,372,382..DCB ﾗｲﾄ	05/1999 - 06/2004	1
84810-37070	BU30#,RZU300,XZU307,31#,347,372,382..DCB ﾚﾌﾄ	05/1999 - 06/2004	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-22200	XZU307..03S;BU30#..DCB,VAN;XZU301,331..4FC..DSLL..IV4;RZU300,340,XZU301,302,341,342..CNG,EFI,LPG	05/1999 - 06/2002	1
84873A - SWITCH, RETRACTABLE OUTER MIRROR
84873-37020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
Linked diagrams
8302
8413
8420

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｽｲﾂﾁ 2/2

Part #	Description	Period	Qty
84270A - SWITCH ASSY, MIRROR HEATER
84270-37030	XZU307..03S;BU30#..DCB,VAN;XZU301,331..4FC..DSLL..IV4	05/1999 - 06/2002	1
84270D - SWITCH ASSY, ES START TIMING
84270-37110	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	06/2003 - 06/2004	1
84270-37060	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,RZU300,340,XZU300,302,307,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 06/2003	1
84270E - SWITCH ASSY, TIRE LAMP
84270-37020	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2002	1
84270F - BULB, MIRROR HEATER SWITCH ASSY
84999-10570	XZU307..03S;BU30#..DCB,VAN;XZU301,331..4FC..DSLL..IV4 28V 0.67W	05/1999 - 06/2002	1
84455 - SWITCH, WARM UP
84455-37040	BU30#,346,XZU300,320,330,340,350	05/1999 - 06/2004	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37050	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
84730B - BULB, HEATER BLOWER SWITCH
90981-16020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 24V 1.8W	05/1999 - 06/2004	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01153	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 24V 1.8W,ｷｬｯﾌﾟ付き	05/1999 - 06/2004	1
85500 - LIGHTER ASSY, CIGARETTE
85500-36020	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85500B - BULB, CIGARETTE LIGHTER
84999-36010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL 28V 1.8W	05/1999 - 06/2002	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	05/1999 - 06/2004	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-36010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2002	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-95400	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,331..CNG,DSL,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382	06/2002 - 06/2004	1
Linked diagrams
5551

ILLUST NO. 3 OF 5(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90164-50048
90461-07028
90468-08007
91111-40812
93315-14012
93319-15012
93540-16014
93540-44010
93566-14512
94511-00800
Linked diagrams
5551

ILLUST NO. 2 OF 5(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-22180
90201-10008
90461-08318
90463-12570
90480-25002
91611-40614
91611-40812
91611-40816
91611-41025
91651-40820
93316-14012
93319-14010
93319-15008
94110-40800
94110-41000
94115-40400
94512-01000

ILLUST NO. 4 OF 5(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06015
90179-06070
90179-06078
90179-06158
90269-03002
91511-40612
91611-40612
91611-40616
91651-40612
91651-40614
91651-40616
91651-40816
93319-15008
94110-40600
Linked diagrams
1903
8406
8501

ILLUST NO. 5 OF 5(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06142
90179-06158
90464-00190
90560-08268
91651-40612
91651-40816
91656-40818
93319-15014
94115-40500
94120-40800
94120-41000

ILLUST NO. 1 OF 5(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-36020
90159-50017
90202-10012
90461-05027
90461-05028
90461-05029
90464-00156

ILLUST NO. 1 OF 5(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
19877-66010
28602-68010
28613-54010
28622-57010
28623-54010
28623-78010
90116-06275
90179-05015
90179-06070
90179-06158
90189-05006
90201-10042
90201-12030
90404-54025
90430-12221
92112-60625
94613-10601
94631-10601

BU301-PSMJS3 (1999)

ILLUST NO. 1 OF10(9905-0406)BU30#,346

ILLUST NO. 1 OF10(9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382

ILLUST NO. 2 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 4 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 5 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 7 OF10(9905- )

ILLUST NO. 8 OF10(9905- )DCB,SCB

ILLUST NO. 9 OF10(9905- )BU346,BZU300,340,RZU30#,340,XZU300,301,302,304,305,307,308,32#,33#,34#,3

ILLUST NO.10 OF10(9905- )DCB,SCB

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

ILLUST NO. 3 OF 5(7708- )

ILLUST NO. 2 OF 5(7708- )

ILLUST NO. 4 OF 5(7708- )

ILLUST NO. 5 OF 5(7708- )

ILLUST NO. 1 OF 5(7708- )

ILLUST NO. 1 OF 5(7708- )

Part Price Details
