BU301-PSMJS3 (1999)
Toyota Dyna/Toyoace

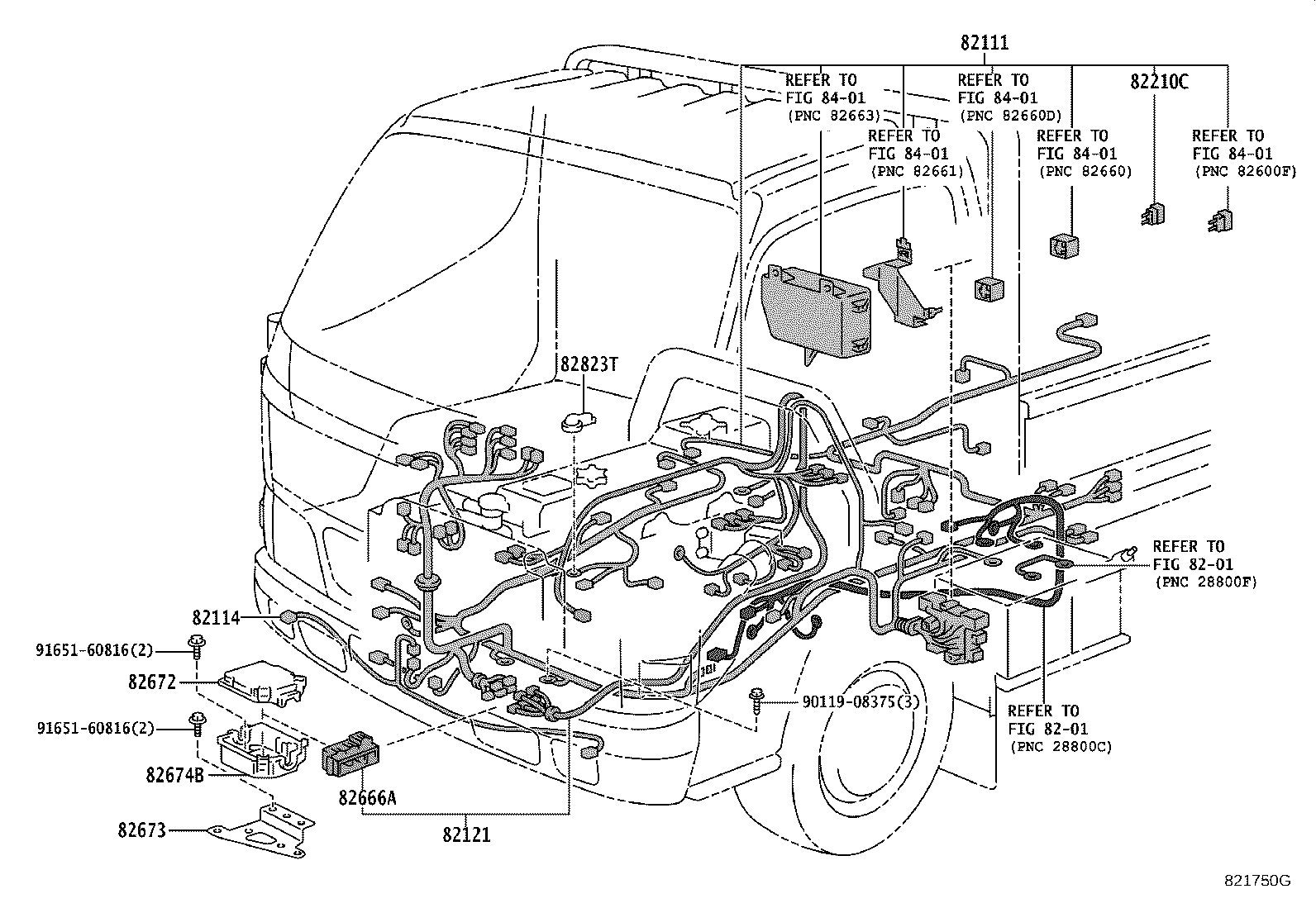

ILLUST NO. 1 OF 6(9905-0406)BU30#,346..DCB,SCB
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-37750 |
BU301..175T |
1 | ||
| 82115-37300 |
BU301..175T |
1 | ||
| 82115-37301 |
BU301..175T |
1 | ||
| 82115-37302 |
BU301..175T |
1 | ||
| 82115-3V240 |
BU301..175T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-3V240 |
1 | ||
| 82111-37N60 |
BU301..175T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37N60 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37010 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3V160 |
BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-37130 |
XZU302..20T..DSL;XZU321..DM7..4NO;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU301..4FC..20T..DSL;XZU306..4FC..DSLL..IV3;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BZU300,XZU306,322,347,372,382..SCB..(DM6,DM7,DM8,T2,T3,T4)..(CNG,DSL,LPG);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,346,35#,362..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-37030 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82670-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82674B - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-37010 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 6(9905-0406)XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,3
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-37750 |
BU301..175T |
1 | ||
| 82115-37300 |
BU301..175T |
1 | ||
| 82115-37301 |
BU301..175T |
1 | ||
| 82115-37302 |
BU301..175T |
1 | ||
| 82115-3V240 |
BU301..175T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82115-3V240 |
1 | ||
| 82111-37N60 |
BU301..175T ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-37N60 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37010 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3V160 |
BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-37130 |
XZU302..20T..DSL;XZU321..DM7..4NO;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU301..4FC..20T..DSL;XZU306..4FC..DSLL..IV3;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BZU300,XZU306,322,347,372,382..SCB..(DM6,DM7,DM8,T2,T3,T4)..(CNG,DSL,LPG);BU30#,346,BZU340,RZU301,340,XZU300,307,33#,340,346,35#,362..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-37030 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82670-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82674B - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-37010 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;BU306,XZU306..(SCB,VAN)..DSL;XZU301,331..5F..DSLL..(CBU,IV4);BU301,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 6(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82129-37540 |
BU30#..DCB ｱﾘ(ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ & ﾘﾔｴｱｺﾝ) |
1 | ||
| 82129-37530 |
BU30#..DCB |
1 | ||
| 82147-37580 |
BU30#..DCB |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08202 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 100A,ｵｽ端子,青 |
1 | ||
| 90982-08286 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08280 |
BU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 30A,ﾒｽ端子,桃 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-37080 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-37090 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-37120 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-21040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306,372,382..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362..(DCB,SCB)..(CBU,IV3,IV6) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-35040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306,372,382..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362..(DCB,SCB)..(CBU,IV3,IV6) |
3 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91626-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 6(9905-0406)DCB
ﾎﾞﾃﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37140 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37150 |
RZU300..SCB;BU30#,346,RZU340,XZU30#,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T)..(CBU,IV3,IV4) ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37250 |
XZU341..DSL,DSLL;RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;RZU300,XZU301,302,306,331,342..DSL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,330,337,340,346,347,351,352,362,37#,382..175T,20T,30T |
1 | ||
| 82151-37260 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,340,346,347,351,352,362,372,382..(175T,20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37120 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..175T,20T,295T,30T |
1 | ||
| 82151-37240 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;XZU301..(DM6,T3,T4,T5)..DSL..(CBU,IV3,IV4);RZU300,XZU302,342..SCB..(DM6,T2,T3,T4,T5)..(DSL,EFI);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37270 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37280 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,RZU300,XZU301,302,306,342..(03S,06S,DM6,T1,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3);BU346,BZU300,340,RZU301,340,XZU300,307,322,33#,340,346,347,362,372,382..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37110 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 82152-37210 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37120 |
XZU342,372,382..SCB;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,341,346,347,35#,362,371..DSL,DSLL,EFI,LPG ｱﾘ(PTO ﾊﾞｷﾕ-ﾑﾀｲﾌﾟ) & ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37160 |
RZU300,XZU302..SCB..(DM6,T2,T3,T4,T5)..(DSL,EFI,LPG);XZU301..(DM6,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV4);BU30#,346,RZU340,XZU300,306,307,322,33#,34#,362,37#,382..(03S,06S,DM6,T1,T2,T3,T4,T5)..(175T,20T,295T,30T) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37280 |
XZU341..DSL,DSLL;RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;RZU300,XZU301,302,306,331,342..DSL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,330,337,340,346,347,351,352,362,37#,382..175T,20T,30T |
1 | ||
| 82152-37270 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37300 |
XZU362..DM5,DM7;XZU362..T4..CBU;RZU300..30T..LPG;XZU341..T3..295T;XZU341..4FC..295T..DSL;XZU341..T4..6F..295T..IV3;BU301,XZU341..(175T,20T,30T)..DSL;BU306,346,RZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,342,346,347,351,352,37#,382..(20T,295T,30T)..(DSL,EFI) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82152-37290 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306..SCB..DSL;XZU306..4FC..DSLL..IV3;RZU300,XZU302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,307,31#,32#,33#,340,346,347,351,352,362,372,382..(175T,20T,30T)..(CBU,IV3) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37310 |
RZU300..30T..LPG;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU341..T3..295T..CBU;XZU341..(20T,30T)..CBU;XZU341..4FC..295T..CBU;XZU306..4FC..DSLL..IV3;XZU341..(DSL,DSLL)..IV3;BU30#,346,BZU300,XZU346;RZU300,XZU301,302,342..(DM6,T2,T3,T4,T5)..(DSL,EFI)..(CBU,IV3,IV4);BZU340,RZU301,340,XZU300,306,307,322,33#,340,347,362,37#,382..(03S,T2,T3,T4,T5)..(20T,30T)..(CNG,DSL,EFI,LPG) ﾅｼ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-37100 |
XZU347..DCB..5F;BU30#,XZU307..DCB;XZU347..DCB..T4..4FC ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153-37010 |
XZU347..DCB..5F;XZU347..DCB..T4..4FC;BU30#,XZU307,312..DCB |
1 | ||
| 82153-37020 |
BU30#,XZU307,347..DCB ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-37010 |
BU30#,XZU307,31#,347..DCB |
1 | ||
| 82153-37100 |
BU30#,XZU307,311,347..DCB ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153-37020 |
BU30#,XZU307,347..DCB ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37081 |
BU30#,RZU300,XZU307,31#,347..DCB |
1 | ||
| 82161-37080 |
BU30#,XZU307,31#,347..DCB |
1 | ||
| 82161-37090 |
BU30#,RZU300,XZU307,31#,347..DCB ｱﾘ(*80,ｳﾝﾃﾝｾｷ) |
1 | ||
| 82161-37100 |
BU30#,RZU300,XZU307,31#,347..DCB ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82161-37300 |
BU30#,RZU300,XZU307,312,347..DCB ｱﾘ(ﾘﾔ ﾋ-ﾀ & *80, ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 82161-37280 |
BU30#,RZU300,XZU307,312,347..DCB |
1 | ||
| 82161-37290 |
BU30#,RZU300,XZU307,312,347..DCB ｱﾘ(ﾘﾔ ﾋ-ﾀ & *80, ｳﾝﾃﾝｾｷ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37070 |
BU30#,XZU307,347..DCB ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ & ﾘﾔｴｱｺﾝ) |
1 | ||
| 82162-37060 |
BU30#,RZU300,XZU307,347..DCB ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 82162-37080 |
BU30#,XZU307,347..DCB ｱﾘ(ﾘﾔﾋ-ﾀ & ﾏﾆﾕｱﾙ ｴｱｺﾝ & ﾘﾔｴｱｺﾝ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-37660 |
BU301,XZU302..ST |
1 | ||
| 82164-37661 |
BU301,XZU302..ST |
1 | ||
| 82137-37200 |
BU301,XZU302..ST |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37130 |
XZU302..ST..IV3;XZU306..DSL..IV3;XZU302,342..CNG,LPG;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;BU301..(DM6,T1,T5)..IV3;XZU301,302,372,382..SCB..(CNG,DSL)..IV3..1NO;BU306,346,XZU300,307,322,33#,340,341,346,347,362..(T2,T3,T4,T5)..(DSL,DSLL)..IV3 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37310 |
BU30#,RZU300,XZU307,31#,347..DCB |
1 | ||
| 82171-37311 |
BU30#,RZU300,XZU307,312,347..DCB |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-37100 |
BU301,XZU302..ST |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37030 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..5F..DSLL..(CBU,IV4);XZU301,306,331,362..(DM3,DM5,DM6,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,321,322,337,341,342,346,347,351,352 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..(DCB,VAN)..(DSL,EFI) |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..(DCB,VAN)..(DSL,EFI) |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-37050 |
XZU341..IV3;XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU341..T3..295T..CBU;XZU301..DSLL..IV3..4NO;XZU341..4FC..295T..CBU;XZU301,331..CNG,DSL,LPG;XZU306,372,382..SCB..DSL;XZU341,362..(T3,T4)..(20T,30T)..CBU;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,342,346,347,351,352,371..175T,20T,295T,30T |
1 | ||
| Common parts | ||||
| 82712-37081 | ||||
| 82819-37140 | ||||
| 90119-08103 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90129-08007 | ||||
| 91651-B0825 | ||||
| 93560-15014 | ||||
ILLUST NO. 2 OF 6(9905-0406)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37460 |
BU30#,RZU300,XZU307,31#,347,372,382..DCB..5F |
1 | ||
| 82141-37681 |
XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306,312..SCB..5F..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,311,32#,33#,34#,35#,362,372,382..MTM..(CBU,IV3,IV6) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37690 |
XZU312..30T;BU30#,346,RZU300,340,XZU30#,311,32#,33#,34#,35#,362,372,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6,IV7) ﾅｼ(*80) |
1 | ||
| 82141-37680 |
XZU312..30T;BU30#,346,RZU300,340,XZU30#,311,32#,33#,34#,35#,362,372,382..MTM..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37420 |
XZU347..DCB..5F..CBU;BU30#,XZU307,372,382..DCB..5F ｱﾘ(PTO ﾊﾞｷﾕ-ﾑﾀｲﾌﾟ) |
1 | ||
| 82141-37710 |
BU30#,RZU300,XZU307,312,347,372,382..DCB..5F ｱﾘ(ES ｽﾀ-ﾄ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82141-37691 |
XZU301..4FC..IV6;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306,312..SCB..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU300,340,XZU300,302,307,311,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3 ﾅｼ(*80) |
1 | ||
| 82141-37430 |
XZU302..LPG;XZU302..5F..ST;XZU342..CNG,LPG;XZU322..5F..20T;XZU302,322..4FC..4NO;XZU301..4FC..DSLL..IV3;XZU302..(295T,30T)..1NO;XZU301,321..SCB..4FC..30T;BU301,XZU320,330,35#..DM2,DM6,DM7,T1,T3,T5;XZU301,311,321..5F..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#,321..SCB..(DM3,DM5,DM6,DM7,DM8,T3)..(20T,295T)..DSL;BU306,346,XZU300,306,307,331,337,340,341,346,347,362,372,382..DSL..(CBU,IV3) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82141-37770 |
BU30#,RZU300,XZU307,312,347..DCB ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82141-37870 |
XZU312..30T;BU30#,346,BZU300;BZU340,RZU30#,340,XZU300,301,302,306,307,311,32#,33#,340,341,342,346,347,35#,362,372,382..MTM..(CBU,IV3,IV6,IV7) ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37890 |
BU30#,RZU300,XZU307,312,347,372,382..DCB..5F |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-37230 |
BU30#,346,XZU300,320,330,340,350 |
1 | ||
| 82142-37330 |
BU30#,346,XZU300,330,340,350 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
ILLUST NO. 6 OF 6(9905- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10173 | ||||
| 90980-10355 | ||||
| 90980-10498 | ||||
| 90980-10619 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11290 | ||||
| 90980-11314 | ||||
ILLUST NO. 5 OF 6(0310- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37291 | ||||
| 82702-37310 | ||||
| 82702-37321 | ||||
| 82702-37360 | ||||
| 82702-37372 | ||||
| 82715-37C50 | ||||
| 82715-37C80 | ||||
| 82715-37C90 | ||||
| 82715-37D00 | ||||
| 82715-37D10 | ||||
| 82715-37D20 | ||||
| 82715-37D30 | ||||
| 82715-37D80 | ||||
| 82715-37E30 | ||||
| 82715-37E40 | ||||
| 82715-37F10 | ||||
| 82715-3V500 | ||||
| 82715-3V690 | ||||
| 87121-37011 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05141 | ||||
| 90179-06158 | ||||
| 91651-B0820 | ||||
ILLUST NO. 5 OF 6(9905- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 51407-37120 | ||||
| 82711-26070 | ||||
| 82711-3F040 | ||||
| 82711-3H530 | ||||
| 82712-37210 | ||||
| 82715-34080 | ||||
| 82715-34100 | ||||
| 82715-37680 | ||||
| 82715-37750 | ||||
| 82715-37760 | ||||
| 82715-37850 | ||||
| 82715-37890 | ||||
| 82715-3V010 | ||||
| 82715-3V050 | ||||
| 82715-3V140 | ||||
| 82715-3V160 | ||||
| 82715-3V170 | ||||
| 82715-3V190 | ||||
| 82715-3V200 | ||||
| 82715-3V210 | ||||
| 82715-3V240 | ||||
| 82715-3V250 | ||||
| 82715-3V290 | ||||
| 82715-3V300 | ||||
| 82715-3V310 | ||||
| 82715-3V320 | ||||
| 82715-3V460 | ||||
| 82715-3V590 | ||||
| 82715-3V600 | ||||
| 82715-3V610 | ||||
| 82715-3V650 | ||||
| 82715-95D04 | ||||
| 82729-37680 | ||||
| 82729-37700 | ||||
| 90179-06171 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 91651-B0830 | ||||
| 94130-00802 | ||||
ILLUST NO. 5 OF 6(9905- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 51407-37070 | ||||
| 81859-37040 | ||||
| 82702-37150 | ||||
| 82702-37161 | ||||
| 82711-14110 | ||||
| 82711-26070 | ||||
| 82711-37260 | ||||
| 82712-37180 | ||||
| 82712-37230 | ||||
| 82715-37220 | ||||
| 82715-37A70 | ||||
| 82715-3V140 | ||||
| 82715-3V850 | ||||
| 82715-3V860 | ||||
| 82715-3V870 | ||||
| 82716-37420 | ||||
| 82728-37240 | ||||
| 82729-37060 | ||||
| 82729-37090 | ||||
| 82729-37210 | ||||
| 82729-37270 | ||||
| 82729-37340 | ||||
| 82729-37360 | ||||
| 82729-37371 | ||||
| 82729-37410 | ||||
| 82729-37420 | ||||
| 82729-37500 | ||||
| 82729-37510 | ||||
| 82729-37540 | ||||
| 82729-37590 | ||||
| 82729-37620 | ||||
| 82729-3V040 | ||||
| 90031-05008 | ||||
| 90031-05009 | ||||
| 90031-05022 | ||||
| 90031-05056 | ||||
| 90031-75001 | ||||
| 90034-61052 | ||||
| 90119-08676 | ||||
| 90464-00525 | ||||
| 91612-G1030 | ||||
| 91619-61218 | ||||
| 91621-B0816 | ||||
| 91622-61016 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94150-80800 | ||||
ILLUST NO. 5 OF 6(9905- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37050 | ||||
| 82702-37060 | ||||
| 82702-37061 | ||||
| 82702-37110 | ||||
| 82702-37130 | ||||
| 82712-37240 | ||||
| 82715-28100 | ||||
| 82715-37230 | ||||
| 82715-37260 | ||||
| 82715-37B10 | ||||
| 82715-37B20 | ||||
| 82715-37B30 | ||||
| 82715-37B40 | ||||
| 82715-37B50 | ||||
| 82715-37C10 | ||||
| 82715-37D50 | ||||
| 82715-37D60 | ||||
| 82715-37D80 | ||||
| 82715-3V860 | ||||
| 82729-37720 | ||||
| 82729-37730 | ||||
| 82729-37760 | ||||
| 82729-37770 | ||||
| 82729-37780 | ||||
| 82729-37810 | ||||
| 82729-37830 | ||||
| 82729-37840 | ||||
| 82729-37850 | ||||
| 82729-37860 | ||||
| 82729-37870 | ||||
| 82729-37880 | ||||
| 82729-37890 | ||||
| 87121-37011 | ||||
| 90031-05009 | ||||
| 90031-05123 | ||||
| 90119-10056 | ||||
| 90179-06193 | ||||
| 91621-B0816 | ||||
| 91622-61016 | ||||
| 91651-60612 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94612-11001 | ||||
ILLUST NO. 5 OF 6(9905- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 42141-37010 | ||||
| 42141-37030 | ||||
| 42141-37041 | ||||
| 42141-37080 | ||||
| 42141-37091 | ||||
| 42141-37100 | ||||
| 44754-37030 | ||||
| 51407-37250 | ||||
| 82711-12200 | ||||
| 82711-12220 | ||||
| 82711-3F230 | ||||
| 82712-37010 | ||||
| 82715-37750 | ||||
| 82715-37760 | ||||
| 82715-37770 | ||||
| 82715-37A90 | ||||
| 82715-37B00 | ||||
| 82715-3V200 | ||||
| 82715-3V560 | ||||
| 82715-3V610 | ||||
| 82715-3V830 | ||||
| 82728-37140 | ||||
| 82728-37150 | ||||
| 82728-37160 | ||||
| 82729-37240 | ||||
| 82729-37480 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90461-10703 | ||||
| 91621-B0816 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 91651-B0830 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
ILLUST NO. 5 OF 6(9905- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47382-37070 | ||||
| 51407-37251 | ||||
| 82711-24420 | ||||
| 82711-3H350 | ||||
| 82715-37B51 | ||||
| 82715-37J10 | ||||
| 82715-37J60 | ||||
| 90333-30002 | ||||
| 91611-G0820 | ||||
| 91651-60830 | ||||
| 91651-B0820 | ||||
ILLUST NO. 1 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08116 | ||||
| 91611-40816 | ||||
| 94110-40800 | ||||
ILLUST NO. 1 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08116 | ||||
| 91611-40816 | ||||
| 94110-40800 | ||||
ILLUST NO. 2 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08103 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 94110-40800 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06086 | ||||
| 90461-06091 | ||||
| 90461-08042 | ||||
| 90461-08066 | ||||
| 90461-08100 | ||||
| 90461-08109 | ||||
| 90461-08127 | ||||
| 90461-08187 | ||||
| 90461-08230 | ||||
| 90461-08265 | ||||
| 90461-08312 | ||||
| 90461-08313 | ||||
| 90461-08972 | ||||
| 90461-10030 | ||||
| 90461-10247 | ||||
| 90461-10275 | ||||
| 90461-10285 | ||||
| 90461-10286 | ||||
| 90461-10294 | ||||
| 90461-10295 | ||||
| 90461-10312 | ||||
| 90461-10421 | ||||
| 90461-10423 | ||||
| 90461-10461 | ||||
| 90461-10472 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-10617 | ||||
| 90461-10857 | ||||
| 90461-12101 | ||||
| 90461-12682 | ||||
| 90463-04012 | ||||
| 90463-04017 | ||||
| 90463-04025 | ||||
| 90463-04079 | ||||
| 90463-04202 | ||||
| 90463-04379 | ||||
| 90463-06097 | ||||
| 90463-06161 | ||||
| 90463-08026 | ||||
| 90463-08030 | ||||
| 90463-08072 | ||||
| 90463-08121 | ||||
| 90463-08124 | ||||
| 90463-08163 | ||||
| 90463-08375 | ||||
| 90463-10030 | ||||
| 90463-10031 | ||||
| 90463-10335 | ||||
| 90463-10336 | ||||
| 90463-15298 | ||||
| 90463-15454 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27025-95400 | ||||
| 82711-12200 | ||||
| 82712-95400 | ||||
| 83663-93000 | ||||
| 90044-64004 | ||||
| 90461-08183 | ||||
| 90461-08746 | ||||
| 90461-10246 | ||||
| 90461-10522 | ||||
| 90463-04517 | ||||
| 90463-10029 | ||||
| 90463-12009 | ||||
| 90463-15439 | ||||
| 90464-00102 | ||||
| 90464-00156 | ||||
| 90467-08006 | ||||
| 90468-10009 | ||||
| 90480-11124 | ||||
| 90480-14053 | ||||
| 90480-15083 | ||||
| 90480-25002 | ||||
| 90480-28319 | ||||
| 90480-30002 | ||||
| 90480-30004 | ||||
| 90480-34510 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
| 82711-95404 | ||||
| 82817-22180 | ||||
| 90461-10032 | ||||
| 90461-10294 | ||||
| 90461-12146 | ||||
| 90480-19435 | ||||
| 90480-35002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
