Toyota Dyna/toyoace BU301 INTERIOR LAMP

Part #	Description	Period	Qty
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81850-37030	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL	05/1999 - 06/2004	1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11022	XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL 24V 1.4W	05/1999 - 06/2004	1

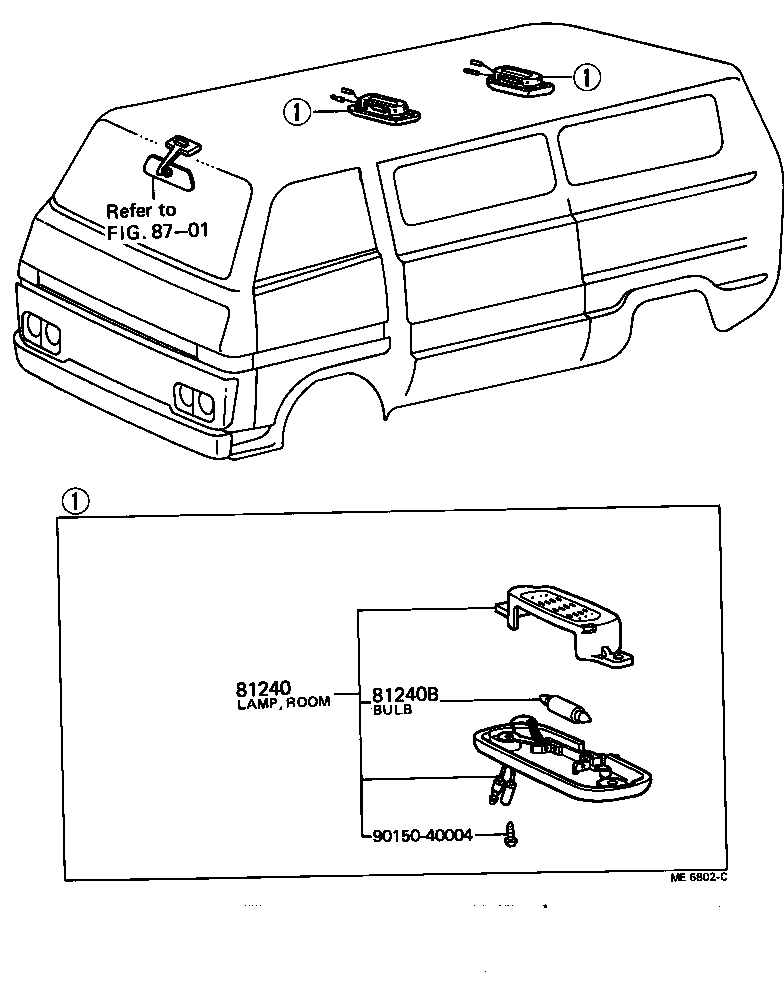

81240 - LAMP ASSY, ROOM, NO.1
81240-95014B1	BU30#,XZU307,31#,347..DCB TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
81240 - LAMP ASSY, ROOM, NO.1
81240-95014B1	BU30#,XZU307,31#,347..DCB TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
81240 - LAMP ASSY, ROOM, NO.1
81240-95014B1	BU30#,XZU307,31#,347..DCB TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#	05/1999 - 06/2004	1
81240B - BULB, ROOM LAMP, NO.1
90981-16019	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,XZU307,31#,331,347,37#,382..DCB..DSL 24V 10W	05/1999 - 06/2004	1
81240B - BULB, ROOM LAMP, NO.1
90981-16019	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,XZU307,31#,331,347,37#,382..DCB..DSL 24V 10W	05/1999 - 06/2004	1
81240B - BULB, ROOM LAMP, NO.1
90981-16019	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,XZU307,31#,331,347,37#,382..DCB..DSL 24V 10W	05/1999 - 06/2004	1
81240D - LAMP ASSY, ROOM, NO.2
81240-37060B0	XZU321..DM8;XZU306..DSLL..CBU;XZU301..4FC..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU311,321,331..DSL..1NO;XZU301..4FC..20T..DSL..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM6,T3,T4,T5)..5F..DSL..IV3;XZU306,31#,322..(DM5,T4,T5)..20T..DSL;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,307,320,330,337,34#,350,362,37#,382..(03S,06S,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL) MD.CHARCOAL,TRIM1#	05/1999 - 06/2003	1
81240E - BULB, ROOM LAMP, NO.2
90981-12032	XZU321..DM8;XZU306..DSLL..CBU;XZU301..4FC..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU311,321,331..DSL..1NO;XZU301..4FC..20T..DSL..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM6,T3,T4,T5)..5F..DSL..IV3;XZU306,31#,322..(DM5,T4,T5)..20T..DSL;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,307,320,330,337,34#,350,362,37#,382..(03S,06S,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL) 24V 8W	05/1999 - 06/2003	2
81240E - BULB, ROOM LAMP, NO.2
90981-12032	XZU321..DM8;XZU306..DSLL..CBU;XZU301..4FC..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU311,321,331..DSL..1NO;XZU301..4FC..20T..DSL..1NO;XZU306,331..(T3,T5)..5F..DSLL;XZU301..(DM6,T3,T4,T5)..5F..DSL..IV3;XZU306,31#,322..(DM5,T4,T5)..20T..DSL;XZU301..(DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,346,XZU300,302,307,320,330,337,34#,350,362,37#,382..(03S,06S,DM6,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL) 24V 8W	05/1999 - 06/2003	2
81241 - LENS, ROOM LAMP, NO.1
81241-95013	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
81241 - LENS, ROOM LAMP, NO.1
81241-95013	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
81241 - LENS, ROOM LAMP, NO.1
81241-95013	XZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)	05/1999 - 06/2004	1
81241A - LENS, ROOM LAMP, NO.2
81241-95J08	XZU311,321..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DM3..4FC..30T;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);XZU306,31#,322..(DM5,T4,T5)..20T..DSL;XZU301,321,331..(DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,320,330,337,34#,350,362,37#,382..03S,06S,DM6,DM7,T1,T2,T3,T4,T5	05/1999 - 06/2003	1
81261 - LENS AND COVER, MAP LAMP
81245-95J07B3	XZU372,382..SCB;BU30#,346,XZU30#,31#,32#,33#,34#,35#,362..(DCB,SCB)..(CBU,IV3,IV6,IV7) MD.CHARCOAL,TRIM1#	05/1999 - 05/2000	1
81245-95J07B3	XZU311,321..1NO;XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..4FC..DSLL;XZU301..DM3..4FC..30T;XZU306..5F..DSLL..CBU;XZU306,31#,322..(DM5,T4,T5)..20T..DSL;XZU301,321,372,382..SCB..(DM6,DM8,T3,T4,T5)..(CNG,DSL,LPG);BU30#,346,RZU300,340,XZU300,302,307,320,33#,34#,350,362..(DM6,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV6) MD.CHARCOAL,TRIM1#	05/2000 - 06/2003	1
Common parts
90159-50087
90387-06054
93540-15025
93540-56020
93560-16012

BU301-PSMJS3 (1999)

(9905- )

(7708- )
