BU301-PSMJS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine 4B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾀﾝｸ

diagram 77017B 77018 77022A 77022A 77100A 77100B 77100U 77135A 77197 77244C 77275B 77501T 77501T 77502D 77502D 77601A 77601A 77603A 77611A 77611A 77616C 77633 77633 77644 77644 77651B 77651B 77701U 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 91611B0616 9162640616 9164281035 9164281040 91645C1032 91645C1032 91645C1032 91645C1032 93319A4010 9413000802 9413000802 9413001002 9413001002 9461211001 9613251100 9613251300
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37030

BU30#,XZU307,31#..DCB,VAN

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37130

BU30#,XZU307,31#..DCB

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU30#,XZU307,31#..DCB,VAN

*H,L=160,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU30#,XZU307,31#..DCB,VAN

*H,L=160,内径=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI

 1
77100U - TANK SUB-ASSY, FUEL
77001-37280

BU30#,XZU307,31#..DCB

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77001-37281

BU30#,XZU307,312..DCB

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37050

BU30#,XZU307..DCB

 1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37050

BU30#,XZU307..DCB

 1
77502D - BRACKET SUB-ASSY, FUEL TANK, REAR
77502-37091

BU30#,RZU300,XZU307..DCB

 1
77502D - BRACKET SUB-ASSY, FUEL TANK, REAR
77502-37091

BU30#,RZU300,XZU307..DCB

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

BU30#,XZU307,31#..DCB

*H,L=240

 1
Common parts
90179-10015
91611-B0616
91626-40616
91642-81035
91642-81040
91645-C1032
93319-A4010
94130-00802
94130-01002
94612-11001
96132-51100
96132-51300

ILLUST NO. 1 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)

diagram 77017B 77018 77018H 77022A 77022A 77022C 77022C 77100A 77100B 77100U 77100V 77100V 77100Z 77135A 77168A 77168A 77169A 77169A 77197 77197C 77244C 77601A 77601E 77611 77611A 77611E 77616C 77633 77633B 77651B 77651B 77701U 77701V 77710 77712 77713 77714 9017910015 9017910015 9017910015 9020209047 9025003031 9038608164 9040112007 9040112007 9040510008 9040510008 9046107033 9046715012 9048014006 9162640616 9164281035 9164281040 91645C1032 91645C1032 9331915010 93319A4010 93319A4010 9413000802 9413000802 9413000802 9413000802 9413000802 9613251100 9613251300 9671319017 9671319017 9671319017 9671324011
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37030

BU30#,XZU307,31#..DCB,VAN

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37130

BU30#,XZU307,31#..DCB

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU30#,XZU307,31#..DCB,VAN

*H,L=160,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU30#,XZU307,31#..DCB,VAN

*H,L=160,内径=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI

 1
77100U - TANK SUB-ASSY, FUEL
77001-37280

BU30#,XZU307,31#..DCB

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77001-37281

BU30#,XZU307,312..DCB

1030X258X285,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=60L)

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06030

BU30#,XZU307,31#..DCB

*H,L=240

 1
Common parts
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-15012
90480-14006
91626-40616
91642-81035
91642-81040
91645-C1032
93319-15010
93319-A4010
94130-00802
96132-51100
96132-51300
96713-19017
96713-24011

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,XZU300,302,306,307,31#,32#,330,331,340,341,342,346,347,350,362

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)

diagram 2302 77205 77206C 77242A 77243A 77243A 77243A 77278A 77278B 9046713007 9046713007 9046718002 9046718002 9046718008 9046718008 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37270

BU30#,XZU307..DCB..5F

 1
77205-37270

BU30#,XZU307..DCB..5F

 1
77205-37270

BU30#,XZU307..DCB..5F

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37430

BU346;BU30#..DCB

 1
77206-37430

BU346;BU30#..DCB

 1
77206-37430

BU346;BU30#..DCB

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12028

BU30#,XZU307..DCB

*H,L=280,内径=12

 1
95332-12028

BU30#,XZU307..DCB

*H,L=280,内径=12

 1
95332-12028

BU30#,XZU307..DCB

*H,L=280,内径=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12020

XZU301..DSLL..4NO;XZU306..DSLL..CBU;BU30#,XZU307..DCB..5F;XZU306..4FC..DSLL..IV3;BU346,XZU341,342..DSL,DSLL

*H,L=200,内径=12,NO.1

 1
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
95332-12024

BU346;BU30#,XZU307..DCB..5F

*H,L=240,内径=12,NO.2 & NO.3

 2
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU362,372..SCB;BU30#,XZU307..DCB

*H,L=280,内径=7.6

 1
95333-08030

XZU362,372..SCB;BU30#,XZU307..DCB

*H,L=280,内径=7.6

 1
95333-08030

XZU362,372..SCB;BU30#,XZU307..DCB

*H,L=280,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
Common parts
90467-13007
90467-18002
90467-18008
96132-51300
Linked diagrams
2302

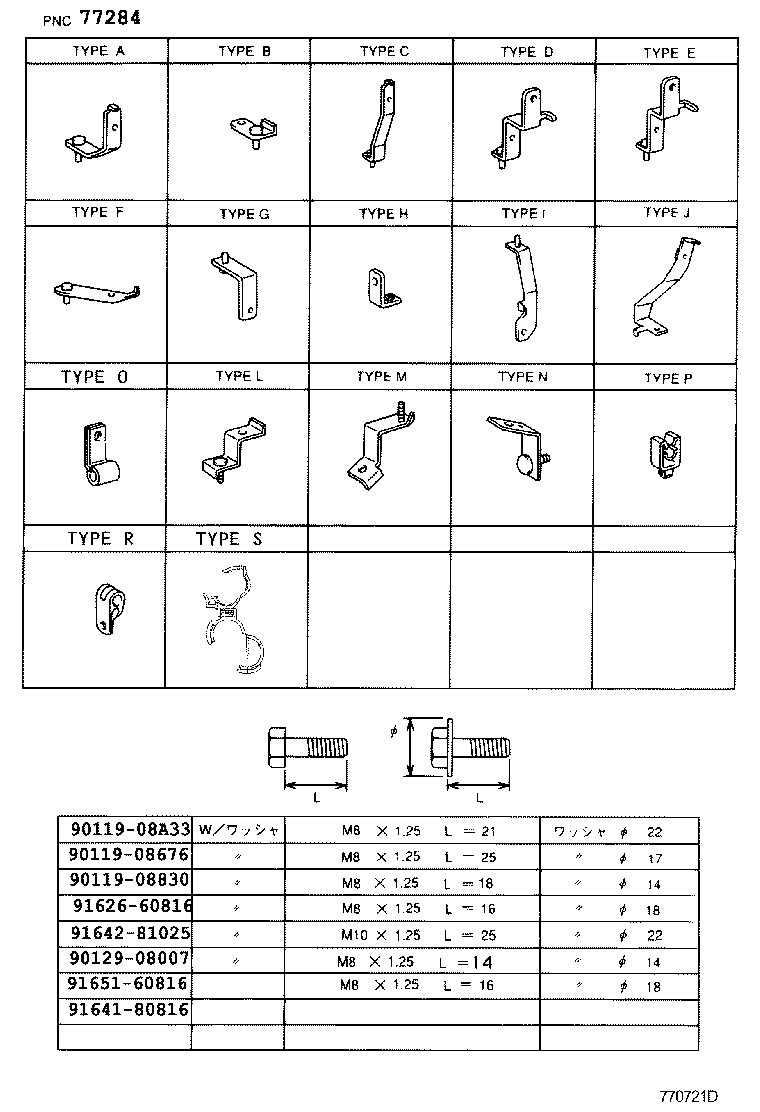

ILLUST NO. 3 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ｸﾗﾝﾌﾟ

diagram 77284 9011908676 9011908830 9011908A33 9012908007 9162660816 9164180816 9164281025 9165160816
Part # Description Qty Price
Common parts
90119-08676
90119-08830
90119-08A33
90129-08007
91626-60816
91641-80816
91642-81025
91651-60816
