BU301-PSMJS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine 4B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )DCB,VAN

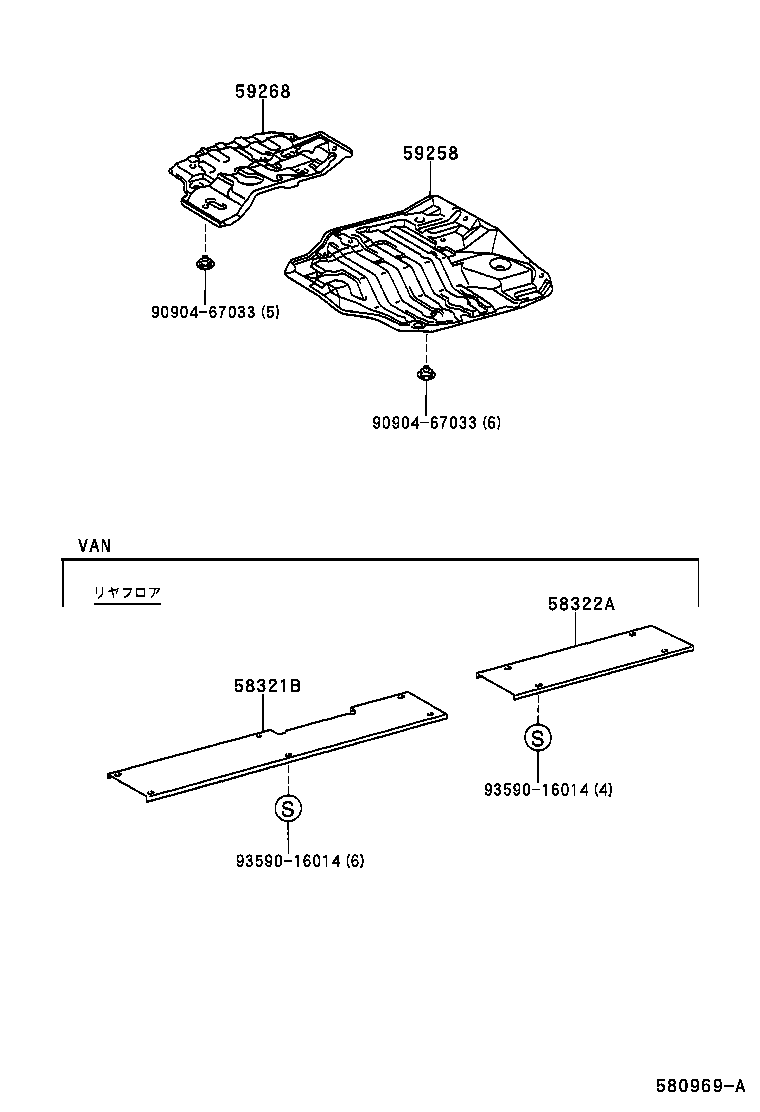

Click highlighted areas on diagram

diagram 58321B 58322A 59258 59268 9090467033 9090467033 9359016014 9359016014
Part # Description Qty Price
59258 - INSULATOR, ENGINE SERVICE HOLE COVER MAIN
59258-37111

BU30#,XZU301,307,312,331,347,37#,382..(DCB,VAN)..DSL

 1
59258-37110

BU30#,RZU300,XZU301,307,312,331,347,37#,382..(DCB,VAN)..(DSL,EFI)

 1
59258-37030

BU30#,XZU301,307,31#,331,347,37#,382..DCB,VAN

 1
59258-37050

BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN

 1
59268 - INSULATOR, ENGINE SUB COVER
59268-37062

BU30#,XZU301,307,312,331,347,37#,382..(DCB,VAN)..DSL

 1
59268-37060

BU30#,RZU300,XZU301,307,31#,331,347,37#,382..DCB,VAN

 1
59268-37061

BU30#,RZU300,XZU301,307,312,331,347,37#,382..(DCB,VAN)..(DSL,EFI)

 1
Common parts
90904-67033
93590-16014

(7708- )

Click highlighted areas on diagram

diagram 58415A 58415A 58415A 58415A 58467B 58616A 58616A 58625A 58625A 58625A 58625A
Part # Description Qty Price
