BU301-PSMJS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine 4B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905-0206)RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35# ; (0209-0406)R

Click highlighted areas on diagram

diagram 51407A 51407B 51436B 51448B 51464 51470 51473A 51474 51480 9046709189 9046711020 91651B0814 91651B0825 91651B0825 91651B0830 91651B1025 9415080800
Part # Description Qty Price
51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3
51407-37060

XZU302..DM3,DM6;XZU302..4FC..4NO;XZU306,307..SCB..IV3;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU306,307..(DCB,SCB)..4FC..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,350..5F..(DSL,DSLL)..(IV3,IV6);XZU301,331,337,341,347..4FC..(CBU,IV3,IV6)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382

 2
51464 - SILENCER, TRANSMISSION UNDER, LH
51464-37050

XZU302..DM3,DM6;XZU302..4FC..4NO;XZU31#,32#,351,352;XZU306,307..SCB..IV3;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU306,307..(DCB,SCB)..4FC..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,350..5F..(DSL,DSLL)..(IV3,IV6);XZU301,331,337,341,347..4FC..(CBU,IV3,IV6)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
Common parts
90467-09189
90467-11020
91651-B0814
91651-B0825
91651-B0830
91651-B1025
94150-80800

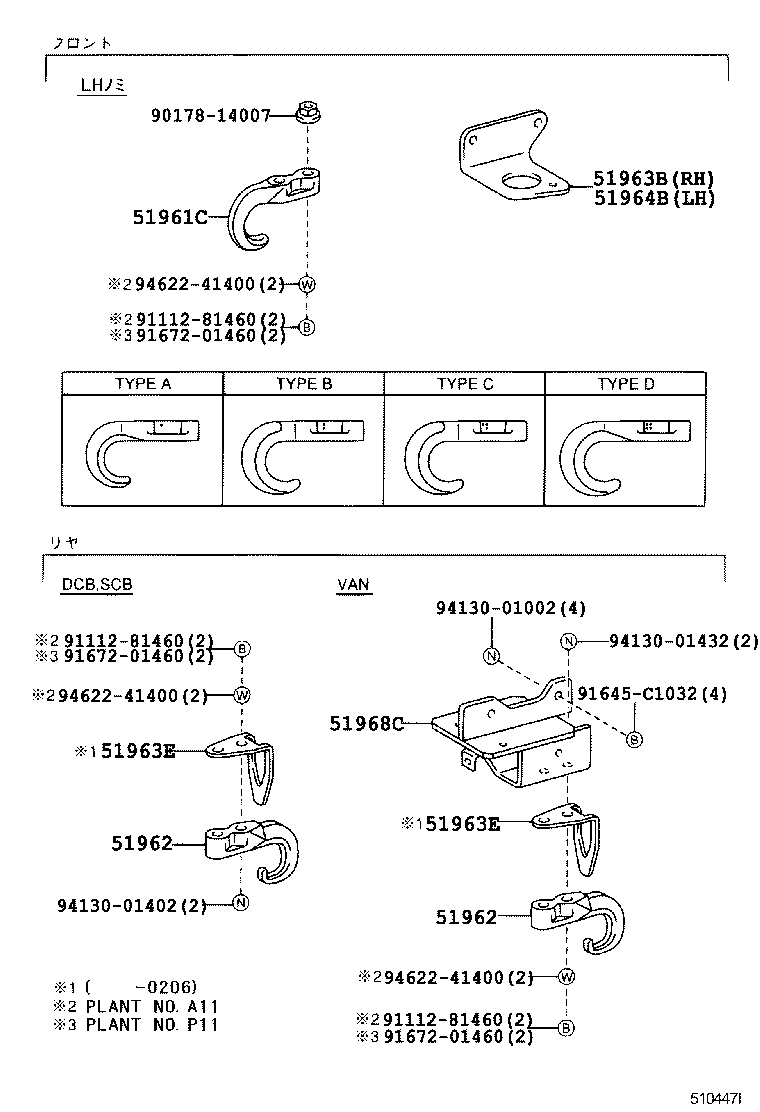

ILLUST NO. 2 OF 2(9905-0406)

Click highlighted areas on diagram

ﾌﾂｸ

diagram 51961C 51962 51962 51963B 51963E 51963E 51964B 51968C 9017814007 9111281460 9111281460 9111281460 91645C1032 9167201460 9167201460 9167201460 9413001002 9413001402 9413001432 9462241400 9462241400 9462241400
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37040

XZU302..ST;XZU382..T4..IV3;BU301,XZU301,31#,321,322,351,352,362..4NO

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51961-37070

XZU302..ST;XZU362..4NO;XZU382..T4..IV3;XZU301,302,351,352..(DM2,DM3)..20T;BU301,XZU31#,321,322,341..(DM5,DM7,DM8,T1,T3,T5)..(175T,20T)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51962 - HOOK, NO.2
51961-36040

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
51962 - HOOK, NO.2
51961-36040

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
51963E - STOPPER, FRONT HOOK WIRE
51963-36040

XZU322,362;RZU300..DCB;BU30#,XZU307,31#,320,321,351,352..03S,06S,DM2,DM5,DM7,DM8,T1,T2

 1
51963E - STOPPER, FRONT HOOK WIRE
51963-36040

XZU322,362;RZU300..DCB;BU30#,XZU307,31#,320,321,351,352..03S,06S,DM2,DM5,DM7,DM8,T1,T2

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382

 1
Common parts
90178-14007
91112-81460
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

ILLUST NO. 1 OF 2(9905-0406)BU301 ; (0206-0406)XZU301,331..4FC..DSLL ; (0306-0406)CNG ; (0306-0406)R

Click highlighted areas on diagram

diagram 51436B 51473A 51474 51480 9046709189 91651B0814 91651B0825 91651B0825 91651B0825
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382

 2
51436-37080

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
51473-37180

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
51474-37120

XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU301,BZU300,340,RZU30#,340,XZU311,321,341,342,351,352

 1
Common parts
90467-09189
91651-B0814
91651-B0825

(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 51171 51171 51171 51441 51442 51456 51456 51457 51457 51459 51459 51961 51961 51961 51961 51961 51961 51963 51963 9111271455 9111271455 9111271460 9111271460 9116271250 9116271250 9165140816 9165140816 9165140820 9165140820 9359056014 9359056014 9411541200 9411551200 9411551400 9411551400 9411551400 9411551400 9451201200 9451201200 9451201400 9451201400 9451201400 9451201400
Part # Description Qty Price
Common parts
91112-71455
91112-71460
91162-71250
91651-40816
91651-40820
93590-56014
94115-41200
94115-51200
94115-51400
94512-01200
94512-01400
