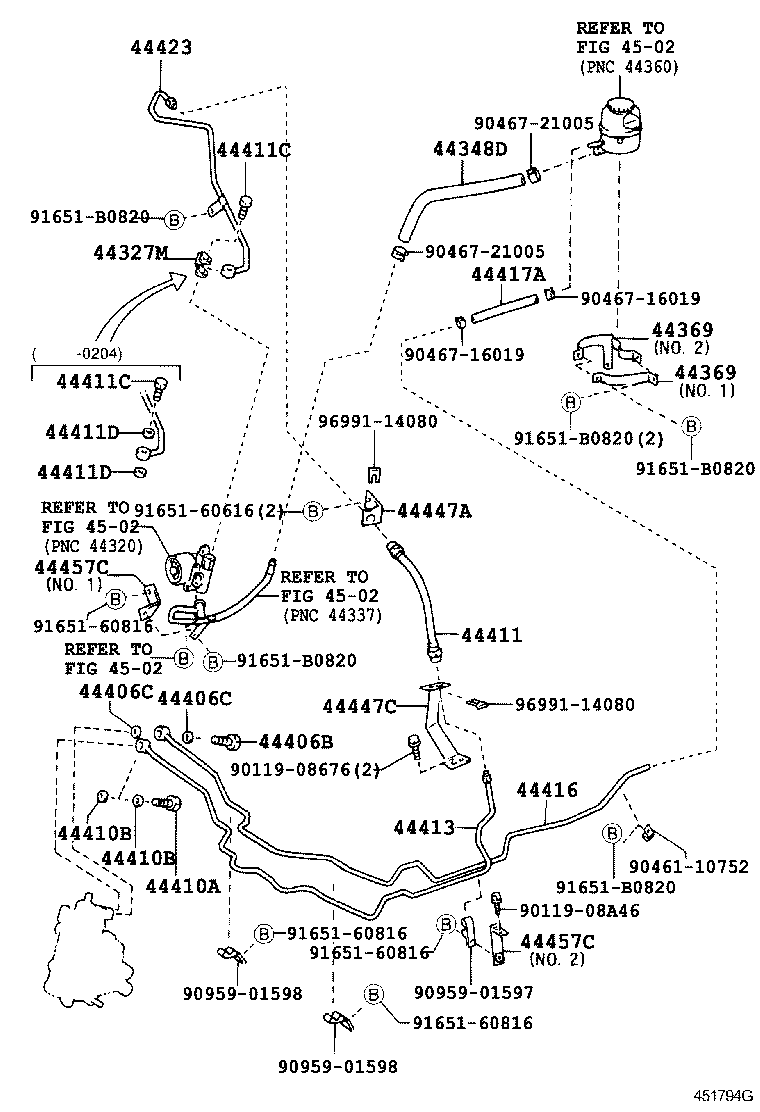

BU301-PSMJS3 (1999)
Toyota Dyna/Toyoace
(9907-0406)BU301
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327M - GASKET, PRESSURE PORT, NO.2 | ||||
| 44327-30030 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37150 |
BU30#,346 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37040 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.1 |
1 | ||
| 44369-37100 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.2 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37040 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.1 |
1 | ||
| 44369-37100 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,XZU300,320,330,340,350 NO.2 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37100 |
XZU300,301,302,330,331,340,341..CBU,IV3 |
1 | ||
| 44411-37101 |
XZU300,301,302,330,331,340,341,342..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 44411-37141 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90404-16024 |
XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#..CNG,DSL,LPG |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-37120 |
BU301 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37310 |
BU301 |
1 | ||
| 44417A - HOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2) | ||||
| 44412-37120 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37030 |
BU30#,346 |
1 | ||
| 44423-37031 |
BU30#,346 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37020 |
BU30#,346,BZU300,340;XZU301,302,341,342..CNG,LPG |
1 | ||
| 44447C - BRACKET, HOSE SUPPORT NO.2 | ||||
| 44447-37060 |
BU30#,346 |
1 | ||
| 44447-37061 |
BU30#,346 |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-37090 |
XZU300,301,302,330,331,340,341,342,350..DSL,DSLL |
1 | ||
| 44457-37090 |
BU301,BZU300,340;XZU301,302,341,342..CNG,LPG NO.2 |
1 | ||
| 44457-37120 |
BU301 NO.1 |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-37090 |
XZU300,301,302,330,331,340,341,342,350..DSL,DSLL |
1 | ||
| 44457-37090 |
BU301,BZU300,340;XZU301,302,341,342..CNG,LPG NO.2 |
1 | ||
| 44457-37120 |
BU301 NO.1 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90461-10752 | ||||
| 90467-16019 | ||||
| 90467-21005 | ||||
| 90959-01597 | ||||
| 90959-01598 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 4502 | ||||
