Toyota Dyna/toyoace BU301 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU301-PSMJS3 (1999)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

BU301-PSMJS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine 4B

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905-0406)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37161	BZU300..T4..LPG;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(CBU,IV3);BU30#,346,BZU340,RZU30#,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);RZU340,XZU300,302,307,33#,340,341,342,346,347,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	07/1999 - 06/2004	1
31301-37170	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03257	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 12/2000	1
90959-03344	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	12/2000 - 06/2004	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	2
31321 - PAD, CLUTCH PEDAL
31321-14020	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
31323 - BRACKET, CLUTCH PEDAL
31302-37011	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	11/1999 - 06/2004	1
31302-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 11/1999	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM 長さ=23.5	05/1999 - 06/2004	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH
38979-37011	BZU300..T4..LPG;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;BZU300,XZU306..(DM6,T3,T5)..(CNG,DSLL,LPG);XZU301..(DM6,T3,T4,T5)..5F..(CNG,DSL,LPG)..(CBU,IV3);BU30#,346,BZU340,RZU30#,XZU306..(DCB,SCB)..5F..(DSL,EFI,LPG);RZU340,XZU300,302,307,33#,340,341,342,346,347,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)	07/1999 - 06/2004	1
Common parts
90179-06204
90468-14017
91641-80818
94120-41000
94130-61000
94531-01000
Linked diagrams
8401
8413

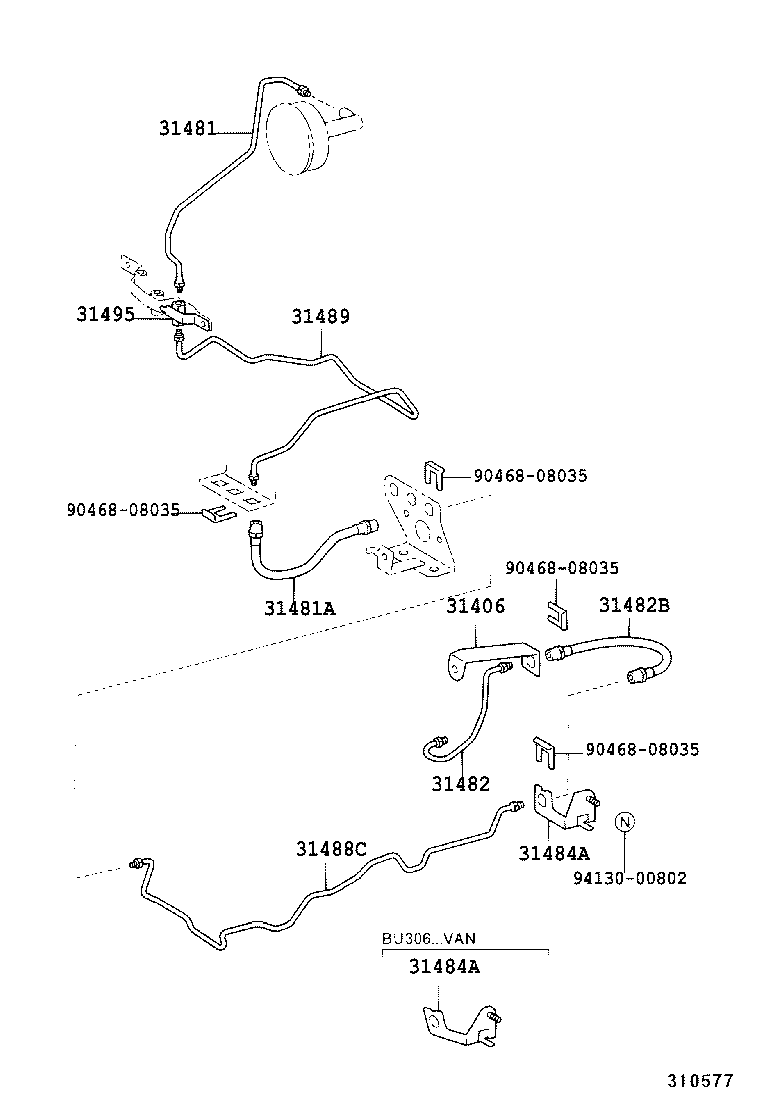

ILLUST NO. 2 OF 2(9905-0406)BU30#,346

Click highlighted areas on diagram

Part #	Description	Period	Qty
31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE
31406-37010	BU30#,346	05/1999 - 06/2004	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37120	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 02/2004	1
31481-37121	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	02/2004 - 06/2004	1
31481A - HOSE, CLUTCH, NO.1
90931-01143	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..DSLL..(CBU,IV4);XZU301,306,362..(DM3,DM5,DM6,T3,T4,T5)..5F..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#..MTM	05/1999 - 06/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-37090	BU30#,346	05/1999 - 06/2004	1
31482B - HOSE, CLUTCH, NO.2
90931-01142	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37150	XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..SCB..5F..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,347,350..(DCB,SCB)..MTM..(CBU,IV3,IV6)	05/1999 - 06/2004	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37150	XZU306..T5..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..SCB..5F..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,347,350..(DCB,SCB)..MTM..(CBU,IV3,IV6)	05/1999 - 06/2004	1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-37290	XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..(DCB,SCB)..5F	05/1999 - 06/2004	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37130	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
31495 - WAY, CLUTCH TUBE
31495-37010	XZU306..T5..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306..5F..(CNG,DSL,LPG);XZU301,306..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM	05/1999 - 06/2004	1
Common parts
90468-08035
94130-00802

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-10276
90468-16142
91611-40816
91651-40816
94110-41000
94120-40800
94512-01000

ILLUST NO. 2 OF 2(7708- )JU20,RU2#,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-06009
91611-40816
91611-40820
94110-40800
96221-12080
96221-20906
96991-12080

BU301-PSMJS3 (1999)

ILLUST NO. 1 OF 2(9905-0406)MTM

ILLUST NO. 2 OF 2(9905-0406)BU30#,346

ILLUST NO. 1 OF 2(7708- )

ILLUST NO. 2 OF 2(7708- )JU20,RU2#,3#

Part Price Details
