BU301-PSMJS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine 4B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )BU30#,346

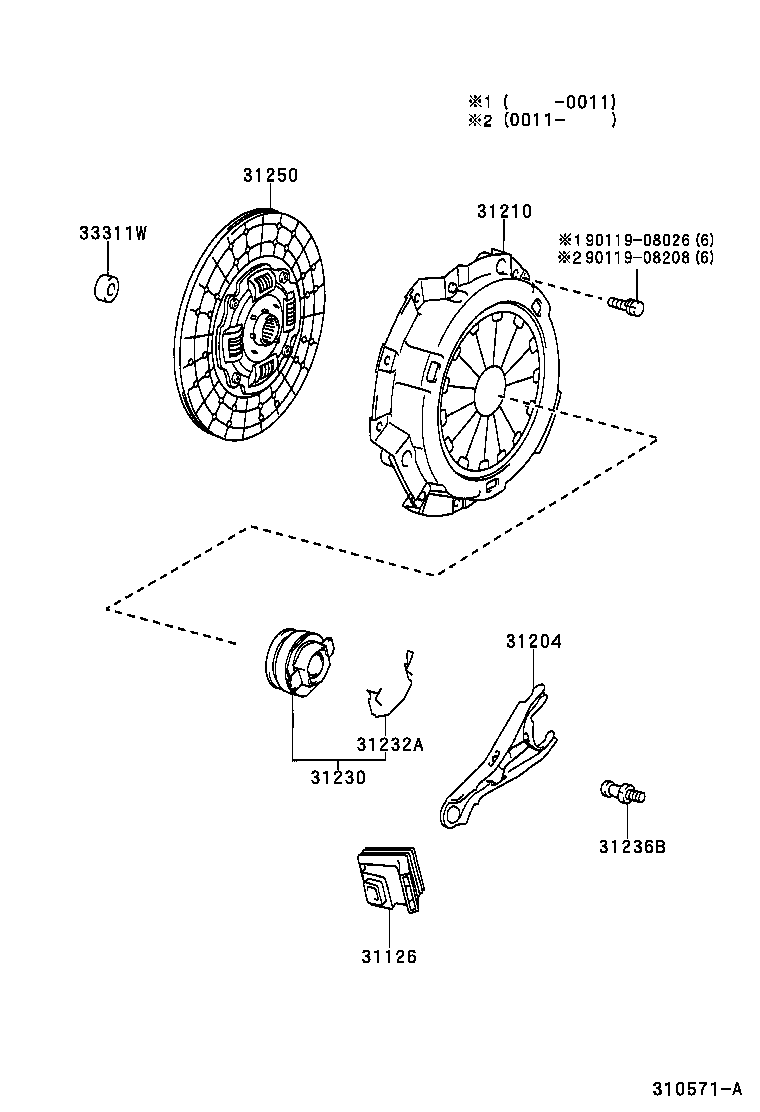

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011908026 9011908208
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36080

BU30#,346,RZU300..(175T,20T)..(DSL,LPG)

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35031

BU30#,346

 1
31210 - COVER ASSY, CLUTCH
31210-36230

BU30#,346

 1
31210-37120

BZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM

 1
31210-36170

BU30#,346

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36150

BU30#,346

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36010

BU30#,346

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

BU30#,346

 1
31250 - DISC ASSY, CLUTCH
31250-37133

BZU300,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM

 1
31250-37080

BU30#,346

 1
31250-37134

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM

 1
31250-37081

BU30#,346

 1
33311W - BEARING (FOR INPUT SHAFT)
90033-63032

XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..MTM..(DSL,DSLL)

 1
90363-12020

BU30#,346;XZU302..CNG;XZU301,341..CNG,LPG

NACHI

 1
90363-12018

XZU301,302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340..5F

 1
Common parts
90119-08026
90119-08208

(7708- )RU2#,3#

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31240A 31250 33311W 9010108350 9010108350 9015960139 9015960139 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
Common parts
90101-08350
90159-60139
90170-08197
91611-60816
94512-00800
