BU301-PSMJS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine 4B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )4B

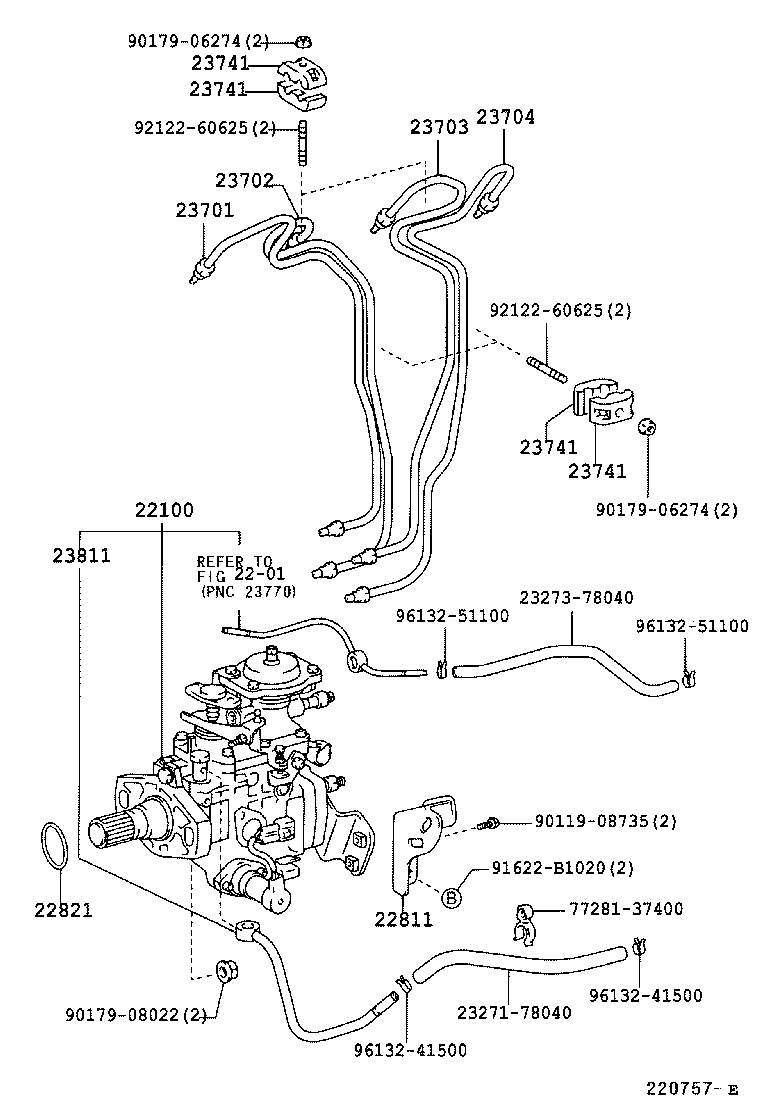

Click highlighted areas on diagram

diagram 2201 22100 22811 22821 2327178040 2327378040 23701 23702 23703 23704 23741 23741 23741 23741 23811 7728137400 9011908735 9017906274 9017906274 9017908022 91622B1020 9212260625 9212260625 9613241500 9613241500 9613251100 9613251100
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5C600

4B..BU30#,346

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-58050

4B..BU30#,346

 1
22821 - GASKET, INJECTION PUMP
90301-49003

4B..BU30#,346

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-58060

4B..BU30#,346

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-58060

4B..BU30#,346

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-58060

4B..BU30#,346

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-58060

4B..BU30#,346

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

4B..BU30#,346

 8
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

4B..BU30#,346

 8
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

4B..BU30#,346

 8
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

4B..BU30#,346

 8
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-58030

4B..BU30#,346

 1
Common parts
23271-78040
23273-78040
77281-37400
90119-08735
90179-06274
90179-08022
91622-B1020
92122-60625
96132-41500
96132-51100
Linked diagrams
2201
