BU301-PSMJS3 (1999)
Toyota Dyna/Toyoace

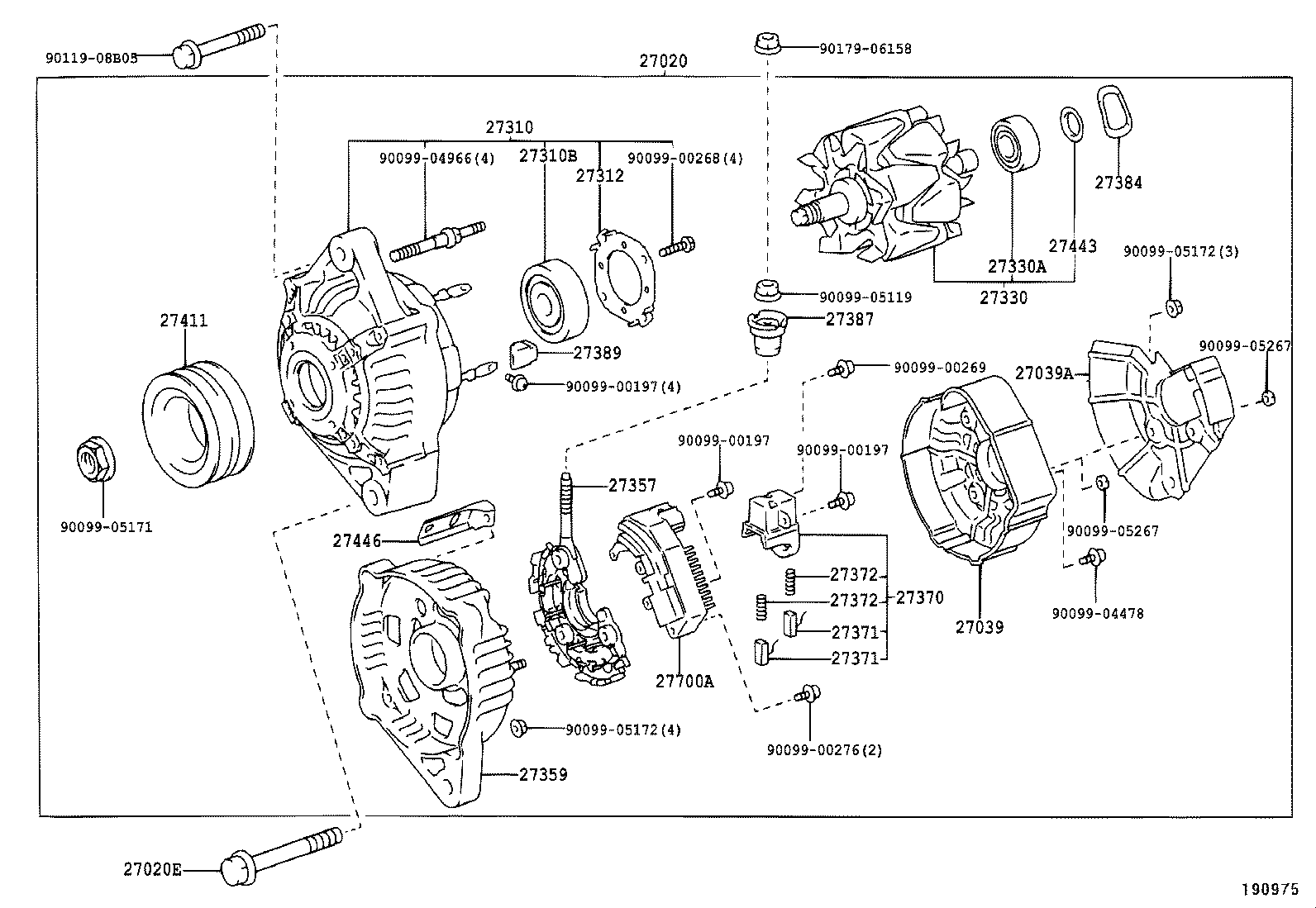

(9905-0406)4B
24V 30A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58370 |
4B..BU30#,346 24V 50A |
1 | ||
| 27060-58360 |
4B..BU30#,346 24V 30A |
1 | ||
| 27060-58400 |
4B..BU30#,346 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27039-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27041-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58400 |
4B..BU30#,346 24V 50A |
1 | ||
| 27310-58390 |
4B..BU30#,346 24V 60A |
1 | ||
| 27310-58410 |
4B..BU30#,346 24V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4B..BU30#,346 24V 30A |
1 | ||
| 90099-10192 |
S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A, 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4B..BU30#,346 24V 30A |
1 | ||
| 27312-42010 |
4B..BU30#,346 24V 50A, 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58040 |
4B..BU30#,346 24V 30A |
1 | ||
| 27330-17240 |
4B..BU30#,346 24V 60A |
1 | ||
| 27330-58050 |
4B..BU30#,346 24V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27357-17080 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27350-58410 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27370-75060 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
4B..BU30#,346 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
4B..BU30#,346 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27372-87501 |
4B..BU30#,346 |
2 | ||
| 27372-63020 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27372-87501 |
4B..BU30#,346 |
2 | ||
| 27372-63020 |
4B,3RZ#..BU30#,346,RZU300,340 |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27384-50030 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27387-70171 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
4 | ||
| 27389-63020 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58330 |
4B..BU30#,346 24V 50A, 60A |
1 | ||
| 27411-58220 |
4B..BU30#,346 24V 30A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27443-63020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 27443-63020 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-50260 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05C..XZU322..T5..5F;S05C..XZU322..DM7,DM8;S05D..XZU306..T4..DSLL;S05D..XZU301..4FC..20T;S05D..XZU301..IV6..4NO;S05D..XZU331..SCB..4FC;S05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05#..XZU312,341..295T,30T;S05C..XZU347..DCB..T4..4FC;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05C..XZU302..T4..(295T,30T)..4NO;S05D..XZU301,351..(DM2,DM3)..5F..IV3;S05D..XZU301,311,346,351..SCB..5F..DSLL;S05D..XZU301,306,321..(DM7,T4)..4FC..DSL..4NO;J05C,S05C,4B..BU30#,346,XZU300,307,330,337,340,342,350,352,362,372,382..03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5 |
1 | ||
| 27446-50260 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
4B..BU30#,346 24V 50A |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90119-08B05 | ||||
| 90179-06158 | ||||

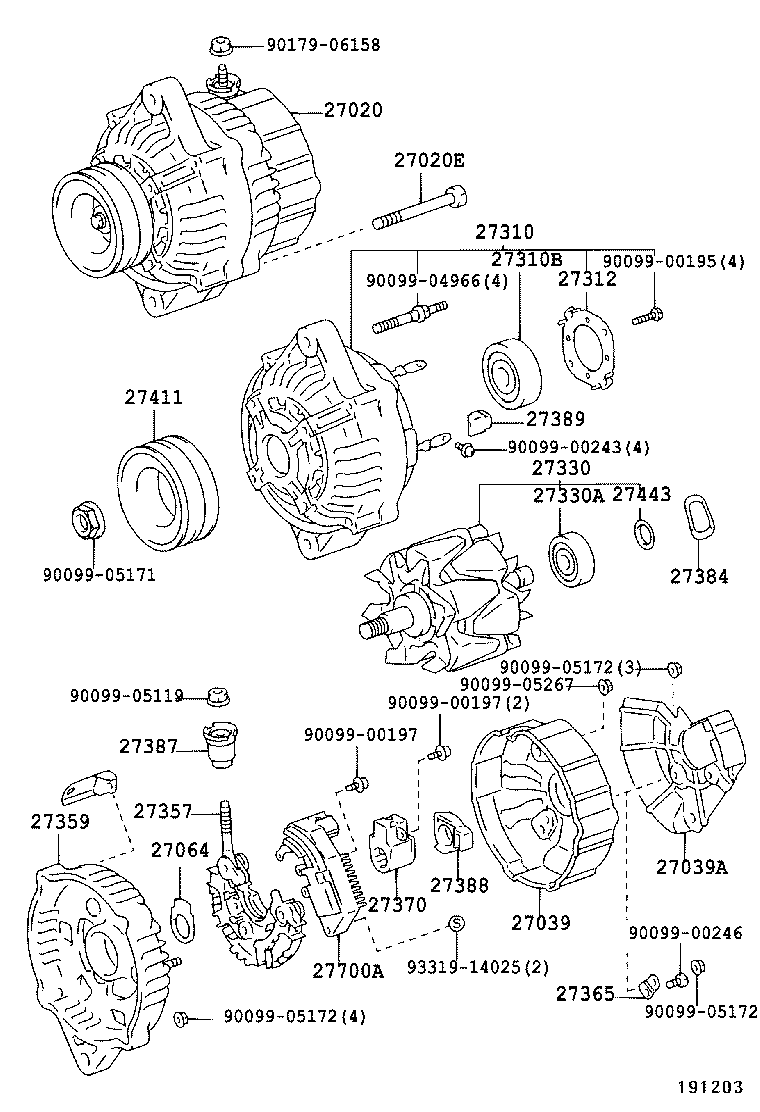

(9905-0406)4B
24V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58370 |
4B..BU30#,346 24V 50A |
1 | ||
| 27060-58360 |
4B..BU30#,346 24V 30A |
1 | ||
| 27060-58400 |
4B..BU30#,346 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27039-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27041-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27064-42010 |
J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 27064-42010 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 |
1 | ||
| 27064-42010 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27064-42010 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 27064-42010 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58400 |
4B..BU30#,346 24V 50A |
1 | ||
| 27310-58390 |
4B..BU30#,346 24V 60A |
1 | ||
| 27310-58410 |
4B..BU30#,346 24V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4B..BU30#,346 24V 30A |
1 | ||
| 90099-10192 |
S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A, 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4B..BU30#,346 24V 30A |
1 | ||
| 27312-42010 |
4B..BU30#,346 24V 50A, 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58040 |
4B..BU30#,346 24V 30A |
1 | ||
| 27330-17240 |
4B..BU30#,346 24V 60A |
1 | ||
| 27330-58050 |
4B..BU30#,346 24V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27357-17080 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27350-58410 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 27365-55080 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27365-55080 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 27365-55080 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 |
1 | ||
| 27365-55080 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27365-55080 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27370-75060 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27384-50030 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27387-70171 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27388-46220 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05C..XZU322..T5..5F;S05C..XZU322..DM7,DM8;S05D..XZU306..T4..DSLL;S05D..XZU301..4FC..20T;S05D..XZU301..IV6..4NO;S05D..XZU331..SCB..4FC;S05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05#..XZU312,341..295T,30T;S05C..XZU347..DCB..T4..4FC;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05C..XZU302..T4..(295T,30T)..4NO;S05D..XZU301,351..(DM2,DM3)..5F..IV3;S05D..XZU301,311,346,351..SCB..5F..DSLL;S05D..XZU301,306,321..(DM7,T4)..4FC..DSL..4NO;J05C,S05C,4B..BU30#,346,XZU300,307,330,337,340,342,350,352,362,372,382..03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
4 | ||
| 27389-63020 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58330 |
4B..BU30#,346 24V 50A, 60A |
1 | ||
| 27411-58220 |
4B..BU30#,346 24V 30A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27443-63020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 27443-63020 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-50260 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05C..XZU322..T5..5F;S05C..XZU322..DM7,DM8;S05D..XZU306..T4..DSLL;S05D..XZU301..4FC..20T;S05D..XZU301..IV6..4NO;S05D..XZU331..SCB..4FC;S05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05#..XZU312,341..295T,30T;S05C..XZU347..DCB..T4..4FC;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05C..XZU302..T4..(295T,30T)..4NO;S05D..XZU301,351..(DM2,DM3)..5F..IV3;S05D..XZU301,311,346,351..SCB..5F..DSLL;S05D..XZU301,306,321..(DM7,T4)..4FC..DSL..4NO;J05C,S05C,4B..BU30#,346,XZU300,307,330,337,340,342,350,352,362,372,382..03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5 |
1 | ||
| 27446-50260 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
4B..BU30#,346 24V 50A |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90119-08B05 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(0005-0406)4B
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58370 |
4B..BU30#,346 24V 50A |
1 | ||
| 27060-58360 |
4B..BU30#,346 24V 30A |
1 | ||
| 27060-58400 |
4B..BU30#,346 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90148-10001 |
15B#,1BZ#,4B..BU30#,346,BZU300,340,XZU301,302,341,342 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27039-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27041-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27064-42010 |
J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 27064-42010 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 |
1 | ||
| 27064-42010 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27064-42010 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 27064-42010 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58400 |
4B..BU30#,346 24V 50A |
1 | ||
| 27310-58390 |
4B..BU30#,346 24V 60A |
1 | ||
| 27310-58410 |
4B..BU30#,346 24V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4B..BU30#,346 24V 30A |
1 | ||
| 90099-10192 |
S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A, 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4B..BU30#,346 24V 30A |
1 | ||
| 27312-42010 |
4B..BU30#,346 24V 50A, 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58040 |
4B..BU30#,346 24V 30A |
1 | ||
| 27330-17240 |
4B..BU30#,346 24V 60A |
1 | ||
| 27330-58050 |
4B..BU30#,346 24V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
S05#,4B..BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352 24V 50A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27357-17080 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58400 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27350-58410 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 27365-55080 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27365-55080 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 27365-55080 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 |
1 | ||
| 27365-55080 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27365-55080 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27370-75060 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27384-50030 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
1 | ||
| 27387-70171 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27388-46220 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05C..XZU322..T5..5F;S05C..XZU322..DM7,DM8;S05D..XZU306..T4..DSLL;S05D..XZU301..4FC..20T;S05D..XZU301..IV6..4NO;S05D..XZU331..SCB..4FC;S05C..XZU312,347..DCB..5F;S05C..XZU302,347..SCB..20T;S05#..XZU312,341..295T,30T;S05C..XZU347..DCB..T4..4FC;S05C..XZU302..(DM3,T3,T5)..30T;S05D..XZU301..SCB..(T3,T5)..4FC;S05C..XZU302..T4..(295T,30T)..4NO;S05D..XZU301,351..(DM2,DM3)..5F..IV3;S05D..XZU301,311,346,351..SCB..5F..DSLL;S05D..XZU301,306,321..(DM7,T4)..4FC..DSL..4NO;J05C,S05C,4B..BU30#,346,XZU300,307,330,337,340,342,350,352,362,372,382..03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 50A, 60A |
4 | ||
| 27389-63020 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 24V 30A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58330 |
4B..BU30#,346 24V 50A, 60A |
1 | ||
| 27411-58220 |
4B..BU30#,346 24V 30A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 27443-63020 |
J05C,S05#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..DSL..(CBU,IV3,IV6,IV7) |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B,3RZ#..BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
J05C,S05#,15B#,4B..BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..CBU,IV3,IV6,IV7 |
1 | ||
| 27443-63020 |
J05C,15B#,4B..BU30#,346,XZU300,301;J05C,S05#,15B#..XZU301,302,306,307,31#,32#,33#,34#,35#,362,372,382..(CNG,DSL,LPG)..(CBU,IV3,IV6,IV7) |
1 | ||
| 27443-63020 |
S05D..XZU301..IV7;S05D..XZU301..295T;S05D..XZU301..IV6..4NO;S05D..XZU306..4FC..DSL;S05D..XZU301..4FC..(CBU,IV6);S05D..XZU301,351..(DM2,DM3)..IV3;S05D..XZU321,331,341..SCB..(4FC,6F);S05D..XZU301,306,311,346,351..SCB..DSLL;S05D..XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;J05C,S05C,4B..BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
4B..BU30#,346 24V 50A |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
