BU301-PSMJS3 (1999)
Toyota Dyna/Toyoace

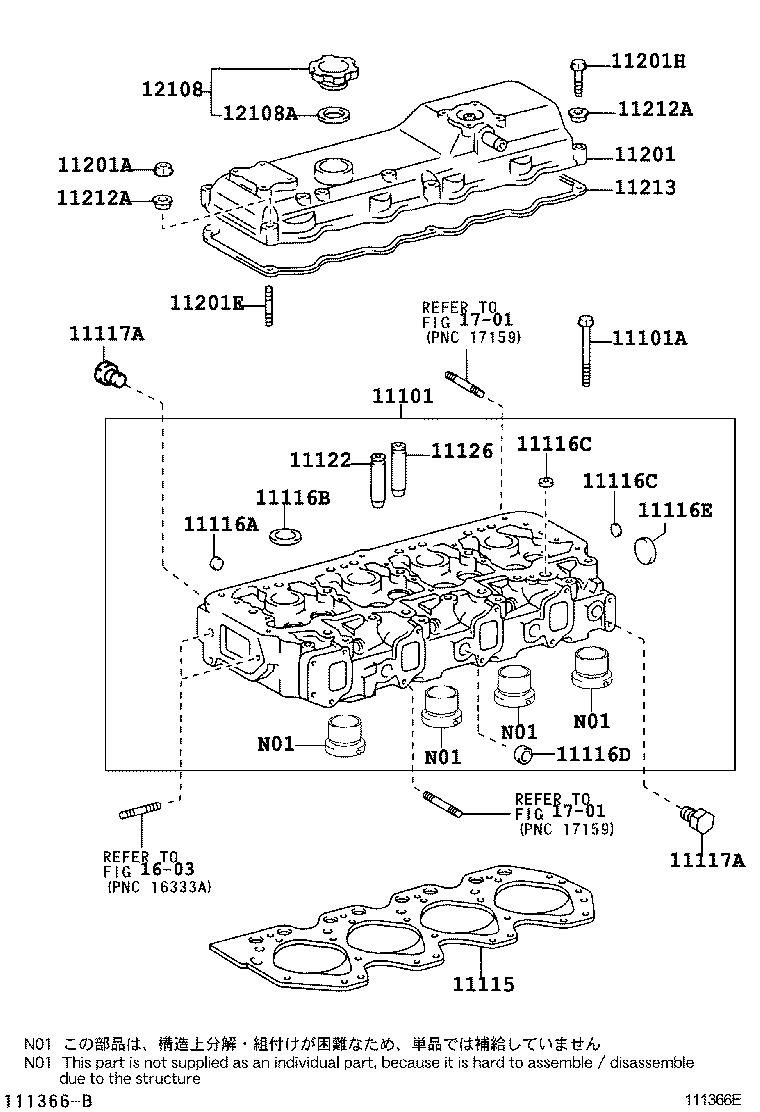

(9905-0302)4B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-58110 |
4B..BU30#,346 |
1 | ||
| 11101-58111 |
4B..BU30#,346 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02084 |
1BZ#,4B..BU30#,346,BZU300,340 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-58180 |
4B..BU30#,346 厚さ=1.60 |
1 | ||
| 11115-58190 |
4B..BU30#,346 厚さ=1.70 |
1 | ||
| 11115-58081 |
4B..BU30#,346 厚さ=1.50 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 90331-12004 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-64000 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-62000 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
5 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-62000 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-62800 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
3 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-64000 |
4B..BU30#,346 |
1 | ||
| 96411-64000 |
4B..BU30#,346 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
4B..BU30#,346 |
2 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
4B..BU30#,346 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-56030 |
4B..BU30#,346 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-56030 |
4B..BU30#,346 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-58060 |
4B..BU30#,346 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-08040 |
1BZ#,4B..BU30#,346,BZU300,340 |
2 | ||
| 11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET) | ||||
| 92112-60850 |
4B..BU30#,346 |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91511-B0850 |
4B..BU30#,346 |
4 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
1BZ#,4B..BU30#,346,BZU300,340 |
6 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
1BZ#,4B..BU30#,346,BZU300,340 |
6 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-58030 |
4B..BU30#,346 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
(0302-0406)4B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-58110 |
4B..BU30#,346 |
1 | ||
| 11101-58111 |
4B..BU30#,346 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02084 |
1BZ#,4B..BU30#,346,BZU300,340 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-58180 |
4B..BU30#,346 厚さ=1.60 |
1 | ||
| 11115-58190 |
4B..BU30#,346 厚さ=1.70 |
1 | ||
| 11115-58081 |
4B..BU30#,346 厚さ=1.50 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 90331-12004 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-64000 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-62000 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
5 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-62000 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-62800 |
4B..BU30#,346..03S,06S,T1,T2,T3,T4,T5 |
3 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 96411-64000 |
4B..BU30#,346 |
1 | ||
| 96411-64000 |
4B..BU30#,346 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
4B..BU30#,346 |
2 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
4B..BU30#,346 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-56030 |
4B..BU30#,346 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-56030 |
4B..BU30#,346 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-58060 |
4B..BU30#,346 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-08040 |
1BZ#,4B..BU30#,346,BZU300,340 |
2 | ||
| 11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET) | ||||
| 92112-60850 |
4B..BU30#,346 |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91511-B0850 |
4B..BU30#,346 |
4 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
1BZ#,4B..BU30#,346,BZU300,340 |
6 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
1BZ#,4B..BU30#,346,BZU300,340 |
6 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-58030 |
4B..BU30#,346 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
