M111A-GQSA (2001)

Toyota Duet

Production Dec 2001 - May 2004
Engine K3VE
Transmission 4ATS ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0112- )V,X

Click highlighted areas on diagram

diagram 76691 76692 76917F
Part # Description Qty Price
76691 - PROTECTOR, QUARTER PANEL, REAR RH
76691-97201

M11#..V,X

 1
76692 - PROTECTOR, QUARTER PANEL, REAR LH
76692-97201

M11#..V,X

 1
76917F - PLUG, HOLE
90048-71259

M101,111..VS

 14
90048-71292

M10#,11#..V,X

 14

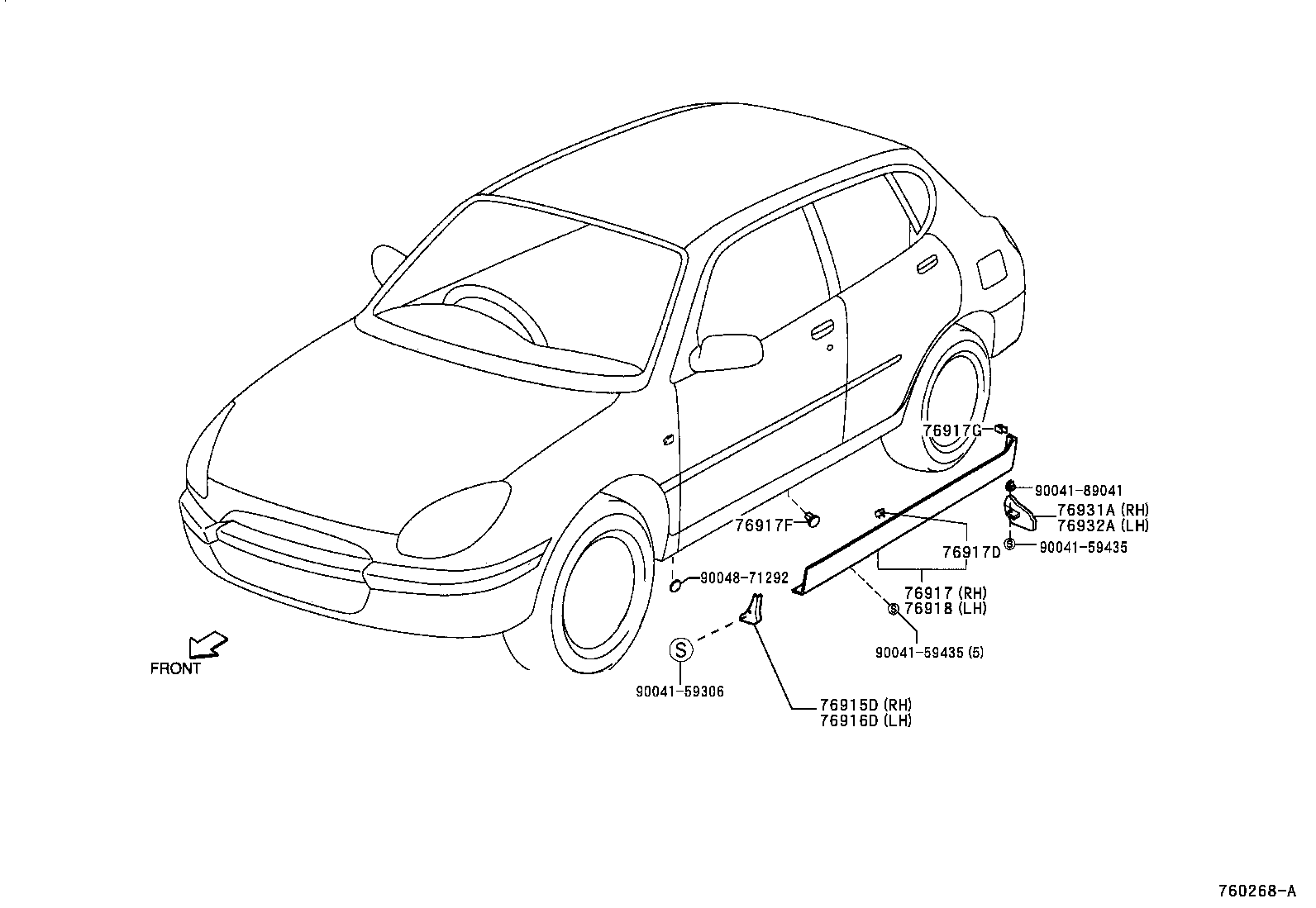

ILLUST NO. 1 OF 2(0112- )VS

Click highlighted areas on diagram

diagram 76915D 76916D 76917 76917D 76917F 76917G 76918 76931A 76932A 9004159306 9004159435 9004159435 9004189041 9004871292
Part # Description Qty Price
76915D - MUDGUARD, SIDE, FRONT RH
53847-9740203

M101,111..VS

COOL SILVER M.,S25

 1
53847-97201

M10#,11#

 1
53847-9740208

M101,111..VS

WHITE,W09

 1
53847-9740213

M101,111..VS

SILVER ME.,S28

 1
53847-9740218

M101,111..VS

PEARL WHITE,W16

 1
53847-9740202

M101,111..VS

RED,R29

 1
53847-9740204

M101,111..VS

ROYAL BLUE M.M.,B37

 1
76916D - MUDGUARD, SIDE, FRONT LH
53848-9740204

M101,111..VS

ROYAL BLUE M.M.,B37

 1
53848-9740202

M101,111..VS

RED,R29

 1
53848-97201

M10#,11#

 1
53848-9740203

M101,111..VS

COOL SILVER M.,S25

 1
53848-9740213

M101,111..VS

SILVER ME.,S28

 1
53848-9740208

M101,111..VS

WHITE,W09

 1
53848-9740218

M101,111..VS

PEARL WHITE,W16

 1
76917 - MUDGUARD, SIDE, REAR RH
61795-9740318

M101,111..VS

PEARL WHITE,W16

 1
61795-97201

M10#,11#

 1
61795-9740302

M101,111..VS

RED,R29

 1
61795-9740304

M101,111..VS

ROYAL BLUE M.M.,B37

 1
61795-9740308

M101,111..VS

WHITE,W09

 1
61795-9740303

M101,111..VS

COOL SILVER M.,S25

 1
61795-9740313

M101,111..VS

SILVER ME.,S28

 1
76917D - CLIP
90044-68228

M101,111..VS

 16
90044-68299

M10#,11#

 18
76917F - PLUG, HOLE
90048-71259

M101,111..VS

 14
90048-71292

M10#,11#..V,X

 14
76917G - CLAMP
90044-64091

M10#,11#

 2
90044-64091

M101,111..VS

 2
76918 - MUDGUARD, SIDE, REAR LH
61796-97201

M10#,11#

 1
61796-9740318

M101,111..VS

PEARL WHITE,W16

 1
61796-9740313

M101,111..VS

SILVER ME.,S28

 1
61796-9740304

M101,111..VS

ROYAL BLUE M.M.,B37

 1
61796-9740302

M101,111..VS

RED,R29

 1
61796-9740303

M101,111..VS

COOL SILVER M.,S25

 1
61796-9740308

M101,111..VS

WHITE,W09

 1
Common parts
90041-59306
90041-59435
90041-89041
90048-71292
