M111A-GQSA (2001)

Toyota Duet

Production Dec 2001 - May 2004
Engine K3VE
Transmission 4ATS ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )

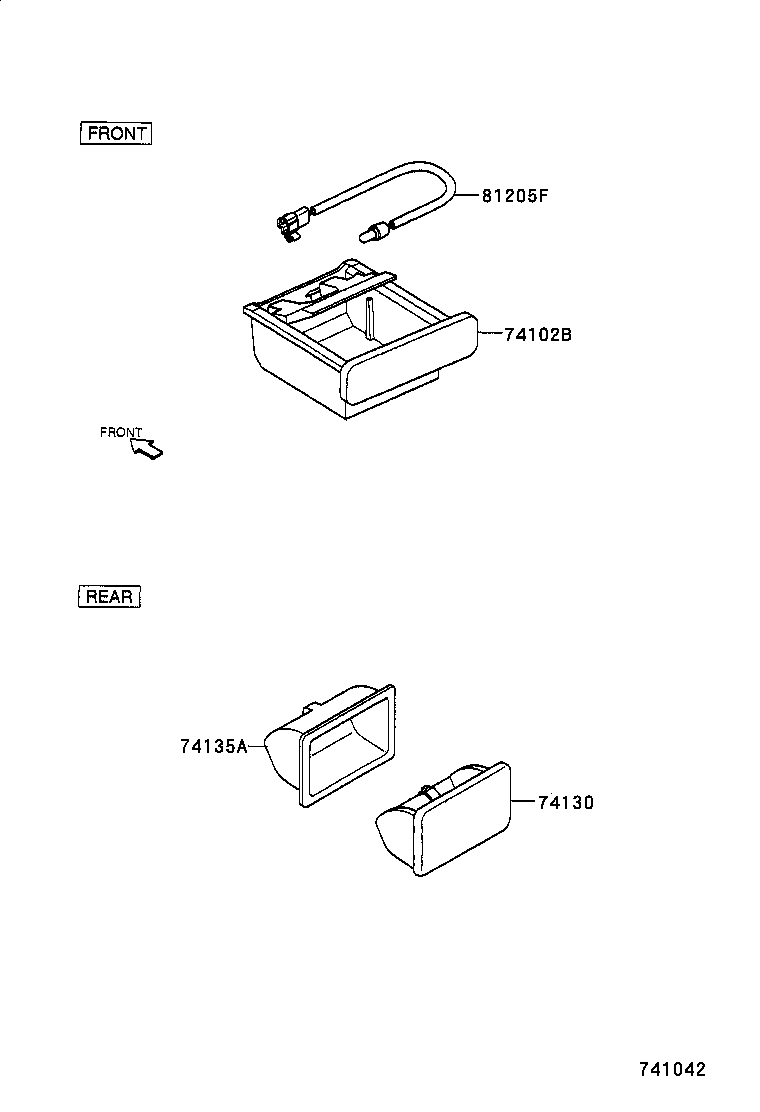

Click highlighted areas on diagram

diagram 74102B 74130 74135A 81205F
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-97403

M10#,11#..V

 1
74102-97401

M101,111..VS

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74108-87102

M10#,11#

 1
81205F - LAMP SUB-ASSY, ASH RECEPTACLE
81205-97401

M100,11#..V;M101..5F..V;M101..4ATS..(V,X)

 1
81205-97201

M10#,11#

 1
