M111A-GQSA (2001)

Toyota Duet

Production Dec 2001 - May 2004
Engine K3VE
Transmission 4ATS ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )VS,X

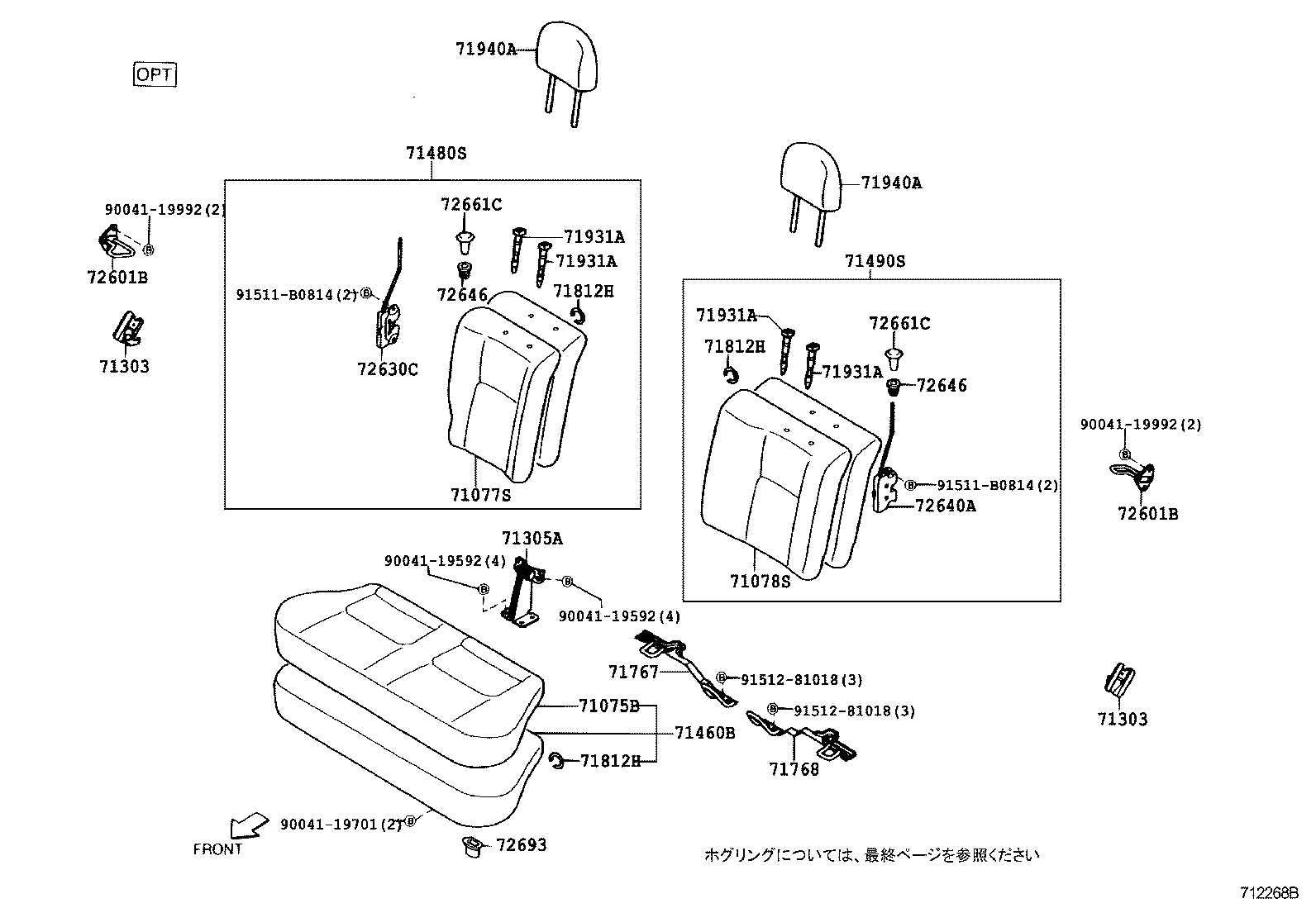

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ)

diagram 71075B 71077S 71078S 71303 71303 71305A 71460B 71480S 71490S 71767 71768 71812H 71812H 71812H 71931A 71931A 71931A 71931A 71940A 71940A 72601B 72601B 72630C 72640A 72646 72646 72661C 72661C 72693 9004119592 9004119592 9004119701 9004119992 9004119992 91511B0814 91511B0814 9151281018 9151281018
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9740301

M101,111..VS

BLACK,TRIMS6

 1
71075-9741707

M10#,11#..V

GREEN,TRIMS8

 1
71075-9741807

M100,110..V;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GREEN,TRIMS8

 1
71075-9741703

M10#,11#..V

GRAY,TRIMS6

 1
71075-9741803

M100,110..V;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GRAY,TRIMS6

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71083-9740701

M101,111..VS

BLACK,TRIMS6

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-9740601

M101,111..VS

BLACK,TRIMS6

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-97201

M101,111..4AT;M10#,11#..VS,X

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9745503

M10#,11#..V

GRAY,TRIMS6

 1
71460-9745507

M10#,11#..V

GREEN,TRIMS8

 1
71460-9745603

M100,110..V;M111..5F..VS;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GRAY,TRIMS6

 1
71460-9744801

M101,111..VS

BLACK,TRIMS6

 1
71460-9745607

M100,110..V;M111..5F..VS;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GREEN,TRIMS8

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71580-9742801

M101,111..VS

BLACK,TRIMS6

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-9742801

M101,111..VS

BLACK,TRIMS6

 1
71767 - BRACKET, REAR SIDE SEAT BACK SET, REAR RH
71767-97401

M10#,11#

 1
71768 - BRACKET, REAR SIDE SEAT BACK SET, REAR LH
71768-97401

M10#,11#

 1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71931A - SUPPORT, REAR SEAT HEADREST
71930-9720203

M10#,11#..VS,X

ﾛｯｸ付,DARK GRAY,TRIMS6

 2
71931-9720203

M10#,11#..VS,X

ﾛｯｸ無,DARK GRAY,TRIMS6

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-9720203

M10#,11#..VS,X

ﾛｯｸ付,DARK GRAY,TRIMS6

 2
71931-9720203

M10#,11#..VS,X

ﾛｯｸ無,DARK GRAY,TRIMS6

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-9720203

M10#,11#..VS,X

ﾛｯｸ付,DARK GRAY,TRIMS6

 2
71931-9720203

M10#,11#..VS,X

ﾛｯｸ無,DARK GRAY,TRIMS6

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-9720203

M10#,11#..VS,X

ﾛｯｸ付,DARK GRAY,TRIMS6

 2
71931-9720203

M10#,11#..VS,X

ﾛｯｸ無,DARK GRAY,TRIMS6

 2
71940A - HEADREST ASSY, REAR SEAT
71940-9721501

M101,111..VS

BLACK,TRIMS6

 2
71940A - HEADREST ASSY, REAR SEAT
71940-9721501

M101,111..VS

BLACK,TRIMS6

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-97201

M10#,11#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-97201

M10#,11#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-97201

M10#,11#

 2
Common parts
90041-19592
90041-19701
90041-19992
91511-B0814
91512-81018

(0112- )VS,X

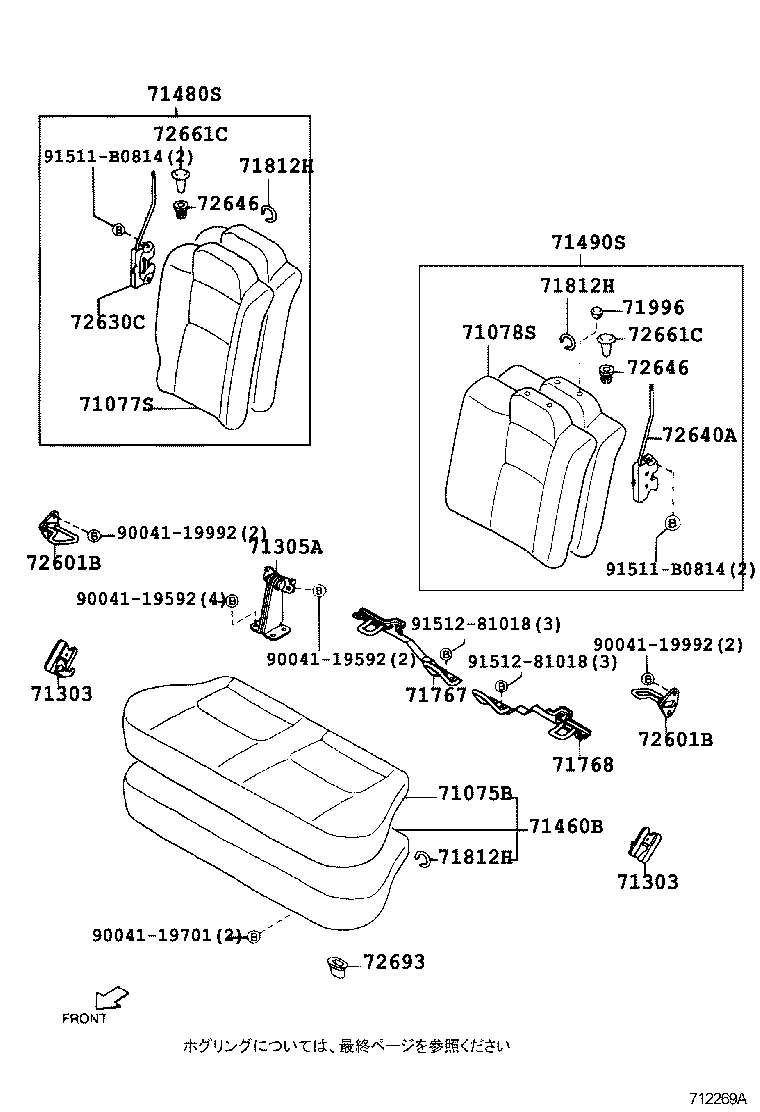

Click highlighted areas on diagram

ｾﾊﾟﾚ-ﾄ ﾀｲﾌﾟ

diagram 71075B 71077S 71078S 71303 71303 71305A 71460B 71480S 71490S 71767 71768 71812H 71812H 71812H 71996 72601B 72601B 72630C 72640A 72646 72646 72661C 72661C 72693 9004119592 9004119592 9004119701 9004119992 9004119992 91511B0814 91511B0814 9151281018 9151281018
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9740301

M101,111..VS

BLACK,TRIMS6

 1
71075-9741707

M10#,11#..V

GREEN,TRIMS8

 1
71075-9741807

M100,110..V;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GREEN,TRIMS8

 1
71075-9741703

M10#,11#..V

GRAY,TRIMS6

 1
71075-9741803

M100,110..V;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GRAY,TRIMS6

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71083-9740701

M101,111..VS

BLACK,TRIMS6

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-9740601

M101,111..VS

BLACK,TRIMS6

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-97201

M10#,11#

 2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-97201

M101,111..4AT;M10#,11#..VS,X

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9745503

M10#,11#..V

GRAY,TRIMS6

 1
71460-9745507

M10#,11#..V

GREEN,TRIMS8

 1
71460-9745603

M100,110..V;M111..5F..VS;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GRAY,TRIMS6

 1
71460-9744801

M101,111..VS

BLACK,TRIMS6

 1
71460-9745607

M100,110..V;M111..5F..VS;M111..4ATS..V

ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ,GREEN,TRIMS8

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71580-9742801

M101,111..VS

BLACK,TRIMS6

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-9742801

M101,111..VS

BLACK,TRIMS6

 1
71767 - BRACKET, REAR SIDE SEAT BACK SET, REAR RH
71767-97401

M10#,11#

 1
71768 - BRACKET, REAR SIDE SEAT BACK SET, REAR LH
71768-97401

M10#,11#

 1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71812H - RING, HOG, SMALL (FOR REAR SEAT)
71812-87201

M10#,11#

 33
71996 - GROMMET, REAR SEAT HEADREST
71991-97401

M10#,11#..VS,X

 4
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72602-97202

M10#,11#

左側

 1
72601-97202

M10#,11#

右側

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-97201

M10#,11#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-97201

M10#,11#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-8770133

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-8770143

M10#,11#

DARK GRAY,TRIMS6

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-97201

M10#,11#

 2
Common parts
90041-19592
90041-19701
90041-19992
91511-B0814
91512-81018
