M111A-GQSA (2001)
Toyota Duet

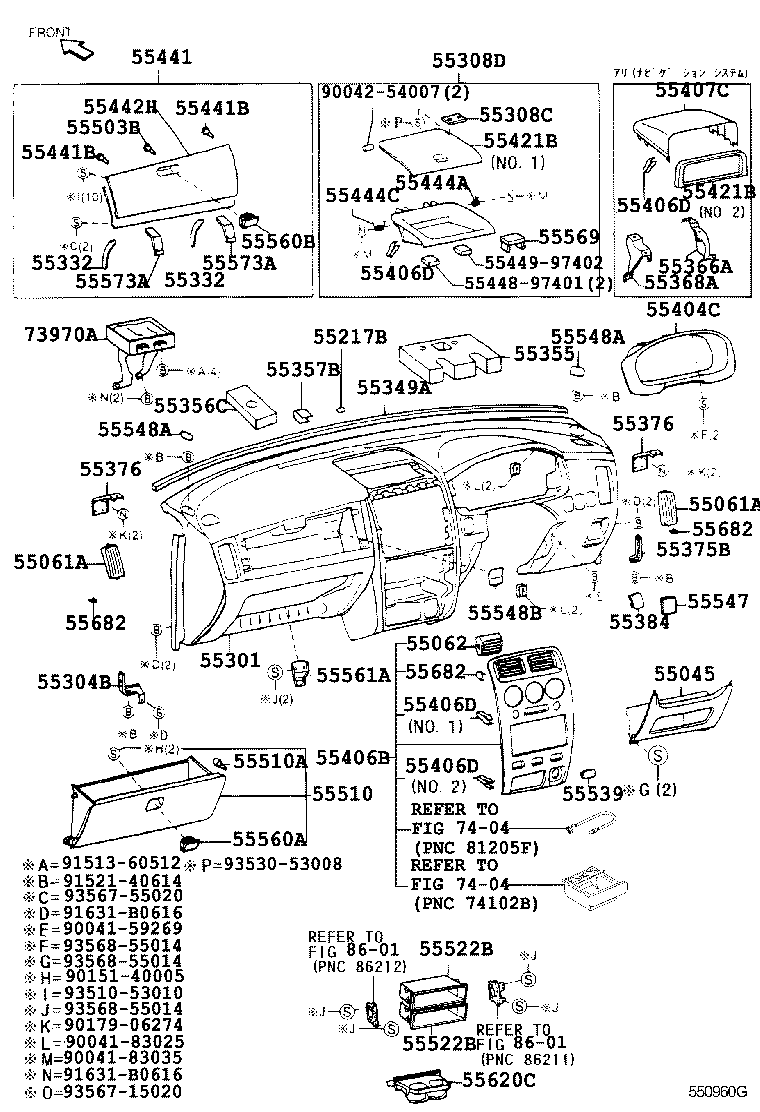

ILLUST NO. 1 OF 2(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-9720103 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 55045-9740313 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55045-9740303 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55061A - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55063-9740203 |
M10#,11# GRAY,TRIMS6,右側 |
1 | ||
| 55063-9740213 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,右側 |
1 | ||
| 55061-9740103 |
M10#,11# GRAY,TRIMS6,左側 |
1 | ||
| 55061-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,左側 |
1 | ||
| 55061A - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55063-9740203 |
M10#,11# GRAY,TRIMS6,右側 |
1 | ||
| 55063-9740213 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,右側 |
1 | ||
| 55061-9740103 |
M10#,11# GRAY,TRIMS6,左側 |
1 | ||
| 55061-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,左側 |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-8720303 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 55062-97401 |
M10#,11# |
2 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-97201 |
M10#,11# |
3 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-9720103 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 55301-9740103 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55301-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55304B - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-97401 |
M10#,11# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55596-97401 |
M10#,11# |
1 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-9740203 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55308-9740213 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55332 - STAY, INSTRUMENT PANEL | ||||
| 55332-9740513 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
2 | ||
| 55332-9740503 |
M10#,11# GRAY,TRIMS6 |
2 | ||
| 55332 - STAY, INSTRUMENT PANEL | ||||
| 55332-9740513 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
2 | ||
| 55332-9740503 |
M10#,11# GRAY,TRIMS6 |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-97403 |
M10#,11# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-97404 |
M101,111 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-97404 |
M101,111 |
2 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-97201 |
M10#,11# |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-97401 |
M10#,11# |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-97401 |
M10#,11# |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-97203 |
M10#,11# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-97201 |
M10#,11# |
2 | ||
| 55376-97401 |
M10#,11# |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-97201 |
M10#,11# |
2 | ||
| 55376-97401 |
M10#,11# |
2 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-9720101 |
M10#,11# BLACK,TRIMS6,S8 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-97202 |
M101,111;M100,110..X ﾓｸﾒ |
1 | ||
| 55404-9741003 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55404-9741013 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-97203 |
M101,111;M100,110..X ﾓｸﾒ |
1 | ||
| 55406-97412 |
M101,111..VS |
1 | ||
| 55406-97420 |
M10#,11#..V |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90044-68306 |
M10#,11# NO.1 |
10 | ||
| 90044-68091 |
M10#,11# |
6 | ||
| 90044-68324 |
M10#,11# NO.2 |
2 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90044-68306 |
M10#,11# NO.1 |
10 | ||
| 90044-68091 |
M10#,11# |
6 | ||
| 90044-68324 |
M10#,11# NO.2 |
2 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90044-68306 |
M10#,11# NO.1 |
10 | ||
| 90044-68091 |
M10#,11# |
6 | ||
| 90044-68324 |
M10#,11# NO.2 |
2 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90044-68306 |
M10#,11# NO.1 |
10 | ||
| 90044-68091 |
M10#,11# |
6 | ||
| 90044-68324 |
M10#,11# NO.2 |
2 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-9740103 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55407-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-9740103 |
M10#,11# GRAY,TRIMS6,NO.2 |
1 | ||
| 55442-9740103 |
M10#,11# GRAY,TRIMS6,NO.1 |
1 | ||
| 55442-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,NO.1 |
1 | ||
| 55421-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,NO.2 |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-9740103 |
M10#,11# GRAY,TRIMS6,NO.2 |
1 | ||
| 55442-9740103 |
M10#,11# GRAY,TRIMS6,NO.1 |
1 | ||
| 55442-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,NO.1 |
1 | ||
| 55421-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,NO.2 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55504-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55504-9740103 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 90045-41146 |
M10#,11# |
2 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 90045-41146 |
M10#,11# |
2 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55551-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55551-9740103 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-97401 |
M10#,11# |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-97401 |
M10#,11# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90045-41157 |
M10#,11# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-9720103 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 55501-9740313 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55501-9740303 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90045-40163 |
M10#,11# |
2 | ||
| 90045-40220 |
M10#,11# |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55359-97501 |
M100,110..V;M101,111..VS |
2 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55359-97501 |
M100,110..V;M101,111..VS |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48010 |
M10#,11# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55545-9720103 |
M10#,11# DARK GRAY,TRIMS6,右側 |
1 | ||
| 55546-9740103 |
M10#,11# GRAY,TRIMS6,左側 |
1 | ||
| 55545-9740213 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,右側 |
1 | ||
| 55546-9720103 |
M10#,11# DARK GRAY,TRIMS6,左側 |
1 | ||
| 55545-9740203 |
M10#,11# GRAY,TRIMS6,右側 |
1 | ||
| 55546-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,左側 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55545-9720103 |
M10#,11# DARK GRAY,TRIMS6,右側 |
1 | ||
| 55546-9740103 |
M10#,11# GRAY,TRIMS6,左側 |
1 | ||
| 55545-9740213 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,右側 |
1 | ||
| 55546-9720103 |
M10#,11# DARK GRAY,TRIMS6,左側 |
1 | ||
| 55545-9740203 |
M10#,11# GRAY,TRIMS6,右側 |
1 | ||
| 55546-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8,左側 |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-9740103 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55548-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-8770223 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 55506-4401003 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55506-4401013 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55560B - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-8770223 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 55506-9740103 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55506-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-97201 |
M10#,11# NO.1 |
1 | ||
| 55561-97402 |
M10#,11# |
1 | ||
| 55561-97202 |
M10#,11# NO.2 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55564-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
1 | ||
| 55564-9740103 |
M10#,11# GRAY,TRIMS6 |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55571-87101 |
M10#,11# |
1 | ||
| 55573-9740103 |
M10#,11# GRAY,TRIMS6 |
2 | ||
| 55573-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55571-87101 |
M10#,11# |
1 | ||
| 55573-9740103 |
M10#,11# GRAY,TRIMS6 |
2 | ||
| 55573-9740113 |
M10#,11# LIGHT GREENISH GRAY,TRIMS8 |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-12140 |
M10#,11# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-12140 |
M10#,11# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-12140 |
M10#,11# |
2 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-97405 |
M10#,11# |
1 | ||
| Common parts | ||||
| 55448-97401 | ||||
| 55449-97402 | ||||
| 90041-59269 | ||||
| 90041-83025 | ||||
| 90041-83035 | ||||
| 90042-54007 | ||||
| 90151-40005 | ||||
| 90179-06274 | ||||
| 91513-60512 | ||||
| 91521-40614 | ||||
| 91631-B0616 | ||||
| 93510-53010 | ||||
| 93530-53008 | ||||
| 93567-15020 | ||||
| 93567-55020 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8601 | ||||

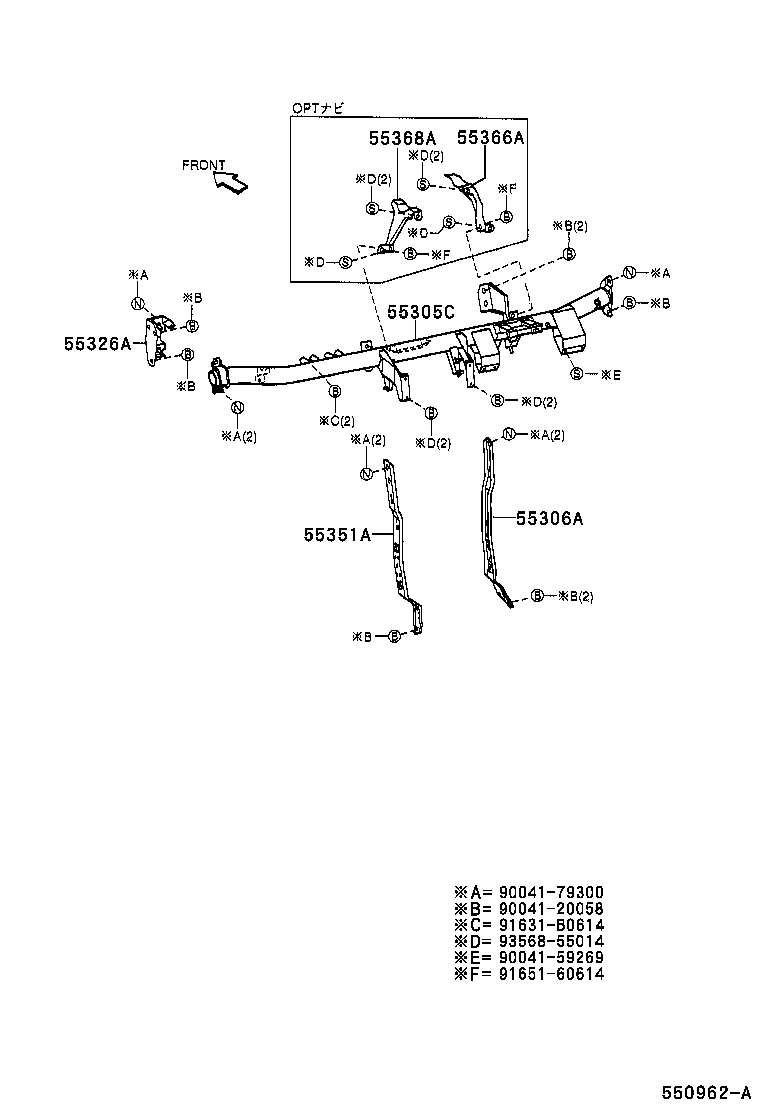

ILLUST NO. 2 OF 2(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-97402 |
M10#,11# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55309-97201 |
M10#,11# |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 61187-97202 |
M10#,11# |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-97201 |
M10#,11# |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-97401 |
M10#,11# |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-97401 |
M10#,11# |
1 | ||
| Common parts | ||||
| 90041-20058 | ||||
| 90041-59269 | ||||
| 90041-79300 | ||||
| 91631-B0614 | ||||
| 91651-60614 | ||||
| 93568-55014 | ||||
