M111A-GQSA (2001)

Toyota Duet

Production Dec 2001 - May 2004
Engine K3VE
Transmission 4ATS ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )V,X

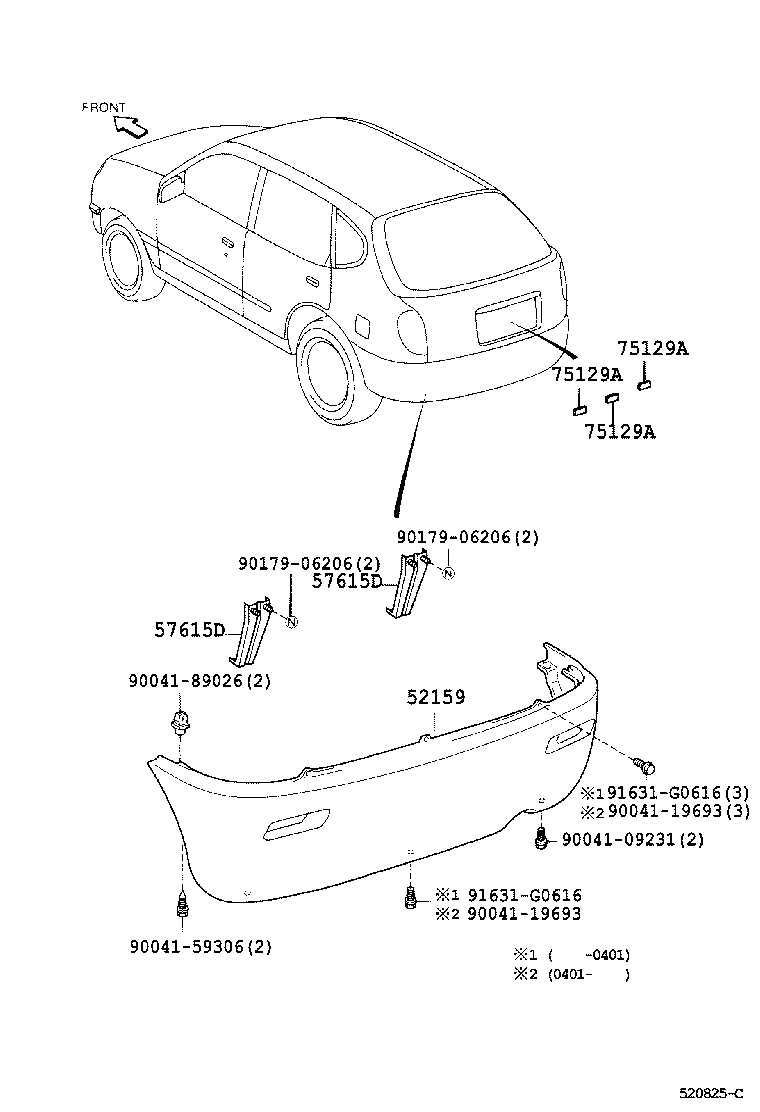

Click highlighted areas on diagram

diagram 52159 52751A 52752 52753 57615D 57615D 75129A 75129A 75129A 9004109231 9004119693 9004119693 9004159306 9004189026 9004468349 9017906206 9017906206 91631G0616 91631G0616
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-9741504

M10#,11#..V

ROYAL BLUE M.M.,B37

 1
52159-9740204

M101,111..VS

ROYAL BLUE M.M.,B37

 1
52159-9740212

M101,111..VS

RED,R29

 1
52159-9741513

M10#,11#..V

WARM SILVER M.M.,S26

 1
52159-9740218

M101,111..VS

PEARL WHITE,W16

 1
52159-9740208

M101,111..VS

WHITE,W09

 1
52159-9740213

M101,111..VS

COOL SILVER M.,S25

 1
52159-9741518

M10#,11#..V

PEARL WHITE,W16

 1
52159-9741505

M10#,11#..V

LIGHT ROSE ME.,T16

 1
52159-9741514

M10#,11#..V

LIGHT BLUE M.M.,B52

 1
52159-9740223

M101,111..VS

SILVER ME.,S28

 1
52159-9741515

M10#,11#..V

CHAMPAGNE ME. OP.,T17

 1
52159-9741523

M10#,11#..V

SIVER ME.,S28

 1
52159-9741508

M10#,11#..V

WHITE,W09

 1
52159-9741502

M10#,11#..V

RED,R29

 1
57615D - BRACKET, REAR BUMPER MOUNTING
57615-97201

M10#,11#

 2
57615D - BRACKET, REAR BUMPER MOUNTING
57615-97201

M10#,11#

 2
75129A - CUSHION, REAR LICENCE PLATE
75129-87702

M10#,11#

 3
75129A - CUSHION, REAR LICENCE PLATE
75129-87702

M10#,11#

 3
75129A - CUSHION, REAR LICENCE PLATE
75129-87702

M10#,11#

 3
Common parts
90041-09231
90041-19693
90041-59306
90041-89026
90044-68349
90179-06206
91631-G0616

(0112- )VS

Click highlighted areas on diagram

diagram 52159 57615D 57615D 75129A 75129A 75129A 9004109231 9004119693 9004119693 9004159306 9004189026 9017906206 9017906206 91631G0616 91631G0616
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-9741504

M10#,11#..V

ROYAL BLUE M.M.,B37

 1
52159-9740204

M101,111..VS

ROYAL BLUE M.M.,B37

 1
52159-9740212

M101,111..VS

RED,R29

 1
52159-9741513

M10#,11#..V

WARM SILVER M.M.,S26

 1
52159-9740218

M101,111..VS

PEARL WHITE,W16

 1
52159-9740208

M101,111..VS

WHITE,W09

 1
52159-9740213

M101,111..VS

COOL SILVER M.,S25

 1
52159-9741518

M10#,11#..V

PEARL WHITE,W16

 1
52159-9741505

M10#,11#..V

LIGHT ROSE ME.,T16

 1
52159-9741514

M10#,11#..V

LIGHT BLUE M.M.,B52

 1
52159-9740223

M101,111..VS

SILVER ME.,S28

 1
52159-9741515

M10#,11#..V

CHAMPAGNE ME. OP.,T17

 1
52159-9741523

M10#,11#..V

SIVER ME.,S28

 1
52159-9741508

M10#,11#..V

WHITE,W09

 1
52159-9741502

M10#,11#..V

RED,R29

 1
57615D - BRACKET, REAR BUMPER MOUNTING
57615-97201

M10#,11#

 2
57615D - BRACKET, REAR BUMPER MOUNTING
57615-97201

M10#,11#

 2
75129A - CUSHION, REAR LICENCE PLATE
75129-87702

M10#,11#

 3
75129A - CUSHION, REAR LICENCE PLATE
75129-87702

M10#,11#

 3
75129A - CUSHION, REAR LICENCE PLATE
75129-87702

M10#,11#

 3
Common parts
90041-09231
90041-19693
90041-59306
90041-89026
90179-06206
91631-G0616
