M111A-GQSA (2001)

Toyota Duet

Production Dec 2001 - May 2004
Engine K3VE
Transmission 4ATS ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )K3VE

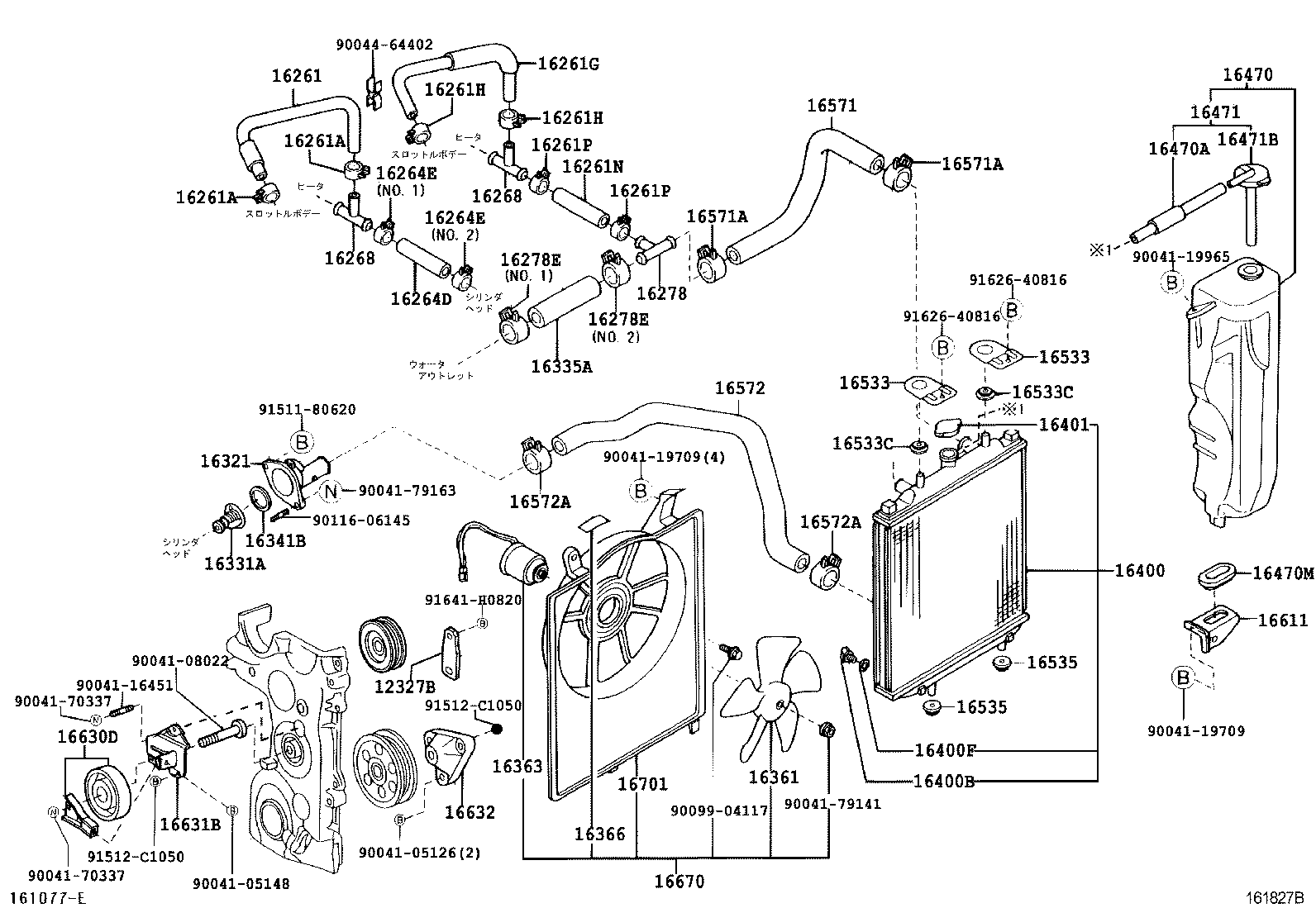

Click highlighted areas on diagram

diagram 12327B 16261 16261A 16261A 16261G 16261H 16261H 16261N 16261P 16261P 16264D 16264E 16264E 16268 16268 16278 16278E 16278E 16321 16331A 16335A 16341B 16361 16363 16366 16400 16400B 16400F 16401 16470 16470A 16470M 16471 16471B 16533 16533 16533C 16533C 16535 16535 16571 16571A 16571A 16572 16572A 16572A 16611 16630D 16631B 16632 16670 16701 9004105126 9004105148 9004108022 9004116451 9004119709 9004119709 9004119965 9004170337 9004170337 9004179141 9004179163 9004464402 9009904117 9011606145 9151180620 91512C1050 91512C1050 9162640816 9162640816 91641H0820
Part # Description Qty Price
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67301

K3VE,EJ#..M10#,11#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-67301

K3VE,EJ#..M10#,11#

 2
16278 - PIPE, WATER BY-PASS, NO.2
90044-13100

K3VE..M101,111

 1
16361 - FAN
16690-97201

K3VE,EJ#..M10#,11#

 1
16363 - MOTOR, COOLING FAN
16680-97201

K3VE,EJ#..M10#,11#

 1
16366 - LABEL, RADIATOR CAUTION
16366-97201

K3VE,EJ#..M10#,11#

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-87101

K3VE..M101,111;EJ#..M100,110..5F

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-97202

K3VE..M101,111;EJ#..M100,110..5F

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-97201

K3VE,EJ#..M10#,11#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472-97201

K3VE,EJ#..M10#,11#

 1
16470M - GROMMET
16464-97201

K3VE,EJ#..M10#,11#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16503-97201

K3VE,EJ#..M10#,11#

 1
16471B - CAP, RESERVE TANK
16471-97201

K3VE,EJ#..M10#,11#

 1
16535 - SUPPORT, RADIATOR, LOWER
16535-97201

K3VE,EJ#..M10#,11#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-97201

K3VE,EJ#..M10#,11#

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-97201

K3VE,EJ#..M10#,11#

 1
16630D - PULLEY ASSY, IDLER
16630-97404

K3VE..M101,111

 1
16630-97403

K3VE..M101,111

 1
16631B - BRACKET, IDLER PULLEY
16631-97403

K3VE..M101,111

 1
Common parts
90041-05126
90041-05148
90041-08022
90041-16451
90041-19709
90041-19965
90041-70337
90041-79141
90041-79163
90044-64402
90099-04117
90116-06145
91511-80620
91512-C1050
91626-40816
91641-H0820
