M111A-GPSA (2000)

Toyota Duet

Production May 2000 - Dec 2001
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-0112)

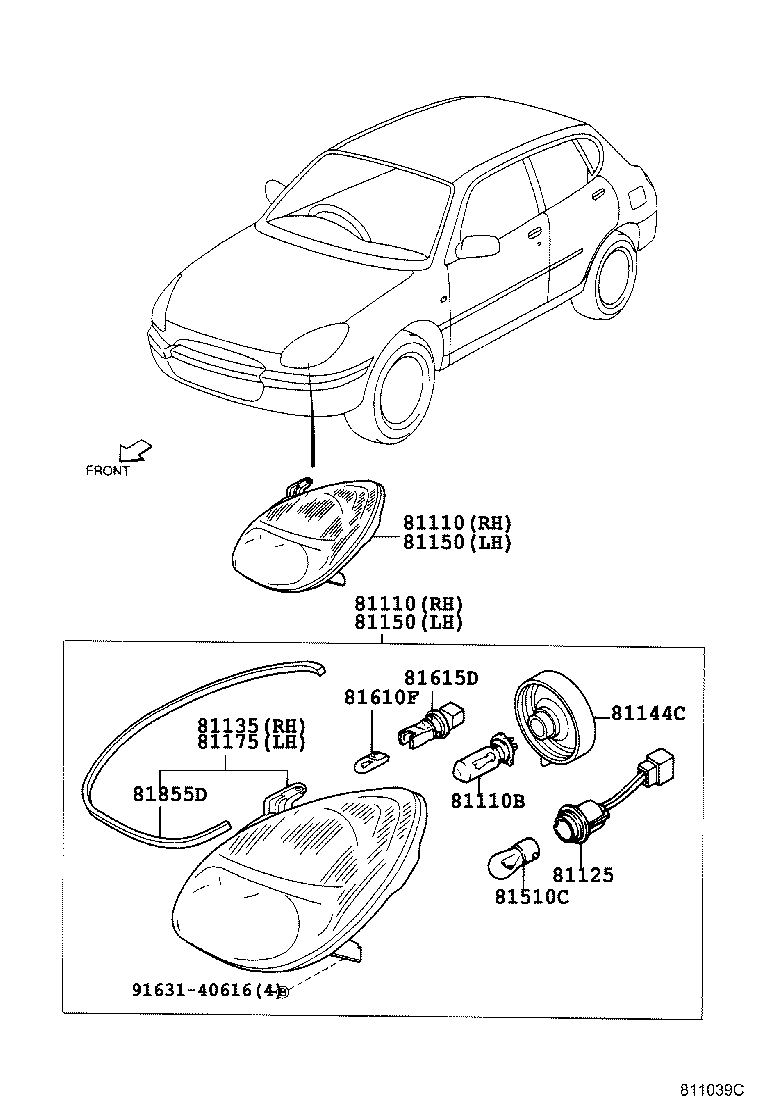

Click highlighted areas on diagram

diagram 81110 81110 81110B 81125 81135 81144C 81150 81150 81175 81510C 81610F 81615D 81855D 9163140616
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-97241

M10#,11#

 1
81110 - HEADLAMP ASSY, RH
81110-97241

M10#,11#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51088

M10#,11#

12V 60/55W

 2
81125 - CORD, HEADLAMP
81125-97202

M10#,11#

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-97213

M10#,11#

 1
81144C - COVER, HEADLAMP SOCKET
81139-87401

M10#,11#

 2
81150 - HEADLAMP ASSY, LH
81150-97241

M10#,11#

 1
81150 - HEADLAMP ASSY, LH
81150-97241

M10#,11#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-97213

M10#,11#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51124

M10#,11#

12V 21W

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11013

M10#,11#

12V 5W T10

 2
81615D - SOCKET, CLEARANCE LAMP
81125-87401

M10#,11#

 2
81855D - PROTECTOR, HEADLAMP
81855-97201

M10#,11#

右側

 1
81855-97202

M10#,11#

左側

 1
Common parts
91631-40616
