M111A-GPSA (2000)

Toyota Duet

Production May 2000 - Dec 2001
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )M101,111..ATM

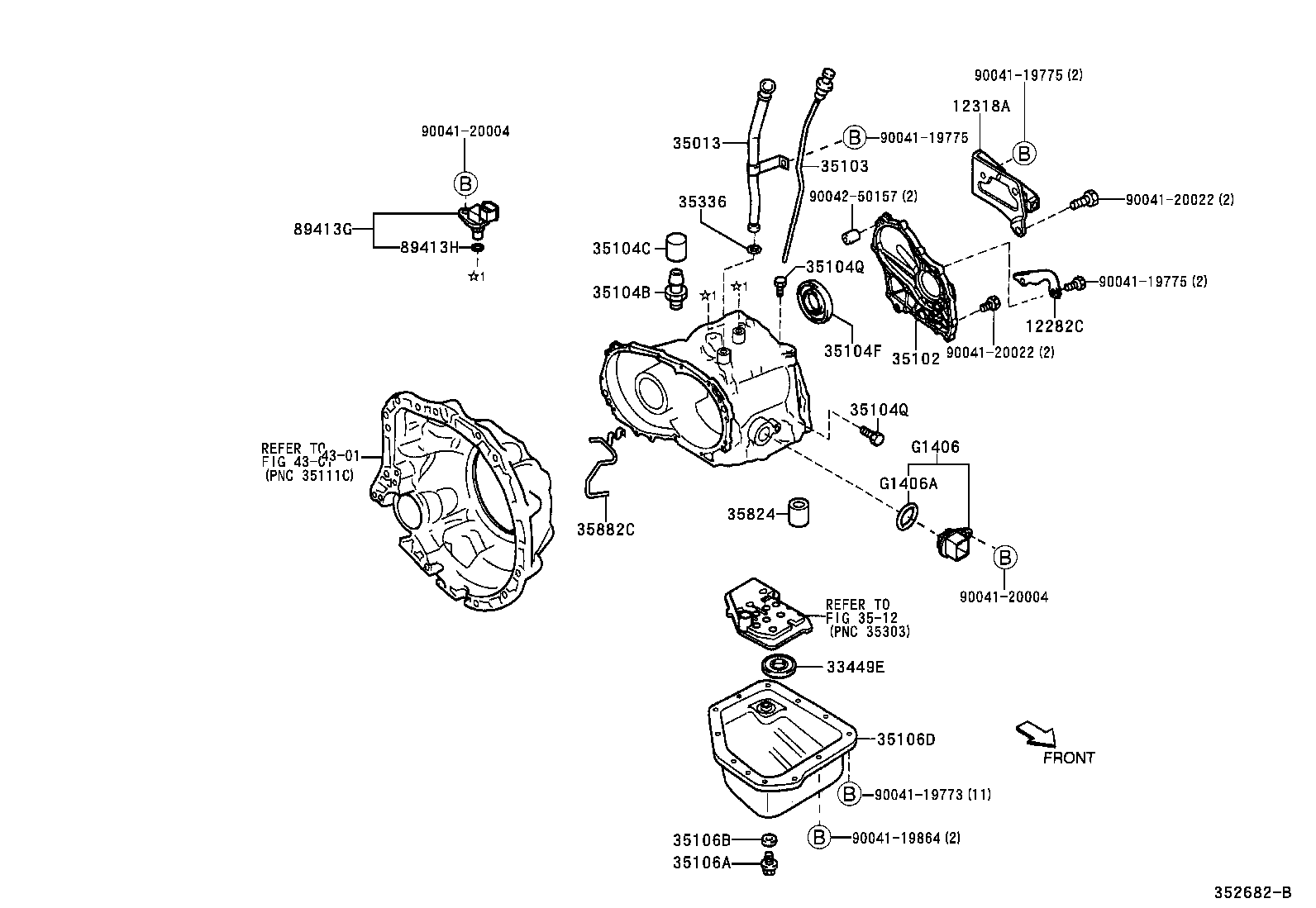

Click highlighted areas on diagram

diagram 12282C 12318A 33449E 35013 35102 35103 35104B 35104C 35104F 35104Q 35104Q 35106A 35106B 35106D 3512 35336 35824 35882C 4301 89413G 89413H 9004119773 9004119775 9004119775 9004119775 9004119864 9004120004 9004120004 9004120022 9004120022 9004250157 G1406 G1406A
Part # Description Qty Price
12282C - HANGER, ENGINE, NO.2
12282-97206

K3VE..M101,111..ATM

 1
12318A - BRACKET, ENGINE MOUNTIG, LOWER LH
12318-97203

K3VE..M101,111..ATM

 1
33449E - MAGNET, TRANSAXLE
33449-87502

M10#,11#..ATM

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-97202

M101,111..ATM

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35181-97202

M101,111..ATM

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-97203

M101,111..ATM

 1
35104C - PLUG, BREATHER, NO.2 (ATM)
90049-15050

M10#,11#..ATM

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90043-11316

M10#,11#..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90043-41041

M10#,11#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
90044-30281

M10#,11#..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90043-01160

M10#,11#..ATM

 1
35824 - SEAL, BRAKE CYLINDER
35824-97201

M101,111..ATM

 1
35882C - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-97201

M101,111..ATM

 1
89413G - SENSOR, TRANSMISSION REVOLUTION
89413-97201

M101,111..ATM

 2
89413H - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90043-01278

M101,111..ATM

 2
G1406 - CONNECTOR SUB-ASSY, TRANS SOLENOID
G1406-97201

M101,111..ATM

 1
G1406A - RING, O(FOR TRANS SOLENOID CONNECTOR)
90043-01281

M101,111..ATM

 1
Common parts
90041-19773
90041-19775
90041-19864
90041-20004
90041-20022
90042-50157
Linked diagrams
3512
4301
