M111A-GPSA (2000)

Toyota Duet

Production May 2000 - Dec 2001
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )K3VE

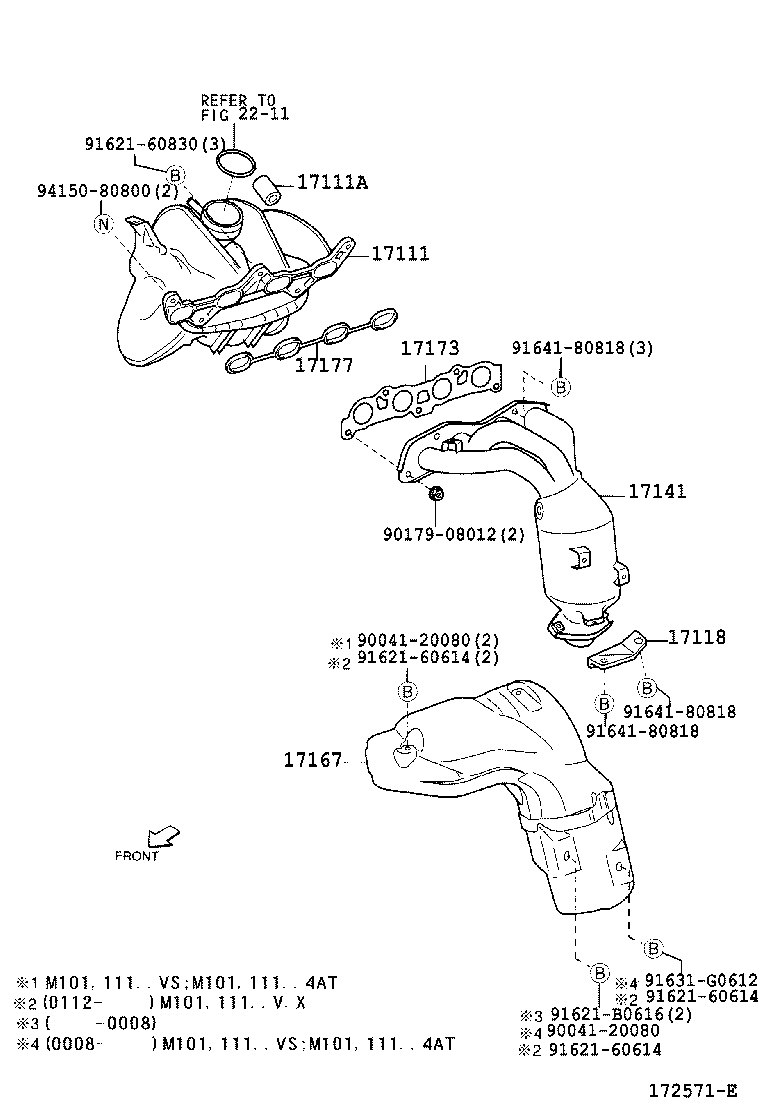

Click highlighted areas on diagram

diagram 17111 17111A 17118 17141 17167 17173 17177 2211 9004120080 9004120080 9017908012 9162160614 9162160614 9162160614 9162160830 91621B0616 91631G0612 9164180818 9164180818 9164180818 9415080800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-97401

K3VE..M101,111

 1
17111A - PLUG, NO.1
90043-39029

K3VE..M101,111

 1
17118 - STAY, MANIFOLD
17118-97401

K3VE..M101,111

 1
17141 - MANIFOLD, EXHAUST
17140-97401

K3VE..M101,111

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-97401

K3VE..M101,111..VS;K3VE..M101,111..4AT

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-97401

K3VE..M101,111

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-97402

K3VE..M101,111

 1
Common parts
90041-20080
90179-08012
91621-60614
91621-60830
91621-B0616
91631-G0612
91641-80818
94150-80800
Linked diagrams
2211
