M111A-GPSA (2000)
Toyota Duet
Production
May 2000
-
Dec 2001
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )K3VE

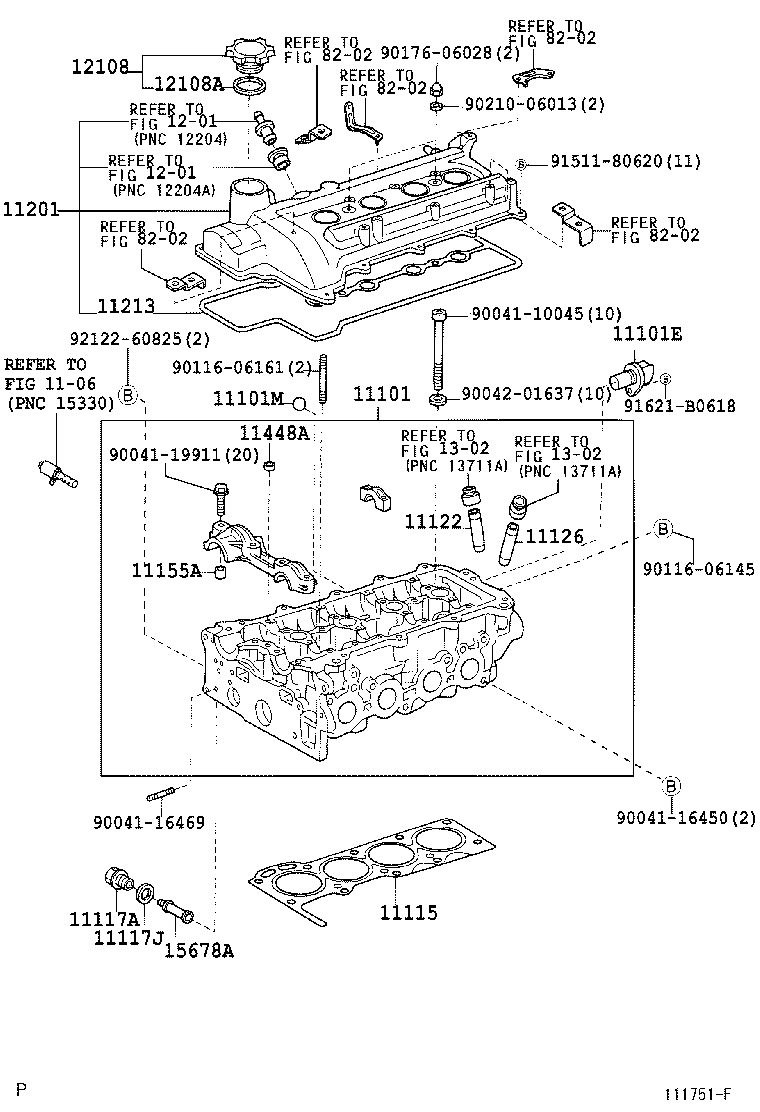

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05024 |
K3VE..M101,111 |
1 | ||
| 11101M - BALL NO.1(FOR CYLINDER HEAD) | ||||
| 90043-41078 |
K3VE..M101,111 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-97401 |
K3VE..M101,111 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-14013 |
K3VE..M101,111 |
1 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-14009 |
K3VE..M101,111 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-21010 |
K3VE..M101,111 STD |
8 | ||
| 11123-21010 |
K3VE..M101,111 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-21010 |
K3VE..M101,111 O/S 0.05 |
8 | ||
| 11122-21010 |
K3VE..M101,111 STD |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90042-53010 |
K3VE..M101,111 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-97401 |
K3VE..M101,111 |
1 | ||
| 11448A - ORIFICE, CYLINDER HEAD OIL | ||||
| 11448-87201 |
K3VE..M101,111 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-97401 |
K3VE..M101,111 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
K3VE..M101,111 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
K3VE..M101,111 |
1 | ||
| Common parts | ||||
| 90041-10045 | ||||
| 90041-16450 | ||||
| 90041-16469 | ||||
| 90041-19911 | ||||
| 90042-01637 | ||||
| 90116-06145 | ||||
| 90116-06161 | ||||
| 90176-06028 | ||||
| 90210-06013 | ||||
| 91511-80620 | ||||
| 91621-B0618 | ||||
| 92122-60825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1201 | ||||
| 1302 | ||||
| 8202 | ||||
