M111A-GMSA (2000)

Toyota Duet

Production May 2000 - May 2004
Engine K3VE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

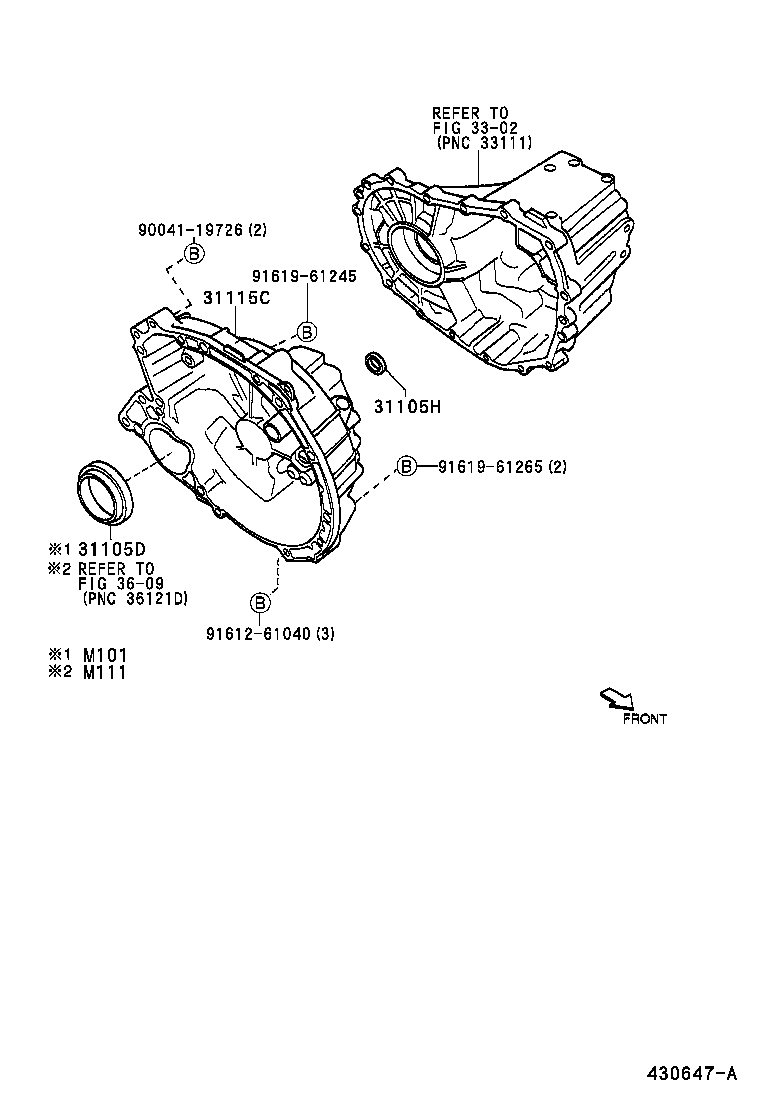

ILLUST NO. 1 OF 2(0005- )M101,111..5F

Click highlighted areas on diagram

diagram 31105D 31105H 31115C 3302 3609 9004119726 9161261040 9161961245 9161961265
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90043-11317

M10#,111;M110..5F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90043-10051

M10#,11#..5F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-97401

M101,111..5F

 1
Common parts
90041-19726
91612-61040
91619-61245
91619-61265
Linked diagrams
3302
3609
