M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

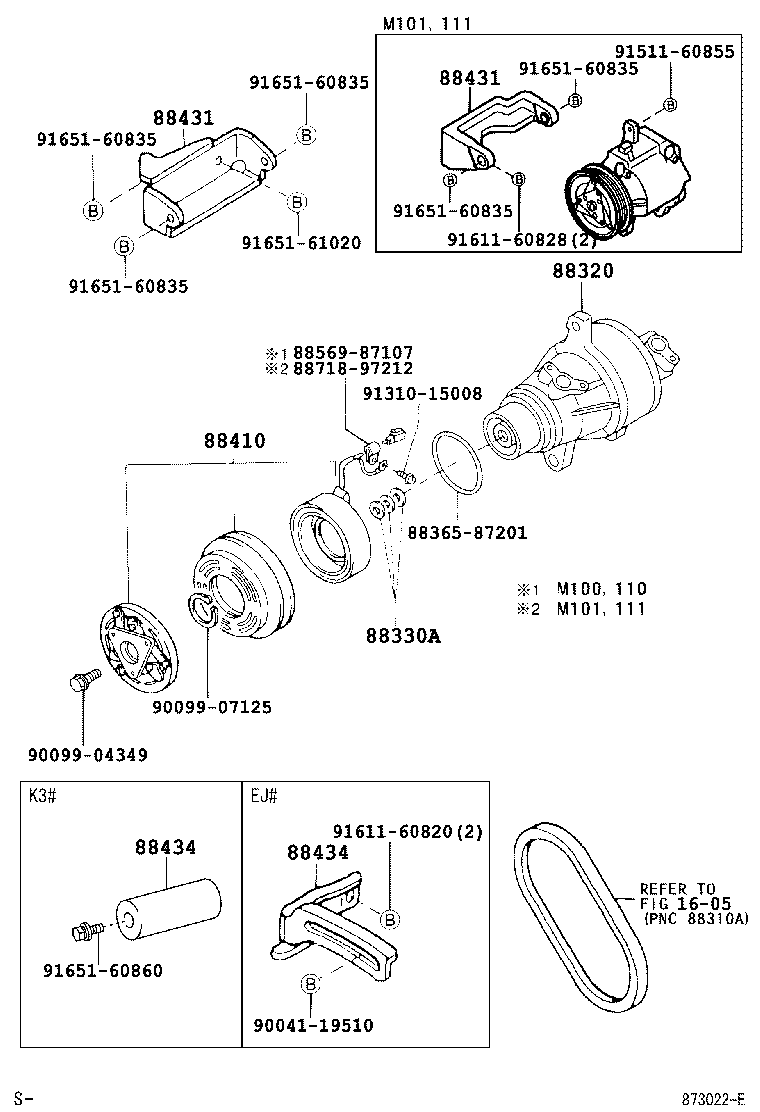

Click highlighted areas on diagram

diagram 1605 88320 88330A 8836587201 88410 88431 88431 88434 88434 8856987107 8871897212 9004119510 9009904349 9009907125 9131015008 9151160855 9161160820 9161160828 9165160835 9165160835 9165160835 9165160835 9165160835 9165160860 9165161020
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-97201

M10#,11#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88318-87704

M10#,11#

厚さ=0.1

 1
88318-87706

M10#,11#

厚さ=0.5

 1
88318-87705

M10#,11#

厚さ=0.3

 1
88410 - CLUTCH ASSY, MAGNET
88410-97201

M100,110

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-97201

M100,110

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-97201

M100,110

 1
88434 - BRACKET, COMPRESSOR MOUNTING, NO.4
88434-97201

M100,110

 1
88434 - BRACKET, COMPRESSOR MOUNTING, NO.4
88434-97201

M100,110

 1
Common parts
88365-87201
88569-87107
88718-97212
90041-19510
90099-04349
90099-07125
91310-15008
91511-60855
91611-60820
91611-60828
91651-60835
91651-60860
91651-61020
Linked diagrams
1605
