M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-0112)

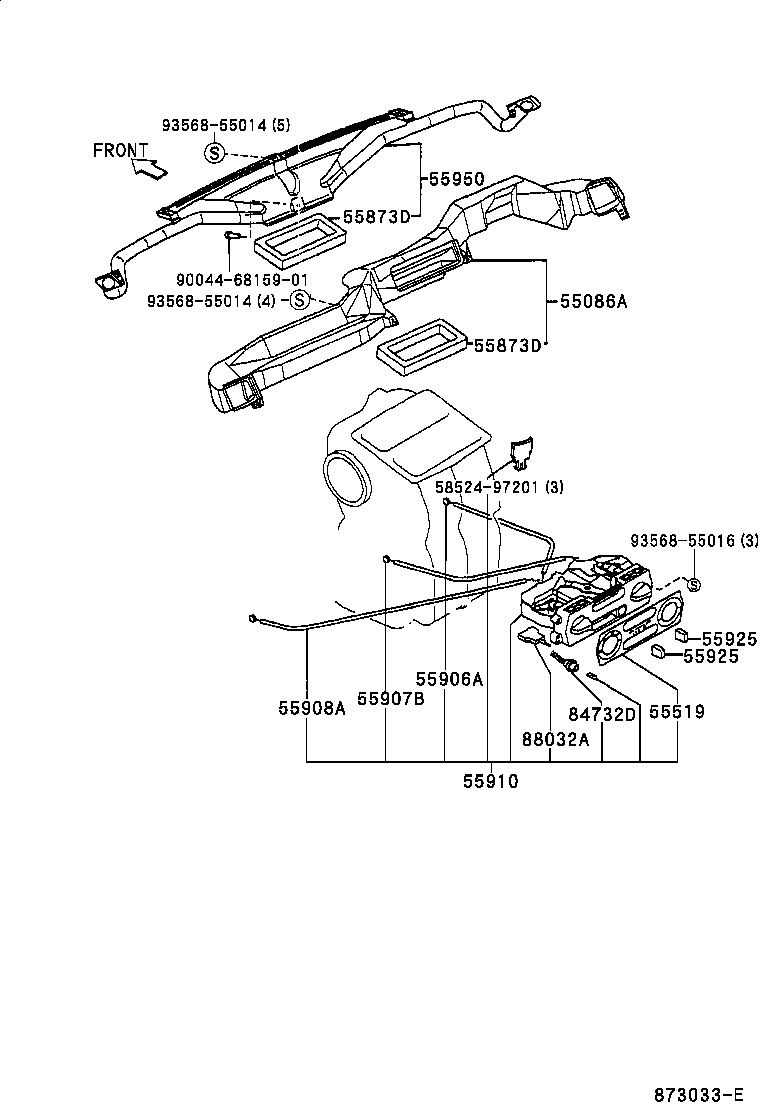

Click highlighted areas on diagram

diagram 55086A 55519 55873D 55873D 55906A 55907B 55908A 55910 55925 55925 55950 5852497201 84732D 88032A 900446815901 9356855014 9356855014 9356855016
Part # Description Qty Price
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-97201

M10#,11#

 1
55519 - PLATE, HEATER CONTROL NAME
55519-97202

M100,110..V

 1
55519-97218

M100,110..V

 1
55873D - SEAL, AIR DUCT, CENTER
55873-97201

M10#,11#

 2
55873D - SEAL, AIR DUCT, CENTER
55873-97201

M10#,11#

 2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-97201

M10#,11#

 1
55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55907-97201

M10#,11#..V,VS

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-97201

M10#,11#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-97201

M100,110..V

 1
55910-97223

M100,110..V

 1
55925 - KNOB, HEATER CONTROL LEVER
55925-87202

M10#,11#

 2
55925 - KNOB, HEATER CONTROL LEVER
55925-87202

M10#,11#

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-97201

M10#,11#

 1
84732D - SWITCH, HEATER BLOWER
84732-97202

M100,110..V

 1
88032A - RESISTOR, AIR CONDITIONER VARIABLE
88032-97201

M100,110..V

 1
Common parts
58524-97201
90044-6815901
93568-55014
93568-55016
