M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809- )

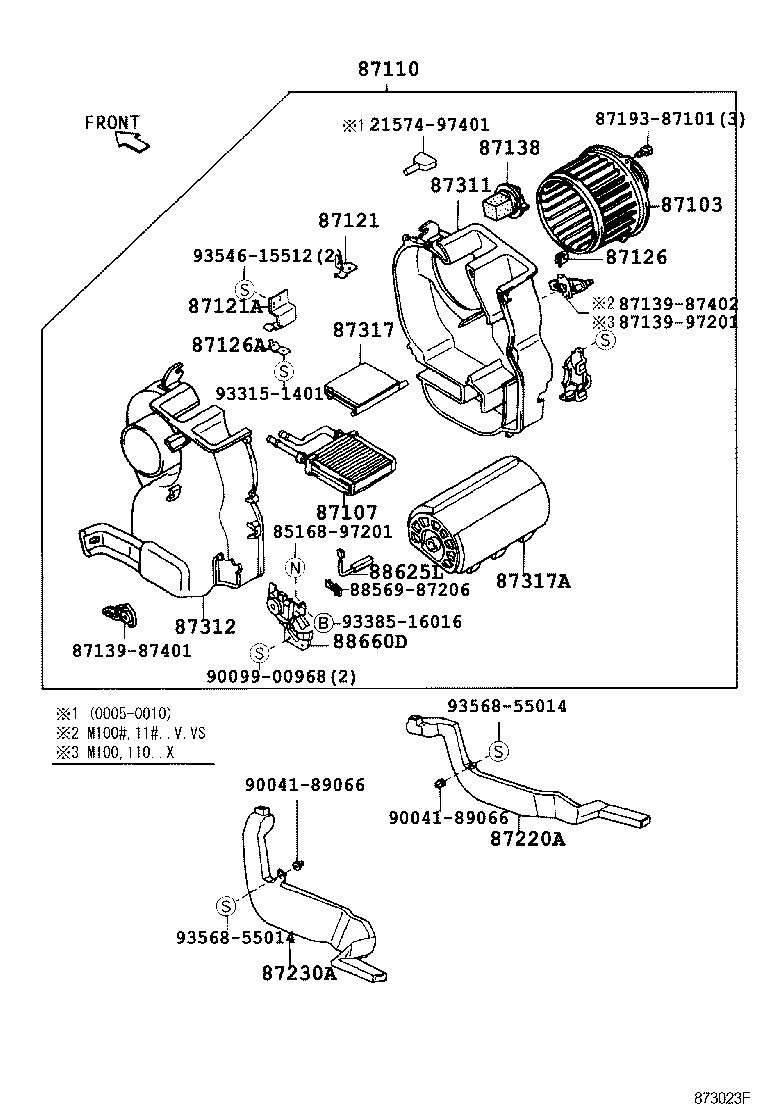

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-97201 |
M10#,11# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-97201 |
M10#,11# |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-97201 |
M100,110..V |
1 | ||
| 87110-97202 |
M100,110..V ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87121A - BRACKET, HEATER | ||||
| 87121-97201 |
M100,110 |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-87501 |
M10#,11# |
2 | ||
| 87126A - CLAMP, HEATER CONTROL | ||||
| 87124-97201 |
M10#,11# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-97201 |
M10#,11# |
1 | ||
| 87138-97202 |
M100,110..V |
1 | ||
| 87220A - DUCT ASSY, HEATER RADIATOR AIR | ||||
| 87220-97201 |
M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87230A - DUCT ASSY, HEATER AIR | ||||
| 87230-97201 |
M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87311 - CASE, HEATER, NO.1 | ||||
| 87311-97203 |
M100,110 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87311-97201 |
M100,110 |
1 | ||
| 87312 - CASE, HEATER, NO.2 | ||||
| 87311-97202 |
M100,110..V |
1 | ||
| 87311-97204 |
M100,110..V ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87317 - DAMPER, HEATER DUCT | ||||
| 87317-87401 |
M10#,11# |
1 | ||
| 87317A - DAMPER, HEATER DUCT | ||||
| 87317-87402 |
M100,110 |
1 | ||
| Common parts | ||||
| 21574-97401 | ||||
| 85168-97201 | ||||
| 87139-87401 | ||||
| 87139-87402 | ||||
| 87139-97201 | ||||
| 87193-87101 | ||||
| 88569-87206 | ||||
| 90041-89066 | ||||
| 90099-00968 | ||||
| 93315-14010 | ||||
| 93385-16016 | ||||
| 93546-15512 | ||||
| 93568-55014 | ||||
