M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

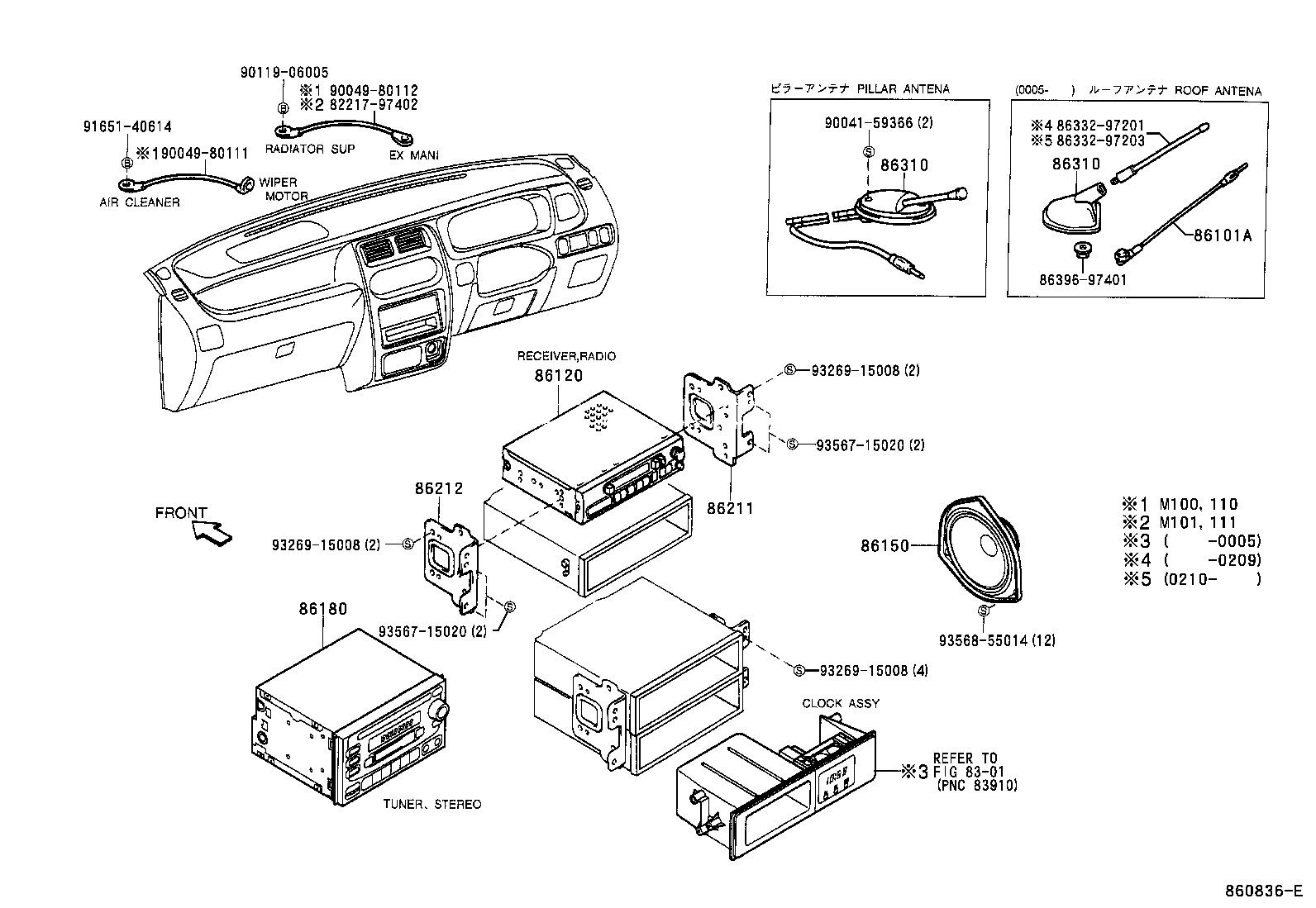

Click highlighted areas on diagram

diagram 8221797402 8301 86101A 86120 86150 86180 86211 86212 86310 86310 8633297201 8633297203 8639697401 9004159366 9004980111 9004980112 9011906005 9165140614 9326915008 9326915008 9326915008 9356715020 9356715020 9356855014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-33280

M100,110

FUJITSU TEN,ID=15852,AM/FM ﾏﾙﾁﾃﾞﾝｼﾁﾕ-ﾅ CD ｶｾﾂﾄ,2DIN

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-97216

M10#,11#

ﾄﾞｱｽﾋﾟ-ｶ16ｾﾝﾁ(ﾌﾛﾝﾄ ﾖｳ)

 2
86211 - BRACKET, RADIO, NO.1
86211-87227

M10#,11#

 1
86212 - BRACKET, RADIO, NO.2
86212-87223

M10#,11#

 1
86310 - ANTENNA ASSY, W/O HOLDER
86310-97201

M10#,11#

ﾋﾟﾗ- ｱﾝﾃﾅ

 1
86310 - ANTENNA ASSY, W/O HOLDER
86310-97201

M10#,11#

ﾋﾟﾗ- ｱﾝﾃﾅ

 1
Common parts
82217-97402
86332-97201
86332-97203
86396-97401
90041-59366
90049-80111
90049-80112
90119-06005
91651-40614
93269-15008
93567-15020
93568-55014
Linked diagrams
8301
