M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

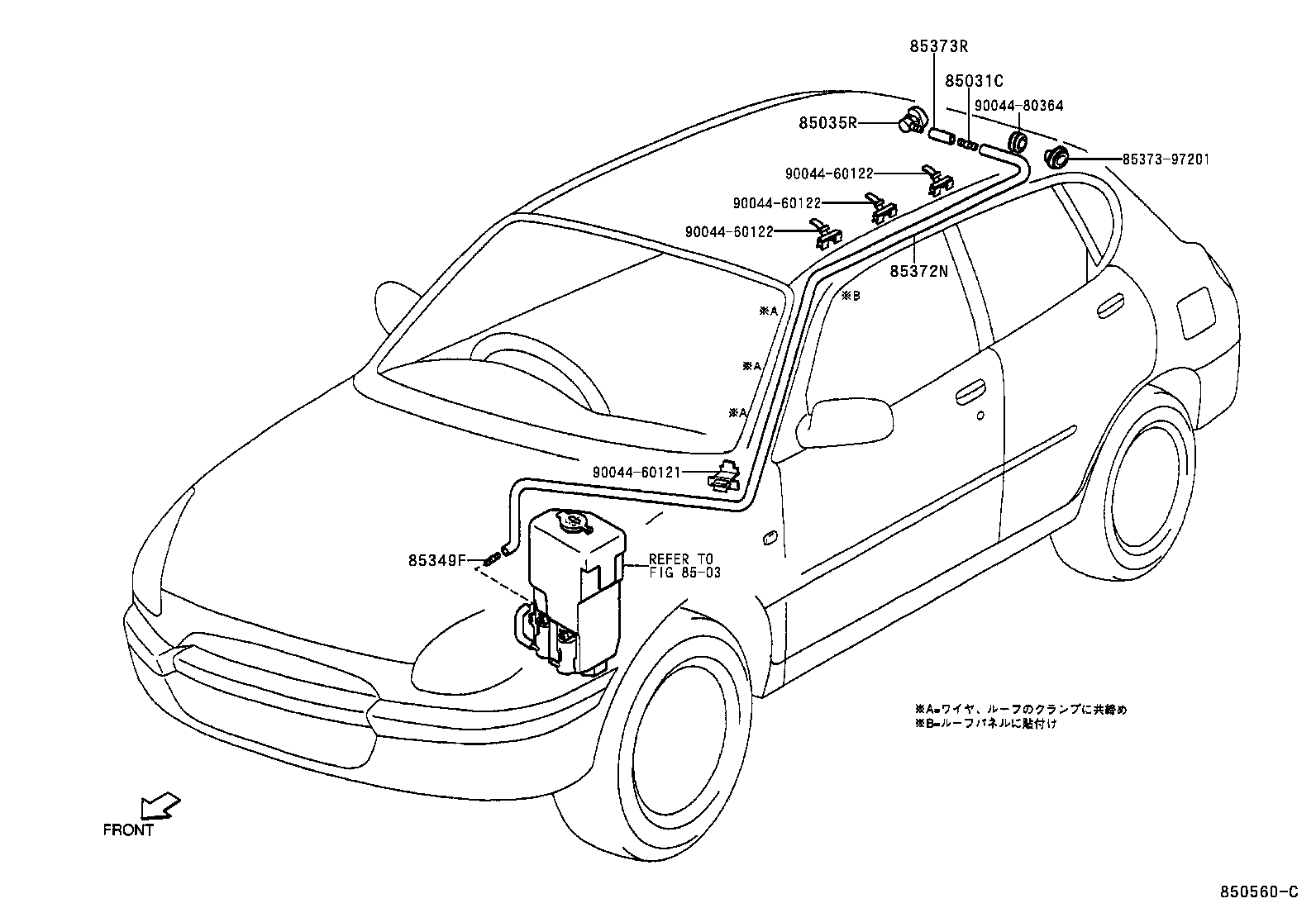

Click highlighted areas on diagram

diagram 8503 85031C 85035R 85349F 85372N 8537397201 85373R 9004460121 9004460122 9004460122 9004460122 9004480364
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-87702

M10#,11#

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-97201

M10#,11#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-87201

M10#,11#

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85343-97201

M10#,11#

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85343-97202

M10#,11#

 1
Common parts
85373-97201
90044-60121
90044-60122
90044-80364
Linked diagrams
8503
