M110A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

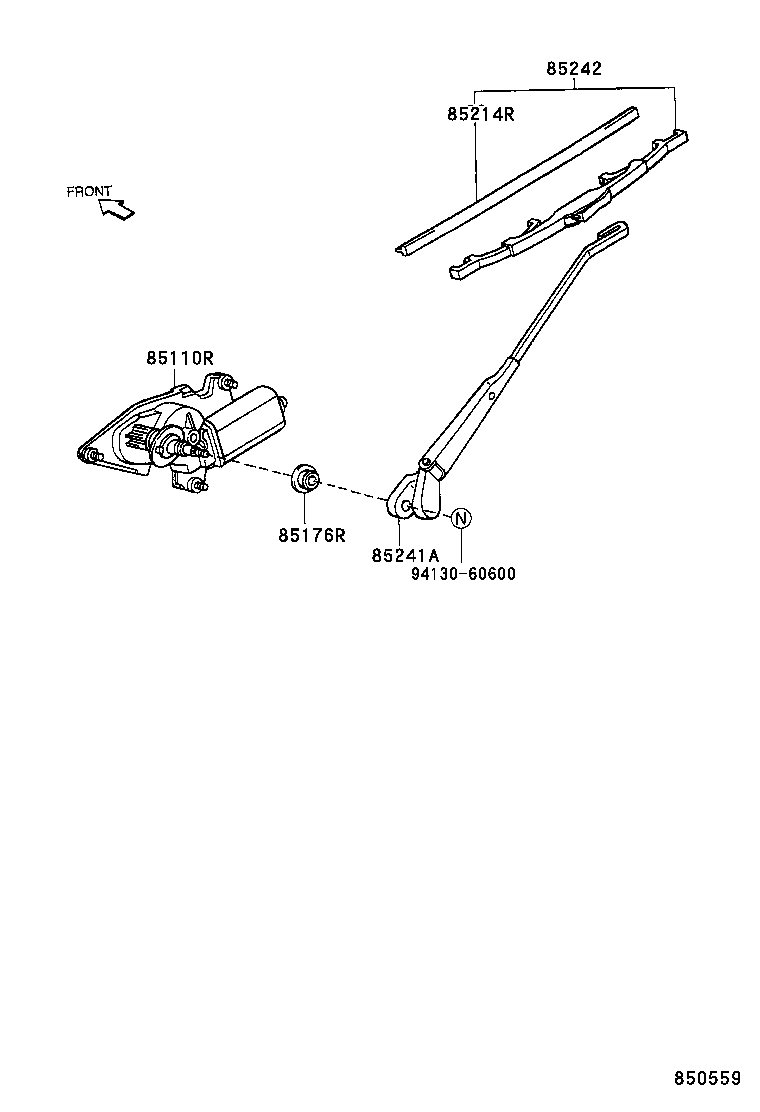

Click highlighted areas on diagram

diagram 85110R 85176R 85214R 85241A 85242 9413060600
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-97201

M10#,11#

 1
85176R - CAP, REAR WIPER LINK
85176-97201

M10#,11#

 1
85214R - RUBBER, REAR WIPER
85243-87401

M10#,11#

 1
85241A - ARM, REAR WIPER
85241-97201

M10#,11#

 1
85242 - BLADE, RR WIPER
85242-87401

M10#,11#

 1
85291-87209

M10#,11#

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 1
Common parts
94130-60600
