M110A-GPNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9809-0005)

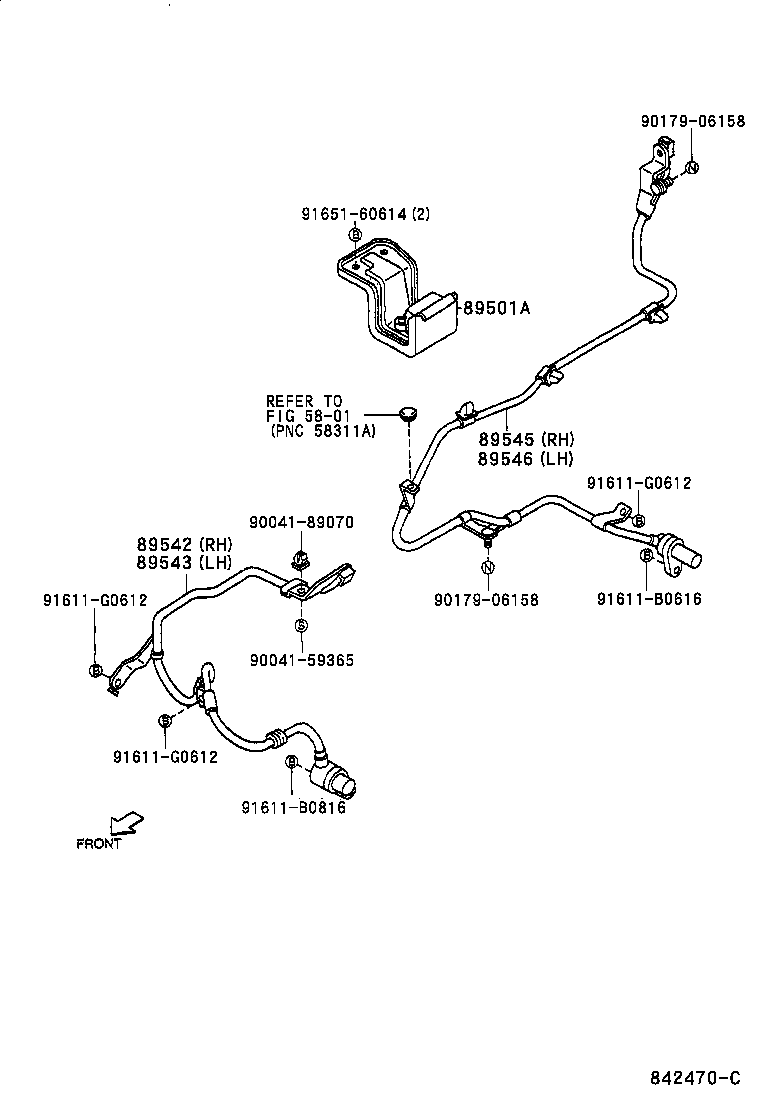

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89501A - SENSOR, GRAVITY | ||||
| 89501-97201 |
M110 |
1 | ||
| 89501-97401 |
M11# |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89544-97201 |
M100,110 |
1 | ||
| 89544-97401 |
M10#,11# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89545-97201 |
M100,110 |
1 | ||
| 89545-97401 |
M10#,11# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89544-97202 |
M110 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89545-97202 |
M110 |
1 | ||
| Common parts | ||||
| 90041-59365 | ||||
| 90041-89070 | ||||
| 90179-06158 | ||||
| 91611-B0616 | ||||
| 91611-B0816 | ||||
| 91611-G0612 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 5801 | ||||
