M110A-GPNF (1998)
Toyota Duet

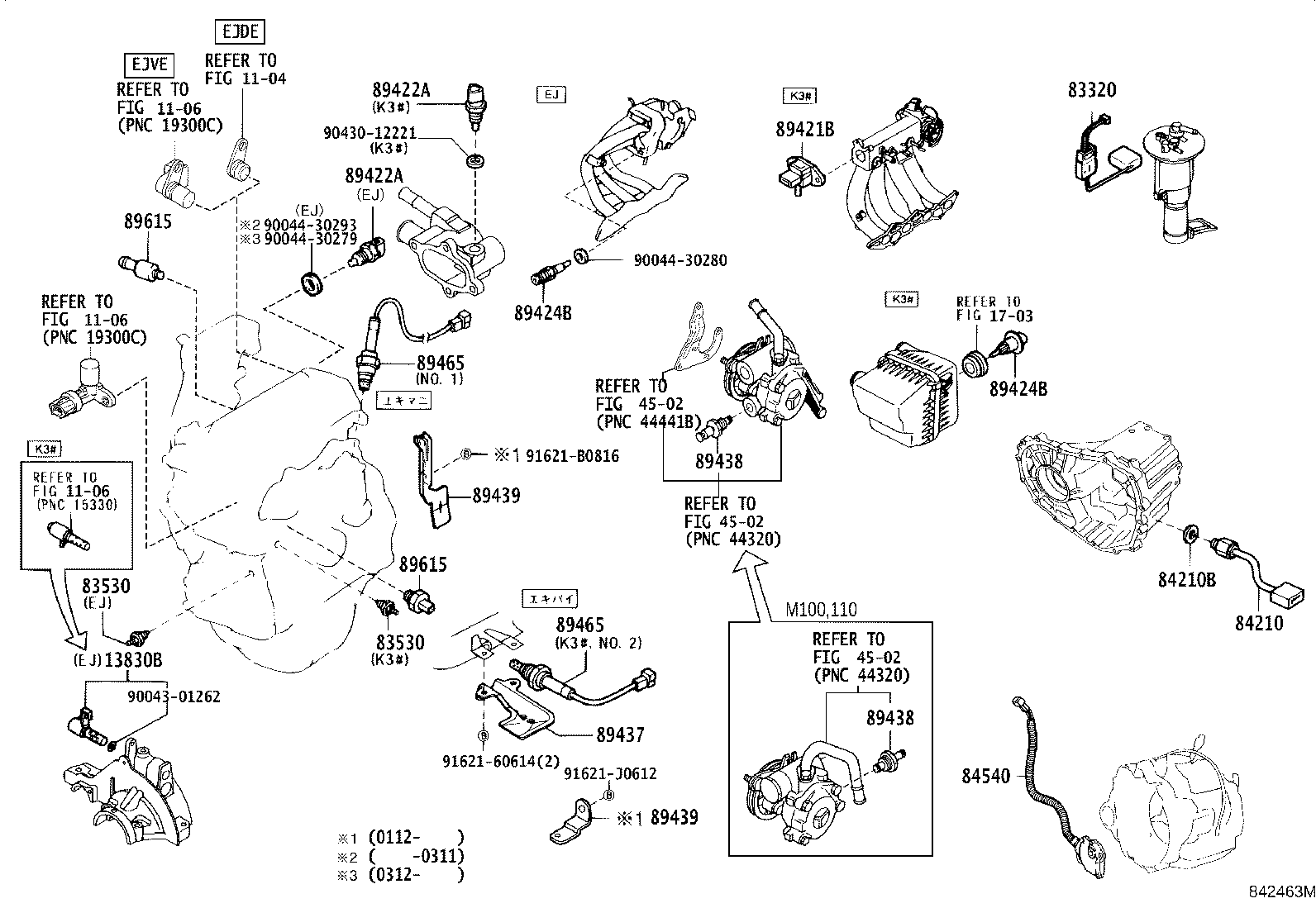

ILLUST NO. 1 OF 4(9809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 77501-97202 |
M11# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-87205 |
M10#,11# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-87205 |
M10#,11# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-97201 |
M10#,11#..4AT |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-87204 |
M100,110 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-87204 |
M100,110 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-87202 |
M100,110 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-87202 |
M100,110 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89630-97201 |
M10#,11# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89630-97201 |
M10#,11# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-87212 |
M100,110 NO.1 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-87212 |
M100,110 NO.1 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-97201 |
M100,110 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-97201 |
M100,110 |
1 | ||
| Common parts | ||||
| 90043-01262 | ||||
| 90044-30279 | ||||
| 90044-30280 | ||||
| 90044-30293 | ||||
| 90430-12221 | ||||
| 91621-60614 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1106 | ||||
| 1703 | ||||
| 4502 | ||||

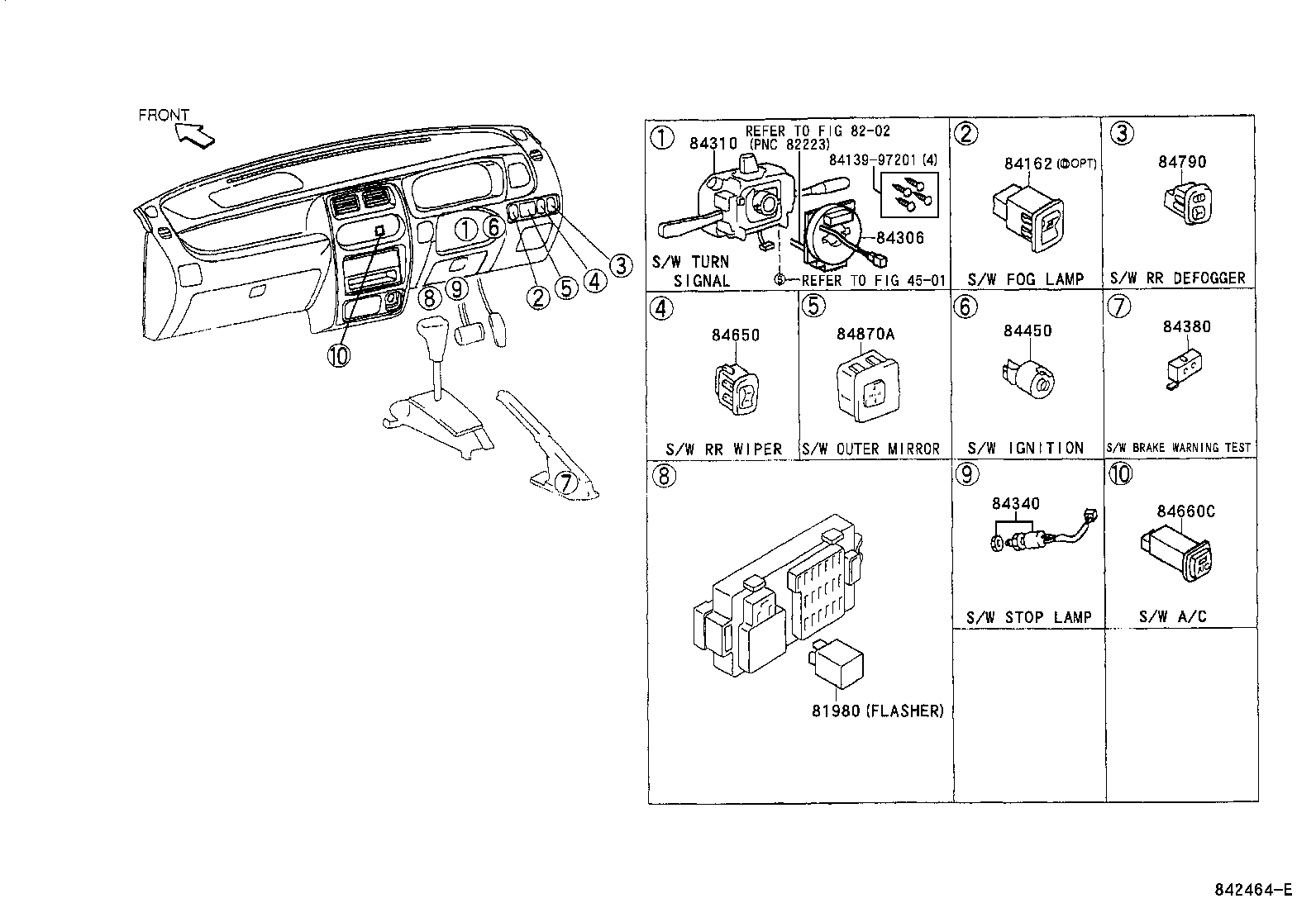

ILLUST NO. 2 OF 4(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-97201 |
M10#,11# |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-97201 |
M100,110 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-97202 |
M100,110 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84329-97201 |
M10#,11# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-87401 |
M10#,11# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-97201 |
M10#,11# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84458-87703 |
M10#,11# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-97201 |
M10#,11# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-97201 |
M10#,11# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-97201 |
M10#,11# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-87109 |
M10#,11# |
1 | ||
| Common parts | ||||
| 84139-97201 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8202 | ||||

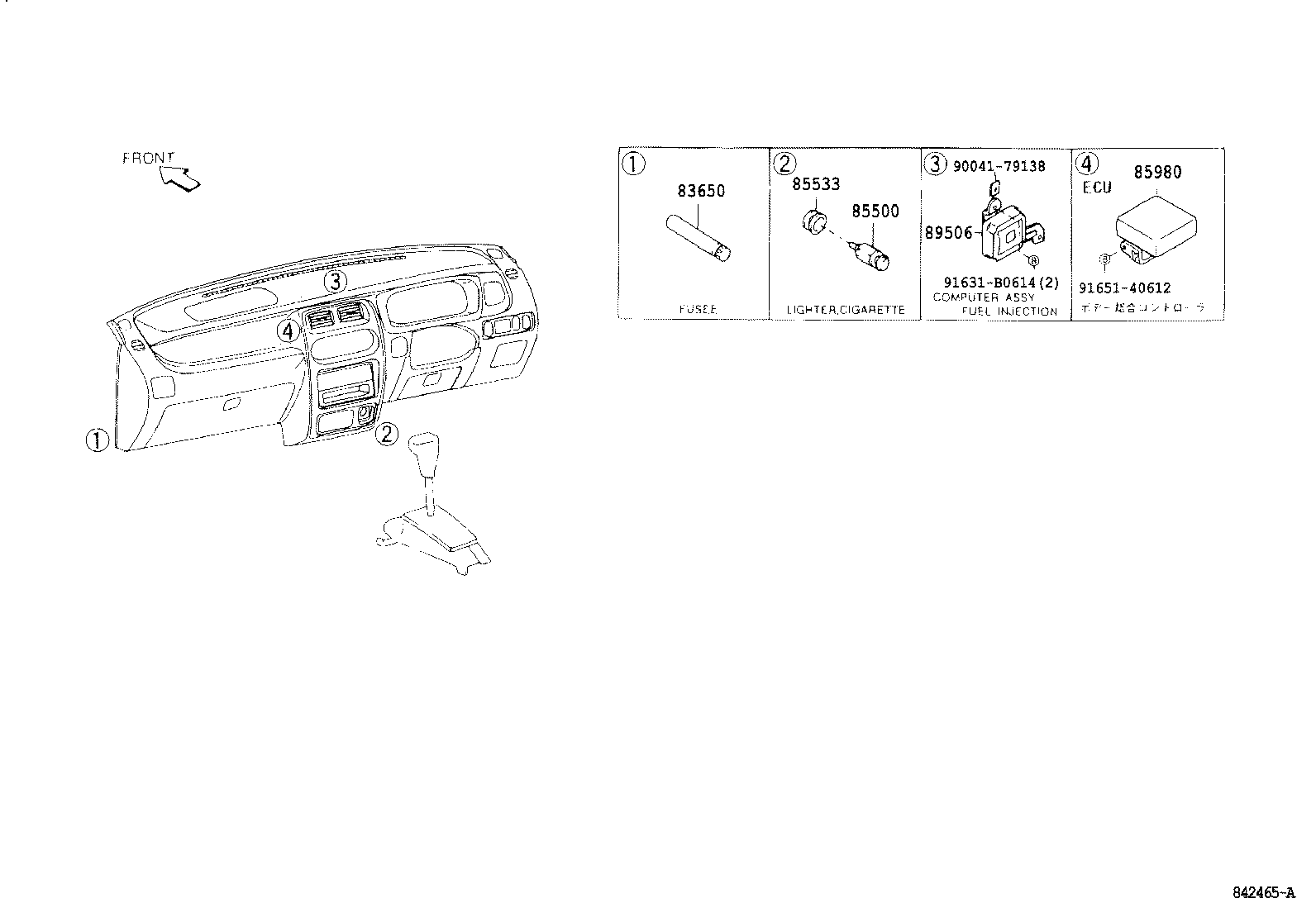

ILLUST NO. 3 OF 4(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90049-86005 |
M10#,11# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-87505 |
M10#,11# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-87701 |
M10#,11# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-97201 |
M100,110 |
1 | ||
| 89506 - COMPUTER SET, FUEL INJECTION | ||||
| 89560-97229 |
M100,110 |
1 | ||
| Common parts | ||||
| 90041-79138 | ||||
| 91631-B0614 | ||||
| 91651-40612 | ||||

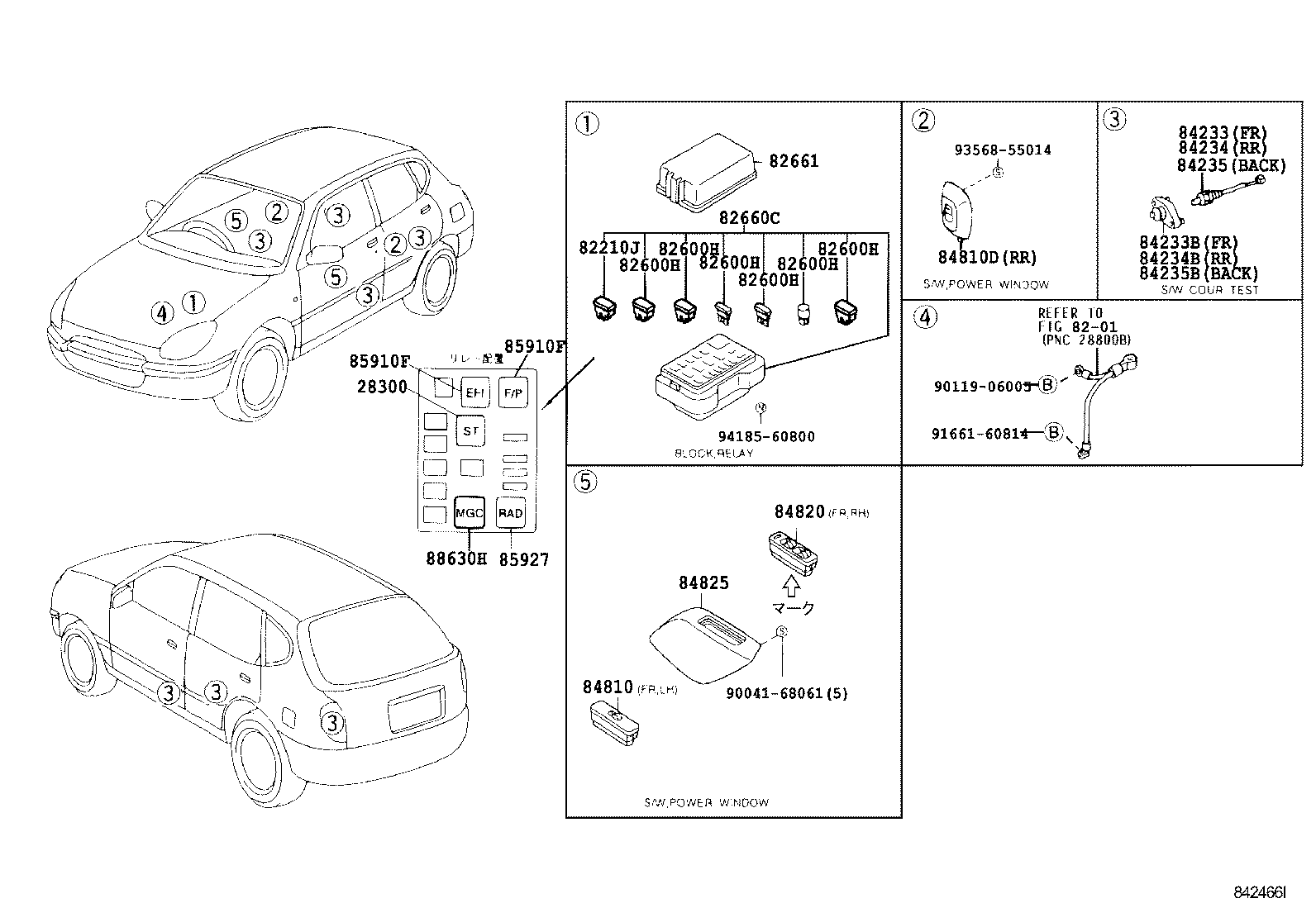

ILLUST NO. 4 OF 4(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90049-87009 |
EJDE..M100,110 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90049-82033 |
M10#,11# 60A,ｲｴﾛｰ |
1 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40047 |
M100,110 50A |
1 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
1 | ||
| 90049-40049 |
M10#,11# 30A |
1 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40048 |
M10#,11# 40A |
1 | ||
| 90049-40028 |
M100,110 |
1 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40047 |
M100,110 50A |
1 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
1 | ||
| 90049-40049 |
M10#,11# 30A |
1 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40048 |
M10#,11# 40A |
1 | ||
| 90049-40028 |
M100,110 |
1 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40047 |
M100,110 50A |
1 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
1 | ||
| 90049-40049 |
M10#,11# 30A |
1 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40048 |
M10#,11# 40A |
1 | ||
| 90049-40028 |
M100,110 |
1 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40047 |
M100,110 50A |
1 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
1 | ||
| 90049-40049 |
M10#,11# 30A |
1 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40048 |
M10#,11# 40A |
1 | ||
| 90049-40028 |
M100,110 |
1 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40047 |
M100,110 50A |
1 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
1 | ||
| 90049-40049 |
M10#,11# 30A |
1 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40048 |
M10#,11# 40A |
1 | ||
| 90049-40028 |
M100,110 |
1 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40047 |
M100,110 50A |
1 | ||
| 90049-40020 |
M100,110 15A,ﾌﾞﾙｰ |
1 | ||
| 90049-40049 |
M10#,11# 30A |
1 | ||
| 90049-40019 |
M100,110 10A,ﾚｯﾄﾞ |
1 | ||
| 90049-40021 |
M100,110 20A,ｲｴﾛｰ |
1 | ||
| 90049-40048 |
M10#,11# 40A |
1 | ||
| 90049-40028 |
M100,110 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-97244 |
M100,110..4AT..V ｱﾘ(ABS) |
1 | ||
| 82660-97202 |
M100,110..4AT..V |
1 | ||
| 82660-97211 |
M100,110..4AT..V ｱﾘ(ABS) |
1 | ||
| 82660-97238 |
M100,110..4AT..V |
1 | ||
| 82660-97211 |
M100,110..4AT..V ｱﾘ(ABS) |
1 | ||
| 82660-97202 |
M100,110..4AT..V |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-97201 |
M100,110 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-97201 |
M10#,11# 左側 |
1 | ||
| 84230-87212 |
M10#,11# 右側 |
1 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-87201 |
M10#,11# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-87212 |
M10#,11# 右側 |
1 | ||
| 84230-97203 |
M10#,11# 左側 |
1 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-87201 |
M100,110 |
2 | ||
| 84234-97202 |
M10#,11# 左側 |
1 | ||
| 84234-87201 |
M10#,11# 右側 |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-87212 |
M10#,11# |
1 | ||
| 84235B - CUSHION, COURTESY SWITCH(FOR BACK DOOR) | ||||
| 84234-97202 |
M10#,11# |
1 | ||
| 84234-87201 |
M100,110 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-9720203 |
M10#,11#..V,VS;M100,110..X..WVVT DARK GRAY,TRIMS6 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-8710223 |
M100,110 DARK GRAY,TRIMS6 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-9720103 |
M100,110..V DARK GRAY,TRIMS6,ﾏｰｸ無し |
1 | ||
| 84825 - CASE, POWER WINDOW SWITCH | ||||
| 84825-9720103 |
M10#,11# DARK GRAY,TRIMS6,右側 |
1 | ||
| 84825-9720203 |
M10#,11# DARK GRAY,TRIMS6,左側 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90049-87009 |
M100,110 |
2 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90049-87009 |
M100,110 |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90049-87009 |
M100,110 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90049-87009 |
M100,110 |
1 | ||
| Common parts | ||||
| 90041-68061 | ||||
| 90119-06005 | ||||
| 91661-60814 | ||||
| 93568-55014 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 8201 | ||||
